Dewalt DW304PK Type 4 Cutsaw Spare Parts

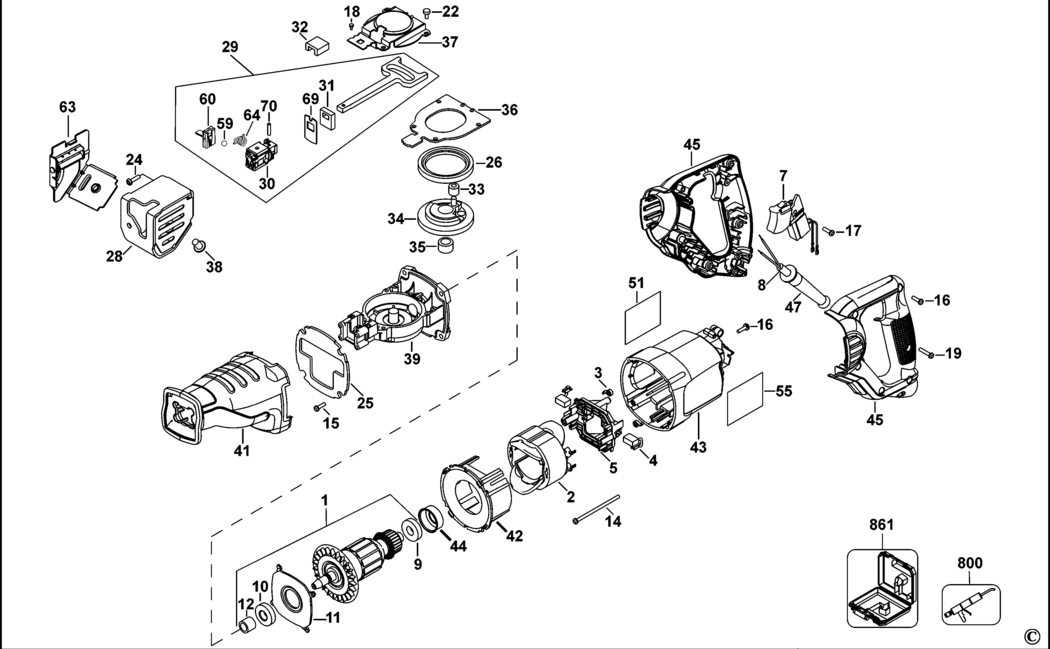

An exploded drawing and spare parts listing for the Dewalt DW304PK Type 4 Cutsaw

	Ex VAT	Inc VAT
1 - ARMATURE SA GB BDE-616355-01SV.A2 616355-01SV	-
1 - ARMATURE 120V LX BDE-616355-00SV.A0 616355-00SV	£84.42	£101.30
2 - FIELD 115V BDE-448719-80SV.A4 448719-80SV	£30.08	£36.10
2 - FIELD 230V GB BDE-448719-81SV.A0 448719-81SV	£25.70	£30.84
2 - FIELD 115V LX BDE-448719-80SV.A5 448719-80SV	£30.08	£36.10
3 - BRUSH SPRING BDE-383387-00.A12 383387-00	£3.80	£4.56
3 - BRUSH SPRING BDE-383387-00.A13 383387-00	£3.80	£4.56
4 - BRUSH 230V GB BDE-N501035.A7 N501035	£9.41	£11.29
4 - BRUSH 230V LX BDE-N501035.A8 N501035	£9.41	£11.29
5 - BRUSHPLATE BDE-383597-01.A1 383597-01	£12.17	£14.60
5 - BRUSH SA GB BDE-N402490.A17 N402490	£14.57	£17.48
5 - BRUSH SA LX BDE-N402490.A18 N402490	£14.57	£17.48
7 - SWITCH SA LX BDE-N410303.A2 N410303	£30.08	£36.10
7 - SWITCH SA BDE-N054930SV.A1 N054930SV	£78.12	£93.74
7 - SWITCH GB BDE-N054929SV.A1 N054929SV	£65.52	£78.62
8 - CORDSET LX BDE-N059768.A3 N059768	£34.00	£40.80
8 - CORDSET (M/PLUG) GB GB BDE-N053149.A1 N053149	-
9 - BEARING BDE-605040-20.A118 605040-20	£4.69	£5.63
9 - BEARING BDE-605040-20.A120 605040-20	£4.69	£5.63
10 - BEARING BDE-605040-20.A121 605040-20	£4.69	£5.63
10 - BEARING BDE-605040-20.A122 605040-20	£4.69	£5.63
11 - PLATE BDE-383476-00.A12 383476-00	£1.66	£1.99
11 - PLATE BDE-383476-00.A13 383476-00	£1.66	£1.99
12 - BUSH BDE-616345-00.A5 616345-00	£1.66	£1.99
12 - BUSH BDE-616345-00.A6 616345-00	£1.66	£1.99
14 - SCREW BDE-330019-50.A93 330019-50	£1.66	£1.99
14 - SCREW BDE-330019-18.A28 330019-18	£1.66	£1.99
15 - SCREW BDE-330019-15.A25 330019-15	£1.66	£1.99
15 - SCREW BDE-330019-15.A26 330019-15	£1.66	£1.99
16 - SCREW BDE-330019-32.A163 330019-32	£1.66	£1.99
16 - SCREW BDE-330019-32.A164 330019-32	£1.66	£1.99
17 - SCREW.TEMP GB BDE-330019-01.A41 330019-01	£1.66	£1.99
17 - SCREW.TEMP BDE-330019-01.A42 330019-01	£1.66	£1.99
17 - SCREW.TEMP LX BDE-330019-01.A43 330019-01	£1.66	£1.99
18 - SCREW BDE-158472-00.A8 158472-00	£1.66	£1.99
18 - SCREW BDE-158472-00.A9 158472-00	£1.66	£1.99
19 - SCREW BDE-330019-14.A181 330019-14	£1.66	£1.99
19 - SCREW BDE-330019-14.A182 330019-14	£1.66	£1.99
22 - SCREW BDE-144457-02.A27 144457-02	£1.66	£1.99
22 - SCREW BDE-144457-02.A28 144457-02	£1.66	£1.99
24 - SCREW BDE-142940-00.A40 142940-00	£1.66	£1.99
24 - SCREW BDE-142940-00.A41 142940-00	£1.66	£1.99
25 - GASKET BDE-146576-00.A16 146576-00	£1.66	£1.99
25 - GASKET BDE-146576-00.A17 146576-00	£1.66	£1.99
26 - RING BDE-N401394.A20 N401394	£7.85	£9.42
26 - RING BDE-N401394.A21 N401394	£7.85	£9.42
28 - SHOE BDE-N192684.A4 N192684	£10.85	£13.02
28 - SHOE BDE-N192684.A5 N192684	£10.85	£13.02
29 - SHAFT SA BDE-N201032 N201032	£38.80	£46.56
29 - SHAFT SA BDE-N380620.A1 N380620	£34.00	£40.80
30 - BLADE CLAMP BDE-N410097.A4 N410097	£18.91	£22.69
30 - BLADE CLAMP BDE-N410097.A5 N410097	£18.91	£22.69
31 - FELT SEAL BDE-609488-00.A17 609488-00	£1.66	£1.99
31 - FELT SEAL BDE-609488-00.A18 609488-00	£1.66	£1.99
32 - BEARING BDE-N400905.A1 N400905	£1.66	£1.99
32 - BEARING BDE-604644-01.A1 604644-01	£5.88	£7.06
33 - BEARING NEEDLE BDE-385238-00.A40 385238-00	£3.30	£3.96
33 - BEARING NEEDLE BDE-385238-00.A41 385238-00	£3.30	£3.96
34 - GEAR BDE-448503-14SV.A0 448503-14SV	£38.80	£46.56
34 - GEAR BDE-448503-14.A8 448503-14	£25.70	£30.84
35 - BEARING BDE-135531-00.A7 135531-00	£2.26	£2.71
35 - BEARING BDE-135531-00.A8 135531-00	£2.26	£2.71
36 - PLATE BDE-N083910.A10 N083910	£3.80	£4.56
36 - PLATE BDE-N083910.A11 N083910	£3.80	£4.56
37 - PLATE BDE-448489-03.A8 448489-03	£4.69	£5.63
37 - PLATE BDE-448489-03.A9 448489-03	£4.69	£5.63
38 - SCREW BDE-099279-08.A7 099279-08	£2.48	£2.97
38 - SCREW BDE-099279-08.A8 099279-08	£2.48	£2.97
39 - GEARCASE BDE-616333-00.A9 616333-00	£30.08	£36.10
39 - GEARCASE BDE-616333-00SV.A6 616333-00SV	£30.08	£36.10
41 - COVER BDE-N028019.A7 N028019	£16.03	£19.24
41 - COVER BDE-N028019.A8 N028019	£16.03	£19.24
42 - BAFFLE FAN BDE-382750-01.A10 382750-01	£1.66	£1.99
42 - NO LONGER AVAILABLE BDE-000000-00.A63962 000000-00	-
43 - FIELDCASE LX BDE-382747-08.A5 382747-08	£15.63	£18.76
43 - FIELDCASE GB BDE-382747-08.A6 382747-08	£15.63	£18.76
44 - SLEEVE BDE-137382-02.A22 137382-02	£1.66	£1.99
44 - SLEEVE BDE-137382-02.A23 137382-02	£1.66	£1.99
45 - HOUSING HANDLE BDE-N017723.A8 N017723	£14.19	£17.03
45 - HOUSING HANDLE BDE-N017723.A9 N017723	£14.19	£17.03
47 - CORD PROTECTOR BDE-330005-01.A22 330005-01	£1.66	£1.99
47 - CORD PROTECTOR BDE-N542553.A121 N542553	£3.80	£4.56
51 - RATING PLATE LX BDE-N253039.A0 N253039	£2.71	£3.25
51 - RATING PLATE GB BDE-N266764 N266764	£3.22	£3.86
55 - BRAND LABEL BDE-627212-00.A8 627212-00	£1.66	£1.99
55 - BRAND LABEL BDE-627212-00.A9 627212-00	£1.66	£1.99
59 - BALL BDE-000903-00.A59 000903-00	£12.17	£14.60
59 - BALL BDE-000903-00.A60 000903-00	£12.17	£14.60
60 - SLIDER BDE-N436043.A6 N436043	£9.41	£11.29
60 - SLIDER BDE-N436043.A7 N436043	£9.41	£11.29
63 - LEVER SA BDE-N192680.A1 N192680	£5.88	£7.06
63 - LEVER SA BDE-N192680.A2 N192680	£5.88	£7.06
64 - BLADE CLAMP BDE-N410097.A6 N410097	£18.91	£22.69
64 - BLADE CLAMP BDE-N410097.A7 N410097	£18.91	£22.69
65 - PIN BDE-396016-00.A1 396016-00	£1.66	£1.99
66 - SPRING BDE-396017-00.A6 396017-00	£3.30	£3.96
69 - RETAINER BDE-608202-00.A10 608202-00	£1.66	£1.99
69 - RETAINER BDE-608202-00.A11 608202-00	£1.66	£1.99
70 - ROLLPIN BDE-330041-27.A13 330041-27	£1.66	£1.99
70 - ROLLPIN BDE-330041-27.A14 330041-27	£1.66	£1.99
800 - GREASE BDE-429698-00.A52 429698-00	£84.42	£101.30
800 - GREASE BDE-429698-00.A53 429698-00	£84.42	£101.30
861 - KITBOX BDE-N003337.A7 N003337	£37.35	£44.82
861 - KITBOX BDE-N003337.A8 N003337	£37.35	£44.82
