Dewalt DW743N Type 2 Combination Saw Spare Parts

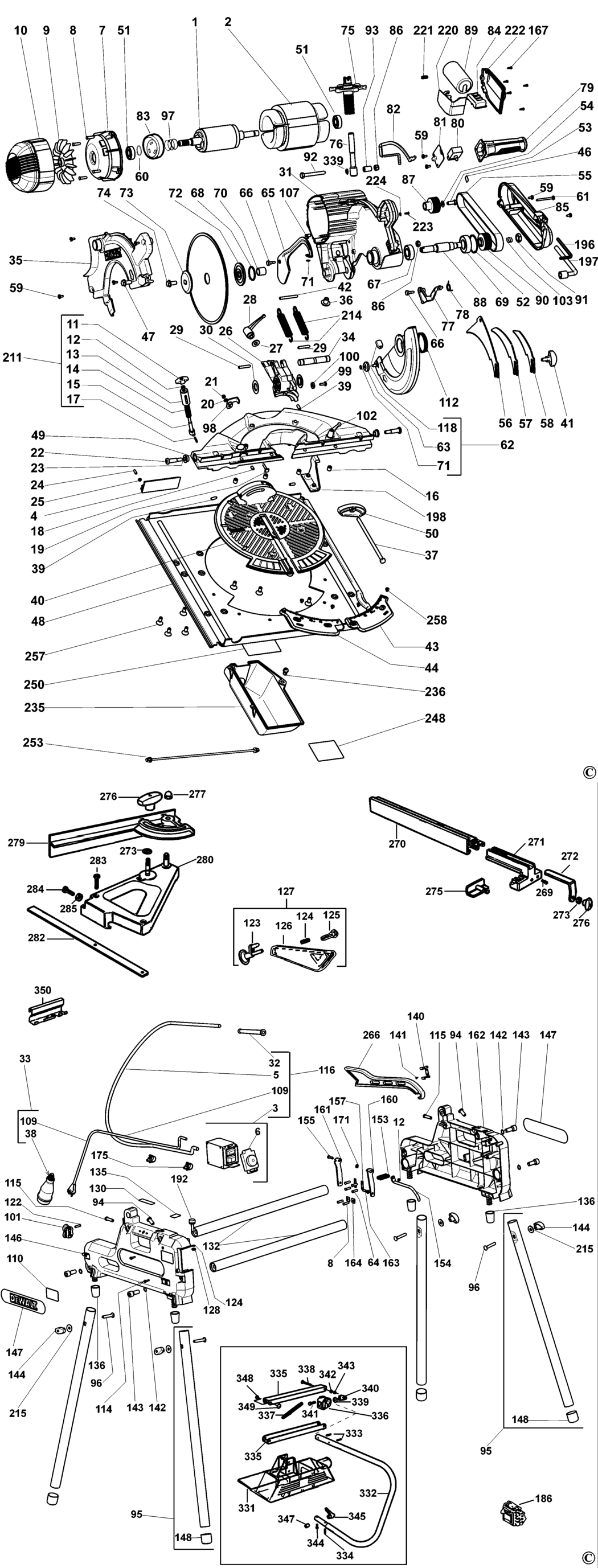

An exploded drawing and spare parts listing for the Dewalt DW743N Type 2 Combination Saw

	Ex VAT	Inc VAT
1 - ARMATURE 115V LX BDE-868397-04.A2 868397-04	£131.46	£157.75
1 - ARMATURE 230V GB BDE-868397-03.A0 868397-03	£131.46	£157.75
2 - STATOR 230V GB BDE-868395-04.A4 868395-04	£232.38	£278.85
2 - STATOR 115V LX BDE-868395-06.A4 868395-06	£200.77	£240.92
3 - SWITCH SA LX BDE-868180-02.A1 868180-02	£60.94	£73.13
3 - SWITCH SA GB BDE-868180-03.A4 868180-03	£96.55	£115.86
4 - STOP PLATE BDE-869209-00.A0 869209-00	£7.85	£9.42
5 - MOTOR CABLE <142011 LX BDE-868179-01.A0 868179-01	£37.35	£44.82
5 - MOTOR CABLE <222011 GB BDE-868179-02.A3 868179-02	£45.14	£54.17
5 - MOTOR CABLE >222011 GB BDE-868179-03.A0 868179-03	£87.82	£105.39
6 - SWITCH COVER BDE-N377168.A1 N377168	£14.57	£17.48
7 - END CAP BDE-869066-00.A3 869066-00	£16.03	£19.24
8 - SCREW BDE-330045-15.A148 330045-15	£1.50	£1.80
9 - FAN BDE-942413-02.A21 942413-02	£4.69	£5.63
10 - END CAP LX BDE-861036-02.A16 861036-02	£10.85	£13.02
10 - END CAP GB BDE-861036-02.A17 861036-02	£10.85	£13.02
11 - KNOB BDE-942453-00.A28 942453-00	£3.80	£4.56
12 - NUT BDE-949726-05.A53 949726-05	£1.50	£1.80
13 - BARREL BDE-861069-00.A18 861069-00	£17.48	£20.97
14 - SPRING BDE-761054-00.A65 761054-00	£1.50	£1.80
15 - LOCKING PIN BDE-941798-00.A14 941798-00	£3.30	£3.96
16 - SCREW BDE-942329-00.A25 942329-00	£1.50	£1.80
17 - PIN BDE-761065-00.A11 761065-00	£1.50	£1.80
18 - SCREW BDE-949853-03.A10 949853-03	£1.82	£2.19
19 - SCREW BDE-869212-00.A5 869212-00	£1.82	£2.19
20 - WASHER BDE-939625-00.A28 939625-00	£3.80	£4.56
21 - NUT STOP M5 BDE-860092-04.A5 860092-04	£1.50	£1.80
22 - BOLT BDE-616592-00.A9 616592-00	£7.85	£9.42
23 - BUSHING BDE-607182-00.A11 607182-00	£1.50	£1.80
24 - SCREW BDE-150075-00.A40 150075-00	£1.50	£1.80
25 - NUT BDE-860083-03.A434 860083-03	£1.50	£1.80
26 - SEGMENT BDE-869085-00.A3 869085-00	£37.35	£44.82
27 - WASHER BDE-941602-00.A88 941602-00	£1.50	£1.80
28 - LEVER BDE-949884-01.A2 949884-01	£5.88	£7.06
29 - PIN BDE-869205-01.A5 869205-01	£1.50	£1.80
30 - WASHER BDE-148296-00.A77 148296-00	£1.50	£1.80
31 - HOUSING MOTOR BDE-869217-00.A3 869217-00	£140.47	£168.56
32 - PROTECTOR BDE-942277-00.A57 942277-00	£1.66	£1.99
33 - CABLE SA LX BDE-868181-08.A4 868181-08	£58.69	£70.43
34 - SPINDLE BDE-869087-00.A3 869087-00	£7.85	£9.42
35 - GUARD COVER BDE-869089-00.A2 869089-00	£17.48	£20.97
36 - GROMMET BDE-869123-00.A3 869123-00	£1.50	£1.80
37 - SCREW BDE-860085-32.A8 860085-32	£4.69	£5.63
38 - PLUG LX BDE-865975-00.A8 865975-00	£10.85	£13.02
39 - SCREW BDE-949743-01.A25 949743-01	£1.50	£1.80
40 - ROTARY TABLE BDE-869230-00.A5 869230-00	£110.62	£132.74
41 - KNOB BDE-861452-02.A3 861452-02	£1.50	£1.80
42 - PIN BDE-869205-00.A0 869205-00	£1.82	£2.19
43 - INSERT BDE-869179-00.A3 869179-00	£5.88	£7.06
44 - INSERT BDE-869179-01.A2 869179-01	£5.88	£7.06
46 - LABEL BDE-623289-00.A2 623289-00	£1.50	£1.80
47 - SCREW BDE-869198-00.A0 869198-00	£4.69	£5.63
48 - TABLE BDE-N060145.A5 N060145	£218.32	£261.98
49 - BACK FENCE BDE-869127-00.A1 869127-00	£84.42	£101.30
50 - CLAMP BDE-869224-00.A0 869224-00	£5.88	£7.06
51 - BEARING 6202 BDE-861721-15.A2 861721-15	£7.18	£8.62
52 - WASHER BDE-869090-00.A3 869090-00	£1.50	£1.80
53 - SCREW BDE-860085-28.A9 860085-28	£1.50	£1.80
54 - WASHER BDE-861983-01.A5 861983-01	£1.50	£1.80
55 - BELT BDE-869094-02.A0 869094-02	£10.85	£13.02
56 - RIVING KNIFE GB BDE-869096-00.A3 869096-00	£24.39	£29.27
56 - RIVING KNIFE LX BDE-869096-00.A4 869096-00	£24.39	£29.27
59 - SCREW BDE-330045-49.A51 330045-49	£1.50	£1.80
60 - CIRCLIP BDE-949727-06.A11 949727-06	£1.50	£1.80
61 - SCREW BDE-869196-00.A5 869196-00	£1.50	£1.80
62 - LOWER GUARD SA BDE-868216-02.A1 868216-02	£30.08	£36.10
63 - ROLLER BDE-146774-00.A43 146774-00	£1.82	£2.19
64 - SCREW.TEMP BDE-860094-00.A33 860094-00	£1.50	£1.80
65 - LEVER SA BDE-869119-00.A3 869119-00	£12.17	£14.60
66 - SCREW BDE-N399933.A10 N399933	£1.50	£1.80
67 - BEARING BDE-330003-16.A2 330003-16	£3.80	£4.56
67 - BEARING BDE-868768-09.A0 868768-09	£7.85	£9.42
68 - CIRCLIP BDE-860079-05.A11 860079-05	£1.50	£1.80
69 - BEARING BDE-860155-08.A36 860155-08	£7.85	£9.42
70 - BUSH BDE-869116-00.A2 869116-00	£3.30	£3.96
71 - WASHER BDE-860077-01.A3 860077-01	£1.50	£1.80
72 - WASHER INNER CLAMP BDE-616319-00.A1 616319-00	£16.03	£19.24
73 - CLAMP OUTER BDE-604765-00.A41 604765-00	£5.88	£7.06
74 - BLADE BOLT BDE-869245-00.A58 869245-00	£3.54	£4.25
75 - WHEEL ADJUSTER BDE-869099-00.A2 869099-00	-
76 - ADJUSTER HEIGHT BDE-869115-00.A3 869115-00	£5.88	£7.06
77 - PLATE BDE-869118-00.A2 869118-00	£3.80	£4.56
78 - SPRING BDE-869188-00.A2 869188-00	£1.50	£1.80
79 - HANDLE BDE-869117-00.A3 869117-00	£7.18	£8.62
80 - SWITCH BDE-868182-01.A1 868182-01	£16.03	£19.24
81 - COVER BDE-869185-00.A3 869185-00	£1.50	£1.80
82 - LEAD SA LX BDE-942467-05.A3 942467-05	£7.18	£8.62
82 - LEAD SA GB BDE-942467-04.A2 942467-04	£7.18	£8.62
83 - BRAKE ADAPTER BDE-861336-05.A10 861336-05	£10.85	£13.02
84 - TERMINAL BLOCK GB BDE-869186-00.A2 869186-00	£4.69	£5.63
84 - TERMINAL BLOCK LX BDE-942508-00.A15 942508-00	£7.18	£8.62
85 - COVER BELT BDE-869122-00.A2 869122-00	£10.85	£13.02
86 - NUT BDE-860092-05.A24 860092-05	£1.50	£1.80
87 - PULLEY BDE-869093-02.A0 869093-02	£14.57	£17.48
88 - SPINDLE BDE-869092-00.A5 869092-00	£18.91	£22.69
89 - CAPACITOR GB BDE-N497345-01.A0 N497345-01	£19.90	£23.88
89 - CAPACITOR LX BDE-949772-49.A1 949772-49	£24.39	£29.27
90 - PULLEY BDE-869093-03.A3 869093-03	£12.17	£14.60
91 - NUT BDE-869221-00.A0 869221-00	£1.50	£1.80
92 - SCREW BDE-860086-13.A2 860086-13	£1.50	£1.80
93 - SPACER BDE-869222-00.A5 869222-00	£1.50	£1.80
94 - SCREW BDE-949701-05.A20 949701-05	£1.50	£1.80
95 - LEG SA BDE-869199-00.A4 869199-00	£17.48	£20.97
96 - SCREW BDE-949891-03.A16 949891-03	£1.50	£1.80
97 - SPRING BDE-861338-05.A10 861338-05	£1.50	£1.80
98 - PLATE BDE-863257-01.A1 863257-01	£1.50	£1.80
99 - SCREW BDE-861989-00.A9 861989-00	£1.50	£1.80
100 - BEARING BDE-949719-04.A20 949719-04	£3.30	£3.96
101 - CORD CLAMP LX BDE-605601-00.A3 605601-00	£1.50	£1.80
101 - CABLE CLAMP GB BDE-869064-00.A2 869064-00	£1.50	£1.80
101 - CABLE CLAMP GB BDE-869064-01.A2 869064-01	£1.50	£1.80
102 - KNOB BDE-869058-01.A3 869058-01	£12.17	£14.60
103 - SPRING BDE-869246-00.A19 869246-00	£1.50	£1.80
107 - CAP BDE-861991-00.A10 861991-00	£1.50	£1.80
109 - CABLE LX BDE-868181-07.A5 868181-07	£41.24	£49.49
109 - CABLE GB BDE-868181-10.A4 868181-10	£45.14	£54.17
110 - RATING PLATE >012010 GB BDE-N045347 N045347	£5.88	£7.06
110 - RATING PLATE <012010 GB BDE-869124-03.A1 869124-03	£2.78	£3.34
110 - RATING PLATE <012010 LX BDE-869124-04.A0 869124-04	£4.58	£5.49
110 - RATING PLATE >012010 LX BDE-N045348 N045348	£5.88	£7.06
112 - SPRING BDE-861988-00.A10 861988-00	-
114 - SCREW BDE-860084-09.A5 860084-09	£1.50	£1.80
115 - SCREW BDE-860089-41.A5 860089-41	£1.50	£1.80
116 - SWITCH & CABLE SA <482009 GB BDE-869121-01.A0 869121-01	£113.07	£135.68
116 - SWITCH & CABLE SA <162011 LX BDE-869121-02.A3 869121-02	£126.63	£151.96
116 - TRIPUS SWITCH SA >482009 GB BDE-869121-07.A0 869121-07	£153.22	£183.86
116 - TRIPUS SWITCH SA LX BDE-N379701.A2 N379701	£131.46	£157.75
118 - BUFFER BDE-861095-01.A9 861095-01	£1.50	£1.80
122 - SCREW BDE-861090-00.A21 861090-00	£1.50	£1.80
123 - PIVOT BDE-N162670.A9 N162670	£3.80	£4.56
124 - WASHER BDE-860078-02.A39 860078-02	£1.50	£1.80
125 - SCREW BDE-860084-11.A15 860084-11	£1.50	£1.80
126 - GUARD UPPER BDE-N162669.A32 N162669	£17.48	£20.97
127 - GUARD SA BDE-N164678.A1 N164678	£38.80	£46.56
128 - NUT BDE-860083-14.A106 860083-14	£1.50	£1.80
130 - WARNING LABEL BDE-610710-00.A11 610710-00	£1.50	£1.80
132 - CROSS BRACE BDE-861074-01.A1 861074-01	£16.03	£19.24
135 - LABEL BDE-626191-00.A4 626191-00	£1.50	£1.80
136 - FOOT BDE-942375-00.A12 942375-00	£1.50	£1.80
140 - CLIP BDE-615994-00.A19 615994-00	£1.50	£1.80
141 - SCREW BDE-330045-05.A149 330045-05	£1.50	£1.80
142 - WASHER BDE-98197-08.A34 98197-08	£1.50	£1.80
143 - SCREW BDE-942447-00.A18 942447-00	£1.50	£1.80
144 - KNOB BDE-941756-00.A63 941756-00	£1.50	£1.80
146 - FRAME LH BDE-N156120.A0 N156120	£110.62	£132.74
147 - LABEL BDE-869125-00.A7 869125-00	£3.80	£4.56
148 - FOOT BDE-861073-00.A31 861073-00	£10.85	£13.02
153 - SPRING BDE-942522-00.A28 942522-00	£1.50	£1.80
154 - LOCKING DEVICE BDE-942098-00.A10 942098-00	£9.41	£11.29
155 - SCREW BDE-942185-00.A22 942185-00	£1.50	£1.80
157 - BRIDGE BDE-942104-00.A18 942104-00	£1.50	£1.80
160 - CATCH BDE-861071-00.A1 861071-00	£2.26	£2.71
161 - LOCKING DEVICE BDE-861070-00.A20 861070-00	£2.26	£2.71
162 - FRAME RH BDE-N156121.A5 N156121	£87.82	£105.39
163 - PIN BDE-942365-00.A9 942365-00	£1.50	£1.80
164 - WASHER BDE-949876-08.A32 949876-08	£1.50	£1.80
167 - SCREW BDE-330045-05.A151 330045-05	£1.50	£1.80
171 - WASHER M6 BDE-860073-07.A13 860073-07	£1.50	£1.80
175 - CABLE CLAMP BDE-861091-00.A11 861091-00	£1.50	£1.80
186 - CONTACT SA BDE-868538-00.A4 868538-00	£71.44	£85.73
192 - FOOT BDE-941614-00.A21 941614-00	£1.50	£1.80
196 - WRENCH 6 MM BDE-860098-04.A189 860098-04	£1.50	£1.80
197 - WRENCH SPECIAL >182007 BDE-869181-01.A1 869181-01	£7.18	£8.62
197 - WRENCH SPECIAL <182007 BDE-869181-00.A0 869181-00	£7.01	£8.41
198 - TABLE LATCH BDE-861063-00.A18 861063-00	£4.69	£5.63
211 - LOCKING PIN SA BDE-861084-00.A4 861084-00	£25.70	£30.84
214 - SPRING BDE-869086-00.A5 869086-00	£5.88	£7.06
215 - WASHER BDE-941602-00.A10 941602-00	£1.50	£1.80
220 - COVER <372009 BDE-868428-01.A7 868428-01	£2.26	£2.71
220 - COVER >372009 BDE-868428-02 868428-02	£3.80	£4.56
221 - GROMMET BDE-868431-00.A7 868431-00	£1.50	£1.80
222 - COVER BDE-868429-00.A0 868429-00	£2.26	£2.71
223 - SCREW BDE-330045-05.A152 330045-05	£1.50	£1.80
224 - WASHER BDE-933652-00.A22 933652-00	£1.50	£1.80
235 - GUARD SA BDE-N060146.A6 N060146	£17.48	£20.97
236 - FASTENER BDE-868303-00.A14 868303-00	£3.80	£4.56
250 - LABEL BDE-861099-00.A4 861099-00	£1.50	£1.80
253 - CORD BDE-N060144.A13 N060144	£3.80	£4.56
257 - SCREW BDE-868256-00.A26 868256-00	£1.50	£1.80
258 - SCREW BDE-949795-01.A24 949795-01	£1.50	£1.80
266 - PUSHROD BDE-860610-01.A39 860610-01	£7.85	£9.42
269 - SCREW BDE-949743-03.A7 949743-03	£7.85	£9.42
270 - GUIDE BDE-942320-03.A18 942320-03	£38.80	£46.56
271 - FENCE BDE-861346-00.A1 861346-00	£25.70	£30.84
272 - CLAMPING BAR BDE-942316-01.A8 942316-01	£14.57	£17.48
273 - WASHER M8 BDE-860073-03.A190 860073-03	£1.50	£1.80
275 - BRACKET BDE-941819-01.A20 941819-01	£16.03	£19.24
276 - KNOB BDE-941756-00.A64 941756-00	£1.50	£1.80
277 - NUT BDE-860092-00.A28 860092-00	£1.50	£1.80
279 - FENCE BDE-941578-01.A28 941578-01	£55.30	£66.36
280 - BASE BDE-942172-00.A5 942172-00	£12.17	£14.60
282 - RAIL BDE-942151-00.A23 942151-00	£30.08	£36.10
283 - SCREW.TEMP BDE-860089-00.A20 860089-00	£1.50	£1.80
284 - SCREW BDE-941518-00.A26 941518-00	£1.50	£1.80
285 - NUT M6 BDE-860083-12.A243 860083-12	£1.50	£1.80

Attribute Name	Value
Brand	Dewalt

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Dewalt DW743N Type 2 Combination Saw Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

Shopping Basket (0) £0.00

Dewalt DW743N Type 2 Combination Saw Spare Parts

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Dewalt DW743N Type 2 Combination Saw Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
