Dewalt D27107 Type 2 Combination Saw Spare Parts

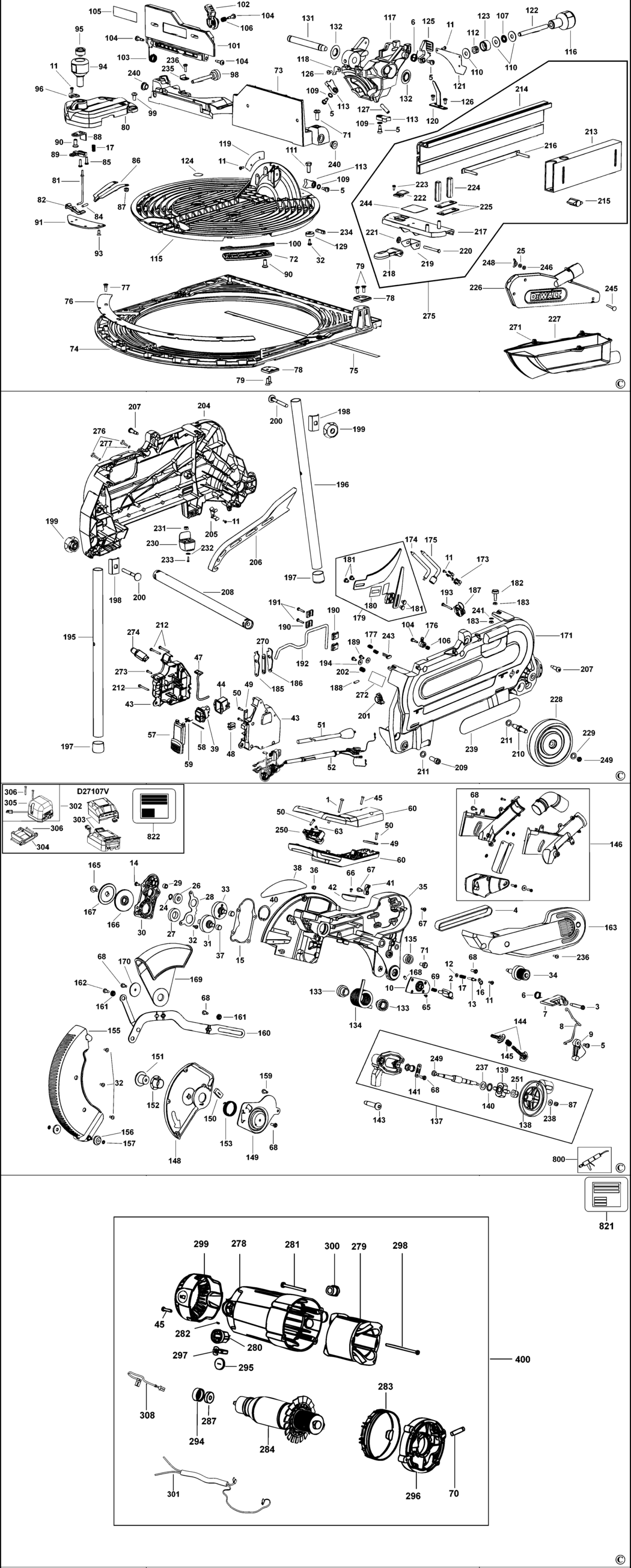

An exploded drawing and spare parts listing for the Dewalt D27107 Type 2 Combination Saw

	Ex VAT	Inc VAT
1 - SCREW BDE-98094-35.A3 98094-35	£1.50	£1.80
2 - KNOB BDE-147107-06.A10 147107-06	£3.80	£4.56
3 - BOLT BDE-152852-00.A54 152852-00	£1.82	£2.19
4 - BELT BDE-N453995.A1 N453995	£18.91	£22.69
5 - SCREW BDE-153639-00.A79 153639-00	£1.50	£1.80
6 - SPRING TORSION BDE-398472-00.A22 398472-00	£2.26	£2.71
7 - LEVER BDE-605603-00.A11 605603-00	£1.50	£1.80
8 - LINKAGE SA BDE-606278-00.A4 606278-00	£1.50	£1.80
9 - PLATE BDE-606279-00.A9 606279-00	£1.50	£1.80
10 - PLATE BDE-607221-00.A8 607221-00	£7.85	£9.42
11 - SCREW BDE-330045-05.A147 330045-05	£1.50	£1.80
12 - WASHER FELT BDE-618480-00.A11 618480-00	£1.50	£1.80
13 - LOCKING PIN BDE-153561-00.A41 153561-00	£1.50	£1.80
14 - SCREW BDE-385915-01.A36 385915-01	£1.50	£1.80
15 - GASKET BDE-391315-00.A31 391315-00	£2.78	£3.34
16 - PLATE BDE-393071-00.A40 393071-00	£1.50	£1.80
17 - SPRING BDE-868082-00.A148 868082-00	£1.50	£1.80
24 - CIRCLIP BDE-860079-03.A65 860079-03	£1.50	£1.80
26 - BEARING BDE-605040-59.A26 605040-59	£3.30	£3.96
27 - BEARING BALL BDE-330003-66.A4 330003-66	£14.57	£17.48
28 - BEARING PLATE BDE-627904-00.A11 627904-00	£3.30	£3.96
29 - BEARING NEEDLE BDE-391616-00.A7 391616-00	£4.69	£5.63
30 - GEARCASE COVER + 29 BDE-621759-00.A1 621759-00	£41.24	£49.49
31 - SPINDLE & GEAR SA BDE-869219-06.A4 869219-06	£41.24	£49.49
32 - SCREW BDE-330045-49.A8 330045-49	£1.50	£1.80
33 - SPINDLE & GEAR SA BDE-869219-07.A9 869219-07	£41.24	£49.49
34 - PINION SA BDE-N027131SV.A0 N027131SV	£115.77	£138.92
35 - ARM + 36373839 BDE-612349-00.A4 612349-00	£209.59	£251.51
36 - INSERT BDE-148608-00.A47 148608-00	£1.50	£1.80
37 - BEARING BDE-386780-00.A39 386780-00	£2.26	£2.71
38 - IDENTITY LABEL BDE-621329-00.A11 621329-00	£3.30	£3.96
39 - SWITCH GB BDE-637691-00.A10 637691-00	£41.24	£49.49
40 - RETAINER BDE-616726-00.A11 616726-00	£1.50	£1.80
41 - CORD CLAMP BDE-612350-00.A1 612350-00	£1.50	£1.80
42 - COVER BDE-613781-00.A11 613781-00	£1.50	£1.80
43 - HOUSING SWITCH GB BDE-605786-01.A11 605786-01	£34.00	£40.80
44 - BOOT BDE-638634-00.A0 638634-00	£9.41	£11.29
45 - SCREW BDE-330019-13.A497 330019-13	£1.50	£1.80
47 - CONNECTING WIRE BDE-652121-00.A1 652121-00	£1.50	£1.80
48 - TERMINAL BLOCK BDE-326057-00.A15 326057-00	£1.50	£1.80
49 - CORD CLAMP BDE-607858-00.A10 607858-00	£1.50	£1.80
50 - SCREW BDE-330013-22.A21 330013-22	-
51 - CORDSET GB BDE-330060-85.A1 330060-85	£19.90	£23.88
52 - SET OF LEAD WIRES BDE-639912-01.A0 639912-01	-
57 - SWITCH COVER BDE-N377629.A13 N377629	£3.30	£3.96
58 - PIN BDE-607854-00.A12 607854-00	£1.50	£1.80
59 - SPRING TORSION BDE-613782-01.A1 613782-01	£1.50	£1.80
60 - HANDLE SA BDE-607855-00.A1 607855-00	£19.90	£23.88
63 - SCREW BDE-384127-01.A14 384127-01	£1.50	£1.80
65 - SCREW BDE-860091-04.A27 860091-04	£1.50	£1.80
66 - SCREW BDE-860094-03.A124 860094-03	£1.50	£1.80
67 - SCREW BDE-330045-15.A45 330045-15	£1.50	£1.80
68 - SCREW.SPECIAL BDE-330045-23.A43 330045-23	£1.50	£1.80
69 - SPRING BDE-606014-00.A14 606014-00	£1.50	£1.80
70 - SCREW BDE-394034-00.A6 394034-00	£1.50	£1.80
71 - SCREW BDE-330045-32.A22 330045-32	£1.50	£1.80
72 - PLATE BDE-621647-00.A1 621647-00	£3.30	£3.96
73 - FENCE BDE-N162216.A4 N162216	£125.16	£150.19
74 - TABLE BDE-869233-00.A12 869233-00	£245.11	£294.13
75 - SCALE BDE-614822-00.A1 614822-00	£5.88	£7.06
76 - DETENT BDE-398999-00.A5 398999-00	£25.70	£30.84
77 - SCREW BDE-615876-00.A4 615876-00	£1.50	£1.80
78 - PLATE BDE-607103-00.A10 607103-00	£4.69	£5.63
79 - SCREW BDE-98104-16.A15 98104-16	£1.50	£1.80
80 - NOSE BDE-N162168.A8 N162168	£55.30	£66.36
81 - ROD BDE-605799-00.A1 605799-00	£1.50	£1.80
82 - ACTUATOR BDE-399162-00.A1 399162-00	£1.50	£1.80
84 - PIN BDE-399009-00.A8 399009-00	£1.50	£1.80
85 - SCREW.TEMP BDE-860094-00.A89 860094-00	£1.50	£1.80
86 - DETENT BDE-606898-00.A4 606898-00	£3.80	£4.56
87 - NUT BDE-860092-02.A6 860092-02	£1.50	£1.80
88 - PLATE BDE-606900-00.A1 606900-00	£1.50	£1.80
89 - PAD BDE-606896-00.A4 606896-00	£1.50	£1.80
90 - SCREW BDE-617561-00.A9 617561-00	£1.50	£1.80
91 - COVER BDE-606897-00.A9 606897-00	£3.80	£4.56
93 - SCREW BDE-860205-01.A15 860205-01	£1.50	£1.80
94 - KNOB BDE-399004-00.A8 399004-00	£7.18	£8.62
95 - BUTTON BDE-605785-00.A1 605785-00	£1.50	£1.80
96 - POINTER BDE-611991-00.A4 611991-00	£1.50	£1.80
98 - KNOB BDE-606198-00.A4 606198-00	£2.26	£2.71
99 - SCREW BDE-N409486.A28 N409486	£1.50	£1.80
100 - PAD BDE-607129-00.A3 607129-00	£3.30	£3.96
101 - BACK FENCE BDE-N190890.A1 N190890	£51.90	£62.28
102 - KNOB BDE-610251-00.A3 610251-00	£1.50	£1.80
103 - SPRING BDE-610250-00.A10 610250-00	£1.50	£1.80
104 - SCREW BDE-N399933.A4 N399933	£1.50	£1.80
105 - WARNING LABEL BDE-610710-00.A9 610710-00	£1.50	£1.80
106 - SPRING BDE-941586-00.A2 941586-00	£1.50	£1.80
107 - BEARING THRUST BDE-153451-00.A38 153451-00	£1.82	£2.19
109 - WASHER BDE-153655-00.A2 153655-00	£1.50	£1.80
110 - WASHER BDE-153781-00.A38 153781-00	£1.50	£1.80
111 - SCREW BDE-153797-03.A12 153797-03	£1.50	£1.80
112 - NUT BDE-330021-10.A11 330021-10	£1.50	£1.80
113 - PAWL BDE-391347-00.A16 391347-00	£1.50	£1.80
115 - ROTARY TABLE + 122 124 BDE-869233-02.A1 869233-02	£301.55	£361.86
116 - KNOB BDE-399004-01.A5 399004-01	£7.18	£8.62
117 - TRUNNION BDE-605653-00.A12 605653-00	£84.42	£101.30
118 - POINTER BDE-606152-00.A12 606152-00	£1.82	£2.19
119 - BEVEL SCALE BDE-618660-00.A9 618660-00	£3.30	£3.96
120 - POINTER BDE-606192-00.A4 606192-00	£2.78	£3.34
121 - BEVEL SCALE BDE-606193-00.A9 606193-00	£3.80	£4.56
122 - STUD BDE-606359-00.A5 606359-00	£3.30	£3.96
123 - SPACER BDE-606362-00.A8 606362-00	£1.50	£1.80
124 - WARNING LABEL BDE-610707-00.A14 610707-00	£1.50	£1.80
125 - LATCH BDE-613709-00.A2 613709-00	£1.50	£1.80
126 - SCREW BDE-860094-06.A10 860094-06	£1.50	£1.80
127 - SCREW BDE-153576-03.A20 153576-03	£1.50	£1.80
129 - ADJUSTER BDE-615589-00.A2 615589-00	£2.26	£2.71
131 - PIVOT SHAFT BDE-615777-00.A5 615777-00	£5.88	£7.06
132 - WASHER BDE-148296-00.A28 148296-00	£1.50	£1.80
133 - SPACER BDE-146732-00.A45 146732-00	£1.50	£1.80
134 - SPRING BDE-619571-00.A9 619571-00	£17.48	£20.97
135 - BUSHING BDE-146753-00.A34 146753-00	£1.50	£1.80
137 - ADJUSTER HEIGHT BDE-609837-00.A11 609837-00	£84.42	£101.30
138 - CRANK BDE-606689-00.A4 606689-00	£12.17	£14.60
139 - CARRIER BDE-607754-00.A9 607754-00	£3.80	£4.56
140 - BALL STEEL BDE-604107-00.A7 604107-00	£1.50	£1.80
141 - CLAMP BDE-609840-00.A2 609840-00	£1.50	£1.80
143 - BOLT BDE-610254-00.A3 610254-00	£7.85	£9.42
144 - PIN BDE-614072-00.A8 614072-00	£1.50	£1.80
145 - SPRING BDE-606688-00.A9 606688-00	£1.50	£1.80
146 - DUST PORT BDE-N166053.A2 N166053	£37.35	£44.82
148 - PLATE BDE-615459-00.A0 615459-00	£18.91	£22.69
149 - BACKPLATE BDE-N041976.A1 N041976	£12.17	£14.60
150 - BUMPER BDE-609514-00.A8 609514-00	£1.50	£1.80
151 - RETAINING PLATE BDE-146750-03.A5 146750-03	£2.78	£3.34
152 - SLEEVE BDE-609314-00.A4 609314-00	£1.50	£1.80
153 - SPRING TORSION BDE-609496-00.A8 609496-00	£1.50	£1.80
155 - GUARD BDE-N298999.A9 N298999	£19.90	£23.88
156 - ROLLER BDE-146774-00.A7 146774-00	£1.82	£2.19
157 - LOCKING RING BDE-604728-00.A2 604728-00	£1.66	£1.99
159 - SCREW BDE-394589-01.A11 394589-01	£1.50	£1.80
160 - LEVER SA BDE-N225776.A5 N225776	-
161 - SLEEVE BDE-146740-02.A22 146740-02	£1.50	£1.80
162 - SCREW BDE-605590-00.A1 605590-00	£1.50	£1.80
163 - BELT COVER BDE-610556-01.A11 610556-01	£16.03	£19.24
165 - BLADE BOLT BDE-869245-00.A74 869245-00	£3.54	£4.25
166 - WASHER INNER CLAMP BDE-616319-00.A18 616319-00	£16.03	£19.24
167 - CLAMP OUTER BDE-604765-00.A4 604765-00	£5.88	£7.06
168 - SCREW BDE-150075-00.A91 150075-00	£1.50	£1.80
169 - GUARD BDE-605593-00.A10 605593-00	-
170 - WASHER BDE-607536-00.A10 607536-00	£4.69	£5.63
171 - FSO KIT BDE-656421-00.A9 656421-00	£245.11	£294.13
173 - HOLDER BDE-391358-01.A34 391358-01	£1.50	£1.80
174 - WRENCH SPECIAL BDE-385567-01.A5 385567-01	-
175 - WRENCH SPECIAL BDE-608563-01.A26 608563-01	£7.18	£8.62
176 - RETAINER BDE-615993-00.A2 615993-00	£1.50	£1.80
177 - SPRING BDE-946866-00.A21 946866-00	£1.50	£1.80
179 - GUARD KIT GB BDE-N181532.A4 N181532	£110.62	£132.74
180 - SHIM BDE-609497-00.A6 609497-00	£1.50	£1.80
181 - SCREW BDE-607181-00.A7 607181-00	£1.50	£1.80
182 - BUMPER BDE-616634-00.A11 616634-00	£4.16	£4.99
183 - NUT BDE-860083-15.A21 860083-15	£1.50	£1.80
185 - LOCK BDE-606233-00.A5 606233-00	£4.69	£5.63
186 - LOCK BDE-606232-00.A8 606232-00	£4.69	£5.63
187 - CORD CLAMP BDE-605601-00.A1 605601-00	£1.50	£1.80
188 - PIN BDE-607132-00.A10 607132-00	£1.50	£1.80
189 - SCREW BDE-330045-55.A15 330045-55	£1.50	£1.80
190 - BEARING BLOCK BDE-153379-00.A6 153379-00	£1.82	£2.19
191 - SCREW BDE-610574-00.A2 610574-00	£1.50	£1.80
192 - ROD BDE-611094-00.A5 611094-00	£7.85	£9.42
193 - SCREW BDE-861090-00.A25 861090-00	£1.50	£1.80
194 - WASHER BDE-860073-14.A24 860073-14	£1.50	£1.80
195 - FRONT LEG BDE-613233-00.A5 613233-00	£18.91	£22.69
196 - REAR LEG BDE-655033-00.A12 655033-00	£16.03	£19.24
197 - FOOT BDE-861073-00.A34 861073-00	£10.85	£13.02
198 - CLAMP BDE-N013623.A3 N013623	£5.88	£7.06
199 - KNOB BDE-618362-00.A9 618362-00	£5.88	£7.06
200 - CARRIAGE BOLT BDE-98131-90.A4 98131-90	£1.50	£1.80
201 - CABLE CLAMP BDE-861091-00.A7 861091-00	£1.50	£1.80
202 - SPRING BDE-860112-11.A85 860112-11	£1.50	£1.80
204 - FSO KIT BDE-656421-01.A2 656421-01	£165.92	£199.11
205 - CLIP BDE-615994-00.A16 615994-00	£1.50	£1.80
206 - PUSHROD BDE-860610-01.A36 860610-01	£7.85	£9.42
207 - BOLT BDE-616592-00.A2 616592-00	£7.85	£9.42
208 - TUBE BDE-604537-00.A11 604537-00	£17.48	£20.97
209 - SCREW BDE-942447-00.A21 942447-00	£1.50	£1.80
210 - AXLE STUB BDE-611623-00.A1 611623-00	£12.17	£14.60
211 - WASHER BDE-98197-08.A35 98197-08	£1.50	£1.80
212 - SCREW BDE-330045-50.A15 330045-50	£1.50	£1.80
213 - FENCE BDE-605789-00.A1 605789-00	£14.57	£17.48
214 - FENCE BDE-386616-00.A7 386616-00	£18.91	£22.69
215 - KNOB BDE-147107-00.A5 147107-00	£1.82	£2.19
216 - PLATE BDE-611712-00.A2 611712-00	£2.78	£3.34
217 - BRACKET BDE-611921-00.A5 611921-00	£18.91	£22.69
218 - LEVER LOCK BDE-605794-00.A2 605794-00	£17.48	£20.97
219 - BRACKET BDE-605796-00.A2 605796-00	£1.50	£1.80
220 - CLEVIS PIN BDE-605795-00.A18 605795-00	£1.50	£1.80
221 - WASHER CLAMP BDE-392948-00.A17 392948-00	£1.50	£1.80
222 - POINTER BDE-605798-00.A18 605798-00	£1.50	£1.80
223 - SCREW BDE-330045-05.A146 330045-05	£1.50	£1.80
224 - NUT BDE-612284-00.A12 612284-00	£1.50	£1.80
225 - WASHER BDE-605790-00.A11 605790-00	£1.50	£1.80
226 - GUARD KIT GB BDE-N181532.A5 N181532	£110.62	£132.74
227 - GUARD BDE-N060425.A5 N060425	£19.90	£23.88
228 - WHEEL BDE-612441-00.A9 612441-00	£30.08	£36.10
229 - WASHER BDE-941602-00.A8 941602-00	£1.50	£1.80
230 - FOOT BDE-N219072.A9 N219072	£3.30	£3.96
231 - NUT BDE-860083-14.A104 860083-14	£1.50	£1.80
232 - WASHER M8 BDE-860073-03.A184 860073-03	£1.50	£1.80
233 - SCREW BDE-860085-20.A34 860085-20	£1.50	£1.80
234 - SHOE BDE-621653-00.A9 621653-00	£2.26	£2.71
235 - CLAMP BDE-610252-00.A9 610252-00	£2.26	£2.71
236 - SCREW BDE-330045-14.A126 330045-14	£1.50	£1.80
237 - WASHER BDE-623499-00.A4 623499-00	£2.26	£2.71
238 - WASHER BDE-860075-00.A105 860075-00	£1.50	£1.80
239 - IDENTITY LABEL BDE-617108-00.A4 617108-00	£9.41	£11.29
240 - BUSHING BDE-607182-00.A4 607182-00	£1.50	£1.80
241 - WASHER BDE-860078-02.A37 860078-02	£1.50	£1.80
243 - SPRING CLIP BDE-620327-00.A3 620327-00	£1.50	£1.80
244 - IDENTITY LABEL BDE-624373-00.A4 624373-00	£1.50	£1.80
245 - SCREW BDE-931997-00.A7 931997-00	£1.50	£1.80
246 - WASHER BDE-720959-00.A233 720959-00	£1.50	£1.80
248 - WING NUT BDE-720929-00.A8 720929-00	£1.50	£1.80
249 - NUT BDE-860092-05.A73 860092-05	£1.50	£1.80
250 - SWITCH GB BDE-394375-02P.A6 394375-02P	£14.57	£17.48
251 - NUT BDE-330021-08.A12 330021-08	£1.50	£1.80
270 - SPACER BDE-626334-00.A6 626334-00	£1.50	£1.80
271 - FASTENER BDE-868303-00.A17 868303-00	£3.80	£4.56
272 - LABEL BDE-626191-00.A1 626191-00	£1.50	£1.80
273 - SCREW BDE-146679-00.A4 146679-00	£1.50	£1.80
275 - FENCE BDE-611713-01.A10 611713-01	£99.47	£119.36
276 - SCREW BDE-949701-05.A5 949701-05	£1.50	£1.80
277 - NUT BDE-860083-15.A20 860083-15	£1.50	£1.80
278 - FIELD CASE BDE-N025823.A1 N025823	£17.48	£20.97
279 - FIELD 230V GB BDE-N071929.A8 N071929	£74.15	£88.98
280 - BRUSH HOLDER GB BDE-622440-00.A11 622440-00	£3.80	£4.56
281 - SCREW BDE-98094-55.A61 98094-55	£1.50	£1.80
282 - SCREW BDE-330022-16.A14 330022-16	£1.50	£1.80
283 - BAFFLE FAN BDE-391375-00.A44 391375-00	-
284 - ARMATURE 230V GB BDE-N158403.A8 N158403	£144.10	£172.92
287 - BEARING BDE-N110359.A21 N110359	£3.75	£4.50
294 - SLEEVE INSULATING BDE-650234-00.A10 650234-00	£1.50	£1.80
295 - BRUSH CAP BDE-622441-00.A7 622441-00	£1.50	£1.80
296 - MOUNTING BRACKET BDE-391282-00.A29 391282-00	£16.03	£19.24
297 - BRUSH GB BDE-N013883.A3 N013883	£2.26	£2.71
298 - SCREW BDE-330019-34.A5 330019-34	£1.50	£1.80
299 - END CAP BDE-660498-00.A8 660498-00	£1.50	£1.80
300 - BUSHING BDE-605155-00.A42 605155-00	£1.66	£1.99
301 - LEADWIRE BDE-N025819.A1 N025819	£12.17	£14.60
302 - LASER HEAD SA D27107V BDE-635797-00.A6 635797-00	£84.42	£101.30
303 - SA POWER SUPPLY D27107V BDE-627631-00.A5 627631-00	£51.90	£62.28
304 - WINDOW D27107V BDE-615498-00.A5 615498-00	£12.17	£14.60
305 - LASER HEAD SA D27107V BDE-635797-00.A7 635797-00	£84.42	£101.30
306 - SCREW D27107V BDE-860094-03.A125 860094-03	£1.50	£1.80
308 - BRUSH LEAD GB BDE-N025820.A10 N025820	£1.50	£1.80
400 - MOTOR SA 230V <212010 GB BDE-N158402.A0 N158402	£301.55	£361.86
800 - GREASE BDE-5140061-28.A13 5140061-28	£51.90	£62.28
821 - RATING PLATE GB BDE-N027005 N027005	£7.01	£8.41
821 - RATING PLATE GB BDE-N027007 N027007	-

Attribute Name	Value
Brand	Dewalt

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Dewalt D27107 Type 2 Combination Saw Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

Shopping Basket (0) £0.00

Dewalt D27107 Type 2 Combination Saw Spare Parts

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Dewalt D27107 Type 2 Combination Saw Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
