Dewalt D27105 Type 4 Combination Saw Spare Parts

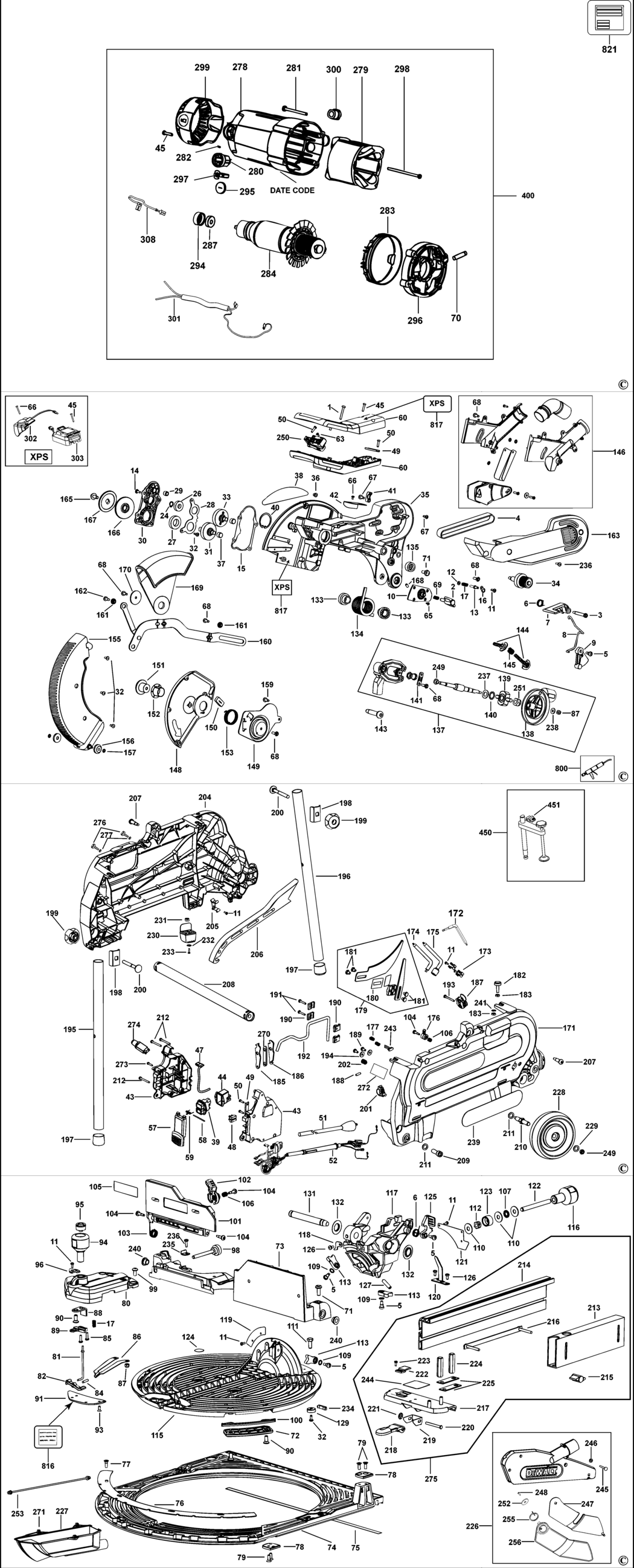

An exploded drawing and spare parts listing for the Dewalt D27105 Type 4 Combination Saw

	Ex VAT	Inc VAT
1 - SCREW BDE-98094-35.A12 98094-35	£1.50	£1.80
2 - KNOB BDE-147107-06.A18 147107-06	£3.80	£4.56
3 - BOLT BDE-152852-00.A24 152852-00	£1.82	£2.19
4 - BELT BDE-N453995.A8 N453995	£18.91	£22.69
5 - SCREW BDE-153639-00.A18 153639-00	£1.50	£1.80
6 - SPRING TORSION BDE-398472-00.A1 398472-00	£2.26	£2.71
7 - LEVER BDE-605603-00.A0 605603-00	£1.50	£1.80
8 - LINKAGE SA BDE-606278-00.A11 606278-00	£1.50	£1.80
9 - PLATE BDE-606279-00.A2 606279-00	£1.50	£1.80
10 - PLATE BDE-607221-00.A3 607221-00	£7.85	£9.42
11 - SCREW BDE-330045-05.A59 330045-05	£1.50	£1.80
12 - WASHER FELT BDE-618480-00.A0 618480-00	£1.50	£1.80
13 - LOCKING PIN BDE-153561-00.A28 153561-00	£1.50	£1.80
14 - SCREW BDE-385915-01.A3 385915-01	£1.50	£1.80
15 - GASKET BDE-391315-00.A5 391315-00	£2.78	£3.34
16 - PLATE BDE-393071-00.A12 393071-00	£1.50	£1.80
17 - SPRING BDE-868082-00.A4 868082-00	£1.50	£1.80
26 - BEARING BDE-605040-59.A16 605040-59	£3.30	£3.96
27 - BEARING BALL BDE-330003-66.A42 330003-66	£14.57	£17.48
28 - BEARING PLATE BDE-627904-00.A2 627904-00	£3.30	£3.96
29 - BEARING NEEDLE BDE-391616-00.A35 391616-00	£4.69	£5.63
30 - GEARCASE COVER + 29 BDE-621759-00.A6 621759-00	£41.24	£49.49
31 - SPINDLE & GEAR SA BDE-869219-06.A7 869219-06	£41.24	£49.49
32 - SCREW BDE-330045-49.A70 330045-49	£1.50	£1.80
33 - SPINDLE & GEAR SA BDE-869219-07.A6 869219-07	£41.24	£49.49
34 - PINION SA BDE-N027131SV.A14 N027131SV	£115.77	£138.92
35 - ARM BDE-N139375.A2 N139375	£283.82	£340.58
36 - INSERT BDE-148608-00.A33 148608-00	£1.50	£1.80
37 - BEARING BDE-386780-00.A7 386780-00	£2.26	£2.71
38 - IDENTITY LABEL BDE-621329-00.A7 621329-00	£3.30	£3.96
39 - SWITCH LX BDE-638639-00.A0 638639-00	£44.14	£52.97
40 - RETAINER BDE-616726-00.A7 616726-00	£1.50	£1.80
41 - CORD CLAMP BDE-612350-00.A8 612350-00	£1.50	£1.80
42 - COVER BDE-613781-00.A2 613781-00	£1.50	£1.80
43 - HOUSING SWITCH BDE-605786-01.A2 605786-01	£34.00	£40.80
44 - BOOT BDE-638634-00.A12 638634-00	£9.41	£11.29
45 - SCREW BDE-330019-13.A149 330019-13	£1.50	£1.80
47 - NO LONGER AVAILABLE BDE-000000-00.A63956 000000-00	-
48 - TERMINAL BLOCK BDE-326057-00.A38 326057-00	£1.50	£1.80
49 - CORD CLAMP BDE-607858-00.A1 607858-00	£1.50	£1.80
50 - SCREW BDE-330013-22.A3 330013-22	-
51 - CORDSET LX BDE-330061-22.A8 330061-22	£37.35	£44.82
52 - CABLE SA LX BDE-639912-00.A2 639912-00	£30.08	£36.10
57 - SWITCH COVER BDE-N377629.A5 N377629	£3.30	£3.96
58 - PIN BDE-607854-00.A1 607854-00	£1.50	£1.80
59 - SPRING TORSION BDE-613782-01.A11 613782-01	£1.50	£1.80
60 - HANDLE SA BDE-607855-00.A12 607855-00	£19.90	£23.88
63 - SCREW BDE-384127-01.A94 384127-01	£1.50	£1.80
65 - SCREW BDE-860091-04.A6 860091-04	£1.50	£1.80
66 - SCREW BDE-860094-03.A222 860094-03	£1.50	£1.80
67 - SCREW BDE-330045-15.A135 330045-15	£1.50	£1.80
68 - SCREW.SPECIAL BDE-330045-23.A128 330045-23	£1.50	£1.80
69 - SPRING BDE-606014-00.A8 606014-00	£1.50	£1.80
70 - SCREW BDE-394034-00.A45 394034-00	£1.50	£1.80
71 - SCREW BDE-330045-32.A49 330045-32	£1.50	£1.80
72 - PLATE BDE-621647-00.A8 621647-00	£3.30	£3.96
73 - FENCE BDE-N162216.A9 N162216	£125.16	£150.19
74 - TABLE BDE-869233-00.A4 869233-00	£245.11	£294.13
75 - SCALE BDE-614822-00.A10 614822-00	£5.88	£7.06
76 - DETENT BDE-398999-00.A11 398999-00	£25.70	£30.84
77 - SCREW BDE-615876-00.A10 615876-00	£1.50	£1.80
78 - PLATE BDE-607103-00.A1 607103-00	£4.69	£5.63
79 - SCREW BDE-98104-16.A9 98104-16	£1.50	£1.80
80 - NOSE BDE-N162168.A4 N162168	£55.30	£66.36
81 - ROD BDE-605799-00.A7 605799-00	£1.50	£1.80
82 - ACTUATOR BDE-399162-00.A8 399162-00	£1.50	£1.80
84 - PIN BDE-399009-00.A2 399009-00	£1.50	£1.80
85 - SCREW.TEMP BDE-860094-00.A87 860094-00	£1.50	£1.80
86 - DETENT BDE-606898-00.A8 606898-00	£3.80	£4.56
87 - NUT BDE-860092-02.A49 860092-02	£1.50	£1.80
88 - PLATE BDE-606900-00.A11 606900-00	£1.50	£1.80
89 - PAD BDE-606896-00.A8 606896-00	£1.50	£1.80
90 - SCREW BDE-617561-00.A7 617561-00	£1.50	£1.80
91 - COVER BDE-606897-00.A5 606897-00	£3.80	£4.56
93 - SCREW BDE-860205-01.A7 860205-01	£1.50	£1.80
94 - KNOB BDE-399004-00.A2 399004-00	£7.18	£8.62
95 - BUTTON BDE-605785-00.A7 605785-00	£1.50	£1.80
96 - POINTER BDE-611991-00.A10 611991-00	£1.50	£1.80
98 - KNOB BDE-606198-00.A10 606198-00	£2.26	£2.71
99 - SCREW BDE-N409486.A10 N409486	£1.50	£1.80
100 - PAD BDE-607129-00.A12 607129-00	£3.30	£3.96
101 - BACK FENCE BDE-N190890.A10 N190890	£51.90	£62.28
102 - KNOB BDE-610251-00.A11 610251-00	£1.50	£1.80
103 - SPRING BDE-610250-00.A2 610250-00	£1.50	£1.80
104 - SCREW BDE-N399933.A17 N399933	£1.50	£1.80
105 - WARNING LABEL BDE-610710-00.A20 610710-00	£1.50	£1.80
106 - SPRING BDE-941586-00.A20 941586-00	£1.50	£1.80
107 - BEARING THRUST BDE-153451-00.A18 153451-00	£1.82	£2.19
109 - WASHER BDE-153655-00.A63 153655-00	£1.50	£1.80
110 - WASHER BDE-153781-00.A13 153781-00	£1.50	£1.80
111 - SCREW BDE-153797-03.A7 153797-03	£1.50	£1.80
112 - NUT BDE-330021-10.A4 330021-10	£1.50	£1.80
113 - PAWL BDE-391347-00.A7 391347-00	£1.50	£1.80
115 - ROTARY TABLE + 122 124 BDE-869233-02.A9 869233-02	£301.55	£361.86
116 - KNOB BDE-399004-01.A11 399004-01	£7.18	£8.62
117 - TRUNNION BDE-605653-00.A7 605653-00	£84.42	£101.30
118 - POINTER BDE-606152-00.A7 606152-00	£1.82	£2.19
119 - BEVEL SCALE BDE-618660-00.A7 618660-00	£3.30	£3.96
120 - POINTER BDE-606192-00.A10 606192-00	£2.78	£3.34
121 - BEVEL SCALE BDE-606193-00.A3 606193-00	£3.80	£4.56
122 - STUD BDE-606359-00.A10 606359-00	£3.30	£3.96
123 - SPACER BDE-606362-00.A1 606362-00	£1.50	£1.80
124 - WARNING LABEL BDE-610707-00.A4 610707-00	£1.50	£1.80
125 - LATCH BDE-613709-00.A13 613709-00	£1.50	£1.80
126 - SCREW BDE-860094-06.A16 860094-06	£1.50	£1.80
127 - SCREW BDE-153576-03.A7 153576-03	£1.50	£1.80
129 - ADJUSTER BDE-615589-00.A9 615589-00	£2.26	£2.71
131 - PIVOT SHAFT BDE-615777-00.A10 615777-00	£5.88	£7.06
132 - WASHER BDE-148296-00.A43 148296-00	£1.50	£1.80
133 - SPACER BDE-146732-00.A9 146732-00	£1.50	£1.80
134 - SPRING BDE-619571-00.A3 619571-00	£17.48	£20.97
135 - BUSHING BDE-146753-00.A8 146753-00	£1.50	£1.80
137 - ADJUSTER HEIGHT BDE-609837-00.A7 609837-00	£84.42	£101.30
138 - CRANK BDE-606689-00.A9 606689-00	£12.17	£14.60
139 - CARRIER BDE-607754-00.A6 607754-00	£3.80	£4.56
140 - BALL STEEL BDE-604107-00.A13 604107-00	£1.50	£1.80
141 - CLAMP BDE-609840-00.A6 609840-00	£1.50	£1.80
143 - BOLT BDE-610254-00.A11 610254-00	£7.85	£9.42
144 - PIN BDE-614072-00.A5 614072-00	£1.50	£1.80
145 - SPRING BDE-606688-00.A4 606688-00	£1.50	£1.80
146 - DUST PORT BDE-N166053.A10 N166053	£37.35	£44.82
148 - PLATE BDE-615459-00.A13 615459-00	£18.91	£22.69
149 - BACKPLATE BDE-N041976.A9 N041976	£12.17	£14.60
150 - BUMPER BDE-609514-00.A4 609514-00	£1.50	£1.80
151 - RETAINING PLATE BDE-146750-03.A34 146750-03	£2.78	£3.34
152 - SLEEVE BDE-609314-00.A7 609314-00	£1.50	£1.80
153 - SPRING TORSION BDE-609496-00.A4 609496-00	£1.50	£1.80
155 - GUARD BDE-N298999.A5 N298999	£19.90	£23.88
156 - ROLLER BDE-146774-00.A68 146774-00	£1.82	£2.19
157 - LOCKING RING BDE-604728-00.A15 604728-00	£1.66	£1.99
159 - SCREW BDE-394589-01.A53 394589-01	£1.50	£1.80
160 - LEVER SA BDE-N225776.A7 N225776	-
161 - SLEEVE BDE-146740-02.A7 146740-02	£1.50	£1.80
162 - SCREW BDE-605590-00.A8 605590-00	£1.50	£1.80
163 - BELT COVER BDE-610556-01.A2 610556-01	£16.03	£19.24
165 - BLADE BOLT BDE-647776-00.A22 647776-00	£1.66	£1.99
166 - WASHER INNER CLAMP BDE-616319-00.A15 616319-00	£16.03	£19.24
167 - CLAMP OUTER BDE-604765-00.A26 604765-00	£5.88	£7.06
168 - SCREW BDE-150075-00.A16 150075-00	£1.50	£1.80
169 - GUARD BDE-605593-00.A3 605593-00	-
170 - WASHER BDE-607536-00.A4 607536-00	£4.69	£5.63
171 - FRAME RH BDE-655037-00.A2 655037-00	£157.18	£188.61
172 - WRENCH SPECIAL BDE-N040940.A2 N040940	£9.41	£11.29
173 - HOLDER BDE-391358-01.A81 391358-01	£1.50	£1.80
174 - WRENCH SPECIAL BDE-385567-01.A14 385567-01	-
175 - WRENCH SPECIAL BDE-N040940.A3 N040940	£9.41	£11.29
176 - RETAINER BDE-615993-00.A13 615993-00	£1.50	£1.80
177 - SPRING BDE-946866-00.A9 946866-00	£1.50	£1.80
179 - GUARD KIT BDE-N181532.A21 N181532	£110.62	£132.74
179 - RIVING KNIFE KIT BDE-N097056.A1 N097056	£55.30	£66.36
180 - SHIM BDE-609497-00.A8 609497-00	£1.50	£1.80
181 - SCREW BDE-607181-00.A1 607181-00	£1.50	£1.80
182 - BUMPER BDE-616634-00.A3 616634-00	£4.16	£4.99
183 - NUT BDE-860083-15.A96 860083-15	£1.50	£1.80
185 - LOCK BDE-606233-00.A9 606233-00	£4.69	£5.63
186 - LOCK BDE-606232-00.A4 606232-00	£4.69	£5.63
187 - CORD CLAMP BDE-605601-00.A12 605601-00	£1.50	£1.80
188 - PIN BDE-607132-00.A1 607132-00	£1.50	£1.80
189 - SCREW BDE-330045-55.A72 330045-55	£1.50	£1.80
190 - BEARING BLOCK BDE-153379-00.A21 153379-00	£1.82	£2.19
191 - SCREW BDE-610574-00.A11 610574-00	£1.50	£1.80
192 - ROD BDE-611094-00.A11 611094-00	£7.85	£9.42
193 - SCREW BDE-861090-00.A16 861090-00	£1.50	£1.80
194 - WASHER BDE-860073-14.A38 860073-14	£1.50	£1.80
195 - FRONT LEG BDE-613233-00.A10 613233-00	£18.91	£22.69
196 - REAR LEG BDE-655033-00.A2 655033-00	£16.03	£19.24
197 - FOOT BDE-861073-00.A19 861073-00	£10.85	£13.02
198 - CLAMP BDE-N013623.A10 N013623	£5.88	£7.06
199 - KNOB BDE-618362-00.A5 618362-00	£5.88	£7.06
200 - CARRIAGE BOLT BDE-98131-90.A11 98131-90	£1.50	£1.80
201 - CABLE CLAMP BDE-861091-00.A15 861091-00	£1.50	£1.80
202 - SPRING BDE-860112-11.A43 860112-11	£1.50	£1.80
204 - FRAME LH BDE-655032-00.A4 655032-00	£144.10	£172.92
205 - CLIP BDE-615994-00.A0 615994-00	£1.50	£1.80
206 - PUSHROD BDE-860610-01.A65 860610-01	£7.85	£9.42
207 - BOLT BDE-616592-00.A16 616592-00	£7.85	£9.42
208 - TUBE BDE-604537-00.A3 604537-00	£17.48	£20.97
209 - SCREW BDE-942447-00.A49 942447-00	£1.50	£1.80
210 - AXLE STUB BDE-611623-00.A8 611623-00	£12.17	£14.60
211 - WASHER BDE-98197-08.A11 98197-08	£1.50	£1.80
212 - SCREW BDE-330045-50.A3 330045-50	£1.50	£1.80
213 - FENCE BDE-605789-00.A9 605789-00	£14.57	£17.48
214 - FENCE BDE-386616-00.A18 386616-00	£18.91	£22.69
215 - KNOB BDE-147107-00.A31 147107-00	£1.82	£2.19
216 - PLATE BDE-611712-00.A11 611712-00	£2.78	£3.34
217 - BRACKET BDE-611921-00.A10 611921-00	£18.91	£22.69
218 - LEVER LOCK BDE-605794-00.A11 605794-00	£17.48	£20.97
219 - BRACKET BDE-605796-00.A11 605796-00	£1.50	£1.80
220 - CLEVIS PIN BDE-605795-00.A9 605795-00	£1.50	£1.80
221 - WASHER CLAMP BDE-392948-00.A8 392948-00	£1.50	£1.80
222 - POINTER BDE-605798-00.A9 605798-00	£1.50	£1.80
223 - SCREW BDE-330045-05.A119 330045-05	£1.50	£1.80
224 - NUT BDE-612284-00.A5 612284-00	£1.50	£1.80
225 - WASHER BDE-605790-00.A4 605790-00	£1.50	£1.80
226 - GUARD SA BDE-N162338.A2 N162338	£47.08	£56.49
226 - GUARD KIT BDE-N181532.A20 N181532	£110.62	£132.74
227 - GUARD LOWER BDE-N060308.A0 N060308	£9.41	£11.29
228 - WHEEL BDE-612441-00.A3 612441-00	£30.08	£36.10
229 - WASHER BDE-941602-00.A143 941602-00	£1.50	£1.80
230 - FOOT BDE-N219072.A2 N219072	£3.30	£3.96
231 - NUT BDE-860083-14.A26 860083-14	£1.50	£1.80
232 - WASHER M8 BDE-860073-03.A467 860073-03	£1.50	£1.80
233 - SCREW BDE-860085-20.A7 860085-20	£1.50	£1.80
234 - SHOE BDE-621653-00.A1 621653-00	£2.26	£2.71
235 - CLAMP BDE-610252-00.A1 610252-00	£2.26	£2.71
236 - SCREW BDE-330045-14.A64 330045-14	£1.50	£1.80
237 - WASHER BDE-623499-00.A12 623499-00	£2.26	£2.71
238 - WASHER BDE-860075-00.A167 860075-00	£1.50	£1.80
239 - IDENTITY LABEL BDE-617108-00.A10 617108-00	£9.41	£11.29
240 - BUSHING BDE-607182-00.A15 607182-00	£1.50	£1.80
241 - WASHER BDE-860078-02.A20 860078-02	£1.50	£1.80
243 - SPRING CLIP BDE-620327-00.A9 620327-00	£1.50	£1.80
244 - IDENTITY LABEL BDE-624373-00.A11 624373-00	£1.50	£1.80
245 - SCREW BDE-860085-20.A6 860085-20	£1.50	£1.80
246 - NUT BDE-860092-05.A1 860092-05	£1.50	£1.80
247 - GUARD PLATE BDE-N162668.A6 N162668	£7.18	£8.62
248 - SCREW BDE-860084-11.A79 860084-11	£1.50	£1.80
249 - NUT BDE-860092-05.A2 860092-05	£1.50	£1.80
250 - SWITCH LX BDE-394375-02P.A32 394375-02P	£14.57	£17.48
251 - NUT BDE-330021-08.A2 330021-08	£1.50	£1.80
252 - WASHER BDE-860075-01.A4 860075-01	£1.50	£1.80
253 - CORD BDE-N060144.A4 N060144	£3.80	£4.56
255 - SPRING BDE-N056486.A8 N056486	£1.50	£1.80
256 - GUARD PLATE BDE-N164679.A2 N164679	£7.18	£8.62
270 - SPACER BDE-626334-00.A9 626334-00	£1.50	£1.80
271 - FASTENER BDE-868303-00.A1 868303-00	£3.80	£4.56
272 - LABEL BDE-626191-00.A15 626191-00	£1.50	£1.80
273 - SCREW BDE-146679-00.A11 146679-00	£1.50	£1.80
274 - CABLE SA LX BDE-627449-01.A3 627449-01	£2.78	£3.34
275 - FENCE BDE-611713-01.A3 611713-01	£99.47	£119.36
276 - SCREW BDE-949701-05.A16 949701-05	£1.50	£1.80
277 - NUT BDE-860083-15.A95 860083-15	£1.50	£1.80
278 - FIELDCASE LX BDE-621067-01.A4 621067-01	£25.70	£30.84
279 - FIELD 115V LX BDE-627856-00.A3 627856-00	£74.15	£88.98
280 - BRUSH HOLDER LX BDE-622440-00.A0 622440-00	£3.80	£4.56
281 - SCREW LX BDE-98094-55.A27 98094-55	£1.50	£1.80
282 - SCREW LX BDE-330022-16.A3 330022-16	£1.50	£1.80
283 - BAFFLE FAN LX BDE-391375-00.A6 391375-00	£1.82	£2.19
284 - MOTOR SA 115V LX BDE-N098056.A3 N098056	-
287 - BEARING LX BDE-330003-60.A92 330003-60	£2.78	£3.34
294 - SLEEVE INSULATING LX BDE-650234-00.A2 650234-00	£1.50	£1.80
295 - BRUSH CAP LX BDE-622441-00.A17 622441-00	£1.50	£1.80
296 - MOUNTING BRACKET LX BDE-391282-00.A15 391282-00	£16.03	£19.24
297 - BRUSH PAIR SA LX BDE-N088936.A4 N088936	£7.85	£9.42
298 - SCREW LX BDE-330019-34.A18 330019-34	£1.50	£1.80
299 - END CAP LX BDE-621118-00.A0 621118-00	£4.69	£5.63
300 - BUSHING LX BDE-605155-00.A10 605155-00	£1.66	£1.99
301 - NO LONGER AVAILABLE LX BDE-000000-00.A30392 000000-00	-
308 - BRUSH LEAD BDE-N025820.A3 N025820	£1.50	£1.80
450 - CLAMP SA BDE-630065-00.A12 630065-00	£14.57	£17.48
451 - KNOB LOWER BDE-147107-02.A56 147107-02	£2.26	£2.71
800 - GREASE BDE-5140061-28.A61 5140061-28	£51.90	£62.28
816 - WARNING LABEL BDE-N045702.A5 N045702	£2.78	£3.34
821 - RATING PLATE LX BDE-N161897 N161897	£5.88	£7.06

Attribute Name	Value
Brand	Dewalt

There are currently no reviews of this product.

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

Shopping Basket (0) £0.00

Dewalt D27105 Type 4 Combination Saw Spare Parts

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Dewalt D27105 Type 4 Combination Saw Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
