Dewalt DC810 Type 1 Impact Wrench Spare Parts

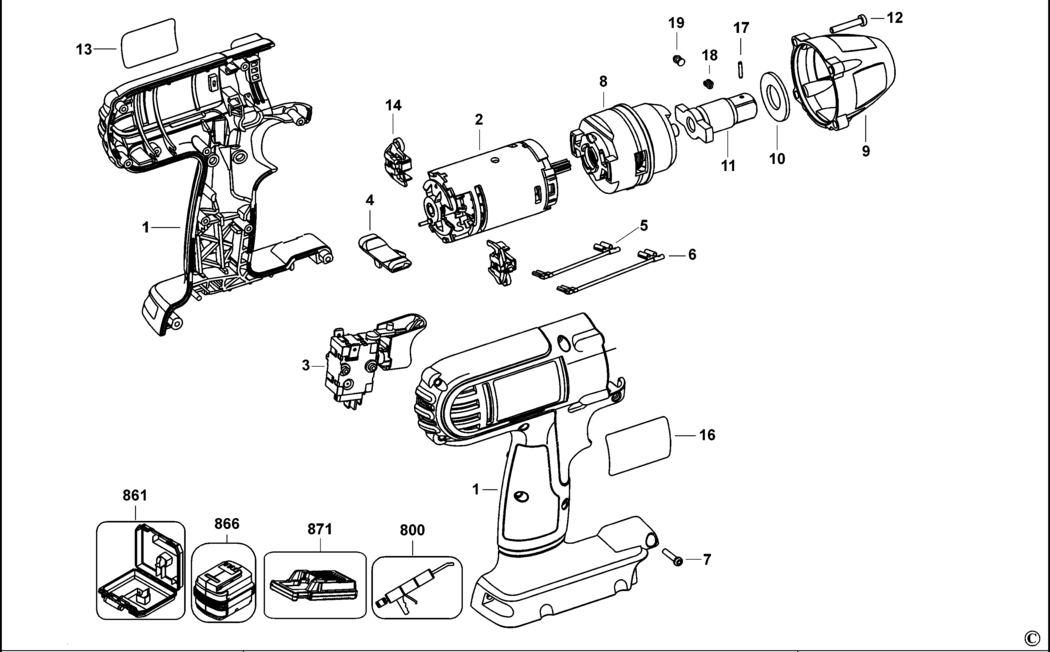

An exploded drawing and spare parts listing for the Dewalt DC810 Type 1 Impact Wrench

	Ex VAT	Inc VAT
1 - NO LONGER AVAILABLE BDE-000000-00.A29712 000000-00	-
2 - NO LONGER AVAILABLE BDE-000000-00.A29713 000000-00	-
3 - NO LONGER AVAILABLE BDE-000000-00.A29714 000000-00	-
4 - ACTUATOR FWD/REV BDE-634728-00.A2 634728-00	£1.42	£1.70
5 - LEAD PURPLE BDE-631282-01.A11 631282-01	£1.42	£1.70
6 - NO LONGER AVAILABLE BDE-000000-00.A29715 000000-00	-
7 - SCREW BDE-682211-00.A120 682211-00	£1.50	£1.80
8 - NO LONGER AVAILABLE BDE-000000-00.A29716 000000-00	-
9 - HOUSING BDE-607993-01.A3 607993-01	£25.05	£30.06
10 - NO LONGER AVAILABLE BDE-000000-00.A29717 000000-00	-
11 - ANVIL ASSEMBLY BDE-608024-00SV.A0 608024-00SV	£37.35	£44.82
12 - SCREW.SPECIAL BDE-330019-52.A33 330019-52	£1.50	£1.80
13 - BRAND LABEL BDE-395657-00.A63 395657-00	£1.50	£1.80
14 - BRUSH PAIR BDE-389025-04.A2 389025-04	£10.85	£13.02
16 - NO LONGER AVAILABLE GB BDE-000000-00.A29718 000000-00	-
17 - ROLL PIN BDE-099205-07.A17 099205-07	£1.50	£1.80
18 - SPRING BDE-038769-00.A7 038769-00	£1.50	£1.80
19 - DETENT BDE-N020802.A23 N020802	£2.78	£3.34
800 - GREASE 100 GMS BDE-808386-00.A153 808386-00	£55.30	£66.36
861 - KITBOX BDE-N232344.A0 N232344	£57.22	£68.66
866 - NO LONGER AVAILABLE DC810KL GB BDE-000000-00.A29721 000000-00	-
871 - CHARGER GB DC810KL GB BDE-1006633-00.A9 1006633-00	£131.95	£158.34

Attribute Name	Value
Brand	Dewalt
