Dewalt DXPW006E Type 1 Pressure Washer Spare Parts

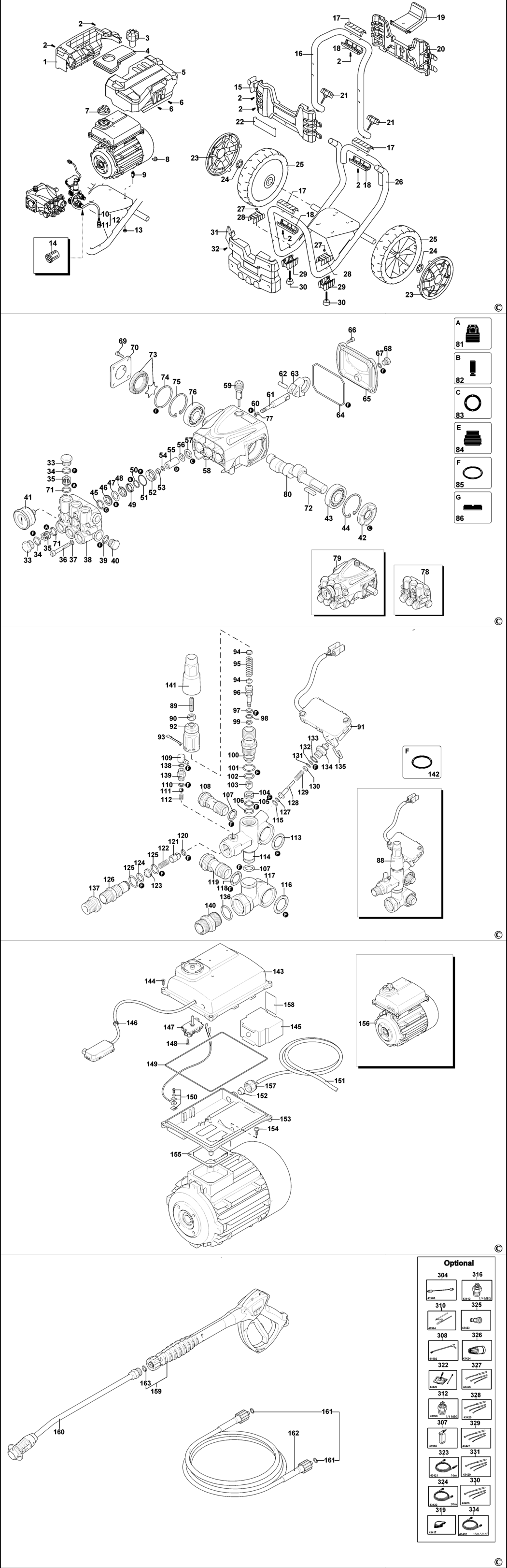

An exploded drawing and spare parts listing for the Dewalt DXPW006E Type 1 Pressure Washer

	Ex VAT	Inc VAT
1 - CASING BDE-1004714-00.A2 1004714-00	£25.70	£30.84
2 - SCREW BDE-1004712-13.A5 1004712-13	£1.66	£1.99
3 - KNOB BDE-1004712-40.A3 1004712-40	£7.18	£8.62
4 - SUPPORT BDE-1004714-24.A2 1004714-24	£16.03	£19.24
5 - CASING BDE-1004713-99.A1 1004713-99	£25.70	£30.84
6 - SCREW BDE-1004709-59.A3 1004709-59	£1.66	£1.99
7 - KNOB BDE-1004713-73.A2 1004713-73	£7.18	£8.62
8 - SPACER BDE-1004714-10.A1 1004714-10	£7.18	£8.62
9 - BOLT BDE-1004712-37.A0 1004712-37	£4.69	£5.63
10 - HOSE BDE-1004710-70.A1 1004710-70	£4.69	£5.63
11 - FILTER BDE-1004710-89.A2 1004710-89	£14.57	£17.48
12 - HOSE SA BDE-1004710-68.A3 1004710-68	£10.85	£13.02
13 - NUT BDE-1004709-67.A1 1004709-67	£1.66	£1.99
14 - FILTER BDE-1004710-83.A2 1004710-83	£1.66	£1.99
15 - GUARD BDE-1004713-77.A1 1004713-77	£24.39	£29.27
16 - HANDLE BDE-1004713-75.A1 1004713-75	£60.94	£73.13
17 - GUARD BDE-1004713-64.A3 1004713-64	£7.18	£8.62
18 - GUARD BDE-1004713-65.A8 1004713-65	£7.18	£8.62
19 - CARRIER BDE-1004713-85.A1 1004713-85	£17.48	£20.97
20 - GUARD BDE-1004713-76.A6 1004713-76	£25.70	£30.84
21 - KNOB BDE-1004714-12.A4 1004714-12	£14.57	£17.48
22 - GUARD BDE-1004714-01.A3 1004714-01	£16.03	£19.24
23 - GUARD BDE-1004713-82.A2 1004713-82	£16.03	£19.24
24 - WASHER BDE-1004713-45.A2 1004713-45	£3.30	£3.96
25 - WHEEL BDE-1004713-44.A1 1004713-44	£37.35	£44.82
26 - FRAME BDE-1004713-74.A2 1004713-74	£165.92	£199.11
27 - NUT BDE-1004710-34.A3 1004710-34	£1.66	£1.99
28 - GUARD BDE-1004713-80.A6 1004713-80	£7.18	£8.62
29 - GUARD BDE-1004713-79.A1 1004713-79	£7.85	£9.42
30 - DAMPER BDE-1004713-81.A1 1004713-81	£19.90	£23.88
31 - GUARD BDE-1004713-78.A6 1004713-78	£24.39	£29.27
32 - SCREW BDE-1004712-12.A7 1004712-12	£1.66	£1.99
33 - PLUG BDE-1004710-20.A2 1004710-20	£7.85	£9.42
34 - O RING BDE-1004710-22.A5 1004710-22	£1.66	£1.99
35 - VALVE BDE-1004711-44.A0 1004711-44	£7.18	£8.62
36 - SCREW BDE-1004710-01.A3 1004710-01	£1.66	£1.99
37 - WASHER BDE-1004711-35.A5 1004711-35	£1.66	£1.99
38 - HEAD SA BDE-1004713-19.A0 1004713-19	£115.77	£138.92
39 - O RING BDE-1004709-60.A2 1004709-60	£1.66	£1.99
40 - PLUG BDE-1004710-03.A1 1004710-03	£5.88	£7.06
41 - PRESSURE GAUGE BDE-1004711-34.A0 1004711-34	£47.08	£56.49
42 - RING BDE-1004713-34.A1 1004713-34	£3.80	£4.56
43 - BEARING BDE-1004711-93.A1 1004711-93	£16.03	£19.24
44 - RING BDE-1004709-63.A4 1004709-63	£3.80	£4.56
45 - RING BDE-1004711-80.A1 1004711-80	£1.66	£1.99
46 - SEAL BDE-1004711-84.A1 1004711-84	£14.57	£17.48
47 - RING BDE-1004713-10.A1 1004713-10	£1.66	£1.99
48 - GUIDE BDE-1004713-27.A0 1004713-27	£16.03	£19.24
49 - GASKET BDE-1004713-07.A2 1004713-07	£3.30	£3.96
50 - RING BDE-1004713-11.A0 1004713-11	£1.66	£1.99
51 - O RING BDE-1004709-92.A0 1004709-92	£1.66	£1.99
52 - GUIDE BDE-1004713-26.A1 1004713-26	£17.48	£20.97
53 - NUT BDE-1004710-53.A0 1004710-53	£1.66	£1.99
54 - WASHER BDE-1004710-52.A5 1004710-52	£1.66	£1.99
55 - PISTON BDE-1004711-79.A0 1004711-79	£34.00	£40.80
56 - PLATE BDE-1004710-51.A0 1004710-51	£1.66	£1.99
57 - SEAL BDE-1004710-57.A3 1004710-57	£4.69	£5.63
58 - PUMP SA BDE-1004713-18.A3 1004713-18	£71.44	£85.73
59 - PLUG BDE-1004710-10.A1 1004710-10	£7.85	£9.42
60 - O RING BDE-1004709-78.A19 1004709-78	£1.66	£1.99
61 - PISTON BDE-1004713-22.A1 1004713-22	£24.39	£29.27
62 - PIN BDE-1004713-23.A2 1004713-23	£4.69	£5.63
63 - CON ROD BDE-1004713-21.A2 1004713-21	£12.17	£14.60
64 - O RING BDE-1004709-86.A2 1004709-86	£1.66	£1.99
65 - COVER BDE-1004713-20.A1 1004713-20	£19.90	£23.88
66 - SCREW BDE-1004713-08.A2 1004713-08	£1.66	£1.99
67 - O RING BDE-1004710-05.A14 1004710-05	£1.66	£1.99
68 - PLUG BDE-1004710-14.A3 1004710-14	£3.80	£4.56
69 - SCREW BDE-1004710-48.A4 1004710-48	£1.66	£1.99
70 - SUPPORT BDE-1004713-01.A1 1004713-01	£7.85	£9.42
71 - O RING BDE-1004710-15.A3 1004710-15	£1.66	£1.99
72 - KEY BDE-1004713-09.A2 1004713-09	£1.66	£1.99
73 - LEVEL BDE-1004727-74.A0 1004727-74	£17.48	£20.97
74 - O RING BDE-1004709-85.A1 1004709-85	£1.66	£1.99
75 - RING BDE-1004709-63.A5 1004709-63	£3.80	£4.56
76 - BEARING BDE-1004711-93.A0 1004711-93	£16.03	£19.24
77 - RING BDE-1004710-42.A3 1004710-42	£1.66	£1.99
78 - HEAD SA BDE-1004727-75.A1 1004727-75	£245.11	£294.13
79 - PUMP SA BDE-1004709-07 1004709-07	£615.67	£738.80
80 - CRANKSHAFT BDE-1004713-35.A0 1004713-35	£115.77	£138.92
81 - VALVE KIT BDE-1004708-95.A2 1004708-95	£24.39	£29.27
82 - PISTON KIT BDE-1004708-93.A0 1004708-93	£93.62	£112.35
83 - SEALS KIT BDE-1004709-30.A0 1004709-30	£18.91	£22.69
84 - SEALS KIT BDE-1004709-31.A1 1004709-31	£37.35	£44.82
85 - GASKET SET BDE-1004709-32.A0 1004709-32	£14.57	£17.48
86 - RING BDE-1004708-92.A3 1004708-92	£4.69	£5.63
88 - VALVE BDE-1004709-09.A0 1004709-09	£174.63	£209.56
89 - SCREW BDE-1004712-72.A2 1004712-72	£1.66	£1.99
90 - NUT BDE-1004710-34.A4 1004710-34	£1.66	£1.99
91 - BOX BDE-1004712-10.A0 1004712-10	£37.35	£44.82
92 - INSERT BDE-1004712-45.A2 1004712-45	£17.48	£20.97
93 - PIN BDE-1004712-46.A6 1004712-46	£1.66	£1.99
94 - PLATE BDE-1004711-87.A1 1004711-87	£1.66	£1.99
95 - SPRING BDE-1004712-59.A1 1004712-59	£5.88	£7.06
96 - PISTON BDE-1004712-58.A5 1004712-58	£16.03	£19.24
97 - O RING BDE-1004712-21.A1 1004712-21	£1.66	£1.99
98 - O RING BDE-1004709-88.A9 1004709-88	£1.66	£1.99
99 - RING BDE-1004712-52.A8 1004712-52	£5.88	£7.06
100 - GUIDE BDE-1004712-60.A5 1004712-60	£24.39	£29.27
101 - O RING BDE-1004710-49.A0 1004710-49	£1.66	£1.99
102 - O RING BDE-1004709-75.A1 1004709-75	£1.66	£1.99
103 - SHUTTER BDE-1004712-20.A5 1004712-20	£19.90	£23.88
104 - SEAT BDE-1004712-62.A5 1004712-62	£10.85	£13.02
105 - O RING BDE-1004709-91.A6 1004709-91	£1.66	£1.99
106 - RING BDE-1004712-61.A1 1004712-61	£1.66	£1.99
107 - O RING BDE-1004709-69.A6 1004709-69	£1.66	£1.99
108 - SCREW BDE-1004711-61.A1 1004711-61	£10.85	£13.02
109 - CONNECTOR BDE-1004712-33.A2 1004712-33	£4.69	£5.63
110 - O RING BDE-1004709-78.A18 1004709-78	£1.66	£1.99
111 - BALL BDE-1004710-50.A18 1004710-50	£1.66	£1.99
112 - SPRING BDE-1004711-70.A1 1004711-70	£1.66	£1.99
113 - O RING BDE-1004712-22.A5 1004712-22	£1.66	£1.99
114 - VALVE BODY BDE-1004713-47.A5 1004713-47	£47.08	£56.49
115 - O RING BDE-1004710-44.A5 1004710-44	£1.66	£1.99
116 - O RING BDE-1004711-65.A1 1004711-65	£1.66	£1.99
117 - BODY BDE-1004713-48.A1 1004713-48	£24.39	£29.27
118 - O RING BDE-1004710-11.A6 1004710-11	£1.66	£1.99
119 - SCREW BDE-1004712-23.A1 1004712-23	£9.41	£11.29
120 - O RING BDE-1004712-14.A8 1004712-14	£1.66	£1.99
121 - SHUTTER BDE-1004712-50.A5 1004712-50	£18.91	£22.69
122 - SPRING BDE-1004712-51.A1 1004712-51	£1.66	£1.99
123 - INSERT BDE-1004712-49.A1 1004712-49	£5.88	£7.06
124 - O RING BDE-1004711-57.A1 1004711-57	£1.66	£1.99
125 - O RING BDE-1004712-56.A7 1004712-56	£1.66	£1.99
126 - COUPLING BDE-1004712-54.A6 1004712-54	£14.57	£17.48
127 - RING BDE-1004712-26.A1 1004712-26	£5.88	£7.06
128 - PIN BDE-1004712-25.A1 1004712-25	£7.18	£8.62
129 - SPRING BDE-1004712-24.A1 1004712-24	£1.66	£1.99
130 - WASHER BDE-1004712-06.A7 1004712-06	£1.66	£1.99
131 - O RING BDE-1004710-63.A2 1004710-63	£1.66	£1.99
132 - RING BDE-1004713-50.A1 1004713-50	£5.88	£7.06
133 - O RING BDE-1004709-81.A5 1004709-81	£1.66	£1.99
134 - CONNECTOR BDE-1004713-49.A1 1004713-49	£9.41	£11.29
135 - FORK BDE-1004712-09.A6 1004712-09	£2.78	£3.34
136 - O RING BDE-1004709-77.A1 1004709-77	£1.66	£1.99
137 - COUPLING BDE-1004710-45.A1 1004710-45	£7.85	£9.42
138 - O RING BDE-1004709-79.A2 1004709-79	£1.66	£1.99
139 - CONNECTOR BDE-1004711-02.A1 1004711-02	£14.57	£17.48
140 - COUPLING BDE-1004713-46.A1 1004713-46	£24.39	£29.27
141 - EXTENSION BDE-1004714-08.A1 1004714-08	£9.41	£11.29
142 - GASKET SET BDE-1004709-40.A6 1004709-40	£24.39	£29.27
143 - BOX BDE-1004713-97.A2 1004713-97	£17.48	£20.97
144 - SCREW BDE-1004712-47.A2 1004712-47	£1.66	£1.99
145 - CONTACT BDE-1004712-41.A1 1004712-41	£78.12	£93.74
146 - GLAND BDE-1004712-04.A12 1004712-04	£3.80	£4.56
147 - SWITCH BDE-1004712-80.A7 1004712-80	£16.03	£19.24
148 - SCREW BDE-1004712-01.A8 1004712-01	£1.66	£1.99
149 - O RING BDE-1004713-95.A2 1004713-95	£1.66	£1.99
150 - CLAMP BDE-1004710-67.A4 1004710-67	£5.88	£7.06
151 - CABLE BDE-1004711-76.A0 1004711-76	£60.94	£73.13
152 - GASKET BDE-1004713-93.A2 1004713-93	£1.66	£1.99
153 - PLATE BDE-1004713-96.A1 1004713-96	£17.48	£20.97
154 - SCREW BDE-1004714-06.A2 1004714-06	£16.03	£19.24
155 - GASKET BDE-1004711-75.A3 1004711-75	£4.69	£5.63
156 - MOTOR BDE-1004709-45.A0 1004709-45	£1166.32	£1399.58
157 - GLAND BDE-1004713-94.A2 1004713-94	£5.88	£7.06
158 - GUIDE BDE-1004714-07.A1 1004714-07	£7.85	£9.42
159 - HANDLE SA BDE-1004709-17.A0 1004709-17	£74.15	£88.98
160 - EXTENSION BDE-1004709-22 1004709-22	£38.80	£46.56
161 - O RING BDE-1004712-02.A3 1004712-02	£7.18	£8.62
162 - HOSE BDE-1004714-11.A0 1004714-11	£209.59	£251.51
163 - O RING BDE-1004709-73.A3 1004709-73	£1.66	£1.99
304 - EXTENSION Optional BDE-1004719-42 1004719-42	£110.62	£132.74
307 - EXTENSION Optional BDE-1004719-45.A8 1004719-45	£157.18	£188.61
308 - EXTENSION Optional BDE-1004719-46.A1 1004719-46	£80.98	£97.18
310 - EXTENSION Optional BDE-1004719-48.A0 1004719-48	£258.10	£309.72
312 - NOZZLE Optional BDE-1004719-50.A2 1004719-50	£34.00	£40.80
316 - NOZZLE Optional BDE-1004719-54 1004719-54	£30.08	£36.10
319 - BRUSH Optional BDE-1004719-57.A1 1004719-57	£119.32	£143.19
322 - HEAD SA Optional BDE-1004719-60.A1 1004719-60	£336.69	£404.03
323 - HOSE Optional BDE-1004719-61.A10 1004719-61	£99.47	£119.36
324 - HOSE Optional BDE-1004719-62.A0 1004719-62	-
325 - COUPLING Optional BDE-1004719-63.A10 1004719-63	£55.30	£66.36
326 - COUPLING Optional BDE-1004719-64.A0 1004719-64	£110.62	£132.74
327 - EXTENSION Optional BDE-1004719-65.A10 1004719-65	£37.35	£44.82
328 - EXTENSION Optional BDE-1004719-66.A0 1004719-66	£44.14	£52.97
329 - EXTENSION Optional BDE-1004719-67.A10 1004719-67	£58.69	£70.43
330 - EXTENSION Optional BDE-1004719-68.A0 1004719-68	£58.69	£70.43
331 - EXTENSION Optional BDE-1004719-69.A10 1004719-69	£65.52	£78.62
334 - HOSE Optional BDE-1004719-72.A1 1004719-72	£319.22	£383.07
