Dewalt DXPW004E Type 1 Pressure Washer Spare Parts

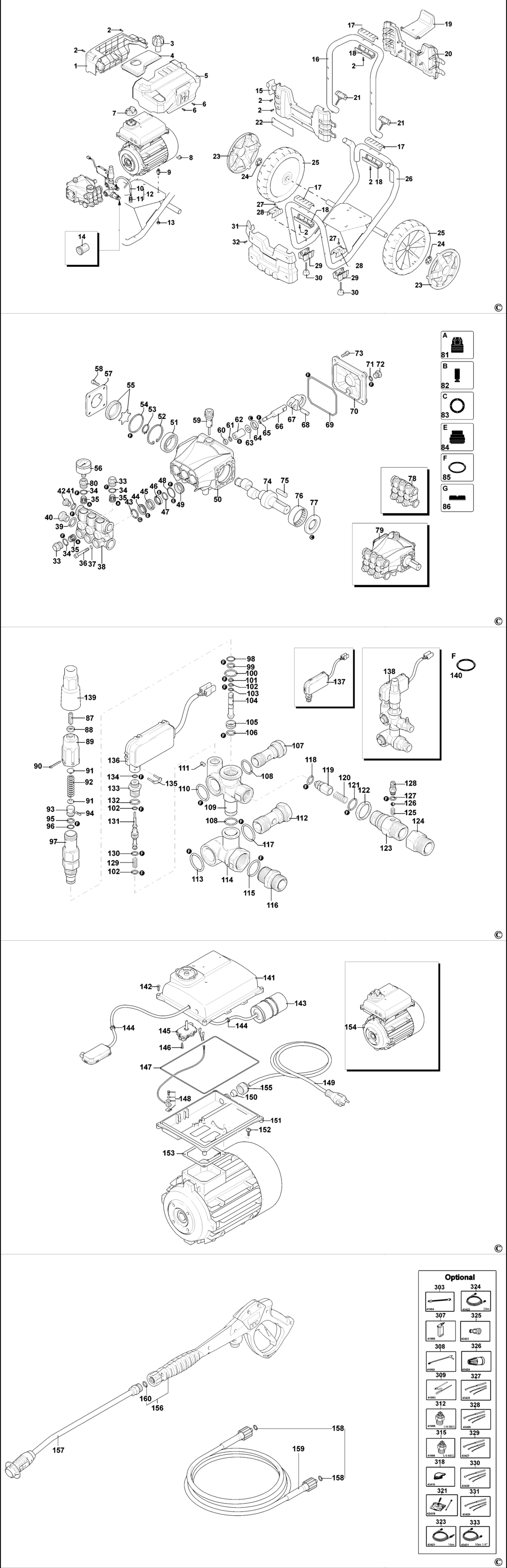

An exploded drawing and spare parts listing for the Dewalt DXPW004E Type 1 Pressure Washer

	Ex VAT	Inc VAT
1 - CASING BDE-1004714-00.A1 1004714-00	£25.70	£30.84
2 - SCREW BDE-1004712-13.A4 1004712-13	£1.50	£1.80
3 - KNOB BDE-1004712-40.A2 1004712-40	£7.18	£8.62
4 - SUPPORT BDE-1004714-24.A1 1004714-24	£16.03	£19.24
5 - CASING BDE-1004713-99.A2 1004713-99	£25.70	£30.84
6 - SCREW BDE-1004709-59.A2 1004709-59	£1.50	£1.80
7 - KNOB BDE-1004713-73.A3 1004713-73	£7.18	£8.62
8 - SPACER BDE-1004714-10.A0 1004714-10	£7.18	£8.62
9 - BOLT BDE-1004712-37.A1 1004712-37	£4.69	£5.63
10 - HOSE BDE-1004710-70.A2 1004710-70	£4.69	£5.63
11 - FILTER BDE-1004710-89.A3 1004710-89	£14.57	£17.48
12 - HOSE SA BDE-1004710-68.A2 1004710-68	£10.85	£13.02
13 - NUT BDE-1004709-67.A2 1004709-67	£1.50	£1.80
14 - FILTER BDE-1004710-83.A1 1004710-83	£1.50	£1.80
15 - GUARD BDE-1004713-77.A2 1004713-77	£24.39	£29.27
16 - HANDLE BDE-1004713-75.A2 1004713-75	£60.94	£73.13
17 - GUARD BDE-1004713-64.A4 1004713-64	£7.18	£8.62
18 - GUARD BDE-1004713-65.A7 1004713-65	£7.18	£8.62
19 - CARRIER BDE-1004713-85.A2 1004713-85	£17.48	£20.97
20 - GUARD BDE-1004713-76.A5 1004713-76	£25.70	£30.84
21 - KNOB BDE-1004714-12.A5 1004714-12	£14.57	£17.48
22 - GUARD BDE-1004714-01.A4 1004714-01	£16.03	£19.24
23 - GUARD BDE-1004713-82.A1 1004713-82	£16.03	£19.24
24 - WASHER BDE-1004713-45.A1 1004713-45	£3.30	£3.96
25 - WHEEL BDE-1004713-44.A2 1004713-44	£37.35	£44.82
26 - FRAME BDE-1004713-74.A1 1004713-74	£165.92	£199.11
27 - NUT BDE-1004710-34.A5 1004710-34	£1.50	£1.80
28 - GUARD BDE-1004713-80.A5 1004713-80	£7.18	£8.62
29 - GUARD BDE-1004713-79.A2 1004713-79	£7.85	£9.42
30 - DAMPER BDE-1004713-81.A2 1004713-81	£19.90	£23.88
31 - GUARD BDE-1004713-78.A5 1004713-78	£24.39	£29.27
32 - SCREW BDE-1004712-12.A8 1004712-12	£1.50	£1.80
33 - PLUG BDE-1004713-04.A0 1004713-04	£7.18	£8.62
34 - O RING BDE-1004710-49.A1 1004710-49	£1.50	£1.80
35 - VALVE BDE-1004712-63.A0 1004712-63	£5.88	£7.06
36 - SCREW BDE-1004709-98.A0 1004709-98	£1.50	£1.80
37 - WASHER BDE-1004711-33.A1 1004711-33	£1.50	£1.80
38 - HEAD BDE-1004712-96.A0 1004712-96	£87.82	£105.39
39 - O RING BDE-1004709-60.A3 1004709-60	£1.50	£1.80
40 - PLUG BDE-1004710-03.A2 1004710-03	£5.88	£7.06
41 - O RING BDE-1004709-90.A1 1004709-90	£1.50	£1.80
42 - PLUG BDE-1004711-91.A10 1004711-91	£3.80	£4.56
43 - RING BDE-1004711-80.A2 1004711-80	£1.50	£1.80
44 - SEAL BDE-1004711-84.A0 1004711-84	£14.57	£17.48
45 - GUIDE BDE-1004713-06.A0 1004713-06	£7.18	£8.62
46 - GASKET BDE-1004713-07.A1 1004713-07	£3.30	£3.96
47 - RING BDE-1004713-11.A1 1004713-11	£1.50	£1.80
48 - O RING BDE-1004709-93.A4 1004709-93	£1.50	£1.80
49 - GUIDE BDE-1004713-05.A1 1004713-05	£5.88	£7.06
50 - BODY BDE-1004712-95.A1 1004712-95	£84.42	£101.30
51 - BEARING BDE-1004711-81.A1 1004711-81	£24.39	£29.27
52 - RING BDE-1004710-61.A1 1004710-61	£1.50	£1.80
53 - RING BDE-1004711-83.A1 1004711-83	£1.50	£1.80
54 - O RING BDE-1004709-76.A1 1004709-76	£1.50	£1.80
55 - LEVEL BDE-1004727-72.A0 1004727-72	£16.03	£19.24
56 - PRESSURE GAUGE BDE-1004709-14.A1 1004709-14	£30.08	£36.10
57 - SUPPORT BDE-1004713-01.A0 1004713-01	£7.85	£9.42
58 - SCREW BDE-1004710-48.A3 1004710-48	£1.50	£1.80
59 - PLUG BDE-1004710-10.A2 1004710-10	£7.85	£9.42
60 - NUT BDE-1004710-53.A1 1004710-53	£1.50	£1.80
61 - WASHER BDE-1004710-52.A4 1004710-52	£1.50	£1.80
62 - PISTON BDE-1004710-54.A1 1004710-54	£19.90	£23.88
63 - PLATE BDE-1004710-51.A1 1004710-51	£1.50	£1.80
64 - SEAL BDE-1004710-57.A2 1004710-57	£4.69	£5.63
65 - O RING BDE-1004709-78.A21 1004709-78	£1.50	£1.80
66 - PISTON BDE-1004713-00.A1 1004713-00	£18.91	£22.69
67 - CON ROD BDE-1004712-98.A1 1004712-98	£10.85	£13.02
68 - PIN BDE-1004711-77.A1 1004711-77	£3.30	£3.96
69 - O RING BDE-1004712-57.A0 1004712-57	£1.50	£1.80
70 - COVER BDE-1004712-97.A0 1004712-97	£12.17	£14.60
71 - O RING BDE-1004710-05.A13 1004710-05	£1.50	£1.80
72 - PLUG BDE-1004710-14.A4 1004710-14	£3.80	£4.56
73 - SCREW BDE-1004713-08.A3 1004713-08	£1.50	£1.80
74 - CRANKSHAFT BDE-1004713-12 1004713-12	£108.20	£129.84
75 - KEY BDE-1004713-09.A1 1004713-09	£1.50	£1.80
76 - BEARING BDE-1004710-77.A0 1004710-77	£16.03	£19.24
77 - RING BDE-1004710-58.A1 1004710-58	£7.18	£8.62
78 - HEAD SA BDE-1004727-73.A1 1004727-73	£245.11	£294.13
79 - PUMP SA BDE-1004709-05 1004709-05	£567.07	£680.48
80 - PLUG BDE-1004713-13.A0 1004713-13	£19.90	£23.88
81 - VALVE KIT BDE-1004708-85.A1 1004708-85	£24.39	£29.27
82 - PISTON KIT BDE-1004709-26.A0 1004709-26	£37.35	£44.82
83 - SEALS KIT BDE-1004709-27.A1 1004709-27	£12.17	£14.60
84 - SEALS KIT BDE-1004709-28.A0 1004709-28	£37.35	£44.82
85 - GASKET SET BDE-1004709-29.A1 1004709-29	£7.18	£8.62
86 - RING BDE-1004708-92.A2 1004708-92	£4.69	£5.63
87 - SCREW BDE-1004709-74 1004709-74	£1.50	£1.80
88 - NUT BDE-1004711-89 1004711-89	£1.50	£1.80
89 - INSERT BDE-1004712-45.A1 1004712-45	£17.48	£20.97
90 - PIN BDE-1004712-46.A7 1004712-46	£1.50	£1.80
91 - PLATE BDE-1004711-87.A0 1004711-87	£1.50	£1.80
92 - SPRING BDE-1004710-71 1004710-71	£3.80	£4.56
93 - PISTON BDE-1004710-35 1004710-35	£14.57	£17.48
94 - PIN BDE-1004710-36.A0 1004710-36	£1.50	£1.80
95 - RING BDE-1004710-41.A0 1004710-41	£1.50	£1.80
96 - O RING BDE-1004710-40.A0 1004710-40	£1.50	£1.80
97 - GUIDE BDE-1004711-86 1004711-86	£16.03	£19.24
98 - O RING BDE-1004709-90.A0 1004709-90	£1.50	£1.80
99 - O RING BDE-1004710-00.A2 1004710-00	£1.50	£1.80
100 - O RING BDE-1004710-15.A2 1004710-15	£1.50	£1.80
101 - RING BDE-1004710-73 1004710-73	£1.50	£1.80
102 - O RING BDE-1004710-39 1004710-39	£1.50	£1.80
103 - O RING BDE-1004710-44.A6 1004710-44	£1.50	£1.80
104 - PISTON BDE-1004710-72 1004710-72	£24.39	£29.27
105 - SEAT BDE-1004712-43 1004712-43	£7.85	£9.42
106 - O RING BDE-1004710-40.A1 1004710-40	£1.50	£1.80
107 - SCREW BDE-1004711-61.A0 1004711-61	£10.85	£13.02
108 - O RING BDE-1004709-69.A5 1004709-69	£1.50	£1.80
109 - VALVE BODY BDE-1004711-66 1004711-66	£37.35	£44.82
110 - O RING BDE-1004710-47.A0 1004710-47	£1.50	£1.80
111 - SCREW BDE-1004711-92 1004711-92	£1.50	£1.80
112 - SCREW BDE-1004712-23.A2 1004712-23	£9.41	£11.29
113 - O RING BDE-1004711-65.A0 1004711-65	£1.50	£1.80
114 - COUPLING BDE-1004711-62 1004711-62	£14.57	£17.48
115 - O RING BDE-1004709-77.A0 1004709-77	£1.50	£1.80
116 - COUPLING BDE-1004713-46.A2 1004713-46	£24.39	£29.27
117 - O RING BDE-1004710-11.A5 1004710-11	£1.50	£1.80
118 - O RING BDE-1004711-49.A3 1004711-49	£1.50	£1.80
119 - SHUTTER BDE-1004711-60 1004711-60	£5.88	£7.06
120 - SPRING BDE-1004710-37 1004710-37	£3.30	£3.96
121 - O RING BDE-1004709-75.A0 1004709-75	£1.50	£1.80
122 - NUT BDE-1004711-63 1004711-63	£3.80	£4.56
123 - COUPLING BDE-1004711-64 1004711-64	£25.70	£30.84
124 - COUPLING BDE-1004710-45.A0 1004710-45	£7.85	£9.42
125 - SPRING BDE-1004711-70.A0 1004711-70	£1.50	£1.80
126 - BALL BDE-1004710-50.A17 1004710-50	£1.50	£1.80
127 - O RING BDE-1004709-78.A20 1004709-78	£1.50	£1.80
128 - CONNECTOR BDE-1004711-69 1004711-69	£4.69	£5.63
129 - SPRING BDE-1004711-94 1004711-94	£1.50	£1.80
130 - O RING BDE-1004709-89 1004709-89	£1.50	£1.80
131 - PISTON BDE-1004711-68 1004711-68	£65.52	£78.62
132 - O RING BDE-1004710-16.A1 1004710-16	£1.50	£1.80
133 - PLUG BDE-1004711-67 1004711-67	£14.57	£17.48
134 - O RING BDE-1004710-62.A0 1004710-62	£1.50	£1.80
135 - FORK BDE-1004712-09.A7 1004712-09	£2.78	£3.34
136 - TERMINAL BOX BDE-1004729-44 1004729-44	£25.70	£30.84
137 - BOX BDE-1004709-42 1004709-42	£44.14	£52.97
138 - VALVE KIT BDE-1004709-12 1004709-12	£131.46	£157.75
139 - EXTENSION BDE-1004714-08.A2 1004714-08	£9.41	£11.29
140 - GASKET SET BDE-1004709-25 1004709-25	£12.17	£14.60
141 - BOX BDE-1004713-97.A1 1004713-97	£17.48	£20.97
142 - SCREW BDE-1004712-47.A1 1004712-47	£1.50	£1.80
143 - CAPACITOR BDE-1004709-54 1004709-54	£38.80	£46.56
144 - GLAND BDE-1004712-04.A11 1004712-04	£3.80	£4.56
145 - SWITCH BDE-1004712-80.A8 1004712-80	£16.03	£19.24
146 - SCREW BDE-1004712-01.A7 1004712-01	£1.50	£1.80
147 - O RING BDE-1004713-95.A1 1004713-95	£1.50	£1.80
148 - CLAMP BDE-1004710-67.A5 1004710-67	£5.88	£7.06
149 - CORDSET GB BDE-1004727-77.A1 1004727-77	£34.00	£40.80
150 - GASKET BDE-1004713-93.A1 1004713-93	£1.50	£1.80
151 - PLATE BDE-1004713-96.A2 1004713-96	£17.48	£20.97
152 - SCREW BDE-1004714-06.A1 1004714-06	£16.03	£19.24
153 - GASKET BDE-1004711-75.A2 1004711-75	£4.69	£5.63
154 - MOTOR BDE-1004709-47 1004709-47	£1166.32	£1399.58
155 - GLAND BDE-1004713-94.A1 1004713-94	£5.88	£7.06
156 - HANDLE SA BDE-1004709-16.A5 1004709-16	£55.30	£66.36
157 - EXTENSION BDE-1004709-20 1004709-20	£41.24	£49.49
158 - O RING BDE-1004712-02.A4 1004712-02	£7.18	£8.62
159 - HOSE BDE-1004714-05.A0 1004714-05	£104.31	£125.17
160 - O RING BDE-1004709-73.A4 1004709-73	£1.50	£1.80
303 - EXTENSION Optional BDE-1004719-41 1004719-41	£74.15	£88.98
307 - EXTENSION Optional BDE-1004719-45.A9 1004719-45	£157.18	£188.61
308 - EXTENSION Optional BDE-1004719-46.A0 1004719-46	£80.98	£97.18
309 - EXTENSION Optional BDE-1004719-47.A3 1004719-47	£258.10	£309.72
312 - NOZZLE Optional BDE-1004719-50.A3 1004719-50	£34.00	£40.80
315 - NOZZLE Optional BDE-1004719-53.A0 1004719-53	£30.08	£36.10
318 - BRUSH Optional BDE-1004719-56.A4 1004719-56	£119.32	£143.19
321 - HEAD SA Optional BDE-1004719-59.A1 1004719-59	£336.69	£404.03
323 - HOSE Optional BDE-1004719-61.A7 1004719-61	£99.47	£119.36
324 - HOSE Optional BDE-1004719-62.A3 1004719-62	-
325 - COUPLING Optional BDE-1004719-63.A7 1004719-63	£55.30	£66.36
326 - COUPLING Optional BDE-1004719-64.A3 1004719-64	£110.62	£132.74
327 - EXTENSION Optional BDE-1004719-65.A7 1004719-65	£37.35	£44.82
328 - EXTENSION Optional BDE-1004719-66.A3 1004719-66	£44.14	£52.97
329 - EXTENSION Optional BDE-1004719-67.A7 1004719-67	£58.69	£70.43
330 - EXTENSION Optional BDE-1004719-68.A3 1004719-68	£58.69	£70.43
331 - EXTENSION Optional BDE-1004719-69.A7 1004719-69	£65.52	£78.62
333 - HOSE Optional BDE-1004719-71.A4 1004719-71	£125.16	£150.19

Attribute Name	Value
Brand	Dewalt
