Dewalt DXPW002(A)E Type 1 Pressure Washer Spare Parts

Dewalt DXPW002ʊʞ Type 1 Pressure Washer Spare Parts

Home Details Reviews Delivery

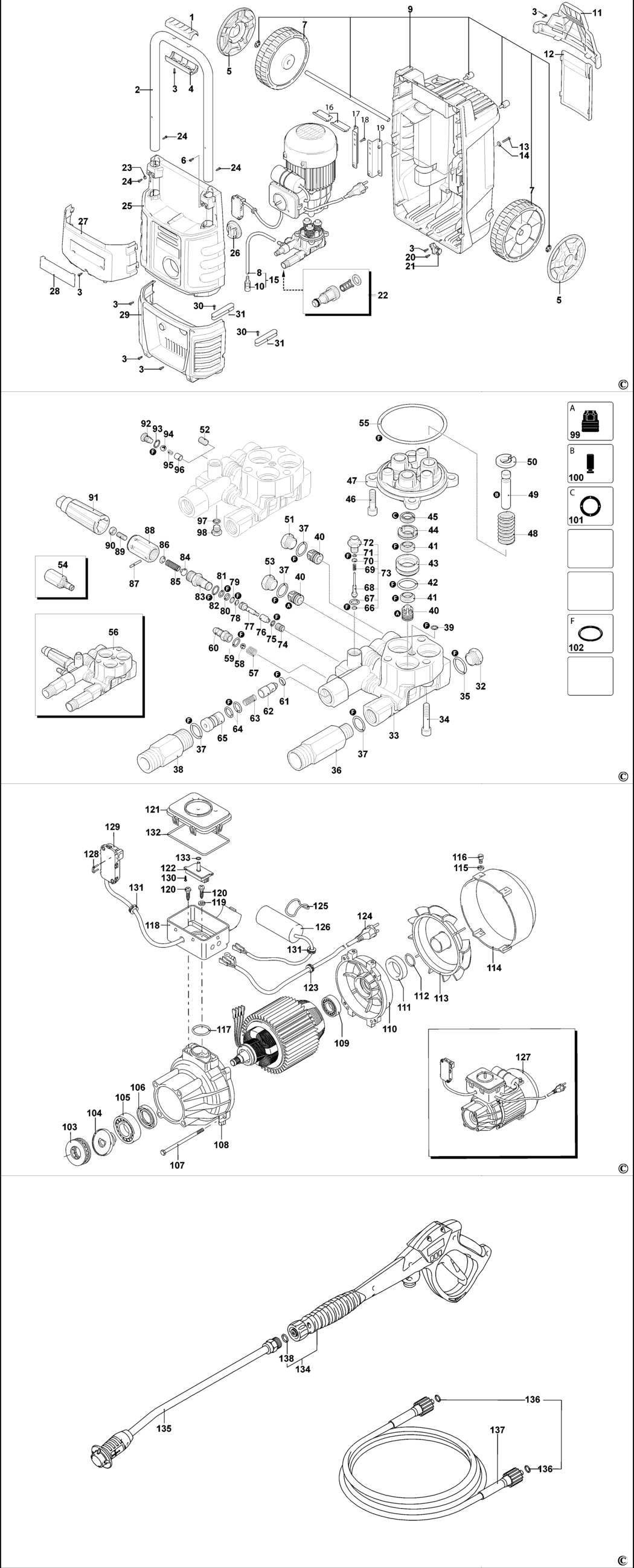

An exploded drawing and spare parts listing for the Dewalt DXPW002(A)E Type 1 Pressure Washer

	Ex VAT	Inc VAT
1 - GUARD BDE-1004713-64.A0 1004713-64	£7.18	£8.62
2 - HANDLE SA BDE-1004713-59.A3 1004713-59	£42.48	£50.98
3 - SCREW BDE-1004712-13.A3 1004712-13	£1.66	£1.99
4 - GUARD BDE-1004713-65.A11 1004713-65	£7.18	£8.62
5 - GUARD BDE-1004713-66.A0 1004713-66	£18.00	£21.60
6 - SCREW BDE-1004727-70.A2 1004727-70	£1.66	£1.99
7 - WHEEL BDE-1004714-02.A2 1004714-02	£67.48	£80.98
8 - HOSE BDE-1004710-66.A0 1004710-66	£7.18	£8.62
9 - BASE SA BDE-1004727-78.A0 1004727-78	£93.62	£112.35
10 - FILTER BDE-1004710-89.A4 1004710-89	£18.00	£21.60
11 - GUARD BDE-1004713-63.A3 1004713-63	£25.12	£30.15
12 - DOOR BDE-1004714-03.A1 1004714-03	£18.00	£21.60
13 - SCREW BDE-1004712-42.A1 1004712-42	£1.66	£1.99
14 - WASHER BDE-1004711-58.A3 1004711-58	£1.66	£1.99
15 - HOSE SA BDE-1004710-69.A3 1004710-69	£18.00	£21.60
16 - GUARD BDE-1004713-84.A2 1004713-84	£7.18	£8.62
17 - BRACKET BDE-1004713-68.A0 1004713-68	£60.46	£72.55
18 - SCREW BDE-1004712-34.A2 1004712-34	£1.66	£1.99
19 - BRACKET BDE-1004713-67.A2 1004713-67	£60.46	£72.55
20 - SCREW BDE-1004712-00.A0 1004712-00	£1.66	£1.99
21 - GLAND BDE-1004714-09.A1 1004714-09	£5.88	£7.06
22 - COUPLING SA BDE-1004712-93.A30 1004712-93	£11.18	£13.41
23 - SPACER BDE-1004713-83.A1 1004713-83	£7.40	£8.88
24 - SCREW BDE-1004712-12.A9 1004712-12	£1.66	£1.99
25 - CASING BDE-1004713-60.A0 1004713-60	£35.02	£42.02
26 - KNOB BDE-1004713-73.A4 1004713-73	£7.18	£8.62
27 - GUARD BDE-1004713-62.A0 1004713-62	£25.12	£30.15
28 - GUARD BDE-1004714-01.A7 1004714-01	£19.48	£23.37
29 - GUARD BDE-1004713-61.A2 1004713-61	£35.02	£42.02
30 - SCREW BDE-1004714-17.A2 1004714-17	£1.66	£1.99
31 - FOOT BDE-1004714-16.A4 1004714-16	£11.18	£13.41
32 - PLUG BDE-1004710-14.A1 1004710-14	£7.40	£8.88
33 - HEAD SA GB BDE-2901260.A1 2901260	£310.60	£372.72
34 - SCREW BDE-1004709-97.A4 1004709-97	£1.66	£1.99
35 - O RING BDE-1004710-05.A15 1004710-05	£1.66	£1.99
36 - PIPE BDE-1004713-54.A0 1004713-54	£24.39	£29.27
37 - O RING BDE-1004709-90.A5 1004709-90	£1.66	£1.99
38 - PIPE BDE-1004713-53.A1 1004713-53	£19.48	£23.37
39 - O RING BDE-1004709-78.A25 1004709-78	£1.66	£1.99
40 - VALVE BDE-1004712-74.A4 1004712-74	£2.78	£3.34
41 - SEAL BDE-1004712-18.A6 1004712-18	£4.83	£5.80
42 - O RING BDE-1004709-93.A8 1004709-93	£1.66	£1.99
43 - BUSHING BDE-1004712-69.A4 1004712-69	£12.53	£15.04
44 - BUSHING BDE-1004712-68.A3 1004712-68	£6.06	£7.27
45 - SEAL BDE-1004711-74.A0 1004711-74	£6.06	£7.27
46 - SCREW BDE-1004712-82.A3 1004712-82	£1.66	£1.99
47 - GUIDE BDE-1004712-76.A0 1004712-76	£25.12	£30.15
48 - SPRING BDE-1004712-87.A4 1004712-87	£3.39	£4.07
49 - PISTON BDE-1004712-67.A3 1004712-67	£12.53	£15.04
50 - LOCK BDE-1004712-64.A2 1004712-64	£1.66	£1.99
51 - PLUG BDE-1004712-65.A2 1004712-65	£8.08	£9.70
52 - SCREW BDE-1004712-66.A0 1004712-66	£7.40	£8.88
53 - PLUG BDE-1004712-65.A3 1004712-65	£8.08	£9.70
54 - VALVE KIT BDE-1004730-86.A4 1004730-86	£42.48	£50.98
55 - O RING BDE-1004712-92.A3 1004712-92	£1.66	£1.99
56 - HEAD SA GB BDE-1004733-55 1004733-55	£218.32	£261.98
57 - SPRING BDE-1004711-70.A4 1004711-70	£1.66	£1.99
58 - BALL BDE-1004710-50.A14 1004710-50	£1.66	£1.99
59 - O RING BDE-1004709-78.A26 1004709-78	£1.66	£1.99
60 - COUPLING BDE-1004711-96.A6 1004711-96	£6.06	£7.27
61 - O RING BDE-1004711-49.A0 1004711-49	£1.66	£1.99
62 - SHUTTER BDE-1004712-85.A3 1004712-85	£8.08	£9.70
63 - SPRING BDE-1004713-55.A3 1004713-55	£1.66	£1.99
64 - O RING BDE-1004710-00.A5 1004710-00	£1.66	£1.99
65 - VALVE BDE-3700200.A3 3700200	£19.48	£23.37
66 - O RING BDE-1004710-43.A2 1004710-43	£1.66	£1.99
67 - O RING BDE-1004709-81.A7 1004709-81	£1.66	£1.99
68 - PIN BDE-1004712-08.A3 1004712-08	£5.88	£7.06
69 - SPRING BDE-1004712-05.A2 1004712-05	£1.66	£1.99
70 - WASHER BDE-1004712-06.A4 1004712-06	£1.66	£1.99
71 - O RING BDE-1004710-62.A3 1004710-62	£1.66	£1.99
72 - BOLT BDE-1004711-06.A2 1004711-06	£15.01	£18.01
73 - KIT BDE-1004709-35.A3 1004709-35	£30.98	£37.18
74 - SEAT BDE-2901270.A0 2901270	£16.52	£19.82
75 - O RING BDE-1004709-81.A8 1004709-81	£1.66	£1.99
76 - PISTON BDE-1004711-46.A4 1004711-46	£24.39	£29.27
77 - PISTON BDE-1004712-07.A2 1004712-07	£16.52	£19.82
78 - O RING BDE-1004710-38.A2 1004710-38	£1.66	£1.99
79 - O RING BDE-1004709-81.A9 1004709-81	£1.66	£1.99
80 - RING BDE-1004710-41.A2 1004710-41	£1.66	£1.99
81 - O RING BDE-1004710-05.A16 1004710-05	£1.66	£1.99
82 - O RING BDE-1004709-90.A4 1004709-90	£1.66	£1.99
83 - GUIDE BDE-1004711-07.A3 1004711-07	£25.12	£30.15
84 - PLATE BDE-1004710-96.A2 1004710-96	£6.06	£7.27
85 - SPRING BDE-1004711-47.A1 1004711-47	£7.40	£8.88
86 - PLATE BDE-1004711-87.A4 1004711-87	£1.66	£1.99
87 - PIN BDE-1004712-46.A9 1004712-46	£1.66	£1.99
88 - INSERT BDE-1004711-08.A2 1004711-08	£20.50	£24.60
89 - SCREW BDE-1004711-90.A2 1004711-90	£1.66	£1.99
90 - NUT BDE-1004710-34.A6 1004710-34	£1.66	£1.99
91 - KNOB BDE-1004733-56 1004733-56	£14.57	£17.48
92 - SCREW BDE-1004712-70.A0 1004712-70	£6.06	£7.27
93 - O RING BDE-1004709-81.A10 1004709-81	£1.66	£1.99
94 - BALL BDE-1004733-57 1004733-57	£1.66	£1.99
95 - SPRING BDE-1004733-58 1004733-58	£1.66	£1.99
96 - SEAT BDE-1004733-59 1004733-59	£2.78	£3.34
97 - WASHER BDE-1004733-60 1004733-60	£1.66	£1.99
98 - PLUG BDE-1004733-61 1004733-61	£3.80	£4.56
99 - VALVE KIT BDE-1004708-87.A3 1004708-87	£18.00	£21.60
100 - PISTON KIT BDE-1004708-88.A3 1004708-88	£16.52	£19.82
101 - SEALS KIT BDE-1004709-23.A0 1004709-23	£15.01	£18.01
102 - GASKET SET BDE-1004730-87.A0 1004730-87	£30.98	£37.18
103 - BEARING BDE-1004712-78.A2 1004712-78	£16.52	£19.82
104 - PLATE BDE-1004712-88.A0 1004712-88	£18.00	£21.60
105 - BEARING BDE-1004711-81.A2 1004711-81	£26.47	£31.76
106 - SEAL BDE-1004711-52.A2 1004711-52	£7.18	£8.62
107 - SCREW BDE-1004712-36.A1 1004712-36	£1.66	£1.99
108 - BODY BDE-1004712-75.A1 1004712-75	£30.98	£37.18
109 - BEARING BDE-1004711-53.A0 1004711-53	£7.85	£9.42
110 - COVER BDE-1004711-45.A0 1004711-45	£30.98	£37.18
111 - SEAL BDE-1004711-54.A6 1004711-54	£1.66	£1.99
112 - O RING BDE-1004709-75.A4 1004709-75	£1.66	£1.99
113 - FAN BDE-1004711-48.A2 1004711-48	£7.18	£8.62
114 - CONVEYOR BDE-1004714-15.A3 1004714-15	£18.00	£21.60
115 - WASHER BDE-1004711-73.A6 1004711-73	£1.66	£1.99
116 - SCREW BDE-1004711-51.A1 1004711-51	£1.66	£1.99
117 - O RING BDE-1004709-87.A1 1004709-87	£1.66	£1.99
118 - BOX BDE-1004712-32.A4 1004712-32	£11.18	£13.41
119 - WASHER BDE-1004710-65.A6 1004710-65	£1.66	£1.99
120 - SCREW BDE-1004712-03.A3 1004712-03	£1.66	£1.99
121 - COVER BDE-1004714-13.A2 1004714-13	£7.85	£9.42
122 - SWITCH BDE-1004712-80.A4 1004712-80	£42.48	£50.98
123 - GLAND BDE-1004712-04.A7 1004712-04	£7.40	£8.88
124 - CORDSET GB BDE-1004727-77.A3 1004727-77	£35.02	£42.02
125 - O RING BDE-1004712-35.A0 1004712-35	£1.66	£1.99
126 - CAPACITOR BDE-1004711-95.A2 1004711-95	£30.98	£37.18
127 - MOTOR SA BDE-1004733-62 1004733-62	£371.62	£445.95
128 - FORK BDE-1004712-09.A8 1004712-09	£6.06	£7.27
129 - TERMINAL BOX BDE-1004729-46.A1 1004729-46	£30.98	£37.18
130 - SCREW BDE-1004712-01.A9 1004712-01	£1.66	£1.99
131 - GLAND BDE-1004711-55.A0 1004711-55	£1.66	£1.99
132 - O RING BDE-1004712-17.A1 1004712-17	£6.06	£7.27
133 - O RING BDE-1004709-71.A3 1004709-71	£1.66	£1.99
134 - HANDLE SA BDE-1004709-16.A6 1004709-16	£55.30	£66.36
135 - NOZZLE BDE-1004733-63 1004733-63	£37.35	£44.82
136 - O RING BDE-1004712-02.A2 1004712-02	£7.40	£8.88
137 - HOSE BDE-1004714-04.A3 1004714-04	£80.46	£96.55
138 - O RING BDE-1004709-73.A1 1004709-73	£1.66	£1.99

Attribute Name	Value
Brand	Dewalt
