Dewalt DCM586N Type 1 Hedgetrimmer Spare Parts

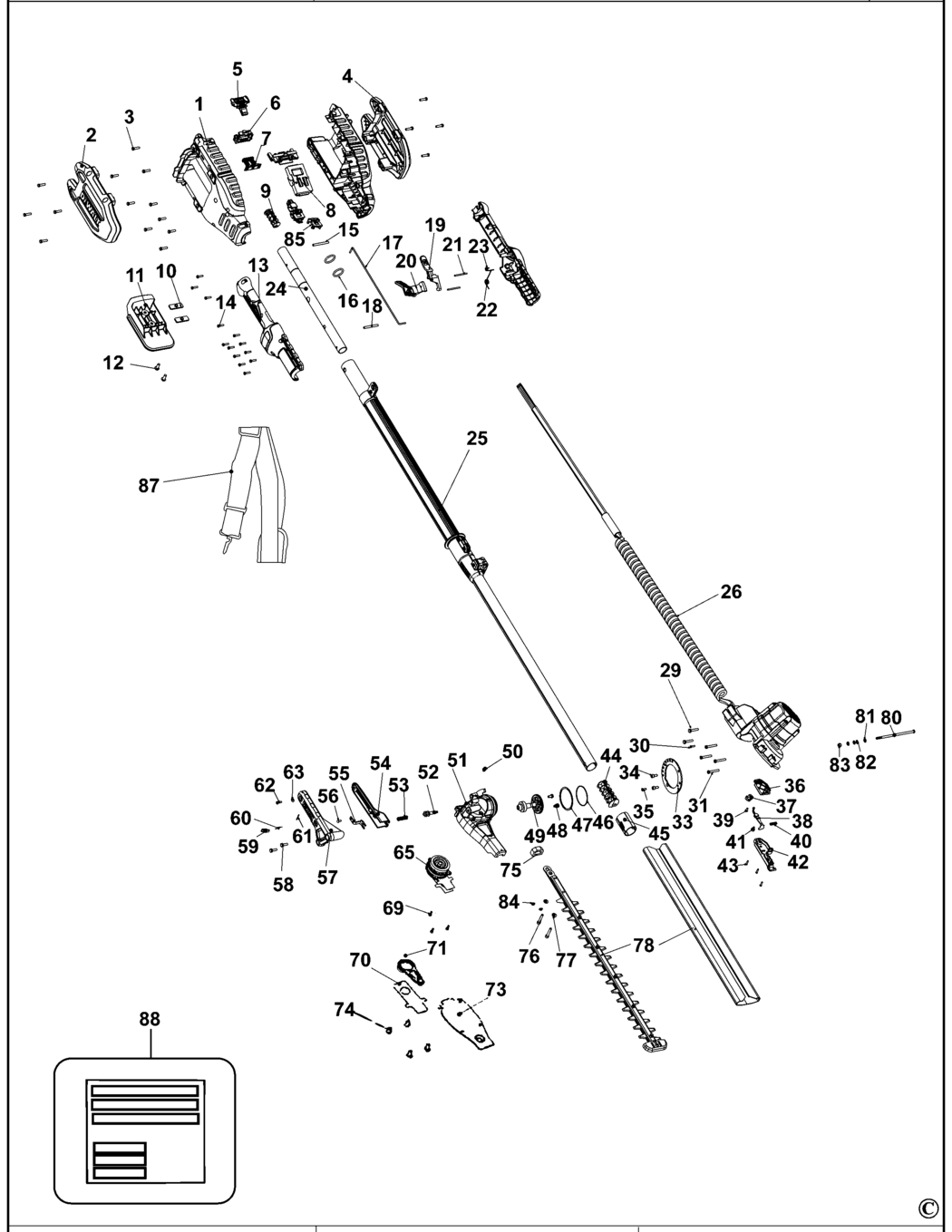

An exploded drawing and spare parts listing for the Dewalt DCM586N Type 1 Hedgetrimmer

	Ex VAT	Inc VAT
1 - HOUSING SA BDE-90603731.A0 90603731	£47.08	£56.49
2 - COVER BDE-90605691.A1 90605691	£7.18	£8.62
3 - SCREW BDE-90614124-02.A0 90614124-02	£1.50	£1.80
4 - COVER BDE-90605690.A0 90605690	£7.18	£8.62
5 - BUTTON BDE-90606556.A6 90606556	£1.50	£1.80
6 - LATCH BDE-N533275 N533275	£1.50	£1.80
7 - EJECTOR BDE-90605769.A2 90605769	£1.50	£1.80
8 - HARNESS BDE-90640979 90640979	£119.32	£143.19
9 - CORD CLAMP BDE-N494290 N494290	£1.50	£1.80
10 - NUT BDE-90609272.A2 90609272	£1.50	£1.80
11 - CLIP BDE-90605692.A0 90605692	£4.69	£5.63
12 - SCREW BDE-90609878.A1 90609878	£1.50	£1.80
13 - HANDLE SA BDE-90627861 90627861	£25.70	£30.84
14 - SCREW BDE-90614124-05.A2 90614124-05	£1.50	£1.80
15 - PIN BDE-90608944.A0 90608944	£1.50	£1.80
16 - RUBBER BDE-90602632.A1 90602632	£1.50	£1.80
17 - LINK BDE-90627862 90627862	£1.50	£1.80
18 - PIN BDE-90639655 90639655	£1.50	£1.80
19 - ACTUATOR BDE-90623756.A7 90623756	£1.50	£1.80
20 - TRIGGER BDE-90599030.A3 90599030	£1.50	£1.80
21 - PIN BDE-90608942.A10 90608942	£1.50	£1.80
22 - SPRING BDE-90602634.A3 90602634	£1.50	£1.80
23 - SPRING BDE-90602633.A7 90602633	£1.50	£1.80
24 - POLE PIECE BDE-90626663 90626663	£7.18	£8.62
25 - POLE PIECE BDE-90636984 90636984	£38.80	£46.56
26 - GEARCASE SA BDE-N513464 N513464	£192.14	£230.57
29 - SCREW BDE-90614039-02 90614039-02	£1.50	£1.80
30 - SCREW BDE-90614124-08 90614124-08	£1.50	£1.80
31 - SCREW BDE-330019-15.A28 330019-15	£1.50	£1.80
33 - PLATE BDE-90626273 90626273	£4.69	£5.63
34 - SCREW BDE-90569120.A4 90569120	£1.50	£1.80
35 - SCREW BDE-90641384 90641384	£1.50	£1.80
36 - PLATE BDE-90627917 90627917	£1.50	£1.80
37 - SWITCH BDE-90600458.A8 90600458	£3.30	£3.96
38 - ACTUATOR BDE-90628651 90628651	£1.50	£1.80
39 - SCREW BDE-90614124-03.A6 90614124-03	£1.50	£1.80
40 - SPRING BDE-90628705 90628705	£1.50	£1.80
41 - BOLT BDE-90640726 90640726	£1.50	£1.80
42 - COVER BDE-90627918 90627918	£1.50	£1.80
43 - SCREW BDE-N498677 N498677	£1.50	£1.80
44 - CORD CLAMP BDE-90637108 90637108	£1.50	£1.80
45 - INSULATOR BDE-90637106 90637106	£1.50	£1.80
46 - O RING BDE-90640620 90640620	£1.50	£1.80
47 - WASHER BDE-90626916 90626916	£1.50	£1.80
48 - SCREW BDE-90614039 90614039	£1.50	£1.80
49 - PINION & GEAR SA BDE-N533277 N533277	£24.39	£29.27
50 - PIN BDE-90640963 90640963	£2.78	£3.34
51 - GEARCASE SA BDE-N533278 N533278	£45.88	£55.06
52 - PIN BDE-90626915 90626915	£2.78	£3.34
53 - SPRING BDE-90551259.A5 90551259	£1.50	£1.80
54 - HANDLE BDE-90626913 90626913	£2.26	£2.71
55 - PLATE BDE-90626914 90626914	£1.50	£1.80
56 - SCREW BDE-90614124-03.A5 90614124-03	£1.50	£1.80
57 - HANDLE BDE-90626912 90626912	£5.88	£7.06
58 - SCREW BDE-90614039-01 90614039-01	£1.50	£1.80
59 - ACTUATOR BDE-90623511 90623511	£1.50	£1.80
60 - SPRING BDE-90623512 90623512	£1.50	£1.80
61 - PIN BDE-90640964 90640964	£1.50	£1.80
62 - SCREW BDE-90614124-01 90614124-01	£1.50	£1.80
63 - WASHER BDE-90629573.A2 90629573	£1.50	£1.80
65 - BEARING PLATE BDE-N533279 N533279	£51.90	£62.28
69 - SCREW BDE-90614922 90614922	£1.50	£1.80
70 - PLATE BDE-90625836 90625836	£1.50	£1.80
71 - ROD BDE-90625357 90625357	£3.80	£4.56
73 - COVER BDE-90625838 90625838	£3.30	£3.96
74 - SCREW BDE-N494446 N494446	£1.50	£1.80
75 - FELT BDE-90607673.A0 90607673	£2.26	£2.71
76 - SCREW BDE-395441-00.A3 395441-00	£1.50	£1.80
77 - WASHER BDE-657339-00.A1 657339-00	£1.50	£1.80
78 - BLADE BDE-90638019 90638019	£87.82	£105.39
80 - BOLT BDE-90628710 90628710	£1.50	£1.80
81 - WASHER BDE-330016-07.A23 330016-07	£1.50	£1.80
82 - WASHER BDE-90641388 90641388	£1.50	£1.80
84 - WASHER SPECIAL BDE-90607754.A0 90607754	£1.50	£1.80
85 - SWITCH BDE-90605114.A2 90605114	£1.50	£1.80
87 - STRAP BDE-N332820.A1 N332820	£12.17	£14.60

Attribute Name	Value
Brand	Dewalt
