Dewalt DCS355 Type 1 Multitool Spare Parts

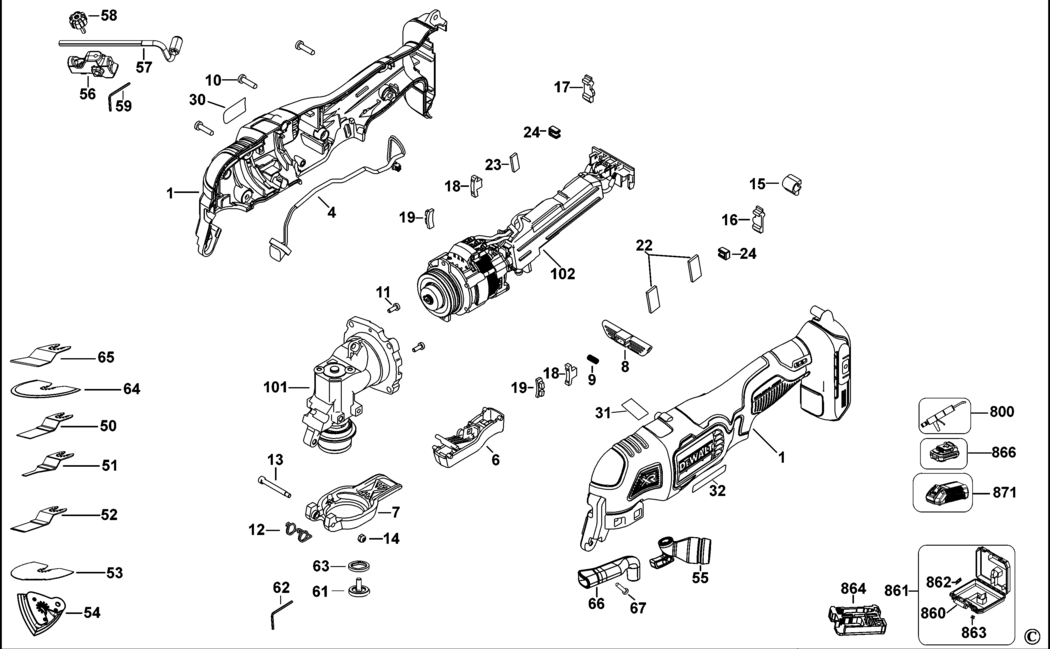

An exploded drawing and spare parts listing for the Dewalt DCS355 Type 1 Multitool

	Ex VAT	Inc VAT
1 - CLAMSHELL SET BDE-N762313 N762313	£16.03	£19.24
4 - LED BDE-N233819 N233819	£7.18	£8.62
6 - TRIGGER BDE-N368300.A1 N368300	£3.30	£3.96
7 - CLAMP SA BDE-N254620 N254620	£4.54	£5.45
8 - BUTTON LOCK-ON BDE-N163918 N163918	£1.50	£1.80
9 - SPRING BDE-N165498.A1 N165498	£1.50	£1.80
10 - SCREW BDE-330019-03.A165 330019-03	£1.50	£1.80
11 - SCREW BDE-330045-43.A10 330045-43	£1.50	£1.80
12 - SPRING BDE-N140357.A1 N140357	£1.50	£1.80
13 - SCREW BDE-N175484.A2 N175484	£1.50	£1.80
14 - NUT BDE-N243985.A1 N243985	£1.50	£1.80
15 - BUMPER BDE-N238819 N238819	£1.50	£1.80
16 - BUMPER BDE-N239159 N239159	£1.50	£1.80
17 - BUMPER BDE-N239160 N239160	£1.50	£1.80
18 - RUBBER PAD BDE-N241039 N241039	£1.50	£1.80
19 - RUBBER PAD BDE-N266442 N266442	£1.50	£1.80
22 - RUBBER PAD BDE-N328739 N328739	£1.50	£1.80
23 - RUBBER PAD BDE-N328740.A0 N328740	£1.50	£1.80
24 - RUBBER PAD BDE-N328741 N328741	£1.50	£1.80
30 - RATING PLATE GB BDE-N325119 N325119	£1.50	£1.80
31 - LABEL BDE-N306579.A1 N306579	£1.50	£1.80
32 - BRAND LABEL BDE-N306040 N306040	£1.50	£1.80
50 - BLADE BDE-N333599.A2 N333599	£17.48	£20.97
51 - BLADE BDE-N333619.A0 N333619	£14.57	£17.48
52 - BLADE BDE-N275319.A1 N275319	£14.57	£17.48
53 - BLADE BDE-N446932.A1 N446932	£16.03	£19.24
53 - BLADE BDE-N251926.A2 N251926	£16.03	£19.24
54 - PLATEN BDE-N271240.A1 N271240	£14.57	£17.48
55 - DUST PORT BDE-N277679.A1 N277679	£3.30	£3.96
56 - BLOCK SA BDE-N275350.A1 N275350	£10.85	£13.02
57 - DEPTH STOP BDE-N275341.A0 N275341	£5.88	£7.06
58 - KNOB SA BDE-N278801.A1 N278801	£1.50	£1.80
59 - HEX KEY BDE-N285879.A0 N285879	£1.50	£1.80
61 - OUTER FLANGE BDE-90584484.A6 90584484	£2.78	£3.34
61 - OUTER FLANGE BDE-N544197.A0 N544197	£9.41	£11.29
62 - WRENCH SPECIAL BDE-90584745.A5 90584745	£1.50	£1.80
63 - FLANGE BDE-N440293.A4 N440293	£2.78	£3.34
64 - BLADE - CARBIDE BDE-N342939.A0 N342939	£24.39	£29.27
64 - BLADE - CARBIDE BDE-N446935.A1 N446935	£17.48	£20.97
65 - BLADE - RIGID SCRAPER BDE-N446933.A0 N446933	£3.30	£3.96
65 - BLADE - RIGID SCRAPER BDE-N251931.A0 N251931	£3.80	£4.56
66 - DUST PORT BDE-N278060.A1 N278060	£1.50	£1.80
67 - SCREW BDE-N291362.A0 N291362	£1.50	£1.80
101 - HEAD SA BDE-N341719.A1 N341719	£96.55	£115.86
102 - MOTOR SA 18V GB BDE-N342741.A0 N342741	£93.62	£112.35
102 - MOTOR SA 18V <=2016 WK26 BDE-N342741.A1 N342741	£93.62	£112.35
800 - GREASE BDE-585381-00.A11 585381-00	£45.14	£54.17
860 - HANDLE DCS355NT BDE-H1400198008.A31 H1400198008	£3.75	£4.50
861 - KITBOX BDE-N279261.A2 N279261	£44.14	£52.97
862 - FOAM DCS355D2 BDE-N339779 N339779	-
862 - LATCH BDE-N409477.A34 N409477	£1.66	£1.99
863 - LATCH BDE-P910190.A35 P910190	£9.41	£11.29
864 - INSERT DCS355NT BDE-MP16988 MP16988	£24.39	£29.27
864 - FOAM BDE-N286619 N286619	£30.08	£36.10
866 - BATTERY 18V - 4.0AH - 72WH DCS355M1 + DCS355M2 GB BDE-N195933.A80 N195933	£218.32	£261.98
866 - BATTERY 18V - 2.0AH - 36WH DCS355D1 + DCS355D2 GB BDE-N314783.A19 N314783	£144.10	£172.92
871 - CHARGER 10.8V - 18V GB BDE-N450537.A144 N450537	£157.18	£188.61
