Dewalt DCS350N Type 1 Threaded Rod Cutter Spare Parts

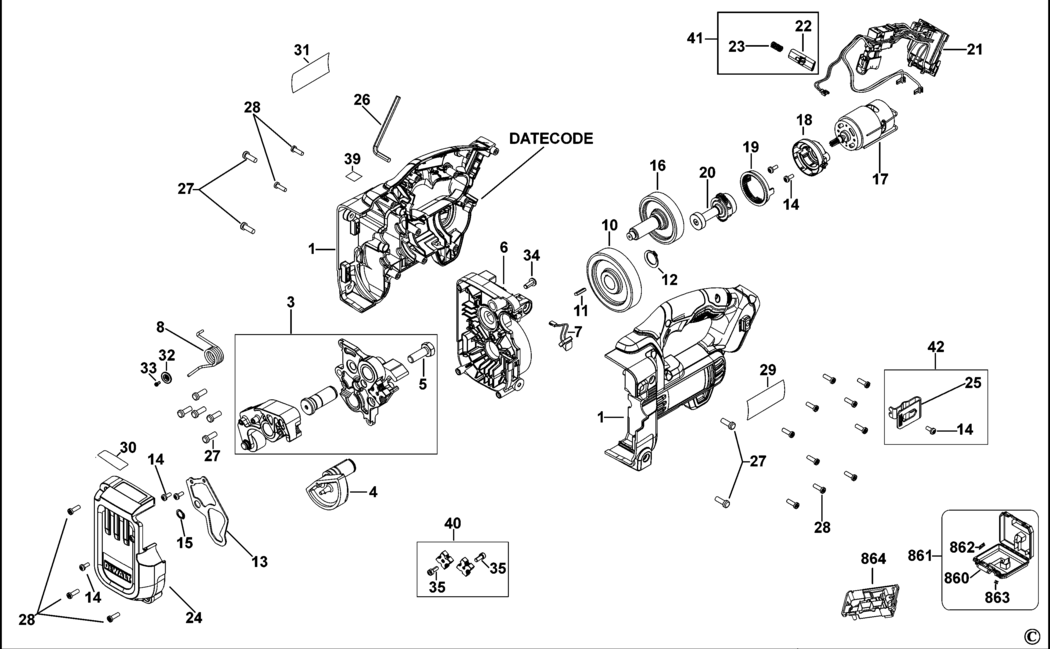

An exploded drawing and spare parts listing for the Dewalt DCS350N Type 1 Threaded Rod Cutter

	Ex VAT	Inc VAT
1 - CLAMSHELL SET BDE-N420220 N420220	£74.15	£88.98
4 - CAM BDE-N441241 N441241	£71.44	£85.73
5 - BOLT BDE-N433562 N433562	£1.50	£1.80
6 - GEARCASE BDE-N441237 N441237	£18.91	£22.69
7 - LED LIGHT BDE-N420221 N420221	£16.03	£19.24
8 - SPRING BDE-N453041 N453041	£1.50	£1.80
10 - GEAR BDE-N441238 N441238	£44.14	£52.97
11 - KEY BDE-N400513 N400513	£1.50	£1.80
12 - CIRCLIP BDE-861349-00.A13 861349-00	£1.50	£1.80
13 - PLATE BDE-N441239 N441239	£16.03	£19.24
14 - SCREW BDE-330045-69.A5 330045-69	£1.50	£1.80
15 - CIRCLIP BDE-860079-02.A43 860079-02	£1.50	£1.80
16 - GEAR SA BDE-N427318 N427318	£65.52	£78.62
17 - MOTOR SA BDE-N427320 N427320	£58.69	£70.43
18 - MOUNT BDE-N390059 N390059	£3.80	£4.56
19 - GEAR SA BDE-N441240 N441240	£12.17	£14.60
20 - GEAR SA BDE-N427319 N427319	£58.69	£70.43
22 - ACTUATOR FWD/REV BDE-N400521 N400521	£1.50	£1.80
23 - SPRING BDE-N411702 N411702	£1.50	£1.80
24 - COVER BDE-N454243 N454243	£12.17	£14.60
25 - HOOK BDE-N086039.A59 N086039	£4.69	£5.63
26 - HEX KEY 5 MM BDE-098000-11.A29 098000-11	£1.50	£1.80
27 - SCREW BDE-330019-37.A0 330019-37	£1.50	£1.80
28 - SCREW BDE-330019-12.A53 330019-12	£1.50	£1.80
32 - WASHER SPRING BDE-N447901 N447901	£1.50	£1.80
33 - SCREW.TEMP BDE-330019-01.A36 330019-01	£1.50	£1.80
34 - SCREW BDE-N453340 N453340	£1.50	£1.80
35 - SCREW BDE-911281-00.A38 911281-00	£1.50	£1.80
39 - LABEL BDE-N437589 N437589	£1.50	£1.80
41 - ACTUATOR FWD/REV BDE-N420224 N420224	£12.17	£14.60
42 - HOOK SA BDE-N420222 N420222	£12.17	£14.60
860 - HANDLE DCS350NT BDE-H1400198008.A49 H1400198008	£3.75	£4.50
861 - KITBOX DCS350NT BDE-N279261.A5 N279261	£44.14	£52.97
862 - LATCH DCS350NT BDE-N409477.A45 N409477	£1.66	£1.99
863 - LATCH DCS350NT BDE-P910190.A47 P910190	£9.41	£11.29
864 - INSERT DCS350NT BDE-MP17152 MP17152	£25.70	£30.84

Attribute Name	Value
Brand	Dewalt
