Dewalt DW871 Type 2 Chop Saw Spare Parts

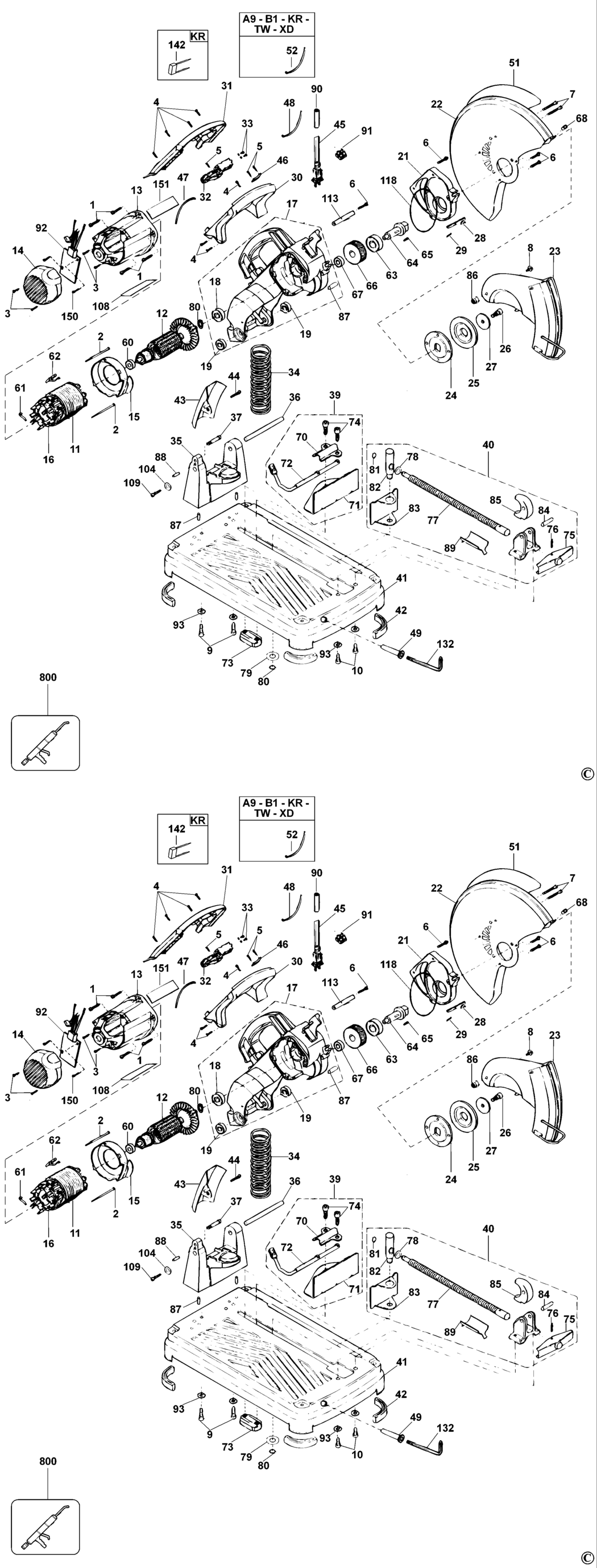

An exploded drawing and spare parts listing for the Dewalt DW871 Type 2 Chop Saw

	Ex VAT	Inc VAT
1 - SCREW BDE-330045-16.A32 330045-16	£1.50	£1.80
1 - SCREW BDE-330045-16.A33 330045-16	£1.50	£1.80
2 - SCREW BDE-330019-33.A8 330019-33	£1.50	£1.80
2 - SCREW BDE-330019-33.A9 330019-33	£1.50	£1.80
3 - SCREW BDE-330019-13.A436 330019-13	£1.50	£1.80
3 - SCREW BDE-330019-13.A437 330019-13	£1.50	£1.80
4 - SCREW BDE-330019-14.A62 330019-14	£1.50	£1.80
4 - SCREW BDE-330019-14.A63 330019-14	£1.50	£1.80
5 - SCREW BDE-330019-02.A53 330019-02	£1.50	£1.80
5 - SCREW BDE-330019-02.A54 330019-02	£1.50	£1.80
6 - SCREW BDE-330045-17.A0 330045-17	-
6 - SCREW BDE-330045-17.A1 330045-17	-
7 - SCREW BDE-330045-20.A15 330045-20	£1.50	£1.80
7 - SCREW BDE-330045-20.A16 330045-20	£1.50	£1.80
8 - SCREW.SPECIAL BDE-384844-00.A0 384844-00	£1.50	£1.80
8 - SCREW.SPECIAL BDE-384844-00.A1 384844-00	£1.50	£1.80
9 - SCREW BDE-098123-25.A3 098123-25	£1.50	£1.80
9 - SCREW BDE-098123-25.A4 098123-25	£1.50	£1.80
10 - SCREW BDE-098123-16.A4 098123-16	£1.50	£1.80
10 - SCREW BDE-098123-16.A5 098123-16	£1.50	£1.80
11 - NO LONGER AVAILABLE GB BDE-000000-00.A56445 000000-00	-
11 - NO LONGER AVAILABLE XW BDE-000000-00.A56446 000000-00	-
12 - NO LONGER AVAILABLE XW BDE-000000-00.A56447 000000-00	-
12 - ARMATURE 230V GB BDE-383652-09.A2 383652-09	-
13 - FIELDCASE BDE-383151-02.A0 383151-02	£18.91	£22.69
13 - FIELDCASE BDE-383151-02.A1 383151-02	£18.91	£22.69
14 - END CAP BDE-392284-00.A1 392284-00	£3.80	£4.56
15 - BAFFLE FAN BDE-383167-00.A6 383167-00	£2.26	£2.71
15 - BAFFLE FAN BDE-383167-00.A7 383167-00	£2.26	£2.71
16 - BRUSH PLATE SA XW BDE-383685-00.A0 383685-00	£4.69	£5.63
16 - BRUSH PLATE SA GB BDE-383685-01.A5 383685-01	£7.18	£8.62
17 - GEARCASE SA BDE-386628-00.A6 386628-00	£104.31	£125.17
17 - GEARCASE SA BDE-386628-00.A7 386628-00	£104.31	£125.17
18 - BEARING BDE-868768-07.A32 868768-07	£7.85	£9.42
19 - BEARING BDE-330003-64.A13 330003-64	£4.69	£5.63
19 - BEARING BDE-330003-64.A14 330003-64	£4.69	£5.63
21 - NO LONGER AVAILABLE BDE-000000-00.A56449 000000-00	-
21 - GEARCASE COVER SA BDE-383158-00 383158-00	-
22 - NO LONGER AVAILABLE BDE-000000-00.A56448 000000-00	-
23 - GUARD COVER BDE-383175-00.A1 383175-00	-
23 - GUARD COVER BDE-383175-00.A2 383175-00	-
24 - INNER FLANGE BDE-607173-00.A0 607173-00	£7.85	£9.42
24 - INNER FLANGE BDE-607173-00.A1 607173-00	£7.85	£9.42
25 - CLAMP OUTER BDE-382884-00.A0 382884-00	£5.88	£7.06
25 - CLAMP OUTER BDE-382884-00.A1 382884-00	£5.88	£7.06
26 - SCREW BDE-383286-00.A5 383286-00	£1.50	£1.80
26 - SCREW BDE-383286-00.A6 383286-00	£1.50	£1.80
27 - NO LONGER AVAILABLE BDE-000000-00.A56450 000000-00	-
27 - NO LONGER AVAILABLE BDE-000000-00.A56451 000000-00	-
28 - LOCKING PIN BDE-383966-00.A0 383966-00	-
28 - NO LONGER AVAILABLE BDE-000000-00.A56453 000000-00	-
29 - SPRING BDE-384716-00.A7 384716-00	£1.50	£1.80
29 - SPRING BDE-384716-00.A8 384716-00	£1.50	£1.80
30 - NO LONGER AVAILABLE BDE-000000-00.A56452 000000-00	-
31 - HANDLE COVER BDE-383160-00.A2 383160-00	£1.50	£1.80
31 - HANDLE COVER BDE-383160-00.A3 383160-00	£1.50	£1.80
32 - SWITCH KIT BDE-621514-02.A5 621514-02	£37.35	£44.82
33 - SCREW BDE-387746-00.A13 387746-00	£1.50	£1.80
33 - SCREW BDE-387746-00.A14 387746-00	£1.50	£1.80
34 - SPRING BDE-387282-00.A8 387282-00	£7.18	£8.62
34 - SPRING BDE-387282-00.A9 387282-00	£7.18	£8.62
35 - PIVOT BLOCK BDE-383168-00.A1 383168-00	-
35 - PIVOT BLOCK BDE-383168-00.A2 383168-00	-
36 - PIN BDE-383118-00.A6 383118-00	£1.82	£2.19
36 - PIN BDE-383118-00.A7 383118-00	£1.82	£2.19
37 - LOCKING PIN BDE-383148-00.A0 383148-00	£1.50	£1.80
37 - LOCKING PIN BDE-383148-00.A1 383148-00	£1.50	£1.80
39 - FENCE SA BDE-384137-00.A2 384137-00	£16.03	£19.24
39 - FENCE SA BDE-384137-00.A3 384137-00	£16.03	£19.24
40 - VICE BDE-384180-00.A0 384180-00	£41.24	£49.49
40 - VICE BDE-384180-00.A1 384180-00	£41.24	£49.49
41 - NO LONGER AVAILABLE BDE-000000-00.A56454 000000-00	-
41 - BASE BDE-382366-01 382366-01	-
42 - FOOT BDE-383243-00.A7 383243-00	£1.50	£1.80
42 - FOOT BDE-383243-00.A8 383243-00	£1.50	£1.80
43 - DEFLECTOR BDE-384159-00.A4 384159-00	£1.82	£2.19
43 - DEFLECTOR BDE-384159-00.A5 384159-00	£1.82	£2.19
44 - SCREW.SPECIAL BDE-330045-23.A97 330045-23	£1.50	£1.80
44 - SCREW.SPECIAL BDE-330045-23.A98 330045-23	£1.50	£1.80
45 - CABLE SA GB BDE-330060-73.A3 330060-73	£9.41	£11.29
45 - CABLE SA XW BDE-330061-17.A0 330061-17	£17.48	£20.97
46 - CORD CLAMP BDE-386540-00.A7 386540-00	£1.50	£1.80
46 - CORD CLAMP BDE-386540-00.A8 386540-00	£1.50	£1.80
47 - LEAD BDE-386465-00.A0 386465-00	£1.50	£1.80
48 - LEAD BDE-386466-00.A8 386466-00	£1.50	£1.80
49 - HOLDER TOOL BDE-386765-00.A11 386765-00	£1.50	£1.80
49 - HOLDER TOOL BDE-386765-00.A12 386765-00	£1.50	£1.80
51 - LABEL BDE-384771-00.A0 384771-00	£4.58	£5.49
51 - LABEL BDE-384771-00.A1 384771-00	£4.58	£5.49
52 - NO LONGER AVAILABLE BDE-000000-00.A56455 000000-00	-
60 - BEARING BDE-330003-17.A13 330003-17	£4.79	£5.75
60 - BEARING BDE-330003-17.A14 330003-17	£4.79	£5.75
61 - SPRING BDE-384612-00.A6 384612-00	£1.50	£1.80
61 - SPRING BDE-384612-00.A7 384612-00	£1.50	£1.80
62 - BRUSH 120V XW BDE-384613-00.A0 384613-00	£1.50	£1.80
62 - BRUSH 230V GB BDE-384613-01.A5 384613-01	£3.30	£3.96
62 - BRUSH 120V XW BDE-384613-00.A1 384613-00	£1.50	£1.80
63 - BEARING BDE-330003-49.A1 330003-49	£7.85	£9.42
63 - BEARING BDE-330003-49.A2 330003-49	£7.85	£9.42
64 - SPINDLE BDE-382882-00.A2 382882-00	£57.22	£68.66
64 - SPINDLE BDE-382882-00.A3 382882-00	£57.22	£68.66
65 - KEY BDE-382675-00.A6 382675-00	£1.50	£1.80
65 - KEY BDE-382675-00.A7 382675-00	£1.50	£1.80
66 - GEAR BDE-386277-00.A0 386277-00	£34.00	£40.80
66 - GEAR BDE-386277-00.A1 386277-00	£34.00	£40.80
67 - BEARING BDE-605040-20.A81 605040-20	£4.69	£5.63
67 - BEARING BDE-605040-20.A82 605040-20	£4.69	£5.63
68 - STOP RUBBER BDE-386526-00.A5 386526-00	£1.50	£1.80
68 - STOP RUBBER BDE-386526-00.A6 386526-00	£1.50	£1.80
70 - PLATE LOCK BDE-391459-00.A5 391459-00	£3.80	£4.56
70 - PLATE LOCK BDE-391459-00.A6 391459-00	£3.80	£4.56
71 - FENCE BDE-382677-00.A4 382677-00	£4.69	£5.63
71 - FENCE BDE-382677-00.A5 382677-00	£4.69	£5.63
72 - LEVER BDE-382540-00.A5 382540-00	£5.88	£7.06
72 - LEVER BDE-382540-00.A6 382540-00	£5.88	£7.06
73 - BLOCK BDE-383254-00.A9 383254-00	£7.18	£8.62
73 - BLOCK BDE-383254-00.A10 383254-00	£7.18	£8.62
74 - SCREW BDE-383450-00.A0 383450-00	£1.50	£1.80
74 - SCREW BDE-383450-00.A1 383450-00	£1.50	£1.80
75 - LOCK HANDLE BDE-383252-00.A0 383252-00	£1.82	£2.19
75 - LOCK HANDLE BDE-383252-00.A1 383252-00	£1.82	£2.19
76 - PIN BDE-330036-08.A21 330036-08	£1.50	£1.80
76 - PIN BDE-330036-08.A22 330036-08	£1.50	£1.80
77 - ROD BDE-395856-00.A2 395856-00	£18.91	£22.69
77 - ROD BDE-395856-00.A3 395856-00	£18.91	£22.69
78 - WASHER BDE-384365-00.A0 384365-00	£1.50	£1.80
78 - WASHER BDE-384365-00.A1 384365-00	£1.50	£1.80
79 - WASHER BDE-607592-00.A12 607592-00	£1.50	£1.80
79 - WASHER BDE-607592-00.A13 607592-00	£1.50	£1.80
80 - CIRCLIP BDE-144803-00.A83 144803-00	£1.50	£1.80
80 - CIRCLIP BDE-144803-00.A84 144803-00	£1.50	£1.80
81 - CIRCLIP BDE-383169-00.A7 383169-00	£1.50	£1.80
81 - CIRCLIP BDE-383169-00.A8 383169-00	£1.50	£1.80
82 - PIN BDE-5140000-11.A0 5140000-11	£3.80	£4.56
82 - PIN BDE-5140000-11.A1 5140000-11	£3.80	£4.56
83 - VICE JAW BDE-607278-00.A4 607278-00	£7.85	£9.42
83 - VICE JAW BDE-607278-00.A5 607278-00	£7.85	£9.42
84 - DOWEL BDE-386525-01.A7 386525-01	£1.50	£1.80
84 - DOWEL BDE-386525-01.A8 386525-01	£1.50	£1.80
85 - LOCKING DEVICE BDE-383828-00.A8 383828-00	£10.85	£13.02
85 - LOCKING DEVICE BDE-383828-00.A9 383828-00	£10.85	£13.02
86 - LOCK-NUT BDE-148641-00.A44 148641-00	£1.50	£1.80
87 - DOWEL BDE-386525-00.A1 386525-00	£1.50	£1.80
87 - DOWEL BDE-386525-00.A2 386525-00	£1.50	£1.80
88 - PLUG BDE-033055-00.A9 033055-00	£1.50	£1.80
88 - PLUG BDE-033055-00.A10 033055-00	£1.50	£1.80
89 - SADDLE BDE-383451-00.A10 383451-00	£1.50	£1.80
89 - SADDLE BDE-383451-00.A11 383451-00	£1.50	£1.80
90 - SLEEVE BDE-386491-00.A0 386491-00	£7.18	£8.62
90 - SLEEVE BDE-386491-00.A1 386491-00	£7.18	£8.62
91 - TERMINAL BLOCK BDE-320078-00.A4 320078-00	£2.26	£2.71
92 - MODULE XW BDE-393465-01.A0 393465-01	-
92 - MODULE GB BDE-N271039.A3 N271039	£37.35	£44.82
93 - WASHER BDE-098197-09.A0 098197-09	£1.50	£1.80
93 - WASHER BDE-098197-09.A1 098197-09	£1.50	£1.80
104 - WASHER BDE-388354-00.A0 388354-00	£1.50	£1.80
104 - WASHER BDE-388354-00.A1 388354-00	£1.50	£1.80
108 - NO LONGER AVAILABLE BDE-000000-00.A56456 000000-00	-
109 - SCREW BDE-330045-49.A45 330045-49	£1.50	£1.80
109 - SCREW BDE-330045-49.A46 330045-49	£1.50	£1.80
113 - SPACER BDE-391740-00.A2 391740-00	£1.42	£1.70
113 - SPACER BDE-391740-00.A3 391740-00	£1.42	£1.70
118 - O RING BDE-391485-00.A1 391485-00	£1.50	£1.80
118 - O RING BDE-391485-00.A2 391485-00	£1.50	£1.80
132 - WRENCH BDE-384717-00.A0 384717-00	£1.50	£1.80
132 - WRENCH BDE-384717-00.A1 384717-00	£1.50	£1.80
142 - CAPACITOR BDE-392648-00 392648-00	-
150 - SCREW BDE-562097-01.A130 562097-01	£1.50	£1.80
150 - SCREW BDE-562097-01.A131 562097-01	£1.50	£1.80
151 - NO LONGER AVAILABLE BDE-000000-00.A56457 000000-00	-
151 - WARNING LABEL BDE-394492-00 394492-00	-
800 - GREASE 50 GMS BDE-583534-00.A288 583534-00	£144.10	£172.92
800 - GREASE 50 GMS BDE-583534-00.A289 583534-00	£144.10	£172.92
