Dewalt D25300DH Type 2 Dust Extractor Spare Parts

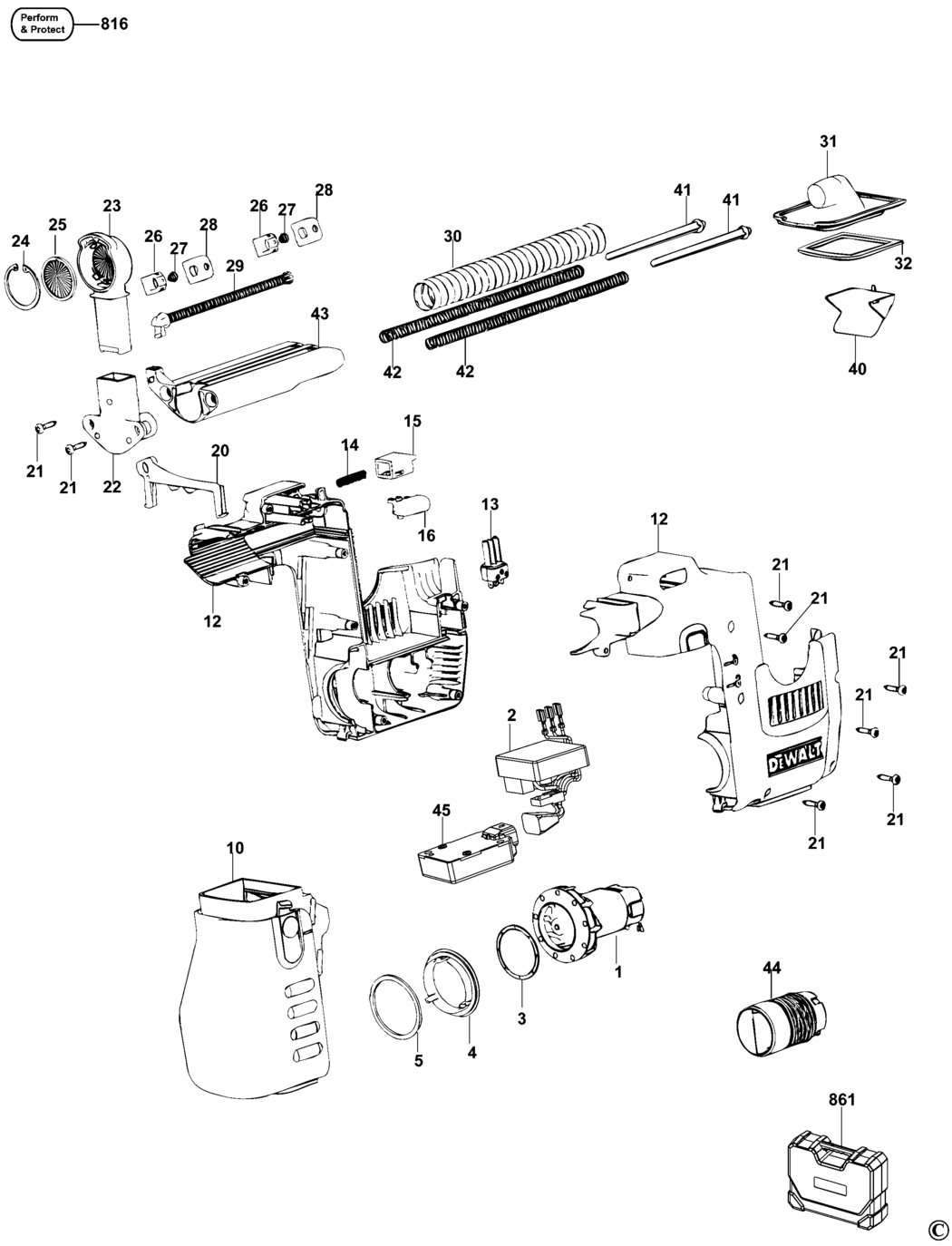

An exploded drawing and spare parts listing for the Dewalt D25300DH Type 2 Dust Extractor

	Ex VAT	Inc VAT
1 - MOTOR SA LX BDE-586770-02.A1 586770-02	£40.21	£48.25
1 - MOTOR SA GB BDE-586770-01.A0 586770-01	£43.02	£51.63
2 - ELECTRONIC 230V GB BDE-490874-00.A0 490874-00	£33.13	£39.76
2 - ELECTRONIC 115V LX BDE-490874-01.A1 490874-01	£33.13	£39.76
3 - FAN COVER BDE-584439-00.A2 584439-00	£1.42	£1.70
4 - WASHER BDE-583105-00.A0 583105-00	£1.42	£1.70
5 - SEAL BDE-580258-00.A2 580258-00	£1.42	£1.70
10 - FILTER SA BDE-496571-00 496571-00	£84.42	£101.30
12 - HOUSING PAIR BDE-490536-00.A1 490536-00	£33.13	£39.76
13 - CONNECTOR BDE-580243-00.A2 580243-00	£1.42	£1.70
14 - SPRING BDE-329876-00.A2 329876-00	£1.42	£1.70
15 - LATCH BDE-580249-00.A2 580249-00	£1.42	£1.70
16 - KNOB BDE-580248-00.A0 580248-00	£1.42	£1.70
20 - HOLDER BDE-580252-00.A2 580252-00	£1.42	£1.70
21 - SCREW BDE-330065-08.A263 330065-08	£1.50	£1.80
22 - CAP BDE-580452-00.A0 580452-00	£1.42	£1.70
23 - HEAD BDE-580254-00.A2 580254-00	£1.42	£1.70
24 - RING BDE-580256-00.A5 580256-00	£1.50	£1.80
25 - TOOL BRUSH BDE-580255-00.A0 580255-00	£5.88	£7.06
26 - KNOB BDE-580261-00.A0 580261-00	£1.50	£1.80
27 - SPRING BDE-584458-00.A8 584458-00	£1.50	£1.80
28 - HOUSING BDE-580262-00.A7 580262-00	£1.50	£1.80
29 - ROD BDE-580259-00.A0 580259-00	£1.42	£1.70
30 - TUBE PLASTIC BDE-580257-00.A0 580257-00	£7.01	£8.41
31 - CAP BDE-580444-00.A2 580444-00	£1.82	£2.19
32 - SEAL BDE-580260-00.A2 580260-00	£1.42	£1.70
40 - GUIDE BDE-585208-00.A0 585208-00	£1.42	£1.70
41 - PIN BDE-583839-00.A2 583839-00	£1.42	£1.70
42 - SPRING BDE-580253-00.A0 580253-00	£2.21	£2.65
43 - HOUSING BDE-580251-00.A0 580251-00	£5.72	£6.87
44 - ADAPTOR SA BDE-585976-00.A2 585976-00	£3.22	£3.86
45 - GACC MODULE 115V LX BDE-635569-00.A1 635569-00	£50.60	£60.72
45 - GACC MODULE 230V GB BDE-635569-01.A0 635569-01	£51.90	£62.28
861 - KITBOX BDE-381297-85.A2 381297-85	£125.16	£150.19
