Dewalt D25144 Type 10 Rotary Hammer Spare Parts

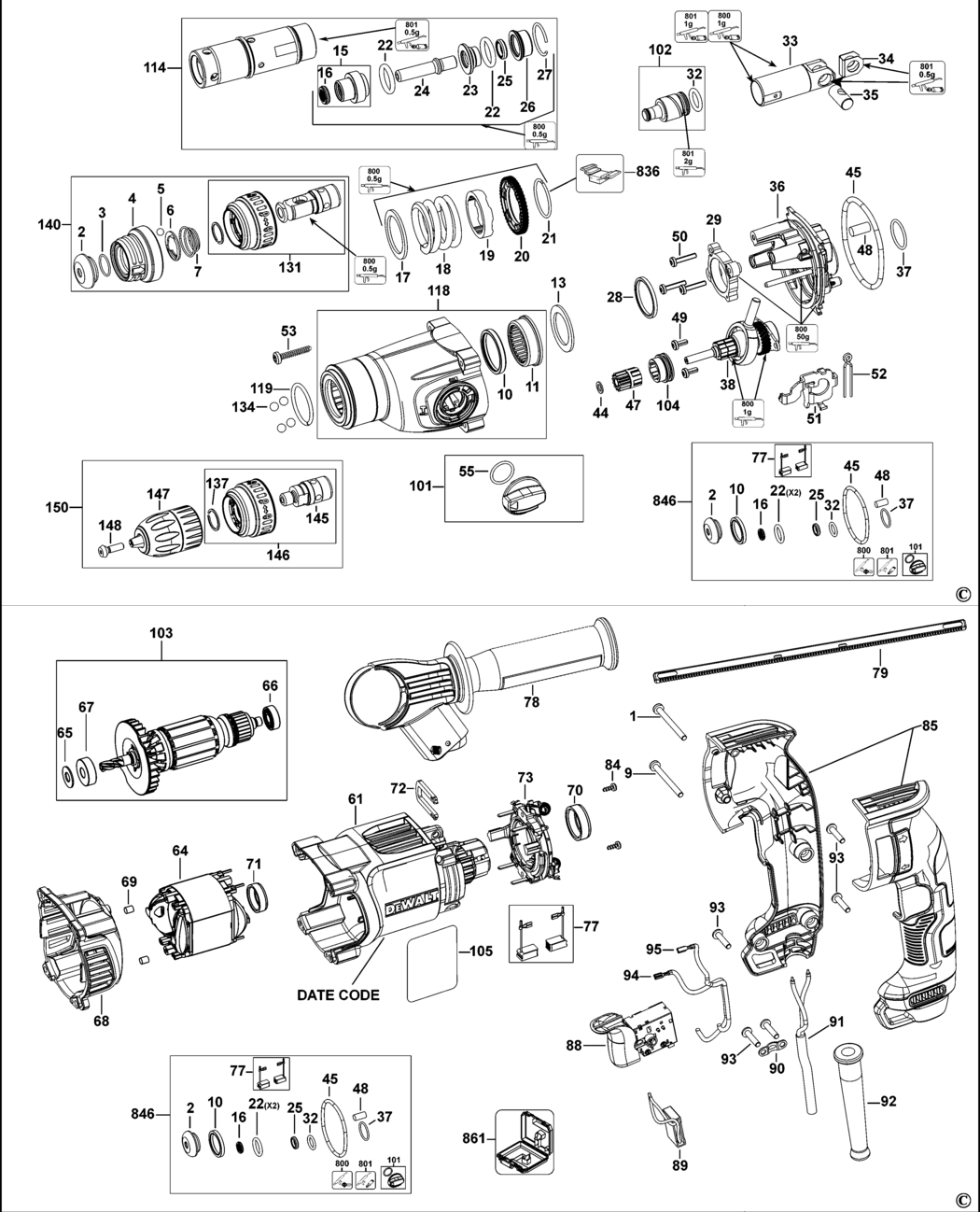

An exploded drawing and spare parts listing for the Dewalt D25144 Type 10 Rotary Hammer

	Ex VAT	Inc VAT
1 - SCREW BDE-N325879.A6 N325879	£1.50	£1.80
2 - CAP BDE-323489-00.A190 323489-00	£1.66	£1.99
3 - RING BDE-579212-00.A160 579212-00	£1.66	£1.99
4 - TUBE BDE-N391370.A3 N391370	£5.88	£7.06
5 - BALL 7MM BDE-583890-00.A76 583890-00	£1.66	£1.99
6 - WASHER BDE-578387-00.A216 578387-00	£1.66	£1.99
7 - SPRING BDE-871690.A263 871690	£1.66	£1.99
9 - SCREW BDE-330065-16.A18 330065-16	£1.50	£1.80
10 - SEAL BDE-577812-00.A18 577812-00	£2.78	£3.34
11 - BEARING NEEDLE BDE-577813-00.A1 577813-00	£7.85	£9.42
13 - WASHER BDE-577814-00.A100 577814-00	£2.26	£2.71
15 - BEARING & SEAL BDE-584423-01.A9 584423-01	£19.90	£23.88
16 - SEAL BDE-577139-00.A99 577139-00	£1.50	£1.80
17 - WASHER BDE-577814-00.A101 577814-00	£2.26	£2.71
18 - SPRING BDE-N322087.A2 N322087	£3.80	£4.56
19 - LOCKING RING BDE-N417736.A1 N417736	£4.69	£5.63
20 - GEAR BDE-N417740.A0 N417740	£12.17	£14.60
21 - LOCKING RING BDE-581836-00.A19 581836-00	£1.50	£1.80
22 - O RING BDE-577135-00.A1 577135-00	£3.30	£3.96
23 - DAMPER BDE-577130-00.A5 577130-00	£5.88	£7.06
24 - BEAT PIECE BDE-N403105.A3 N403105	£5.88	£7.06
25 - O RING BDE-580990-00.A45 580990-00	£1.50	£1.80
26 - WASHER BDE-N401306.A6 N401306	£4.69	£5.63
27 - CLIP BDE-N361759.A11 N361759	£1.50	£1.80
28 - WASHER BDE-N059509.A9 N059509	£1.50	£1.80
29 - BEARING BDE-N417747.A2 N417747	£3.80	£4.56
32 - O RING BDE-579699-00.A44 579699-00	£1.50	£1.80
33 - PISTON BDE-N417751.A1 N417751	£12.17	£14.60
34 - WASHER BDE-N325040.A2 N325040	£1.50	£1.80
35 - BEARING SPINDLE BDE-N325041.A4 N325041	£1.82	£2.19
36 - HOUSING BEARING BDE-N495867.A1 N495867	£17.48	£20.97
37 - O RING BDE-N264673.A3 N264673	£1.50	£1.80
38 - INTERSHAFT SA BDE-N418018.A6 N418018	£34.00	£40.80
44 - WASHER BDE-1005844-00.A20 1005844-00	£1.50	£1.80
45 - O RING BDE-N264672.A14 N264672	£1.50	£1.80
47 - GEAR BDE-N417860.A1 N417860	£5.88	£7.06
48 - FELT BDE-1005812-00.A18 1005812-00	£1.50	£1.80
49 - SCREW BDE-N445171.A36 N445171	£1.50	£1.80
50 - SCREW BDE-324006-15.A42 324006-15	£1.50	£1.80
51 - PLATE BDE-N323101.A0 N323101	£2.26	£2.71
52 - SPRING BDE-1005795-00.A33 1005795-00	£1.50	£1.80
53 - SCREW BDE-N389438.A45 N389438	£1.50	£1.80
55 - O RING BDE-N091381-00.A22 N091381-00	£1.50	£1.80
61 - HOUSING MOTOR BDE-N271819.A8 N271819	£9.41	£11.29
65 - WASHER BDE-N245239.A16 N245239	£1.50	£1.80
66 - BEARING BDE-605040-02.A71 605040-02	£2.26	£2.71
67 - BEARING BDE-330003-60.A210 330003-60	£2.78	£3.34
68 - BAFFLE BDE-N346919.A1 N346919	£7.18	£8.62
69 - RUBBER PAD BDE-N012971.A14 N012971	£1.50	£1.80
70 - RING BDE-1005856-00.A12 1005856-00	£1.50	£1.80
70 - RING BDE-N442577.A12 N442577	£1.50	£1.80
71 - COVER BEARING BDE-1005865-00.A2 1005865-00	£1.50	£1.80
71 - COVER BEARING BDE-N442578.A4 N442578	£1.50	£1.80
72 - CLIP BDE-1005894-00.A10 1005894-00	£1.50	£1.80
79 - DEPTH STOP BDE-798846-02.A7 798846-02	£1.66	£1.99
84 - SCREW BDE-N086775.A17 N086775	£1.50	£1.80
90 - CORD CLAMP BDE-329301-00.A82 329301-00	£1.50	£1.80
92 - CORD PROTECTOR BDE-N542553.A339 N542553	£3.80	£4.56
93 - SCREW BDE-330065-08.A373 330065-08	£1.50	£1.80
94 - LEAD BLUE BDE-1005879-00.A6 1005879-00	£1.50	£1.80
95 - LEAD RED BDE-1005879-01.A16 1005879-01	£1.50	£1.80
101 - SELECTOR SA BDE-N417861.A4 N417861	£10.85	£13.02
102 - RAM SA BDE-N418036.A6 N418036	£7.18	£8.62
104 - COLLAR BDE-N417853.A10 N417853	£3.30	£3.96
114 - SPINDLE SA BDE-N418051.A3 N418051	£45.14	£54.17
118 - HOUSING FRONT BDE-N417733.A3 N417733	£17.48	£20.97
119 - RING BDE-577795-00.A20 577795-00	£1.50	£1.80
131 - SPINDLE LOCK BDE-N403110.A2 N403110	£25.70	£30.84
134 - BALL 7MM BDE-583890-00.A134 583890-00	£1.66	£1.99
137 - CIRCLIP BDE-N091710.A0 N091710	£1.50	£1.80
140 - HOLDER TOOL BDE-N403111.A3 N403111	£37.35	£44.82
145 - SPINDLE BDE-N403112.A3 N403112	£16.03	£19.24
146 - SPINDLE SA BDE-N403284.A6 N403284	£18.91	£22.69
147 - CHUCK KEYLESS BDE-582512-02.A9 582512-02	£24.39	£29.27
148 - SCREW BDE-605256-02.A150 605256-02	£1.50	£1.80
150 - CHUCK & SPINDLE SA BDE-N403113.A4 N403113	£41.24	£49.49
800 - GREASE 90 GMS BDE-870889-02.A754 870889-02	£7.85	£9.42
801 - GREASE 10 GMS BDE-487130-04.A20 487130-04	£3.80	£4.56
836 - S.T.CIRCLIP REMOVER BDE-596005-99.A6 596005-99	£84.42	£101.30
836 - S.T.CIRCLIP REMOVER BDE-1003924-99.A6 1003924-99	£157.18	£188.61
836 - S.T.CIRCLIP INSERTER BDE-1003925-99.A13 1003925-99	£144.10	£172.92
836 - S.T.INSERT BDE-1003926-99.A6 1003926-99	£51.90	£62.28

Attribute Name	Value
Brand	Dewalt
