Dewalt D25011K Type 1 Rotary Hammer Spare Parts

Home Details Reviews Delivery

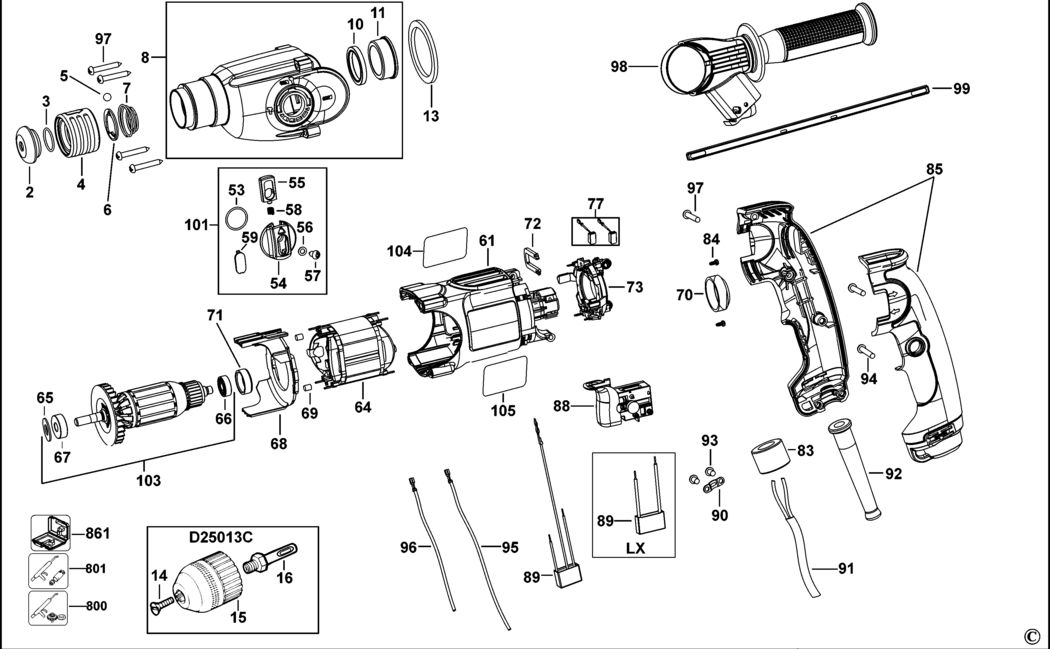

An exploded drawing and spare parts listing for the Dewalt D25011K Type 1 Rotary Hammer

	Ex VAT	Inc VAT
2 - CAP BDE-323489-00.A152 323489-00	£1.66	£1.99
3 - RING BDE-579212-00.A147 579212-00	£1.66	£1.99
4 - COLLAR BDE-1005813-00.A4 1005813-00	£3.92	£4.70
5 - BALL 7MM BDE-583890-00.A17 583890-00	£1.66	£1.99
6 - WASHER BDE-578387-00.A258 578387-00	£1.66	£1.99
7 - SPRING BDE-871690.A211 871690	£1.66	£1.99
8 - HOUSING GEAR SA BDE-N034183.A0 N034183	£30.08	£36.10
10 - SEAL BDE-N496180.A2 N496180	£3.39	£4.07
11 - BEARING SPINDLE BDE-N020023.A10 N020023	£7.40	£8.88
13 - WASHER BDE-589350-00.A4 589350-00	£1.66	£1.99
17 - WASHER BDE-589350-00.A5 589350-00	£1.66	£1.99
18 - SPRING BDE-589346-00.A4 589346-00	£4.83	£5.80
19 - RING BDE-N031765.A7 N031765	£7.85	£9.42
20 - GEAR BDE-N031766.A0 N031766	£16.03	£19.24
21 - CIRCLIP BDE-323762-02.A6 323762-02	£1.66	£1.99
22 - O RING BDE-1005809-00.A4 1005809-00	£1.66	£1.99
23 - TUBE GUIDE BDE-N470388.A13 N470388	£2.87	£3.44
24 - BEAT PIECE BDE-N031767.A7 N031767	£5.72	£6.87
25 - RING BDE-1005808-00.A9 1005808-00	£3.39	£4.07
26 - WASHER BDE-327087-00.A10 327087-00	£1.88	£2.26
27 - RING <2014 WK16 BDE-323762-07.A45 323762-07	£1.66	£1.99
27 - RING >=2014 WK16 BDE-N294259.A13 N294259	£1.66	£1.99
28 - RING BDE-1005837-00.A1 1005837-00	£1.66	£1.99
29 - BEARING BDE-N031768.A0 N031768	£5.72	£6.87
30 - FELT BDE-N399611.A1 N399611	£14.57	£17.48
32 - O RING BDE-577168-00.A13 577168-00	£1.66	£1.99
33 - PISTON BDE-N031769.A7 N031769	£19.48	£23.37
34 - WASHER BDE-1005842-00.A6 1005842-00	£1.66	£1.99
35 - BOLT BDE-1005843-00.A1 1005843-00	£3.30	£3.96
36 - HOUSING BEARING BDE-N407630.A1 N407630	£15.63	£18.76
37 - O RING BDE-1005810-00.A1 1005810-00	£1.66	£1.99
38 - INTERSHAFT SA BDE-N402884.A2 N402884	-
44 - WASHER BDE-1005844-00.A14 1005844-00	£1.66	£1.99
45 - SEAL BDE-1005807-00.A6 1005807-00	£1.66	£1.99
46 - COLLAR BDE-N031771.A0 N031771	£7.18	£8.62
47 - GEAR BDE-N031772.A7 N031772	£7.85	£9.42
48 - FELT BDE-1005812-00.A12 1005812-00	£1.66	£1.99
49 - SCREW BDE-N445171.A45 N445171	£1.66	£1.99
50 - SCREW BDE-324006-15.A20 324006-15	£1.66	£1.99
51 - SELECTOR FORK BDE-1005796-00.A6 1005796-00	£3.30	£3.96
52 - SPRING BDE-1005795-00.A21 1005795-00	£1.66	£1.99
53 - O RING BDE-1005821-00.A6 1005821-00	-
54 - SELECTOR BDE-1005822-00.A1 1005822-00	£1.66	£1.99
55 - BUTTON BDE-1005823-00.A6 1005823-00	£1.66	£1.99
56 - SEAL BDE-1005811-00.A10 1005811-00	£1.66	£1.99
57 - SCREW BDE-330065-05.A56 330065-05	£1.66	£1.99
58 - SPRING BDE-1005824-00.A1 1005824-00	£1.66	£1.99
59 - CAP BDE-1005825-00.A6 1005825-00	£1.66	£1.99
61 - HOUSING MOTOR BDE-1005866-00.A1 1005866-00	£12.17	£14.60
66 - BEARING BDE-1005895-00.A19 1005895-00	£2.87	£3.44
67 - BEARING BDE-330003-60.A116 330003-60	£2.87	£3.44
68 - BAFFLE FAN BDE-1005869-00.A6 1005869-00	£1.66	£1.99
69 - RUBBER PAD BDE-N012971.A20 N012971	£1.66	£1.99
70 - RING BDE-1005856-00.A5 1005856-00	£1.66	£1.99
71 - COVER BEARING BDE-1005865-00.A7 1005865-00	£1.66	£1.99
72 - CLIP BDE-1005894-00.A11 1005894-00	£1.66	£1.99
84 - SCREW BDE-330065-35.A6 330065-35	£1.66	£1.99
85 - CLAMSHELL SET BDE-N031775.A6 N031775	£19.90	£23.88
90 - CORD CLAMP BDE-821070.A437 821070	£1.66	£1.99
92 - CORD PROTECTOR BDE-403395-00.A4 403395-00	£1.66	£1.99
93 - SCREW BDE-330065-06.A238 330065-06	£1.66	£1.99
94 - SCREW BDE-330065-09.A43 330065-09	£1.66	£1.99
95 - LEAD RED BDE-1005879-01.A15 1005879-01	£1.66	£1.99
96 - LEAD BLUE BDE-1005879-00.A7 1005879-00	£1.66	£1.99
97 - SCREW BDE-330065-28.A35 330065-28	£1.66	£1.99
98 - SIDE HANDLE BDE-1005896-00.A4 1005896-00	£11.18	£13.41
99 - DEPTH STOP BDE-798846-02.A34 798846-02	£1.66	£1.99
100 - SPINDLE SA >=2014 WK16 BDE-N385791.A5 N385791	£37.82	£45.38
100 - SPINDLE SA <2014 WK16 BDE-N031512.A1 N031512	£56.97	£68.36
101 - SELECTOR SA BDE-N031515.A4 N031515	£9.41	£11.29
102 - RAM SA BDE-N031513.A2 N031513	£11.87	£14.24
105 - BRAND LABEL BDE-1005767-00.A2 1005767-00	£1.66	£1.99
800 - GREASE 90 GMS BDE-870889-02.A486 870889-02	£8.08	£9.70
801 - GREASE 10 GMS BDE-487130-04.A61 487130-04	£3.92	£4.70
836 - S.T.CIRCLIP REMOVER BDE-596005-99.A18 596005-99	£265.84	£319.01
836 - S.T.CIRCLIP REMOVER BDE-596006-99.A35 596006-99	£37.35	£44.82
836 - S.T.CIRCLIP INSERTER BDE-596008-99.A6 596008-99	£17.48	£20.97
861 - KITBOX BDE-1005857-00.A2 1005857-00	£36.42	£43.70
