Dewalt DW545 Type 3 Rotary Hammer Spare Parts

Home Details Reviews Delivery

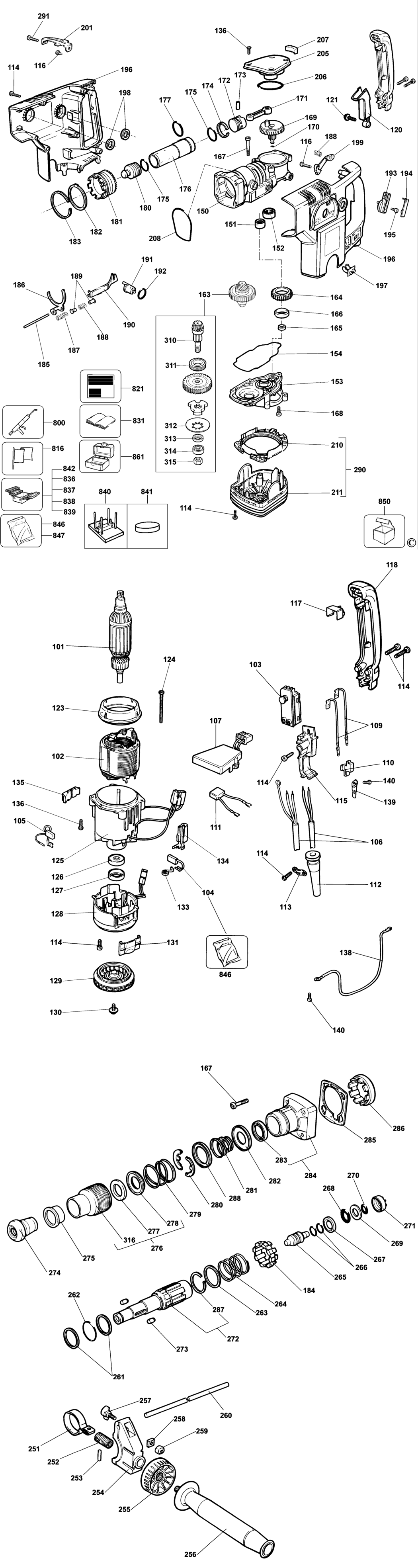

An exploded drawing and spare parts listing for the Dewalt DW545 Type 3 Rotary Hammer

	Ex VAT	Inc VAT
101 - NO LONGER AVAILABLE XW BDE-000000-00.A18491 000000-00	-
101 - ARMATURE 230V GB BDE-571059-00.A1 571059-00	£135.41	£162.49
102 - FIELD 230V GB BDE-327430-04.A8 327430-04	£37.82	£45.38
102 - NO LONGER AVAILABLE XW BDE-000000-00.A18501 000000-00	-
103 - SWITCH BDE-326087-00.A19 326087-00	-
104 - SERVICE BRUSH GB BDE-326961-00.A9 326961-00	£17.03	£20.44
104 - NO LONGER AVAILABLE XW BDE-000000-00.A18492 000000-00	-
105 - NO LONGER AVAILABLE GB BDE-000000-00.A18493 000000-00	-
105 - NO LONGER AVAILABLE XW BDE-000000-00.A18494 000000-00	-
106 - CORDSET XW BDE-330061-20.A38 330061-20	£50.60	£60.72
106 - CORDSET GB BDE-324438-73.A77 324438-73	-
107 - NO LONGER AVAILABLE XW BDE-000000-00.A18495 000000-00	-
107 - NO LONGER AVAILABLE GB BDE-000000-00.A18496 000000-00	-
109 - NO LONGER AVAILABLE BDE-000000-00.A18497 000000-00	-
110 - NO LONGER AVAILABLE BDE-000000-00.A18498 000000-00	-
111 - NO LONGER AVAILABLE XW BDE-000000-00.A18499 000000-00	-
111 - NO LONGER AVAILABLE GB BDE-000000-00.A18500 000000-00	-
112 - CORD PROTECTOR BDE-323091-01.A73 323091-01	£1.66	£1.99
113 - CORD CLAMP BDE-821070.A463 821070	£1.66	£1.99
114 - SCREW BDE-330065-08.A7 330065-08	£1.66	£1.99
115 - NO LONGER AVAILABLE BDE-000000-00.A18507 000000-00	-
116 - SCREW BDE-330065-05.A143 330065-05	£1.66	£1.99
117 - NO LONGER AVAILABLE BDE-000000-00.A18502 000000-00	-
118 - NO LONGER AVAILABLE BDE-000000-00.A18503 000000-00	-
120 - NO LONGER AVAILABLE BDE-000000-00.A18504 000000-00	-
121 - NO LONGER AVAILABLE BDE-000000-00.A18505 000000-00	-
123 - NO LONGER AVAILABLE BDE-000000-00.A18506 000000-00	-
124 - SCREW BDE-330065-11.A53 330065-11	£1.66	£1.99
125 - NO LONGER AVAILABLE BDE-000000-00.A18508 000000-00	-
126 - BEARING BDE-577745-00.A91 577745-00	£8.08	£9.70
127 - SLEEVE BDE-325279-00.A21 325279-00	-
128 - COVER BDE-326934-01.A15 326934-01	-
129 - FAN BDE-577736-00.A47 577736-00	-
130 - SCREW BDE-324119-02.A28 324119-02	£1.66	£1.99
131 - SHUTTER BDE-326579-00.A41 326579-00	£2.26	£2.71
133 - BRUSH SPRING BDE-326667-00.A62 326667-00	£1.66	£1.99
134 - HOLDER BDE-326933-01.A23 326933-01	£3.30	£3.96
135 - NO LONGER AVAILABLE BDE-000000-00.A18509 000000-00	-
136 - SCREW TORX BDE-324007-11.A52 324007-11	£1.66	£1.99
150 - NO LONGER AVAILABLE BDE-000000-00.A18510 000000-00	-
151 - BEARING BDE-330004-32.A2 330004-32	£8.08	£9.70
152 - BEARING BDE-330004-33.A34 330004-33	-
153 - NO LONGER AVAILABLE BDE-000000-00.A18511 000000-00	-
154 - SEAL BDE-325936-00.A27 325936-00	£3.70	£4.44
163 - REPAIR KIT BDE-496440-00.A74 496440-00	£105.49	£126.59
164 - GEAR BDE-492618-00.A39 492618-00	-
165 - SEAL BDE-327141-02.A16 327141-02	£2.87	£3.44
166 - BUSH BDE-325616-00.A18 325616-00	-
167 - SCREW BDE-918825-02.A25 918825-02	£1.66	£1.99
168 - NO LONGER AVAILABLE BDE-000000-00.A18512 000000-00	-
169 - NO LONGER AVAILABLE BDE-000000-00.A18513 000000-00	-
170 - O RING BDE-323711-26.A69 323711-26	£1.66	£1.99
171 - CON ROD BDE-325002-00.A26 325002-00	£3.39	£4.07
172 - NO LONGER AVAILABLE BDE-000000-00.A18514 000000-00	-
173 - PIN BDE-330041-22.A17 330041-22	£1.66	£1.99
174 - RETAINER BDE-325905-00.A45 325905-00	£1.66	£1.99
175 - O RING BDE-323711-11.A11 323711-11	£1.66	£1.99
176 - CYLINDER BDE-326098-03.A12 326098-03	£39.97	£47.96
177 - O RING BDE-323711-21.A13 323711-21	£1.66	£1.99
180 - RAM BDE-329319-00.A1 329319-00	-
181 - REPAIR KIT BDE-496440-00.A75 496440-00	£105.49	£126.59
182 - WASHER LARGE BDE-326085-00.A16 326085-00	£5.72	£6.87
183 - CIRCLIP BDE-323763-03.A18 323763-03	£1.66	£1.99
184 - SPINDLE LOCK BDE-1005697-00.A23 1005697-00	-
185 - SHAFT BDE-325880-02.A29 325880-02	£3.80	£4.56
186 - SELECTOR FORK BDE-325160-00.A17 325160-00	-
187 - SPRING BDE-323395-08.A21 323395-08	£1.82	£2.19
188 - SPRING BDE-323395-09.A27 323395-09	-
189 - SPACER BDE-326093-00.A31 326093-00	£1.82	£2.19
190 - NO LONGER AVAILABLE BDE-000000-00.A18515 000000-00	-
191 - NO LONGER AVAILABLE BDE-000000-00.A18516 000000-00	-
192 - O RING BDE-323711-07.A38 323711-07	£1.88	£2.26
193 - LEVER SA BDE-326507-00.A9 326507-00	-
194 - NO LONGER AVAILABLE BDE-000000-00.A18517 000000-00	-
195 - NO LONGER AVAILABLE BDE-000000-00.A18518 000000-00	-
196 - NO LONGER AVAILABLE BDE-000000-00.A18519 000000-00	-
197 - NO LONGER AVAILABLE BDE-000000-00.A18520 000000-00	-
198 - NO LONGER AVAILABLE BDE-000000-00.A18521 000000-00	-
199 - NO LONGER AVAILABLE BDE-000000-00.A18522 000000-00	-
201 - NO LONGER AVAILABLE BDE-000000-00.A18523 000000-00	-
205 - COVER BDE-325371-04.A6 325371-04	£10.57	£12.68
206 - O RING BDE-323711-22.A24 323711-22	£1.66	£1.99
207 - FILTER BDE-326824-00.A15 326824-00	-
208 - O RING BDE-323711-17.A17 323711-17	£1.78	£2.13
210 - NO LONGER AVAILABLE BDE-000000-00.A18524 000000-00	-
211 - NO LONGER AVAILABLE BDE-000000-00.A18525 000000-00	-
251 - COLLAR BDE-326555-00.A25 326555-00	£6.06	£7.27
252 - BUSH BDE-326552-00.A27 326552-00	£7.40	£8.88
253 - PIN BDE-N079374.A10 N079374	£1.66	£1.99
254 - CLAMP BDE-N021108.A21 N021108	£9.41	£11.29
255 - LOCKING RING BDE-326553-00.A29 326553-00	£4.83	£5.80
256 - HANDLE BDE-N021120.A16 N021120	£14.57	£17.48
257 - SCREW WING BDE-326573-00.A17 326573-00	£6.06	£7.27
258 - NUT BDE-326556-00.A19 326556-00	£1.66	£1.99
259 - NUT BDE-330021-01.A19 330021-01	£1.66	£1.99
260 - DEPTH ROD BDE-326205-00.A45 326205-00	£3.70	£4.44
261 - WASHER BDE-323753-11.A41 323753-11	£3.92	£4.70
262 - O RING BDE-323711-14.A18 323711-14	£1.66	£1.99
263 - WASHER BDE-323753-14.A8 323753-14	£1.66	£1.99
264 - SPRING BDE-323395-07.A36 323395-07	£1.66	£1.99
265 - REPAIR KIT BDE-579580-00.A10 579580-00	£38.80	£46.56
266 - SEAL From date code 29-01 BDE-577484-00.A4 577484-00	£16.52	£19.82
266 - O RING Upto date code 29-01 BDE-323711-10.A39 323711-10	£1.66	£1.99
267 - WASHER BDE-582381-00.A25 582381-00	£5.88	£7.06
268 - O RING BDE-577744-02.A46 577744-02	£1.88	£2.26
269 - WASHER BDE-323753-16.A25 323753-16	£3.80	£4.56
270 - O RING BDE-N210233.A23 N210233	£1.66	£1.99
271 - CAP BDE-326044-00.A5 326044-00	£3.70	£4.44
272 - SPINDLE BDE-493133-00.A4 493133-00	£153.22	£183.86
273 - ROLLER BDE-325878-00.A24 325878-00	£1.66	£1.99
274 - LIP SEAL BDE-329816-00.A7 329816-00	£3.39	£4.07
275 - COLLAR BDE-326575-02.A13 326575-02	£1.66	£1.99
276 - SLEEVE SA BDE-479247-00.A23 479247-00	£7.40	£8.88
277 - PART NLS ORDER SLEEVE SA 479247-00 BDE-000000-03.A70 000000-03	-
278 - PART NLS ORDER SLEEVE SA 479247-00 BDE-000000-03.A71 000000-03	-
279 - SPRING BDE-323395-06.A25 323395-06	£1.66	£1.99
280 - HALF WASHER BDE-325929-00.A18 325929-00	£1.66	£1.99
281 - SPRING BDE-487118-00.A43 487118-00	£1.66	£1.99
282 - SPRING GUIDE BDE-325930-00.A20 325930-00	£1.66	£1.99
283 - SEAL BDE-327141-00.A24 327141-00	£1.88	£2.26
284 - CASTING SA BDE-326125-00.A2 326125-00	£65.52	£78.62
285 - GASKET BDE-325935-00.A15 325935-00	-
286 - SPINDLE LOCK BDE-588560-00.A31 588560-00	-
287 - RING BDE-323763-04.A30 323763-04	-
288 - GUIDE BDE-327208-00.A18 327208-00	£1.66	£1.99
290 - END CAP SA BDE-326784-01.A7 326784-01	£18.42	£22.10
291 - SCREW BDE-324007-10.A34 324007-10	£1.66	£1.99
310 - NO LONGER AVAILABLE BDE-000000-00.A18526 000000-00	-
311 - BEARING BDE-323872-02.A20 323872-02	-
312 - NO LONGER AVAILABLE BDE-000000-00.A18528 000000-00	-
313 - NO LONGER AVAILABLE BDE-000000-00.A18529 000000-00	-
314 - BEARING BDE-330003-39.A97 330003-39	£2.87	£3.44
315 - NO LONGER AVAILABLE BDE-000000-00.A18527 000000-00	-
316 - PART NLS ORDER SLEEVE SA 479247-00 BDE-000000-03.A69 000000-03	-
800 - GREASE 100 GMS BDE-328771-02.A29 328771-02	£19.48	£23.37
816 - BRAND LABEL BDE-578793-00.A7 578793-00	£1.66	£1.99
836 - SERVICE TOOL BDE-559508-98.A12 559508-98	£71.44	£85.73
837 - NO LONGER AVAILABLE BDE-000000-00.A117883 000000-00	-
838 - S.T.PULLER BDE-559510-99.A29 559510-99	£87.82	£105.39
839 - S.T.SUPPORT JIG BDE-559656-99.A40 559656-99	£71.44	£85.73
840 - S.T.ASSEMBLY JIG BDE-559597-99.A5 559597-99	£38.80	£46.56
841 - S.T.BLOCK BDE-559598-99.A41 559598-99	-
842 - S.T.MANDREL BDE-559602-99.A0 559602-99	£47.08	£56.49
846 - BRUSH PAIR 120V XW BDE-327148-03.A12 327148-03	-
846 - BRUSH PAIR 230V GB BDE-N542573.A12 N542573	-
847 - NO LONGER AVAILABLE GB BDE-000000-00.A117884 000000-00	-
847 - NO LONGER AVAILABLE XW BDE-000000-00.A117885 000000-00	-
850 - REPAIR KIT SB130 BDE-576171-00.A5 576171-00	£37.82	£45.38
