Dewalt DW541 Type 3 Rotary Hammer Spare Parts

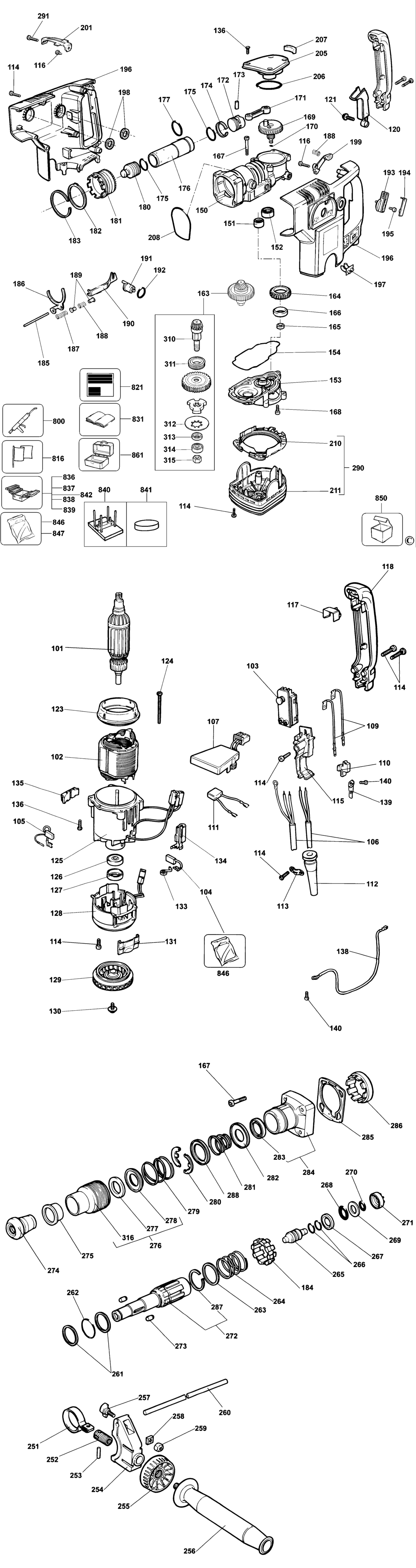

An exploded drawing and spare parts listing for the Dewalt DW541 Type 3 Rotary Hammer

	Ex VAT	Inc VAT
101 - NO LONGER AVAILABLE XW BDE-000000-00.A51706 000000-00	-
101 - NO LONGER AVAILABLE GB BDE-000000-00.A51707 000000-00	-
102 - FIELD 230V GB BDE-327429-10.A3 327429-10	-
102 - NO LONGER AVAILABLE XW BDE-000000-00.A51717 000000-00	-
103 - SWITCH BDE-326087-00.A31 326087-00	-
104 - SERVICE BRUSH GB BDE-326961-00.A3 326961-00	£17.03	£20.44
104 - NO LONGER AVAILABLE XW BDE-000000-00.A51708 000000-00	-
105 - NO LONGER AVAILABLE GB BDE-000000-00.A51709 000000-00	-
105 - NO LONGER AVAILABLE XW BDE-000000-00.A51710 000000-00	-
106 - CORDSET XW BDE-330061-20.A23 330061-20	£50.60	£60.72
106 - CORDSET GB BDE-324438-73.A55 324438-73	-
107 - NO LONGER AVAILABLE XW BDE-000000-00.A51711 000000-00	-
107 - NO LONGER AVAILABLE GB BDE-000000-00.A51712 000000-00	-
109 - NO LONGER AVAILABLE BDE-000000-00.A51713 000000-00	-
110 - NO LONGER AVAILABLE BDE-000000-00.A51714 000000-00	-
111 - NO LONGER AVAILABLE XW BDE-000000-00.A51715 000000-00	-
111 - NO LONGER AVAILABLE GB BDE-000000-00.A51716 000000-00	-
112 - CORD PROTECTOR BDE-323091-01.A95 323091-01	£1.50	£1.80
113 - CORD CLAMP BDE-821070.A750 821070	£1.50	£1.80
114 - SCREW BDE-330065-08.A97 330065-08	£1.50	£1.80
115 - NO LONGER AVAILABLE BDE-000000-00.A51723 000000-00	-
116 - SCREW BDE-330065-05.A110 330065-05	£1.50	£1.80
117 - NO LONGER AVAILABLE BDE-000000-00.A51718 000000-00	-
118 - NO LONGER AVAILABLE BDE-000000-00.A51719 000000-00	-
120 - NO LONGER AVAILABLE BDE-000000-00.A51720 000000-00	-
121 - NO LONGER AVAILABLE BDE-000000-00.A51721 000000-00	-
123 - NO LONGER AVAILABLE BDE-000000-00.A51722 000000-00	-
124 - SCREW BDE-330065-10.A18 330065-10	£1.50	£1.80
125 - NO LONGER AVAILABLE BDE-000000-00.A51724 000000-00	-
126 - BEARING BDE-577745-00.A72 577745-00	£7.85	£9.42
127 - SLEEVE BDE-325279-00.A11 325279-00	-
128 - COVER BDE-326934-01.A21 326934-01	-
129 - FAN BDE-577736-00.A37 577736-00	-
130 - SCREW BDE-324119-02.A5 324119-02	£1.50	£1.80
131 - SHUTTER BDE-326579-00.A35 326579-00	£2.26	£2.71
133 - BRUSH SPRING BDE-326667-00.A44 326667-00	£1.50	£1.80
134 - HOLDER BDE-326933-01.A2 326933-01	£3.30	£3.96
135 - NO LONGER AVAILABLE BDE-000000-00.A51725 000000-00	-
136 - SCREW TORX BDE-324007-11.A0 324007-11	£1.50	£1.80
150 - NO LONGER AVAILABLE BDE-000000-00.A51726 000000-00	-
151 - BEARING BDE-330004-32.A5 330004-32	£7.85	£9.42
152 - BEARING BDE-330004-33.A31 330004-33	-
153 - NO LONGER AVAILABLE BDE-000000-00.A51727 000000-00	-
154 - SEAL BDE-325936-00.A37 325936-00	£3.70	£4.44
163 - REPAIR KIT BDE-496440-00.A55 496440-00	£105.49	£126.59
164 - GEAR BDE-492618-00.A28 492618-00	-
165 - SEAL BDE-327141-02.A27 327141-02	£2.78	£3.34
166 - BUSH BDE-325616-00.A1 325616-00	-
167 - SCREW BDE-918825-02.A4 918825-02	£1.50	£1.80
168 - NO LONGER AVAILABLE BDE-000000-00.A51728 000000-00	-
169 - CRANKSHAFT BDE-581014-01.A12 581014-01	£85.60	£102.72
170 - O RING BDE-323711-26.A90 323711-26	£1.50	£1.80
171 - CON ROD BDE-325002-00.A46 325002-00	£3.30	£3.96
172 - NO LONGER AVAILABLE BDE-000000-00.A51729 000000-00	-
173 - PIN BDE-330041-22.A4 330041-22	£1.50	£1.80
174 - RETAINER BDE-325905-00.A60 325905-00	£1.50	£1.80
175 - O RING BDE-323711-11.A6 323711-11	£1.50	£1.80
176 - CYLINDER BDE-326098-02.A7 326098-02	£37.82	£45.38
177 - O RING BDE-323711-21.A4 323711-21	£1.50	£1.80
180 - NO LONGER AVAILABLE BDE-000000-00.A51730 000000-00	-
181 - REPAIR KIT BDE-496440-00.A54 496440-00	£105.49	£126.59
182 - WASHER LARGE BDE-326085-00.A1 326085-00	£5.72	£6.87
183 - CIRCLIP BDE-323763-03.A4 323763-03	£1.42	£1.70
184 - SPINDLE LOCK BDE-1005697-00.A12 1005697-00	-
185 - SHAFT BDE-325880-02.A44 325880-02	£3.80	£4.56
186 - SELECTOR FORK BDE-325160-00.A5 325160-00	-
187 - SPRING BDE-323395-08.A3 323395-08	£1.82	£2.19
188 - SPRING BDE-323395-09.A45 323395-09	-
189 - SPACER BDE-326093-00.A35 326093-00	£1.82	£2.19
190 - NO LONGER AVAILABLE BDE-000000-00.A51731 000000-00	-
191 - NO LONGER AVAILABLE BDE-000000-00.A51732 000000-00	-
192 - O RING BDE-323711-07.A16 323711-07	£1.82	£2.19
193 - LEVER SA BDE-326507-00.A0 326507-00	-
194 - NO LONGER AVAILABLE BDE-000000-00.A84372 000000-00	-
195 - NO LONGER AVAILABLE BDE-000000-00.A84373 000000-00	-
196 - NO LONGER AVAILABLE BDE-000000-00.A84374 000000-00	-
197 - NO LONGER AVAILABLE BDE-000000-00.A84375 000000-00	-
198 - NO LONGER AVAILABLE BDE-000000-00.A84376 000000-00	-
199 - NO LONGER AVAILABLE BDE-000000-00.A84377 000000-00	-
201 - NO LONGER AVAILABLE BDE-000000-00.A84378 000000-00	-
205 - COVER BDE-325371-04.A3 325371-04	£10.57	£12.68
206 - O RING BDE-323711-22.A8 323711-22	£1.50	£1.80
207 - FILTER BDE-326824-00.A21 326824-00	-
208 - O RING BDE-323711-17.A5 323711-17	£1.78	£2.13
210 - NO LONGER AVAILABLE BDE-000000-00.A84385 000000-00	-
211 - NO LONGER AVAILABLE BDE-000000-00.A84386 000000-00	-
251 - COLLAR BDE-326555-00.A4 326555-00	£5.88	£7.06
252 - BUSH BDE-326552-00.A50 326552-00	£7.18	£8.62
253 - PIN BDE-N079374.A59 N079374	£1.50	£1.80
254 - CLAMP BDE-N021108.A14 N021108	£9.41	£11.29
255 - LOCKING RING BDE-326553-00.A52 326553-00	£4.69	£5.63
256 - HANDLE BDE-N021120.A26 N021120	£14.57	£17.48
257 - SCREW WING BDE-326573-00.A4 326573-00	£5.88	£7.06
258 - NUT BDE-326556-00.A35 326556-00	£1.50	£1.80
259 - NUT BDE-330021-01.A85 330021-01	£1.50	£1.80
260 - DEPTH ROD BDE-326205-00.A25 326205-00	£3.70	£4.44
261 - WASHER BDE-323753-11.A8 323753-11	£3.80	£4.56
262 - O RING BDE-323711-14.A10 323711-14	£1.42	£1.70
263 - WASHER BDE-323753-14.A41 323753-14	£1.42	£1.70
264 - SPRING BDE-323395-07.A24 323395-07	£1.50	£1.80
265 - NO LONGER AVAILABLE BDE-000000-00.A84387 000000-00	-
266 - SEAL BDE-577484-00.A37 577484-00	£16.03	£19.24
266 - O RING BDE-323711-10.A23 323711-10	£1.50	£1.80
267 - WASHER BDE-582381-00.A42 582381-00	£5.88	£7.06
268 - O RING BDE-577744-02.A16 577744-02	£1.82	£2.19
269 - NO LONGER AVAILABLE BDE-000000-00.A84388 000000-00	-
270 - O RING BDE-N210233.A53 N210233	£1.50	£1.80
271 - CAP BDE-326044-00.A17 326044-00	£3.70	£4.44
272 - SPINDLE BDE-493133-00.A40 493133-00	£153.22	£183.86
273 - ROLLER BDE-325878-00.A51 325878-00	£1.50	£1.80
274 - LIP SEAL BDE-329816-00.A41 329816-00	£3.30	£3.96
275 - COLLAR BDE-326575-02.A3 326575-02	£1.50	£1.80
276 - SLEEVE SA BDE-479247-00.A42 479247-00	£7.18	£8.62
277 - PART NLS ORDER SLEEVE SA 479247-00 BDE-000000-03.A24 000000-03	-
278 - PART NLS ORDER SLEEVE SA 479247-00 BDE-000000-03.A25 000000-03	-
279 - SPRING BDE-323395-06.A33 323395-06	£1.50	£1.80
280 - HALF WASHER BDE-325929-00.A39 325929-00	£1.50	£1.80
281 - SPRING BDE-487118-00.A2 487118-00	£1.50	£1.80
282 - SPRING GUIDE BDE-325930-00.A9 325930-00	£1.50	£1.80
283 - SEAL BDE-327141-00.A41 327141-00	£1.82	£2.19
284 - CASTING SA BDE-326125-00.A18 326125-00	£65.52	£78.62
285 - GASKET BDE-325935-00.A23 325935-00	-
286 - SPINDLE LOCK BDE-588560-00.A15 588560-00	-
287 - RING BDE-323763-04.A16 323763-04	-
288 - GUIDE BDE-327208-00.A26 327208-00	£1.50	£1.80
290 - NO LONGER AVAILABLE BDE-000000-00.A84389 000000-00	-
291 - SCREW BDE-324007-10.A21 324007-10	£1.50	£1.80
310 - NO LONGER AVAILABLE BDE-000000-00.A84390 000000-00	-
311 - BEARING BDE-323872-02.A4 323872-02	-
312 - NO LONGER AVAILABLE BDE-000000-00.A84392 000000-00	-
313 - NO LONGER AVAILABLE BDE-000000-00.A84393 000000-00	-
314 - BEARING BDE-330003-39.A59 330003-39	£2.78	£3.34
315 - NO LONGER AVAILABLE BDE-000000-00.A84391 000000-00	-
316 - PART NLS ORDER SLEEVE SA 479247-00 BDE-000000-03.A23 000000-03	-
800 - GREASE 100 GMS BDE-328771-02.A12 328771-02	£18.91	£22.69
816 - BRAND LABEL BDE-578793-00.A9 578793-00	£1.42	£1.70
836 - SERVICE TOOL BDE-559508-98.A8 559508-98	£71.44	£85.73
837 - NO LONGER AVAILABLE BDE-000000-00.A84394 000000-00	-
838 - S.T.PULLER BDE-559510-99.A17 559510-99	£87.82	£105.39
839 - S.T.SUPPORT JIG BDE-559656-99.A61 559656-99	£71.44	£85.73
840 - S.T.ASSEMBLY JIG BDE-559597-99.A12 559597-99	£38.80	£46.56
841 - S.T.BLOCK BDE-559598-99.A34 559598-99	-
842 - S.T.MANDREL BDE-559602-99.A7 559602-99	£47.08	£56.49
846 - BRUSH PAIR 230V GB BDE-N542573.A21 N542573	-
846 - BRUSH PAIR 120V XW BDE-327148-03.A14 327148-03	-
847 - NO LONGER AVAILABLE GB BDE-000000-00.A84395 000000-00	-
847 - NO LONGER AVAILABLE XW BDE-000000-00.A84396 000000-00	-
850 - REPAIR KIT BDE-576171-00.A8 576171-00	£37.82	£45.38
