Dewalt DW541 Type 1 Rotary Hammer Spare Parts

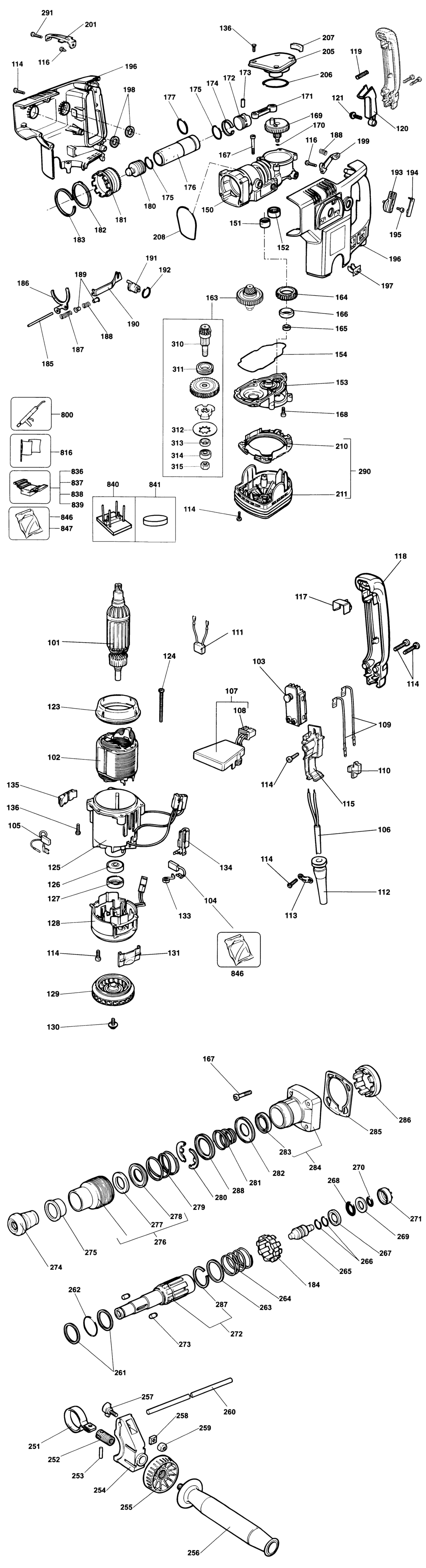

An exploded drawing and spare parts listing for the Dewalt DW541 Type 1 Rotary Hammer

	Ex VAT	Inc VAT
101 - NO LONGER AVAILABLE MX-CO-VE-BR-120V BDE-000000-00.A51595 000000-00	-
101 - NO LONGER AVAILABLE AR-BR-CL-220/240V BDE-000000-00.A51596 000000-00	-
102 - FIELD 230V AR-BR-CL-220/240V BDE-327429-10.A2 327429-10	-
102 - NO LONGER AVAILABLE MX-CO-VE-BR-120V BDE-000000-00.A51607 000000-00	-
103 - SWITCH BDE-326087-00.A32 326087-00	-
104 - NO LONGER AVAILABLE MX-CO-VE-BR-120V BDE-000000-00.A51608 000000-00	-
104 - SERVICE BRUSH AR-BR-CL-220/240V BDE-326961-00.A0 326961-00	£17.03	£20.44
105 - NO LONGER AVAILABLE MX-CO-VE-BR-120V BDE-000000-00.A51597 000000-00	-
105 - NO LONGER AVAILABLE AR-BR-CL-220/240V BDE-000000-00.A51598 000000-00	-
106 - NO LONGER AVAILABLE MX-CO-VE-BR-120V BDE-000000-00.A51599 000000-00	-
106 - NO LONGER AVAILABLE AR-BR-CL-220/240V BDE-000000-00.A51600 000000-00	-
107 - NO LONGER AVAILABLE MX-CO-VE-BR-120V BDE-000000-00.A51601 000000-00	-
107 - NO LONGER AVAILABLE AR-BR-CL-220/240V BDE-000000-00.A51602 000000-00	-
108 - NO LONGER AVAILABLE BDE-000000-00.A51603 000000-00	-
109 - NO LONGER AVAILABLE BDE-000000-00.A51604 000000-00	-
110 - NO LONGER AVAILABLE BDE-000000-00.A51605 000000-00	-
111 - NO LONGER AVAILABLE BDE-000000-00.A51606 000000-00	-
112 - CORD PROTECTOR BDE-323091-01.A97 323091-01	£1.50	£1.80
113 - CORD CLAMP BDE-821070.A748 821070	£1.50	£1.80
114 - SCREW BDE-330065-08.A96 330065-08	£1.50	£1.80
115 - NO LONGER AVAILABLE BDE-000000-00.A51609 000000-00	-
116 - SCREW BDE-330065-05.A111 330065-05	£1.50	£1.80
117 - NO LONGER AVAILABLE BDE-000000-00.A51613 000000-00	-
118 - NO LONGER AVAILABLE BDE-000000-00.A51614 000000-00	-
119 - SPRING BDE-326438-00.A18 326438-00	-
120 - NO LONGER AVAILABLE BDE-000000-00.A51610 000000-00	-
121 - NO LONGER AVAILABLE BDE-000000-00.A51611 000000-00	-
123 - NO LONGER AVAILABLE BDE-000000-00.A51612 000000-00	-
124 - SCREW BDE-330065-10.A19 330065-10	£1.50	£1.80
125 - NO LONGER AVAILABLE BDE-000000-00.A51615 000000-00	-
126 - BEARING BDE-577745-00.A70 577745-00	£7.85	£9.42
127 - SLEEVE BDE-325279-00.A12 325279-00	-
128 - COVER BDE-326934-01.A23 326934-01	-
129 - FAN BDE-577736-00.A35 577736-00	-
130 - SCREW BDE-324119-02.A3 324119-02	£1.50	£1.80
131 - SHUTTER BDE-326579-00.A37 326579-00	£2.26	£2.71
133 - BRUSH SPRING BDE-326667-00.A42 326667-00	£1.50	£1.80
134 - HOLDER BDE-326933-01.A0 326933-01	£3.30	£3.96
135 - NO LONGER AVAILABLE BDE-000000-00.A51616 000000-00	-
136 - SCREW TORX BDE-324007-11.A2 324007-11	£1.50	£1.80
150 - NO LONGER AVAILABLE BDE-000000-00.A51617 000000-00	-
151 - NO LONGER AVAILABLE UPTO DATE CODE 96-12 BDE-000000-00.A51618 000000-00	-
151 - BEARING FROM DATE CODE 97-16 BDE-330004-32.A6 330004-32	£7.85	£9.42
151 - BEARING NEEDLE UPTO DATE CODE 97-15 BDE-918877-05.A2 918877-05	£18.42	£22.10
152 - BEARING NEEDLE UPTO DATE CODE 97-15 BDE-918877-06.A23 918877-06	£14.19	£17.03
152 - BEARING FROM DATE CODE 97-16 BDE-330004-33.A29 330004-33	-
153 - NO LONGER AVAILABLE BDE-000000-00.A51619 000000-00	-
154 - SEAL BDE-325936-00.A36 325936-00	£3.70	£4.44
163 - REPAIR KIT BDE-496440-00.A59 496440-00	£105.49	£126.59
164 - GEAR BDE-492618-00.A30 492618-00	-
165 - SEAL BDE-327141-02.A24 327141-02	£2.78	£3.34
166 - BUSH BDE-325616-00.A2 325616-00	-
167 - SCREW BDE-918825-02.A7 918825-02	£1.50	£1.80
168 - NO LONGER AVAILABLE BDE-000000-00.A51620 000000-00	-
169 - CRANKSHAFT BDE-581014-01.A13 581014-01	£85.60	£102.72
170 - O RING BDE-323711-26.A91 323711-26	£1.50	£1.80
171 - CON ROD BDE-325002-00.A47 325002-00	£3.30	£3.96
172 - NO LONGER AVAILABLE BDE-000000-00.A51621 000000-00	-
173 - PIN BDE-330041-22.A2 330041-22	£1.50	£1.80
174 - RETAINER BDE-325905-00.A58 325905-00	£1.50	£1.80
175 - O RING BDE-323711-11.A5 323711-11	£1.50	£1.80
176 - CYLINDER BDE-326098-02.A8 326098-02	£37.82	£45.38
177 - O RING BDE-323711-21.A5 323711-21	£1.50	£1.80
180 - NO LONGER AVAILABLE BDE-000000-00.A51622 000000-00	-
181 - REPAIR KIT BDE-496440-00.A58 496440-00	£105.49	£126.59
182 - WASHER LARGE BDE-326085-00.A0 326085-00	£5.72	£6.87
183 - CIRCLIP BDE-323763-03.A2 323763-03	£1.42	£1.70
184 - SPINDLE LOCK BDE-1005697-00.A14 1005697-00	-
185 - SHAFT BDE-325880-02.A46 325880-02	£3.80	£4.56
186 - SELECTOR FORK BDE-325160-00.A4 325160-00	-
187 - SPRING BDE-323395-08.A2 323395-08	£1.82	£2.19
188 - SPRING BDE-323395-09.A46 323395-09	-
189 - SPACER BDE-326093-00.A34 326093-00	£1.82	£2.19
190 - NO LONGER AVAILABLE BDE-000000-00.A51623 000000-00	-
191 - NO LONGER AVAILABLE BDE-000000-00.A51624 000000-00	-
192 - O RING BDE-323711-07.A15 323711-07	£1.82	£2.19
193 - LEVER SA BDE-326507-00.A1 326507-00	-
194 - NO LONGER AVAILABLE BDE-000000-00.A51625 000000-00	-
195 - NO LONGER AVAILABLE BDE-000000-00.A51626 000000-00	-
196 - NO LONGER AVAILABLE BDE-000000-00.A51627 000000-00	-
197 - NO LONGER AVAILABLE BDE-000000-00.A51628 000000-00	-
198 - NO LONGER AVAILABLE BDE-000000-00.A51629 000000-00	-
199 - NO LONGER AVAILABLE BDE-000000-00.A51630 000000-00	-
201 - NO LONGER AVAILABLE BDE-000000-00.A51631 000000-00	-
205 - COVER BDE-325371-04.A9 325371-04	£10.57	£12.68
206 - O RING BDE-323711-22.A34 323711-22	£1.50	£1.80
207 - FILTER BDE-326824-00.A1 326824-00	-
208 - O RING BDE-323711-17.A26 323711-17	£1.78	£2.13
210 - NO LONGER AVAILABLE BDE-000000-00.A51632 000000-00	-
211 - NO LONGER AVAILABLE BDE-000000-00.A51633 000000-00	-
251 - COLLAR BDE-326555-00.A34 326555-00	£5.88	£7.06
252 - BUSH BDE-326552-00.A10 326552-00	£7.18	£8.62
253 - PIN BDE-N079374.A28 N079374	£1.50	£1.80
254 - CLAMP BDE-N021108.A35 N021108	£9.41	£11.29
255 - LOCKING RING BDE-326553-00.A15 326553-00	£4.69	£5.63
256 - HANDLE BDE-N021120.A4 N021120	£14.57	£17.48
257 - SCREW WING BDE-326573-00.A21 326573-00	£5.88	£7.06
258 - NUT BDE-326556-00.A15 326556-00	£1.50	£1.80
259 - NUT BDE-330021-01.A24 330021-01	£1.50	£1.80
260 - DEPTH ROD BDE-326205-00.A37 326205-00	£3.70	£4.44
261 - WASHER BDE-323753-11.A27 323753-11	£3.80	£4.56
262 - O RING BDE-323711-14.A23 323711-14	£1.42	£1.70
263 - WASHER BDE-323753-14.A22 323753-14	£1.42	£1.70
264 - SPRING BDE-323395-07.A57 323395-07	£1.50	£1.80
265 - NO LONGER AVAILABLE BDE-000000-00.A51634 000000-00	-
266 - O RING BDE-323711-10.A47 323711-10	£1.50	£1.80
267 - WASHER BDE-582381-00.A11 582381-00	£5.88	£7.06
268 - O RING BDE-577744-02.A36 577744-02	£1.82	£2.19
269 - NO LONGER AVAILABLE BDE-000000-00.A51635 000000-00	-
270 - O RING BDE-N210233.A13 N210233	£1.50	£1.80
271 - CAP BDE-326044-00.A7 326044-00	£3.70	£4.44
272 - SPINDLE BDE-493133-00.A20 493133-00	£153.22	£183.86
273 - ROLLER BDE-325878-00.A0 325878-00	£1.50	£1.80
274 - LIP SEAL BDE-329816-00.A16 329816-00	£3.30	£3.96
275 - COLLAR BDE-326575-02.A18 326575-02	£1.50	£1.80
276 - SLEEVE SA BDE-479247-00.A8 479247-00	£7.18	£8.62
277 - PART NLS ORDER SLEEVE SA 479247-00 BDE-000000-03.A54 000000-03	-
278 - PART NLS ORDER SLEEVE SA 479247-00 BDE-000000-03.A55 000000-03	-
279 - SPRING BDE-323395-06.A0 323395-06	£1.50	£1.80
280 - HALF WASHER BDE-325929-00.A10 325929-00	£1.50	£1.80
281 - SPRING BDE-487118-00.A63 487118-00	£1.50	£1.80
282 - SPRING GUIDE BDE-325930-00.A27 325930-00	£1.50	£1.80
283 - SEAL BDE-327141-00.A3 327141-00	£1.82	£2.19
284 - CASTING SA BDE-326125-00.A7 326125-00	£65.52	£78.62
285 - GASKET BDE-325935-00.A8 325935-00	-
286 - SPINDLE LOCK BDE-588560-00.A47 588560-00	-
287 - RING BDE-323763-04.A44 323763-04	-
288 - GUIDE BDE-327208-00.A0 327208-00	£1.50	£1.80
290 - NO LONGER AVAILABLE BDE-000000-00.A51636 000000-00	-
291 - SCREW BDE-324007-10.A69 324007-10	£1.50	£1.80
310 - NO LONGER AVAILABLE BDE-000000-00.A51637 000000-00	-
311 - BEARING BDE-323872-02.A14 323872-02	-
312 - NO LONGER AVAILABLE BDE-000000-00.A51638 000000-00	-
313 - NO LONGER AVAILABLE BDE-000000-00.A51639 000000-00	-
314 - BEARING BDE-330003-39.A66 330003-39	£2.78	£3.34
315 - NO LONGER AVAILABLE BDE-000000-00.A51640 000000-00	-
800 - GREASE 100 GMS BDE-328771-02.A34 328771-02	£18.91	£22.69
816 - BRAND LABEL LARGE 70MM X 53MM BDE-578793-00.A3 578793-00	£1.42	£1.70
816 - NO LONGER AVAILABLE SMALL 44MM X 49MM BDE-000000-00.A51641 000000-00	-
836 - NO LONGER AVAILABLE UPTO DATE CODE 97-15 BDE-000000-00.A51642 000000-00	-
836 - SERVICE TOOL FROM DATE CODE 97-16 BDE-559508-98.A18 559508-98	£71.44	£85.73
837 - NO LONGER AVAILABLE FROM DATE CODE 97-16 BDE-000000-00.A51643 000000-00	-
837 - NO LONGER AVAILABLE UPTO DATE CODE 97-15 BDE-000000-00.A51644 000000-00	-
838 - S.T.PULLER BDE-559510-99.A4 559510-99	£87.82	£105.39
839 - S.T.SUPPORT JIG BDE-559656-99.A23 559656-99	£71.44	£85.73
840 - S.T.ASSEMBLY JIG BDE-559597-99.A42 559597-99	£38.80	£46.56
841 - S.T.BLOCK BDE-559598-99.A4 559598-99	-
842 - S.T.MANDREL FROM DATE CODE 97-16 BDE-559602-99.A21 559602-99	£47.08	£56.49
846 - BRUSH PAIR 230V AR-BR-CL-220/240V BDE-N542573.A5 N542573	-
846 - BRUSH PAIR 120V MX-CO-VE-BR-120V BDE-327148-03.A2 327148-03	-
847 - NO LONGER AVAILABLE AR-BR-CL-220/240V BDE-000000-00.A51645 000000-00	-
847 - NO LONGER AVAILABLE MX-CO-VE-BR-120V BDE-000000-00.A51646 000000-00	-
