Dewalt D25851K Type 2 Rotary Hammer Spare Parts

Home Details Reviews Delivery

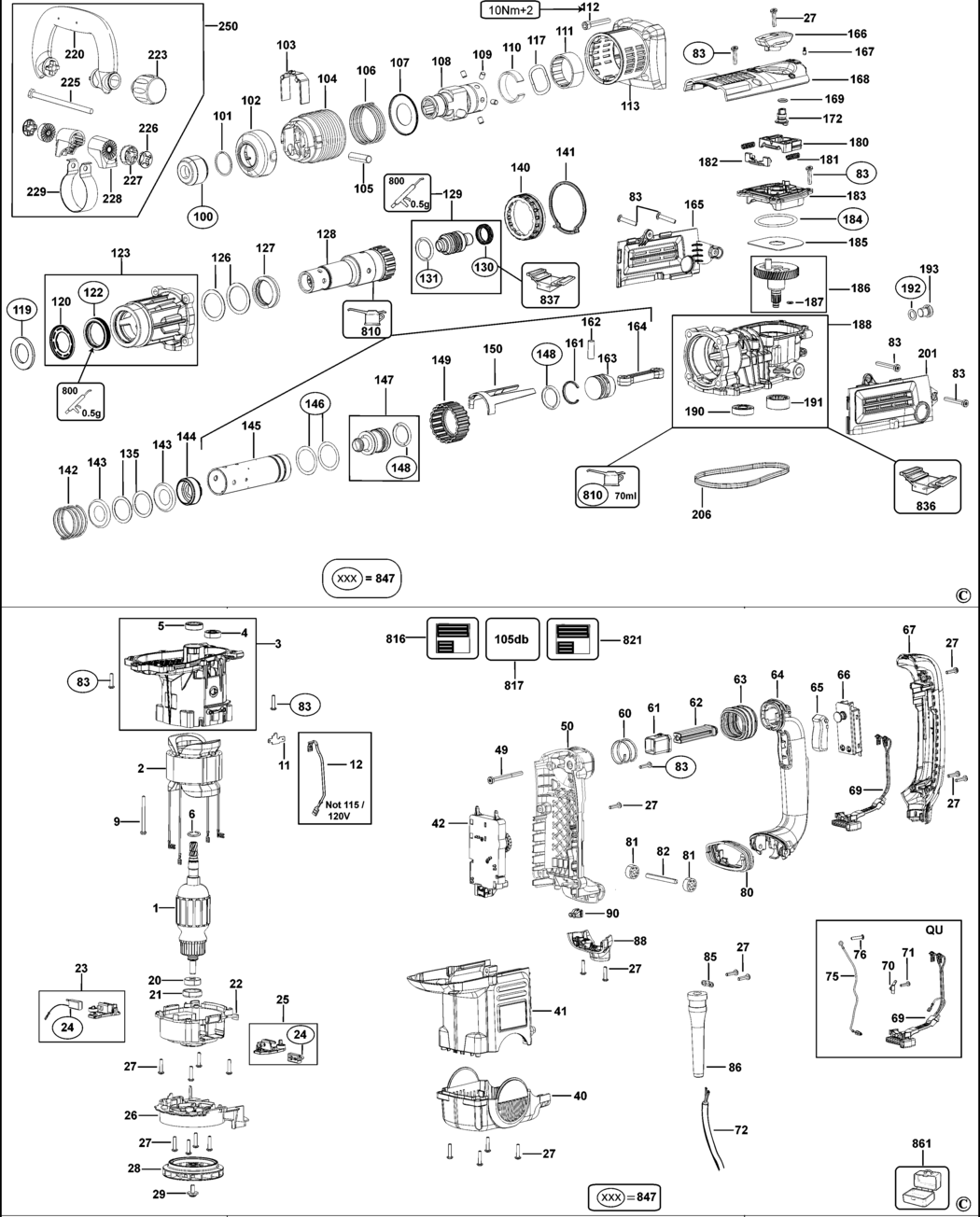

An exploded drawing and spare parts listing for the Dewalt D25851K Type 2 Rotary Hammer

	Ex VAT	Inc VAT
3 - HOUSING MOTOR BDE-N082756.A1 N082756	£30.98	£37.18
4 - BEARING BDE-330003-39.A1 330003-39	£2.87	£3.44
5 - SEAL BDE-327141-03.A23 327141-03	£12.53	£15.04
6 - RING BDE-577746-00.A19 577746-00	£1.66	£1.99
9 - SCREW BDE-330065-21.A34 330065-21	£1.66	£1.99
11 - CONNECTOR BDE-1007970-00.A8 1007970-00	£1.66	£1.99
20 - BEARING BDE-330003-60.A208 330003-60	£2.87	£3.44
21 - SLEEVE BDE-1007732-00.A16 1007732-00	£1.66	£1.99
22 - BRIDGE BDE-1007798-00.A12 1007798-00	£7.40	£8.88
26 - BAFFLE FAN BDE-N016920.A4 N016920	£6.06	£7.27
27 - SCREW BDE-330065-08.A370 330065-08	£1.66	£1.99
28 - FAN SA BDE-1006592-01.A2 1006592-01	£16.52	£19.82
29 - SCREW BDE-324119-02.A109 324119-02	£1.66	£1.99
40 - END CAP BDE-1008683-00.A3 1008683-00	-
41 - MOTOR COVER BDE-1006576-01.A0 1006576-01	£14.57	£17.48
49 - SCREW BDE-1005672-00.A0 1005672-00	£1.66	£1.99
50 - COVERPLATE BDE-1007939-00.A1 1007939-00	£16.03	£19.24
60 - SPRING BDE-1007569-00.A9 1007569-00	£1.66	£1.99
61 - BUSH BDE-1007567-00.A18 1007567-00	£1.66	£1.99
62 - STOP BDE-1007566-00.A9 1007566-00	£9.69	£11.63
63 - BELLOWS BDE-1007565-00.A18 1007565-00	£3.92	£4.70
64 - HANDLE BDE-1008681-01.A1 1008681-01	£12.17	£14.60
65 - TRIGGER BDE-488065-01.A4 488065-01	£2.32	£2.78
66 - SWITCH BDE-581070-01.A0 581070-01	£25.12	£30.15
67 - HANDLE COVER BDE-1008682-00.A1 1008682-00	£16.52	£19.82
70 - CONNECTOR BDE-N015311.A1 N015311	£1.66	£1.99
71 - SCREW BDE-326619-00.A5 326619-00	£1.66	£1.99
76 - SCREW BDE-326619-00.A6 326619-00	£1.66	£1.99
80 - BELLOWS BDE-1008678-00.A17 1008678-00	£3.39	£4.07
81 - BUSH BDE-N038214.A4 N038214	£1.66	£1.99
82 - PIN BDE-N062047.A25 N062047	£1.66	£1.99
83 - SCREW TORX BDE-324007-11.A165 324007-11	£1.66	£1.99
85 - CORD CLAMP BDE-821070.A233 821070	£1.66	£1.99
86 - CORD PROTECTOR BDE-323091-01.A15 323091-01	£1.66	£1.99
88 - COVER BDE-1008391-00.A12 1008391-00	£1.88	£2.26
90 - LENS BDE-N021606.A0 N021606	£1.66	£1.99
100 - DUST GUARD BDE-N049332.A2 N049332	£6.06	£7.27
101 - SPRING CLIP BDE-487205-01.A2 487205-01	£1.66	£1.99
102 - BUSH BDE-1008282-00.A0 1008282-00	£8.08	£9.70
103 - CLIP BDE-N058328.A0 N058328	£1.66	£1.99
104 - TUBE BDE-1008281-00.A2 1008281-00	£12.53	£15.04
105 - PIN BDE-1008264-00.A0 1008264-00	£4.83	£5.80
106 - SPRING BDE-323395-06.A62 323395-06	£1.66	£1.99
107 - GUIDE BDE-N313860.A8 N313860	£4.83	£5.80
108 - HOLDER TOOL BDE-N080645.A0 N080645	£116.46	£139.75
109 - ROLLER BDE-1008275-00.A2 1008275-00	£1.66	£1.99
110 - CLIP BDE-N021036.A2 N021036	£1.66	£1.99
111 - LOCKING RING BDE-1008280-00.A0 1008280-00	£1.66	£1.99
112 - SCREW BDE-918825-02.A74 918825-02	£1.66	£1.99
113 - COVER BDE-1006572-00.A1 1006572-00	£6.06	£7.27
117 - WASHER SPRING BDE-N075956.A2 N075956	£7.85	£9.42
119 - FELT BDE-N038151.A8 N038151	£1.66	£1.99
120 - BUSH BDE-N045793.A13 N045793	£1.66	£1.99
122 - SEAL BDE-1007828-00.A18 1007828-00	£16.52	£19.82
123 - HOUSING BDE-N041835.A13 N041835	£73.58	£88.30
126 - WASHER BDE-1005982-00.A9 1005982-00	£1.66	£1.99
127 - DAMPER BDE-496191-00.A10 496191-00	£2.32	£2.78
128 - SPINDLE BDE-N080644.A2 N080644	£135.36	£162.43
129 - BEAT PIECE BDE-N041847.A6 N041847	£73.58	£88.30
130 - SEAL BDE-N244259.A4 N244259	£8.08	£9.70
131 - O RING BDE-323711-10.A13 323711-10	£1.66	£1.99
135 - WASHER BDE-N064329.A12 N064329	£1.66	£1.99
140 - BUSH BDE-494857-00.A1 494857-00	£2.87	£3.44
141 - GASKET BDE-1006283-00.A10 1006283-00	£2.87	£3.44
142 - SPRING BDE-1005748-00.A12 1005748-00	£1.66	£1.99
143 - O RING BDE-N210233.A57 N210233	£1.66	£1.99
144 - BUSH BDE-1006778-00.A14 1006778-00	£1.66	£1.99
145 - CYLINDER BDE-N041846.A9 N041846	£42.48	£50.98
146 - O RING BDE-577744-00.A66 577744-00	£1.88	£2.26
147 - RAM BDE-N041845.A7 N041845	£39.97	£47.96
148 - O RING BDE-576232-01.A34 576232-01	£6.06	£7.27
149 - SLEEVE BDE-N041844.A9 N041844	£20.50	£24.60
150 - SELECTOR FORK BDE-1005749-00.A3 1005749-00	£1.66	£1.99
161 - RETAINER BDE-325905-00.A39 325905-00	£1.66	£1.99
162 - PIN BDE-330041-22.A64 330041-22	£1.66	£1.99
163 - PISTON BDE-N041843.A7 N041843	£12.53	£15.04
164 - CON ROD BDE-494724-00.A11 494724-00	£6.06	£7.27
165 - COVER RH BDE-N482797.A1 N482797	£7.40	£8.88
166 - SELECTOR BDE-1006786-00.A13 1006786-00	£2.32	£2.78
167 - DETENT BDE-326467-00.A282 326467-00	£1.66	£1.99
168 - COVER-TOP BDE-1006575-01.A3 1006575-01	£7.40	£8.88
169 - O RING BDE-323711-57.A7 323711-57	£1.66	£1.99
172 - ECCENTRIC BDE-496856-00.A6 496856-00	£1.66	£1.99
180 - SLIDER BDE-1006784-00.A14 1006784-00	£1.66	£1.99
181 - SPRING BDE-323395-32.A4 323395-32	£2.32	£2.78
182 - CONNECTOR BDE-1006783-00.A2 1006783-00	£1.66	£1.99
183 - COVER BDE-496857-00.A10 496857-00	£4.83	£5.80
184 - O RING BDE-323711-59.A1 323711-59	£1.66	£1.99
185 - PLATE BDE-1006785-00.A2 1006785-00	£3.39	£4.07
186 - CRANKSHAFT BDE-N041841.A5 N041841	£86.95	£104.34
187 - O RING BDE-323711-26.A19 323711-26	£1.66	£1.99
188 - HOUSING SA BDE-N527066.A8 N527066	£130.43	£156.52
190 - BEARING BALL BDE-577745-01.A15 577745-01	£8.08	£9.70
191 - BEARING NEEDLE BDE-586301-00.A17 586301-00	£9.69	£11.63
192 - O RING BDE-323711-57.A8 323711-57	£1.66	£1.99
193 - SCREW.SPECIAL BDE-1008427-00.A6 1008427-00	£1.66	£1.99
201 - COVER LH BDE-N482796.A5 N482796	£7.40	£8.88
206 - GASKET BDE-1006282-00.A5 1006282-00	£3.92	£4.70
220 - HANDLE BDE-487277-00.A14 487277-00	£19.48	£23.37
223 - KNOB SA BDE-487291-00.A13 487291-00	£6.06	£7.27
225 - BOLT BDE-487343-00.A17 487343-00	£3.92	£4.70
226 - CLAMPING INSERT BDE-479319-00.A2 479319-00	£1.66	£1.99
227 - WASHER LOCK BDE-479317-00.A6 479317-00	£1.66	£1.99
228 - WASHER CLAMP BDE-N021994.A2 N021994	£3.92	£4.70
229 - CLAMP BDE-N021995.A0 N021995	£7.40	£8.88
250 - HANDLE SIDE SA BDE-N073104.A1 N073104	£56.97	£68.36
800 - GREASE BDE-870889-03.A7 870889-03	£8.08	£9.70
810 - TUBE OIL BDE-N040237.A9 N040237	£30.98	£37.18
816 - BRAND LABEL BDE-N064908.A8 N064908	£1.66	£1.99
836 - SERVICE TOOL BDE-1003938-99.A9 1003938-99	£112.86	£135.43
837 - S.T.SEAL FITTING TOOL BDE-559645-99.A11 559645-99	£73.58	£88.30
861 - KITBOX BDE-574931-23.A2 574931-23	£113.93	£136.72
