Dewalt D25762K Type 1 Rotary Hammer Spare Parts

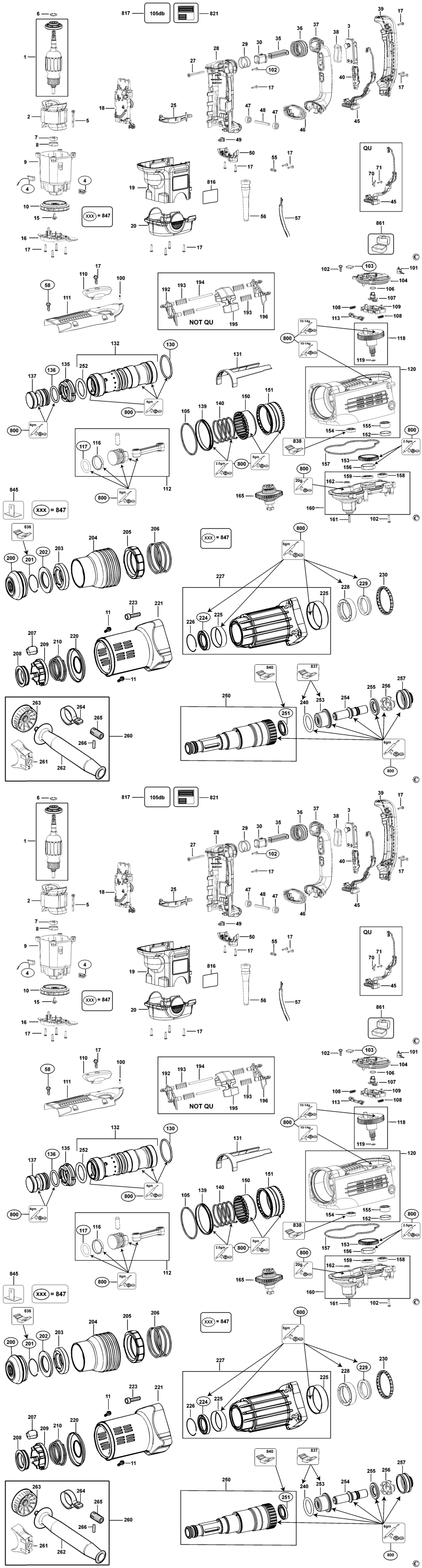

An exploded drawing and spare parts listing for the Dewalt D25762K Type 1 Rotary Hammer

	Ex VAT	Inc VAT
1 - ARMATURE 230V GB BDE-492485-00.A0 492485-00	£110.62	£132.74
1 - ARMATURE 115V LX BDE-492486-00.A2 492486-00	£128.18	£153.81
2 - FIELD SA 230V GB BDE-492487-00.A0 492487-00	£37.35	£44.82
2 - FIELD SA 115V LX BDE-492488-00.A2 492488-00	£37.35	£44.82
3 - SWITCH BDE-587274-00.A17 587274-00	£34.00	£40.80
3 - SWITCH BDE-587274-00.A18 587274-00	£34.00	£40.80
4 - BRUSH PAIR 230V GB BDE-489256-00.A9 489256-00	£16.03	£19.24
4 - BRUSH PAIR 115V LX BDE-489257-00.A2 489257-00	£18.91	£22.69
5 - SCREW BDE-330019-30.A43 330019-30	£1.50	£1.80
5 - SCREW BDE-330019-30.A44 330019-30	£1.50	£1.80
6 - RING BDE-577746-00.A6 577746-00	£1.50	£1.80
6 - RING BDE-577746-00.A7 577746-00	£1.50	£1.80
7 - BEARING BDE-577745-00.A80 577745-00	£7.85	£9.42
7 - BEARING BDE-577745-00.A81 577745-00	£7.85	£9.42
8 - SLEEVE INSULATING BDE-590191-00.A10 590191-00	£1.50	£1.80
8 - SLEEVE INSULATING BDE-590191-00.A11 590191-00	£1.50	£1.80
9 - HOUSING MOTOR BDE-N053065-02.A1 N053065-02	£34.00	£40.80
9 - HOUSING MOTOR BDE-N053065-02.A2 N053065-02	£34.00	£40.80
10 - FAN SA BDE-N542569.A24 N542569	£12.17	£14.60
10 - FAN SA BDE-N542569.A10 N542569	£12.17	£14.60
11 - SCREW BDE-330065-08.A61 330065-08	£1.50	£1.80
11 - SCREW BDE-330065-08.A62 330065-08	£1.50	£1.80
15 - SCREW BDE-324119-02.A43 324119-02	£1.50	£1.80
15 - SCREW BDE-324119-02.A44 324119-02	£1.50	£1.80
16 - BAFFLE FAN BDE-N029960.A0 N029960	£65.52	£78.62
16 - BAFFLE FAN BDE-N029960.A1 N029960	£65.52	£78.62
17 - SCREW BDE-330065-08.A63 330065-08	£1.50	£1.80
17 - SCREW BDE-330065-08.A64 330065-08	£1.50	£1.80
18 - GACC MODULE 230V GB BDE-N053981 N053981	£131.46	£157.75
18 - GACC MODULE 115V LX BDE-N053982 N053982	£131.46	£157.75
19 - MOTOR COVER BDE-N022762-00.A7 N022762-00	£16.03	£19.24
19 - MOTOR COVER BDE-N022762-00.A8 N022762-00	£16.03	£19.24
20 - END CAP BDE-N026164.A3 N026164	£15.63	£18.76
20 - END CAP BDE-N026164.A4 N026164	£15.63	£18.76
25 - LEVER SA BDE-N081352.A6 N081352	£7.18	£8.62
25 - LEVER SA BDE-N081352.A7 N081352	£7.18	£8.62
26 - NO LONGER AVAILABLE BDE-000000-00.A30205 000000-00	-
26 - NO LONGER AVAILABLE BDE-000000-00.A30206 000000-00	-
27 - SCREW BDE-1005672-00.A21 1005672-00	£1.50	£1.80
27 - SCREW BDE-1005672-00.A22 1005672-00	£1.50	£1.80
28 - SUPPORT PLATE BDE-N026163-00.A6 N026163-00	£18.91	£22.69
28 - SUPPORT PLATE BDE-N026163-00.A7 N026163-00	£18.91	£22.69
29 - SPRING BDE-1007569-00.A23 1007569-00	£1.50	£1.80
29 - SPRING BDE-1007569-00.A24 1007569-00	£1.50	£1.80
30 - BUSH BDE-1007567-00.A3 1007567-00	£1.50	£1.80
30 - BUSH BDE-1007567-00.A4 1007567-00	£1.50	£1.80
35 - STOP BDE-1007566-00.A23 1007566-00	£9.41	£11.29
35 - STOP BDE-1007566-00.A24 1007566-00	£9.41	£11.29
36 - BELLOWS BDE-1007565-00.A3 1007565-00	£3.80	£4.56
36 - BELLOWS BDE-1007565-00.A4 1007565-00	£3.80	£4.56
37 - SWITCH HANDLE BDE-1006579-00.A12 1006579-00	£9.41	£11.29
37 - SWITCH HANDLE BDE-1006579-00.A13 1006579-00	£9.41	£11.29
38 - TRIGGER BDE-587114-01.A27 587114-01	£1.50	£1.80
38 - TRIGGER BDE-587114-01.A28 587114-01	£1.50	£1.80
39 - HANDLE COVER BDE-1006580-00.A8 1006580-00	£14.57	£17.48
39 - HANDLE COVER BDE-1006580-00.A9 1006580-00	£14.57	£17.48
40 - TRIGGER LOCK-ON BDE-N019514.A15 N019514	£24.39	£29.27
40 - TRIGGER LOCK-ON BDE-N019514.A16 N019514	£24.39	£29.27
45 - SET OF LEAD WIRES GB BDE-N041833.A2 N041833	£24.39	£29.27
45 - SET OF LEAD WIRES LX BDE-N041833.A3 N041833	£24.39	£29.27
46 - BELLOWS BDE-1008678-00.A3 1008678-00	£3.30	£3.96
46 - BELLOWS BDE-1008678-00.A4 1008678-00	£3.30	£3.96
47 - BUSH BDE-N038214.A21 N038214	£1.50	£1.80
47 - BUSH BDE-N038214.A22 N038214	£1.50	£1.80
48 - PIN BDE-N062047.A0 N062047	£1.50	£1.80
48 - PIN BDE-N062047.A1 N062047	£1.50	£1.80
49 - LENS BDE-N030728.A9 N030728	£1.82	£2.19
49 - LENS BDE-N030728.A10 N030728	£1.82	£2.19
50 - COVER BDE-1008391-00.A23 1008391-00	£1.82	£2.19
50 - COVER BDE-1008391-00.A24 1008391-00	£1.82	£2.19
55 - CORD CLAMP BDE-821070.A555 821070	£1.50	£1.80
55 - CORD CLAMP BDE-821070.A556 821070	£1.50	£1.80
56 - CORD PROTECTOR BDE-323091-01.A61 323091-01	£1.50	£1.80
56 - CORD PROTECTOR BDE-323091-01.A62 323091-01	£1.50	£1.80
57 - CORDSET GB BDE-582319-42.A17 582319-42	£34.00	£40.80
57 - CORDSET LX BDE-324438-90.A6 324438-90	£47.08	£56.49
58 - SCREW TORX BDE-324007-11.A66 324007-11	£1.50	£1.80
58 - SCREW TORX BDE-324007-11.A67 324007-11	£1.50	£1.80
100 - DETENT BDE-326467-00.A22 326467-00	£1.50	£1.80
100 - DETENT BDE-326467-00.A23 326467-00	£1.50	£1.80
101 - MICRO SWITCH BDE-N019533.A1 N019533	£16.03	£19.24
101 - MICRO SWITCH BDE-N019533.A2 N019533	£16.03	£19.24
102 - SCREW TORX BDE-324007-11.A64 324007-11	£1.50	£1.80
102 - SCREW TORX BDE-324007-11.A65 324007-11	£1.50	£1.80
103 - FILTER BDE-488067-00.A16 488067-00	£1.50	£1.80
103 - FILTER BDE-488067-00.A17 488067-00	£1.50	£1.80
104 - COVER GEARCASE BDE-N027968.A6 N027968	£9.41	£11.29
104 - COVER GEARCASE BDE-N027968.A7 N027968	£9.41	£11.29
105 - O RING BDE-323711-56.A4 323711-56	£1.50	£1.80
105 - O RING BDE-323711-56.A5 323711-56	£1.50	£1.80
106 - O RING BDE-323711-48.A2 323711-48	£1.50	£1.80
106 - O RING BDE-323711-48.A3 323711-48	£1.50	£1.80
107 - ECCENTRIC BDE-586032-00.A17 586032-00	£1.50	£1.80
107 - ECCENTRIC BDE-586032-00.A18 586032-00	£1.50	£1.80
108 - SPRING BDE-323395-32.A21 323395-32	£2.26	£2.71
108 - SPRING BDE-323395-32.A22 323395-32	£2.26	£2.71
109 - SLIDER BDE-N027969.A8 N027969	£3.80	£4.56
109 - SLIDER BDE-N027969.A9 N027969	£3.80	£4.56
110 - SELECTOR BDE-586038-00.A17 586038-00	£1.50	£1.80
110 - SELECTOR BDE-586038-00.A18 586038-00	£1.50	£1.80
111 - COVER LX BDE-585168-05.A0 585168-05	£5.88	£7.06
111 - COVER GB BDE-585168-05.A1 585168-05	£5.88	£7.06
112 - PISTON KIT <352010 BDE-492489-00.A0 492489-00	£30.08	£36.10
112 - PISTON KIT >352010 BDE-N079390.A2 N079390	£51.90	£62.28
112 - PISTON KIT <352010 BDE-492489-00.A1 492489-00	£30.08	£36.10
112 - PISTON KIT >352010 BDE-N079390.A1 N079390	£51.90	£62.28
113 - RETAINER BDE-N027970.A6 N027970	£1.50	£1.80
113 - RETAINER BDE-N027970.A7 N027970	£1.50	£1.80
116 - CLIP BDE-N029957.A5 N029957	£1.50	£1.80
116 - CLIP BDE-N029957.A6 N029957	£1.50	£1.80
117 - O RING BDE-487213-00.A7 487213-00	£7.18	£8.62
117 - O RING BDE-487213-00.A8 487213-00	£7.18	£8.62
118 - CRANKSHAFT >352010 BDE-N091329.A7 N091329	£99.47	£119.36
118 - NO LONGER AVAILABLE <352010 BDE-000000-00.A30207 000000-00	-
118 - CRANKSHAFT <352010 BDE-N503087.A0 N503087	£126.63	£151.96
118 - CRANKSHAFT >352010 BDE-N091329.A8 N091329	£99.47	£119.36
119 - O RING BDE-323711-26.A83 323711-26	£1.50	£1.80
119 - O RING BDE-323711-26.A84 323711-26	£1.50	£1.80
120 - HOUSING BDE-N079381.A0 N079381	£218.32	£261.98
120 - HOUSING BDE-N079381.A1 N079381	£218.32	£261.98
130 - O RING BDE-577744-07.A4 577744-07	£1.50	£1.80
130 - O RING BDE-577744-07.A5 577744-07	£1.50	£1.80
131 - SLIDER BDE-586034-00.A21 586034-00	£2.26	£2.71
131 - SLIDER BDE-586034-00.A22 586034-00	£2.26	£2.71
132 - CYLINDER BDE-N079395.A3 N079395	£60.94	£73.13
132 - CYLINDER BDE-N079395.A4 N079395	£60.94	£73.13
135 - BUSH BDE-584715-00.A15 584715-00	£2.78	£3.34
135 - BUSH BDE-584715-00.A16 584715-00	£2.78	£3.34
136 - O RING BDE-487296-00.A2 487296-00	£10.85	£13.02
136 - O RING BDE-487296-00.A3 487296-00	£10.85	£13.02
137 - RAM BDE-492501-00.A2 492501-00	£29.32	£35.18
137 - RAM BDE-492501-00.A3 492501-00	£29.32	£35.18
139 - BUSH BDE-478650-00.A8 478650-00	£2.26	£2.71
139 - BUSH BDE-478650-00.A9 478650-00	£2.26	£2.71
140 - SPRING BDE-584726-00.A11 584726-00	£2.26	£2.71
140 - SPRING BDE-584726-00.A12 584726-00	£2.26	£2.71
150 - SLEEVE BDE-489181-01.A10 489181-01	£45.14	£54.17
150 - SLEEVE BDE-489181-01.A11 489181-01	£45.14	£54.17
151 - BEVEL GEAR BDE-N079396.A0 N079396	£87.82	£105.39
151 - BEVEL GEAR BDE-N079396.A1 N079396	£87.82	£105.39
152 - SPACER BDE-479974-00.A6 479974-00	£1.50	£1.80
152 - SPACER BDE-479974-00.A7 479974-00	£1.50	£1.80
153 - GEAR BDE-488688-00.A17 488688-00	£10.85	£13.02
153 - GEAR BDE-488688-00.A18 488688-00	£10.85	£13.02
154 - BEARING BALL BDE-577745-02.A19 577745-02	£7.18	£8.62
154 - BEARING BALL BDE-577745-02.A20 577745-02	£7.18	£8.62
155 - BEARING NEEDLE BDE-586301-00.A31 586301-00	£9.41	£11.29
155 - BEARING NEEDLE BDE-586301-00.A32 586301-00	£9.41	£11.29
156 - BEARING BRASS BUSH BDE-489239-00.A9 489239-00	£3.80	£4.56
156 - BEARING BRASS BUSH BDE-489239-00.A10 489239-00	£3.80	£4.56
157 - SEAL BDE-586022-00.A10 586022-00	£1.82	£2.19
157 - SEAL BDE-586022-00.A11 586022-00	£1.82	£2.19
158 - BEARING BDE-330003-39.A99 330003-39	£2.78	£3.34
158 - BEARING BDE-330003-39.A100 330003-39	£2.78	£3.34
159 - SEAL BDE-327141-08.A10 327141-08	£5.88	£7.06
159 - SEAL BDE-327141-08.A11 327141-08	£5.88	£7.06
160 - COVER GEARCASE BDE-N079386.A5 N079386	£44.00	£52.80
160 - COVER GEARCASE BDE-N079386.A6 N079386	£44.00	£52.80
161 - PIN BDE-586392-00.A12 586392-00	£1.82	£2.19
161 - PIN BDE-586392-00.A13 586392-00	£1.82	£2.19
162 - SEAL BDE-586403-00.A17 586403-00	£1.50	£1.80
162 - SEAL BDE-586403-00.A18 586403-00	£1.50	£1.80
165 - CLUTCH SA BDE-N079392.A9 N079392	£192.14	£230.57
165 - CLUTCH SA BDE-N079392.A10 N079392	£192.14	£230.57
192 - RETAINER BDE-488097-00.A2 488097-00	£4.69	£5.63
192 - RETAINER BDE-488097-00.A3 488097-00	£4.69	£5.63
193 - SPRING BDE-488095-00.A0 488095-00	£1.50	£1.80
193 - SPRING BDE-488095-00.A1 488095-00	£1.50	£1.80
194 - AXLE BDE-586436-00.A16 586436-00	£2.26	£2.71
194 - AXLE BDE-586436-00.A17 586436-00	£2.26	£2.71
195 - COUNTERWEIGHT BDE-490613-00.A2 490613-00	£34.00	£40.80
195 - COUNTERWEIGHT BDE-490613-00.A3 490613-00	£34.00	£40.80
196 - RETAINER BDE-488098-00.A12 488098-00	£4.69	£5.63
196 - RETAINER BDE-488098-00.A13 488098-00	£4.69	£5.63
200 - SEAL BDE-487238-01.A3 487238-01	£7.85	£9.42
200 - SEAL BDE-487238-01.A4 487238-01	£7.85	£9.42
201 - RING BDE-487205-00.A11 487205-00	£1.50	£1.80
201 - RING BDE-487205-00.A12 487205-00	£1.50	£1.80
202 - WASHER BDE-487241-00.A9 487241-00	£9.41	£11.29
202 - WASHER BDE-487241-00.A10 487241-00	£9.41	£11.29
203 - RUBBER BDE-487244-00.A21 487244-00	£3.80	£4.56
203 - RUBBER BDE-487244-00.A22 487244-00	£3.80	£4.56
204 - SLEEVE BDE-487236-00.A20 487236-00	£7.85	£9.42
204 - SLEEVE BDE-487236-00.A21 487236-00	£7.85	£9.42
205 - LOCKING RING BDE-579784-00.A4 579784-00	£24.39	£29.27
205 - LOCKING RING BDE-579784-00.A5 579784-00	£24.39	£29.27
206 - SPRING BDE-487218-00.A19 487218-00	£1.50	£1.80
206 - SPRING BDE-487218-00.A20 487218-00	£1.50	£1.80
207 - KEY BDE-489672-00.A15 489672-00	£7.18	£8.62
207 - KEY BDE-489672-00.A16 489672-00	£7.18	£8.62
208 - BUSH BDE-487249-00.A17 487249-00	£9.41	£11.29
208 - BUSH BDE-487249-00.A18 487249-00	£9.41	£11.29
209 - GUIDE BUSH BDE-590377-00.A8 590377-00	£1.50	£1.80
209 - GUIDE BUSH BDE-590377-00.A9 590377-00	£1.50	£1.80
210 - SPRING BDE-487216-00.A9 487216-00	£1.50	£1.80
210 - SPRING BDE-487216-00.A10 487216-00	£1.50	£1.80
220 - GUIDE BDE-584696-00.A5 584696-00	£3.30	£3.96
220 - GUIDE BDE-584696-00.A6 584696-00	£3.30	£3.96
221 - COVER BLACK BDE-587081-00.A0 587081-00	£5.88	£7.06
221 - COVER BLACK BDE-587081-00.A1 587081-00	£5.88	£7.06
223 - SCREW BDE-949886-32.A25 949886-32	£1.50	£1.80
223 - SCREW BDE-949886-32.A26 949886-32	£1.50	£1.80
224 - LIP SEAL BDE-327141-09.A3 327141-09	£7.18	£8.62
224 - LIP SEAL BDE-327141-09.A4 327141-09	£7.18	£8.62
225 - BEARING SET BDE-488679-00.A4 488679-00	£24.39	£29.27
225 - BEARING SET BDE-488679-00.A5 488679-00	£24.39	£29.27
226 - RING BDE-488787-00.A16 488787-00	£1.50	£1.80
226 - RING BDE-488787-00.A17 488787-00	£1.50	£1.80
227 - HOUSING FRONT BDE-492697-00.A5 492697-00	£58.69	£70.43
227 - HOUSING FRONT BDE-492697-00.A6 492697-00	£58.69	£70.43
228 - WASHER SHIM BDE-584722-00.A2 584722-00	£2.71	£3.25
228 - BUSH BDE-589096-00.A13 589096-00	£2.26	£2.71
229 - DAMPER BDE-589223-00.A20 589223-00	£1.50	£1.80
229 - DAMPER BDE-589223-00.A21 589223-00	£1.50	£1.80
230 - BUSH BDE-584727-00.A9 584727-00	£2.26	£2.71
230 - BUSH BDE-584727-00.A10 584727-00	£2.26	£2.71
240 - O RING BDE-487287-00.A2 487287-00	£9.41	£11.29
240 - O RING BDE-487287-00.A3 487287-00	£9.41	£11.29
250 - SPINDLE SA BDE-492698-00.A0 492698-00	£183.42	£220.10
250 - SPINDLE SA BDE-492698-00.A1 492698-00	£183.42	£220.10
251 - SEAL BDE-N014007.A3 N014007	£10.85	£13.02
251 - SEAL BDE-N014007.A4 N014007	£10.85	£13.02
252 - O RING BDE-491004-00.A4 491004-00	£3.30	£3.96
252 - O RING BDE-491004-00.A5 491004-00	£3.30	£3.96
253 - BEARING BUSH BDE-1007543-00.A1 1007543-00	£24.39	£29.27
253 - BEARING BUSH BDE-1007543-00.A2 1007543-00	£24.39	£29.27
254 - BEAT PIECE BDE-579832-00.A9 579832-00	£25.70	£30.84
254 - BEAT PIECE BDE-579832-00.A10 579832-00	£25.70	£30.84
255 - BUSH BDE-487270-00.A6 487270-00	£12.17	£14.60
255 - BUSH BDE-487270-00.A7 487270-00	£12.17	£14.60
256 - DAMPER BDE-496678-00.A4 496678-00	£16.03	£19.24
256 - DAMPER BDE-496678-00.A5 496678-00	£16.03	£19.24
257 - BUSH BDE-579786-00.A6 579786-00	£24.39	£29.27
257 - BUSH BDE-579786-00.A7 579786-00	£24.39	£29.27
260 - HANDLE SA BDE-N083964.A1 N083964	£71.44	£85.73
260 - HANDLE SA BDE-N083964.A2 N083964	£71.44	£85.73
261 - CLAMP BDE-N022227.A3 N022227	£5.88	£7.06
261 - CLAMP BDE-N022227.A4 N022227	£5.88	£7.06
262 - HANDLE BDE-N114828.A7 N114828	£38.80	£46.56
262 - HANDLE BDE-N114828.A8 N114828	£38.80	£46.56
263 - LOCKING RING BDE-326553-00.A24 326553-00	£4.69	£5.63
263 - LOCKING RING BDE-326553-00.A25 326553-00	£4.69	£5.63
264 - STRAP BDE-479337-00.A4 479337-00	£10.85	£13.02
264 - STRAP BDE-479337-00.A5 479337-00	£10.85	£13.02
265 - BUSH BDE-326552-00.A18 326552-00	£7.18	£8.62
265 - BUSH BDE-326552-00.A19 326552-00	£7.18	£8.62
266 - PIN BDE-N079374.A6 N079374	£1.50	£1.80
266 - PIN BDE-N079374.A7 N079374	£1.50	£1.80
800 - GREASE 80 GMS BDE-578970-06.A38 578970-06	£55.32	£66.38
800 - GREASE 150 GMS BDE-578970-06.A24 578970-06	£55.32	£66.38
816 - BRAND LABEL BDE-N061824.A6 N061824	£1.42	£1.70
816 - BRAND LABEL BDE-N061824.A7 N061824	£1.42	£1.70
817 - LABEL BDE-487395-01.A23 487395-01	£1.50	£1.80
817 - LABEL BDE-487395-01.A24 487395-01	£1.50	£1.80
821 - RATING PLATE LX BDE-N049509 N049509	£18.42	£22.10
821 - RATING PLATE GB BDE-N049508 N049508	£18.42	£22.10
836 - S.T.CIRCLIP REMOVER BDE-559651-99.A4 559651-99	£131.46	£157.75
836 - S.T.CIRCLIP REMOVER BDE-559652-99.A18 559652-99	£24.39	£29.27
836 - S.T.CIRCLIP REMOVER BDE-559651-99.A5 559651-99	£131.46	£157.75
836 - S.T.CIRCLIP REMOVER BDE-559652-99.A17 559652-99	£24.39	£29.27
837 - S.T.BEARING EXTRACTOR BDE-559653-99.A4 559653-99	£12.17	£14.60
837 - S.T.BEARING EXTRACTOR BDE-559653-99.A5 559653-99	£12.17	£14.60
838 - S.T.BEARING EXTRACTOR BDE-559657-99.A21 559657-99	£60.94	£73.13
838 - S.T.BEARING EXTRACTOR BDE-559657-99.A22 559657-99	£60.94	£73.13
840 - S.T.SEAL FITTING TOOL BDE-559659-99.A1 559659-99	£24.39	£29.27
840 - S.T.SEAL FITTING TOOL BDE-559659-99.A2 559659-99	£24.39	£29.27
845 - S.T.SUPPORT JIG BDE-559656-99.A49 559656-99	£71.44	£85.73
845 - S.T.SUPPORT JIG BDE-559656-99.A50 559656-99	£71.44	£85.73
847 - SERVICE KIT 120V LX BDE-N082647 N082647	£131.46	£157.75
847 - SERVICE KIT 230V GB BDE-N082646 N082646	£131.46	£157.75
861 - KITBOX BDE-N072214.A12 N072214	£115.77	£138.92
861 - KITBOX BDE-N072214.A13 N072214	£115.77	£138.92

Attribute Name	Value
Brand	Dewalt

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Dewalt D25762K Type 1 Rotary Hammer Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)
