Dewalt D25600K Type 3 Rotary Hammer Spare Parts

Home Details Reviews Delivery

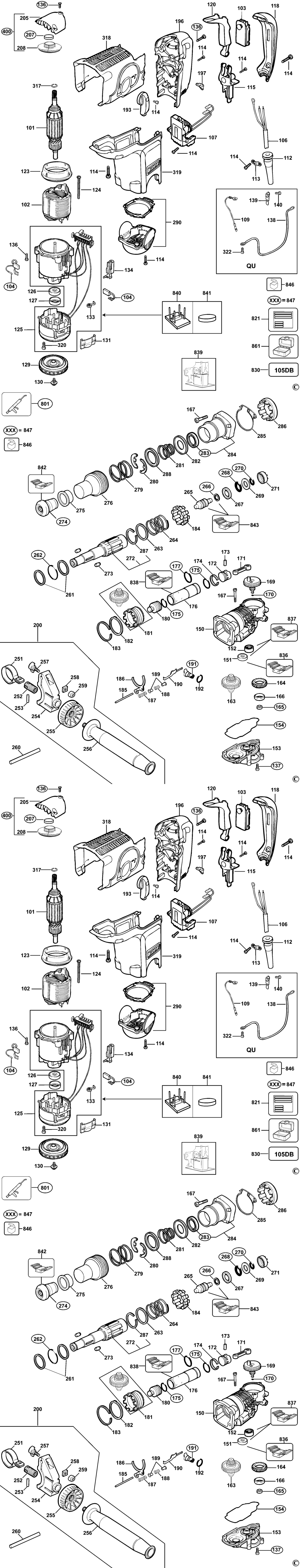

An exploded drawing and spare parts listing for the Dewalt D25600K Type 3 Rotary Hammer

	Ex VAT	Inc VAT
101 - ARMATURE 230V GB BDE-N030720.A0 N030720	-
101 - ARMATURE 120V LX BDE-N030721.A2 N030721	-
102 - FIELD 230V GB BDE-N030718.A0 N030718	£44.00	£52.80
102 - FIELD 120V LX BDE-N030719.A1 N030719	£44.00	£52.80
103 - SWITCH BDE-581070-00.A0 581070-00	£20.50	£24.60
103 - SWITCH BDE-581070-00.A1 581070-00	£20.50	£24.60
104 - BRUSH PAIR 230V GB BDE-N542573.A0 N542573	-
104 - BRUSH PAIR 120V LX BDE-582620-00.A4 582620-00	£33.13	£39.76
106 - CORDSET LX BDE-324438-72.A3 324438-72	£20.50	£24.60
106 - CORDSET GB BDE-582319-02.A13 582319-02	£26.47	£31.76
107 - ELECTRONIC 120V LX BDE-582574-02.A1 582574-02	-
107 - ELECTRONIC 230V GB BDE-582574-00.A1 582574-00	-
112 - CORD PROTECTOR BDE-323091-01.A90 323091-01	£1.66	£1.99
112 - CORD PROTECTOR BDE-323091-01.A91 323091-01	£1.66	£1.99
113 - CORD CLAMP BDE-821070.A663 821070	£1.66	£1.99
113 - CORD CLAMP BDE-821070.A664 821070	£1.66	£1.99
114 - SCREW BDE-330065-08.A136 330065-08	£1.66	£1.99
114 - SCREW BDE-330065-08.A137 330065-08	£1.66	£1.99
115 - CABLE GUIDE BDE-577716-00.A1 577716-00	-
115 - NO LONGER AVAILABLE BDE-000000-00.A63552 000000-00	-
118 - HANDLE COVER BDE-577712-00.A10 577712-00	-
118 - HANDLE COVER BDE-577712-00.A11 577712-00	-
120 - TRIGGER BDE-325919-00.A1 325919-00	-
120 - NO LONGER AVAILABLE BDE-000000-00.A63553 000000-00	-
123 - NO LONGER AVAILABLE BDE-000000-00.A63554 000000-00	-
123 - NO LONGER AVAILABLE BDE-000000-00.A63555 000000-00	-
124 - SCREW BDE-330065-11.A43 330065-11	£1.66	£1.99
124 - SCREW BDE-330065-11.A44 330065-11	£1.66	£1.99
125 - FIELDCASE SA BDE-582577-00.A2 582577-00	£69.63	£83.56
125 - FIELDCASE SA BDE-582577-00.A3 582577-00	£69.63	£83.56
126 - BEARING BDE-577745-00.A58 577745-00	£8.08	£9.70
126 - BEARING BDE-577745-00.A59 577745-00	£8.08	£9.70
127 - SLEEVE BDE-325279-00.A6 325279-00	-
127 - SLEEVE BDE-325279-00.A7 325279-00	-
129 - FAN BDE-577736-00.A25 577736-00	-
129 - FAN BDE-577736-00.A26 577736-00	-
130 - SCREW BDE-324119-02.A8 324119-02	£1.66	£1.99
130 - SCREW BDE-324119-02.A9 324119-02	£1.66	£1.99
131 - SHUTTER BDE-326579-00.A26 326579-00	£2.26	£2.71
131 - SHUTTER BDE-326579-00.A27 326579-00	£2.26	£2.71
133 - BRUSH SPRING BDE-326667-00.A56 326667-00	£1.66	£1.99
133 - BRUSH SPRING BDE-326667-00.A57 326667-00	£1.66	£1.99
134 - HOLDER BDE-326933-01.A13 326933-01	£3.30	£3.96
134 - HOLDER BDE-326933-01.A14 326933-01	£3.30	£3.96
136 - SCREW TORX BDE-324007-11.A25 324007-11	£1.66	£1.99
136 - SCREW TORX BDE-324007-11.A26 324007-11	£1.66	£1.99
137 - SCREW TORX BDE-324007-11.A27 324007-11	£1.66	£1.99
137 - SCREW TORX BDE-324007-11.A28 324007-11	£1.66	£1.99
150 - GEARCASE SA BDE-578487-02.A1 578487-02	£116.32	£139.59
150 - GEARCASE SA BDE-578487-02.A2 578487-02	£116.32	£139.59
151 - BEARING BALL BDE-577745-01.A7 577745-01	£8.08	£9.70
151 - BEARING BALL BDE-577745-01.A8 577745-01	£8.08	£9.70
152 - BEARING BDE-330004-33.A26 330004-33	-
152 - NO LONGER AVAILABLE BDE-000000-00.A63556 000000-00	-
153 - GEARCASE COVER SA BDE-578486-01.A17 578486-01	£29.32	£35.18
153 - GEARCASE COVER SA BDE-578486-01.A18 578486-01	£29.32	£35.18
154 - SEAL BDE-325936-00.A48 325936-00	£3.70	£4.44
154 - SEAL BDE-325936-00.A49 325936-00	£3.70	£4.44
163 - REPAIR KIT BDE-496440-00.A39 496440-00	£105.49	£126.59
163 - REPAIR KIT BDE-496440-00.A40 496440-00	£105.49	£126.59
163 - CLUTCH SA BDE-496367-00.A1 496367-00	£101.69	£122.03
163 - CLUTCH SA BDE-496367-00.A2 496367-00	£101.69	£122.03
164 - GEAR BDE-492618-00.A21 492618-00	-
164 - GEAR BDE-492618-00.A22 492618-00	-
165 - SEAL BDE-327141-05.A28 327141-05	£7.40	£8.88
165 - SEAL BDE-327141-05.A29 327141-05	£7.40	£8.88
166 - BUSH BDE-325616-00.A13 325616-00	-
166 - BUSH BDE-325616-00.A14 325616-00	-
167 - SCREW BDE-918825-02.A19 918825-02	£1.66	£1.99
167 - SCREW BDE-918825-02.A20 918825-02	£1.66	£1.99
169 - CRANKSHAFT BDE-582431-00.A2 582431-00	£60.94	£73.13
169 - CRANKSHAFT BDE-582431-00.A3 582431-00	£60.94	£73.13
170 - O RING BDE-323711-26.A98 323711-26	£1.66	£1.99
170 - O RING BDE-323711-26.A99 323711-26	£1.66	£1.99
171 - CON ROD BDE-325002-00.A41 325002-00	£3.39	£4.07
171 - CON ROD BDE-325002-00.A42 325002-00	£3.39	£4.07
172 - PISTON BDE-N041843.A20 N041843	£12.53	£15.04
172 - PISTON BDE-N041843.A21 N041843	£12.53	£15.04
173 - PIN BDE-330041-22.A10 330041-22	£1.66	£1.99
173 - PIN BDE-330041-22.A11 330041-22	£1.66	£1.99
174 - RETAINER BDE-325905-00.A55 325905-00	£1.66	£1.99
174 - RETAINER BDE-325905-00.A56 325905-00	£1.66	£1.99
175 - O RING BDE-576232-01.A7 576232-01	£6.06	£7.27
175 - O RING BDE-576232-01.A8 576232-01	£6.06	£7.27
176 - CYLINDER BDE-582576-00.A14 582576-00	£45.88	£55.06
176 - CYLINDER BDE-582576-00.A15 582576-00	£45.88	£55.06
177 - O RING BDE-577744-00.A32 577744-00	£1.88	£2.26
177 - O RING BDE-577744-00.A33 577744-00	£1.88	£2.26
180 - RAM BDE-582575-00.A4 582575-00	£29.32	£35.18
180 - RAM BDE-582575-00.A5 582575-00	£29.32	£35.18
181 - REPAIR KIT BDE-496440-00.A41 496440-00	£105.49	£126.59
181 - REPAIR KIT BDE-496440-00.A42 496440-00	£105.49	£126.59
182 - WASHER LARGE BDE-326085-00.A7 326085-00	£5.72	£6.87
182 - WASHER LARGE BDE-326085-00.A8 326085-00	£5.72	£6.87
183 - CIRCLIP BDE-323763-03.A8 323763-03	£1.66	£1.99
183 - CIRCLIP BDE-323763-03.A9 323763-03	£1.66	£1.99
184 - SPINDLE LOCK BDE-1005697-00.A0 1005697-00	-
184 - SPINDLE LOCK BDE-1005697-00.A1 1005697-00	-
185 - SHAFT BDE-325880-02.A35 325880-02	£3.80	£4.56
185 - SHAFT BDE-325880-02.A36 325880-02	£3.80	£4.56
186 - SELECTOR FORK BDE-325160-00.A12 325160-00	-
186 - SELECTOR FORK BDE-325160-00.A13 325160-00	-
187 - SPRING BDE-323395-08.A8 323395-08	£1.82	£2.19
187 - SPRING BDE-323395-08.A9 323395-08	£1.82	£2.19
188 - SPRING BDE-323395-09.A39 323395-09	-
188 - SPRING BDE-323395-09.A40 323395-09	-
189 - SPACER BDE-326093-00.A47 326093-00	£1.82	£2.19
189 - SPACER BDE-326093-00.A48 326093-00	£1.82	£2.19
190 - LINK BDE-577731-00.A10 577731-00	£1.66	£1.99
190 - LINK BDE-577731-00.A11 577731-00	£1.66	£1.99
191 - ECCENTRIC SA BDE-577718-00.A9 577718-00	£1.66	£1.99
191 - ECCENTRIC SA BDE-577718-00.A10 577718-00	£1.66	£1.99
192 - O RING BDE-323711-07.A1 323711-07	£1.88	£2.26
192 - O RING BDE-323711-07.A2 323711-07	£1.88	£2.26
193 - LEVER SA BDE-N542443.A8 N542443	-
193 - LEVER SA BDE-578494-00.A2 578494-00	-
196 - HANDLE BDE-577711-00.A6 577711-00	-
196 - HANDLE BDE-577711-00.A7 577711-00	-
197 - LENS BDE-577735-00.A3 577735-00	£1.66	£1.99
197 - LENS BDE-577735-00.A4 577735-00	£1.66	£1.99
200 - HANDLE SA BDE-N021271.A6 N021271	£56.97	£68.36
200 - HANDLE SA BDE-N021271.A7 N021271	£56.97	£68.36
205 - NO LONGER AVAILABLE BDE-000000-00.A63557 000000-00	-
205 - NO LONGER AVAILABLE BDE-000000-00.A63558 000000-00	-
207 - FILTER BDE-487229-00.A17 487229-00	£1.66	£1.99
207 - FILTER BDE-487229-00.A18 487229-00	£1.66	£1.99
208 - COVER & SEAL BDE-491348-01.A8 491348-01	£3.22	£3.86
208 - COVER & SEAL BDE-491348-01.A9 491348-01	£3.22	£3.86
251 - COLLAR BDE-326555-00.A47 326555-00	£6.06	£7.27
251 - COLLAR BDE-326555-00.A48 326555-00	£6.06	£7.27
252 - BUSH BDE-326552-01.A9 326552-01	£6.06	£7.27
252 - BUSH BDE-326552-01.A10 326552-01	£6.06	£7.27
253 - PIN BDE-N079374.A15 N079374	£1.66	£1.99
253 - PIN BDE-N079374.A16 N079374	£1.66	£1.99
254 - CLAMP BDE-N021108.A25 N021108	£9.41	£11.29
254 - CLAMP BDE-N021108.A26 N021108	£9.41	£11.29
255 - LOCKING RING BDE-326553-00.A1 326553-00	£4.83	£5.80
255 - LOCKING RING BDE-326553-00.A2 326553-00	£4.83	£5.80
256 - NO LONGER AVAILABLE BDE-000000-00.A63559 000000-00	-
256 - HANDLE BDE-N021121.A1 N021121	-
257 - SCREW WING BDE-326573-00.A34 326573-00	£6.06	£7.27
257 - SCREW WING BDE-326573-00.A35 326573-00	£6.06	£7.27
258 - NUT BDE-326556-00.A1 326556-00	£1.66	£1.99
258 - NUT BDE-326556-00.A2 326556-00	£1.66	£1.99
259 - NUT BDE-330021-01.A36 330021-01	£1.66	£1.99
259 - NUT BDE-330021-01.A37 330021-01	£1.66	£1.99
260 - DEPTH ROD BDE-326205-00.A41 326205-00	£3.70	£4.44
260 - DEPTH ROD BDE-326205-00.A42 326205-00	£3.70	£4.44
261 - WASHER BDE-323753-11.A39 323753-11	£3.92	£4.70
261 - WASHER BDE-323753-11.A40 323753-11	£3.92	£4.70
262 - O RING BDE-577744-05.A8 577744-05	-
262 - O RING BDE-577744-05.A9 577744-05	-
263 - WASHER BDE-323753-14.A9 323753-14	£1.66	£1.99
263 - WASHER BDE-323753-14.A10 323753-14	£1.66	£1.99
264 - SPRING BDE-323395-07.A44 323395-07	£1.66	£1.99
264 - SPRING BDE-323395-07.A45 323395-07	£1.66	£1.99
265 - BEAT PIECE BDE-582432-01.A18 582432-01	£44.00	£52.80
265 - BEAT PIECE BDE-582432-01.A19 582432-01	£44.00	£52.80
266 - SEAL BDE-N244259.A8 N244259	£8.08	£9.70
266 - SEAL BDE-577484-00.A6 577484-00	£16.52	£19.82
267 - WASHER BDE-582381-00.A0 582381-00	£5.88	£7.06
267 - WASHER BDE-582381-00.A1 582381-00	£5.88	£7.06
268 - O RING BDE-577744-02.A24 577744-02	£1.88	£2.26
268 - O RING BDE-577744-02.A25 577744-02	£1.88	£2.26
269 - WASHER BDE-323753-16.A23 323753-16	£3.80	£4.56
269 - WASHER BDE-323753-16.A24 323753-16	£3.80	£4.56
270 - O RING BDE-N210233.A2 N210233	£1.66	£1.99
270 - O RING BDE-N210233.A3 N210233	£1.66	£1.99
271 - CAP BDE-326044-01.A14 326044-01	£1.66	£1.99
271 - CAP BDE-326044-01.A15 326044-01	£1.66	£1.99
272 - SPINDLE BDE-493133-00.A9 493133-00	£153.22	£183.86
272 - SPINDLE BDE-493133-00.A10 493133-00	£153.22	£183.86
273 - ROLLER BDE-325878-00.A15 325878-00	£1.66	£1.99
273 - ROLLER BDE-325878-00.A16 325878-00	£1.66	£1.99
274 - LIP SEAL BDE-329816-00.A10 329816-00	£3.39	£4.07
274 - LIP SEAL BDE-329816-00.A11 329816-00	£3.39	£4.07
275 - COLLAR BDE-326575-01.A0 326575-01	£6.06	£7.27
275 - COLLAR BDE-326575-01.A1 326575-01	£6.06	£7.27
276 - SLEEVE SA BDE-479247-00.A12 479247-00	£7.40	£8.88
276 - SLEEVE SA BDE-479247-00.A13 479247-00	£7.40	£8.88
279 - SPRING BDE-323395-06.A12 323395-06	£1.66	£1.99
279 - SPRING BDE-323395-06.A13 323395-06	£1.66	£1.99
280 - HALF WASHER BDE-325929-00.A13 325929-00	£1.66	£1.99
280 - HALF WASHER BDE-325929-00.A14 325929-00	£1.66	£1.99
281 - SPRING BDE-487118-00.A47 487118-00	£1.66	£1.99
281 - SPRING BDE-487118-00.A48 487118-00	£1.66	£1.99
282 - GUIDE BDE-N313860.A4 N313860	£4.83	£5.80
282 - SPRING GUIDE BDE-325930-00.A23 325930-00	£1.66	£1.99
283 - SEAL BDE-327141-00.A14 327141-00	£1.88	£2.26
283 - SEAL BDE-327141-00.A15 327141-00	£1.88	£2.26
284 - HOUSING SA BDE-578489-00.A14 578489-00	£84.42	£101.30
284 - HOUSING SA BDE-578489-00.A15 578489-00	£84.42	£101.30
285 - GASKET BDE-577727-01.A3 577727-01	£2.87	£3.44
285 - GASKET BDE-577727-01.A4 577727-01	£2.87	£3.44
286 - SPINDLE LOCK BDE-588560-00.A34 588560-00	-
286 - SPINDLE LOCK BDE-588560-00.A35 588560-00	-
287 - RING BDE-323763-04.A48 323763-04	-
287 - RING BDE-323763-04.A49 323763-04	-
288 - GUIDE BDE-327208-00.A12 327208-00	£1.66	£1.99
288 - GUIDE BDE-327208-00.A13 327208-00	£1.66	£1.99
290 - END CAP BDE-578493-00.A0 578493-00	£16.03	£19.24
290 - END CAP BDE-578493-00.A1 578493-00	£16.03	£19.24
317 - RING BDE-577746-00.A10 577746-00	£1.66	£1.99
317 - RING BDE-577746-00.A11 577746-00	£1.66	£1.99
318 - COVER-TOP BDE-577708-00.A6 577708-00	£7.85	£9.42
318 - COVER-TOP BDE-577708-00.A7 577708-00	£7.85	£9.42
319 - HOUSING LOWER BDE-577709-00.A10 577709-00	-
319 - HOUSING LOWER BDE-577709-00.A11 577709-00	-
320 - SCREW BDE-323924-08.A86 323924-08	£1.66	£1.99
320 - SCREW BDE-323924-08.A87 323924-08	£1.66	£1.99
322 - SCREW BDE-326619-00.A23 326619-00	£1.66	£1.99
322 - SCREW BDE-326619-00.A24 326619-00	£1.66	£1.99
400 - COVER SA BDE-493136-01.A4 493136-01	-
400 - NO LONGER AVAILABLE BDE-000000-00.A63560 000000-00	-
800 - GREASE 100 GMS BDE-328771-02.A48 328771-02	£19.48	£23.37
800 - GREASE 100 GMS BDE-328771-02.A49 328771-02	£19.48	£23.37
801 - BIT GREASE 50G BDE-328771-07.A0 328771-07	£7.40	£8.88
801 - BIT GREASE 50G BDE-328771-07.A1 328771-07	£7.40	£8.88
821 - NO LONGER AVAILABLE GB BDE-000000-00.A63561 000000-00	-
821 - NO LONGER AVAILABLE LX BDE-000000-00.A63562 000000-00	-
830 - LABEL LX BDE-487395-01.A4 487395-01	£1.66	£1.99
830 - LABEL GB BDE-487395-01.A5 487395-01	£1.66	£1.99
836 - S.T.PULLER BDE-559632-99.A5 559632-99	£34.00	£40.80
836 - NO LONGER AVAILABLE BDE-000000-00.A63563 000000-00	-
837 - S.T.MANDREL BDE-559633-99.A13 559633-99	£24.39	£29.27
837 - S.T.MANDREL BDE-559633-99.A14 559633-99	£24.39	£29.27
838 - S.T.PULLER BDE-559631-99.A13 559631-99	£80.98	£97.18
838 - S.T.PULLER BDE-559631-99.A14 559631-99	£80.98	£97.18
839 - S.T.SUPPORT JIG BDE-559656-99.A12 559656-99	£71.44	£85.73
839 - S.T.SUPPORT JIG BDE-559656-99.A13 559656-99	£71.44	£85.73
840 - NO LONGER AVAILABLE BDE-000000-00.A63564 000000-00	-
840 - S.T.ASSEMBLY JIG BDE-559597-99.A46 559597-99	£38.80	£46.56
841 - S.T.BLOCK BDE-559598-99.A0 559598-99	-
841 - NO LONGER AVAILABLE BDE-000000-00.A63565 000000-00	-
842 - S.T.LIP SEAL REMOVER BDE-559644-99.A13 559644-99	£24.39	£29.27
842 - S.T.LIP SEAL REMOVER BDE-559644-99.A14 559644-99	£24.39	£29.27
843 - S.T.SEAL FITTING TOOL BDE-559645-99.A2 559645-99	£73.58	£88.30
843 - S.T.SEAL FITTING TOOL BDE-559645-99.A3 559645-99	£73.58	£88.30
846 - SERVICE KIT 230V GB BDE-N027353.A0 N027353	-
847 - SERVICE KIT 230V GB BDE-589301-00.A0 589301-00	-
847 - SERVICE KIT 120V LX BDE-589301-01.A5 589301-01	-

Attribute Name	Value
Brand	Dewalt

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Dewalt D25600K Type 3 Rotary Hammer Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

Shopping Basket (0) £0.00

Dewalt D25600K Type 3 Rotary Hammer Spare Parts

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Dewalt D25600K Type 3 Rotary Hammer Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
