Dewalt DW152 Type 2 Drill Spare Parts

Home Details Reviews Delivery

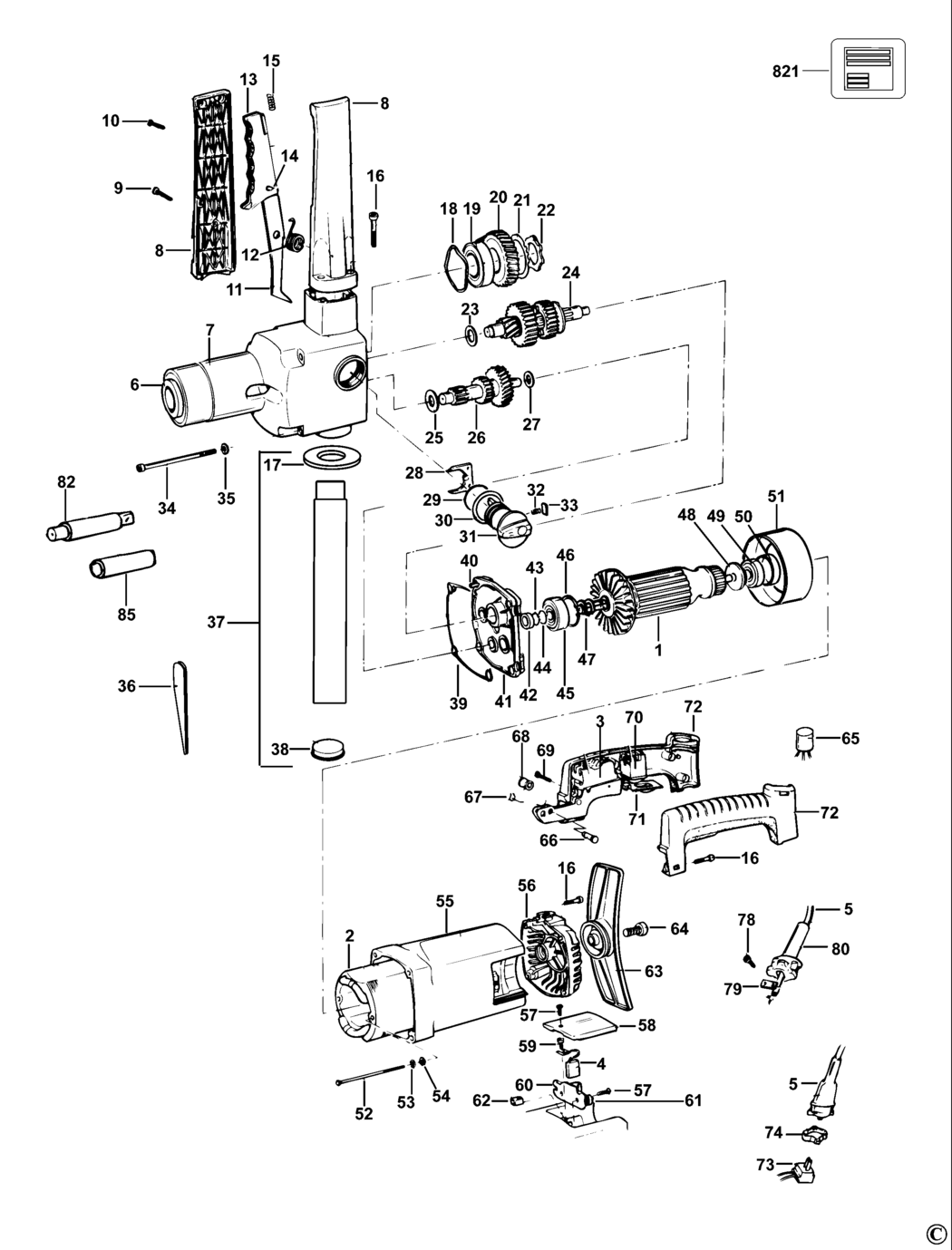

An exploded drawing and spare parts listing for the Dewalt DW152 Type 2 Drill

	Ex VAT	Inc VAT
1 - ARMATURE GB BDE-868404-00.A2 868404-00	£238.94	£286.73
1 - ARMATURE LX BDE-868404-01.A8 868404-01	-
2 - FIELD 240V GB BDE-868503-04.A3 868503-04	£226.53	£271.84
2 - FIELD 115V LX BDE-868503-05 868503-05	-
3 - SWITCH BDE-932401-00.A3 932401-00	£36.42	£43.70
4 - BRUSH GB BDE-932497-00.A12 932497-00	£4.69	£5.63
4 - BRUSH LX BDE-932497-00.A13 932497-00	£4.69	£5.63
5 - CABLE & PLUG LX BDE-949770-29.A4 949770-29	-
5 - CABLE & PLUG GB BDE-949770-15.A3 949770-15	£33.13	£39.76
6 - HOLDER BDE-932300-00.A2 932300-00	£101.69	£122.03
7 - GEARCASE SA BDE-932418-00.A1 932418-00	£238.94	£286.73
8 - HANDLE SA BDE-935833-02.A3 935833-02	£44.00	£52.80
9 - SCREW BDE-949896-14.A5 949896-14	£1.66	£1.99
10 - SCREW BDE-949896-13.A1 949896-13	£1.66	£1.99
11 - LEVER BDE-932315-00.A4 932315-00	£3.22	£3.86
12 - SPRING BDE-932313-00.A4 932313-00	£5.72	£6.87
13 - COVER BDE-932317-00.A4 932317-00	£3.70	£4.44
14 - PIN BDE-932314-00.A4 932314-00	£1.66	£1.99
15 - SPRING BDE-931013-00.A8 931013-00	£1.66	£1.99
16 - SCREW BDE-860093-11.A21 860093-11	£1.66	£1.99
17 - RING BDE-869388-00 869388-00	£23.75	£28.50
18 - SPACER BDE-930614.A0 930614	£1.66	£1.99
19 - BEARING BDE-930025-00.A11 930025-00	£9.17	£11.00
20 - GEAR BDE-932428-00.A2 932428-00	£29.32	£35.18
21 - WASHER BDE-932297-00.A2 932297-00	£1.66	£1.99
22 - RING BDE-932299-00.A1 932299-00	£7.01	£8.41
23 - WASHER BDE-932287-00.A4 932287-00	£1.66	£1.99
24 - SPINDLE & GEAR SA BDE-869219-00.A4 869219-00	£135.36	£162.43
25 - WASHER BDE-932286-00.A5 932286-00	£2.71	£3.25
26 - SPINDLE & GEAR SA BDE-869219-02.A5 869219-02	£101.69	£122.03
27 - WASHER BDE-932285-00.A5 932285-00	£3.39	£4.07
28 - PLATE BDE-932288-00.A5 932288-00	£1.66	£1.99
29 - SEAL BDE-930039.A0 930039	£1.66	£1.99
30 - WASHER BDE-932289-00.A6 932289-00	£1.66	£1.99
31 - LEVER SA BDE-932265-00.A5 932265-00	£29.32	£35.18
32 - SPRING BDE-932290-00.A7 932290-00	£1.78	£2.13
33 - SPRING BDE-932291-00.A4 932291-00	£4.58	£5.49
34 - SCREW BDE-932408-00.A3 932408-00	£1.66	£1.99
35 - WASHER BDE-931429-00.A3 931429-00	£3.30	£3.96
36 - EJECTOR BDE-932304-00.A1 932304-00	-
37 - HANDLE SIDE SA BDE-948539-02 948539-02	-
38 - CAP BDE-932308-01.A4 932308-01	-
39 - GASKET BDE-932312-00.A5 932312-00	£1.66	£1.99
40 - PIN BDE-932301-00.A2 932301-00	-
41 - GEARCASE COVER SA BDE-943963-00.A3 943963-00	£59.41	£71.29
42 - SEAL BDE-932311-00.A4 932311-00	£2.21	£2.65
43 - RING BDE-931052-00.A9 931052-00	£1.66	£1.99
44 - RING BDE-930940-00.A0 930940-00	£3.22	£3.86
45 - BEARING BDE-868768-05.A1 868768-05	£7.64	£9.17
46 - CIRCLIP BDE-949729-02.A20 949729-02	£1.66	£1.99
47 - WASHER BDE-932309-00.A8 932309-00	£1.66	£1.99
48 - SPACER BDE-930073-00.A0 930073-00	£1.66	£1.99
49 - BEARING BDE-868768-00.A0 868768-00	£8.08	£9.70
50 - SLEEVE BDE-934409-00.A18 934409-00	-
51 - BAFFLE BDE-930072-00.A13 930072-00	£2.21	£2.65
52 - SCREW BDE-930246-00.A6 930246-00	£1.66	£1.99
53 - WASHER BDE-761035-00.A15 761035-00	£1.66	£1.99
54 - WASHER BDE-949876-08.A19 949876-08	£1.66	£1.99
55 - FIELDCASE BDE-932261-01.A4 932261-01	-
56 - END CAP SA BDE-932272-02.A3 932272-02	£15.63	£18.76
57 - SCREW.TEMP BDE-930251-01.A5 930251-01	£1.66	£1.99
58 - COVER BRUSH BDE-932306-02.A0 932306-02	£1.66	£1.99
59 - SCREW BDE-930242-00.A6 930242-00	£1.66	£1.99
60 - BASEPLATE SA BDE-930269-00.A4 930269-00	£3.22	£3.86
61 - SPRING BDE-930099-00.A16 930099-00	-
62 - BLOCK BDE-932307-00.A9 932307-00	£1.66	£1.99
63 - PLATE BDE-932320-00.A4 932320-00	£7.64	£9.17
64 - SCREW BDE-932319-00.A4 932319-00	£1.66	£1.99
65 - CAPACITOR BDE-932476-00.A3 932476-00	£3.22	£3.86
66 - PIN BDE-932406-00.A4 932406-00	£1.66	£1.99
67 - RING BDE-932268-00.A4 932268-00	£3.22	£3.86
68 - ROLLER BDE-932405-00.A4 932405-00	£1.66	£1.99
69 - SCREW BDE-930079-01.A69 930079-01	£1.66	£1.99
70 - SWITCH REVERSE BDE-932403-00.A5 932403-00	£23.75	£28.50
71 - SLIDER BDE-932402-00.A1 932402-00	-
72 - HANDLE SA LX BDE-869395-00.A2 869395-00	£40.21	£48.25
72 - HANDLE SA GB BDE-869395-00.A3 869395-00	£40.21	£48.25
78 - SCREW LX BDE-930076-00.A94 930076-00	£1.66	£1.99
78 - SCREW GB BDE-930076-00.A95 930076-00	£1.66	£1.99
79 - CORD CLAMP GB BDE-930103-00.A159 930103-00	£1.66	£1.99
79 - CORD CLAMP LX BDE-930103-00.A160 930103-00	£1.66	£1.99
80 - CORD PROTECTOR LX BDE-931113-00.A46 931113-00	£1.66	£1.99
80 - CORD PROTECTOR GB BDE-931113-00.A47 931113-00	£1.66	£1.99
82 - SPINDLE BDE-932573-01.A1 932573-01	£40.21	£48.25
85 - ADAPTOR BDE-861907-00.A1 861907-00	£14.19	£17.03
821 - RATING PLATE GB BDE-N045400.A0 N045400	-
821 - RATING PLATE LX BDE-N045401.A1 N045401	£4.58	£5.49

Attribute Name	Value
Brand	Dewalt
