Dewalt DWV902MT Type 2 Dust Extractor Spare Parts

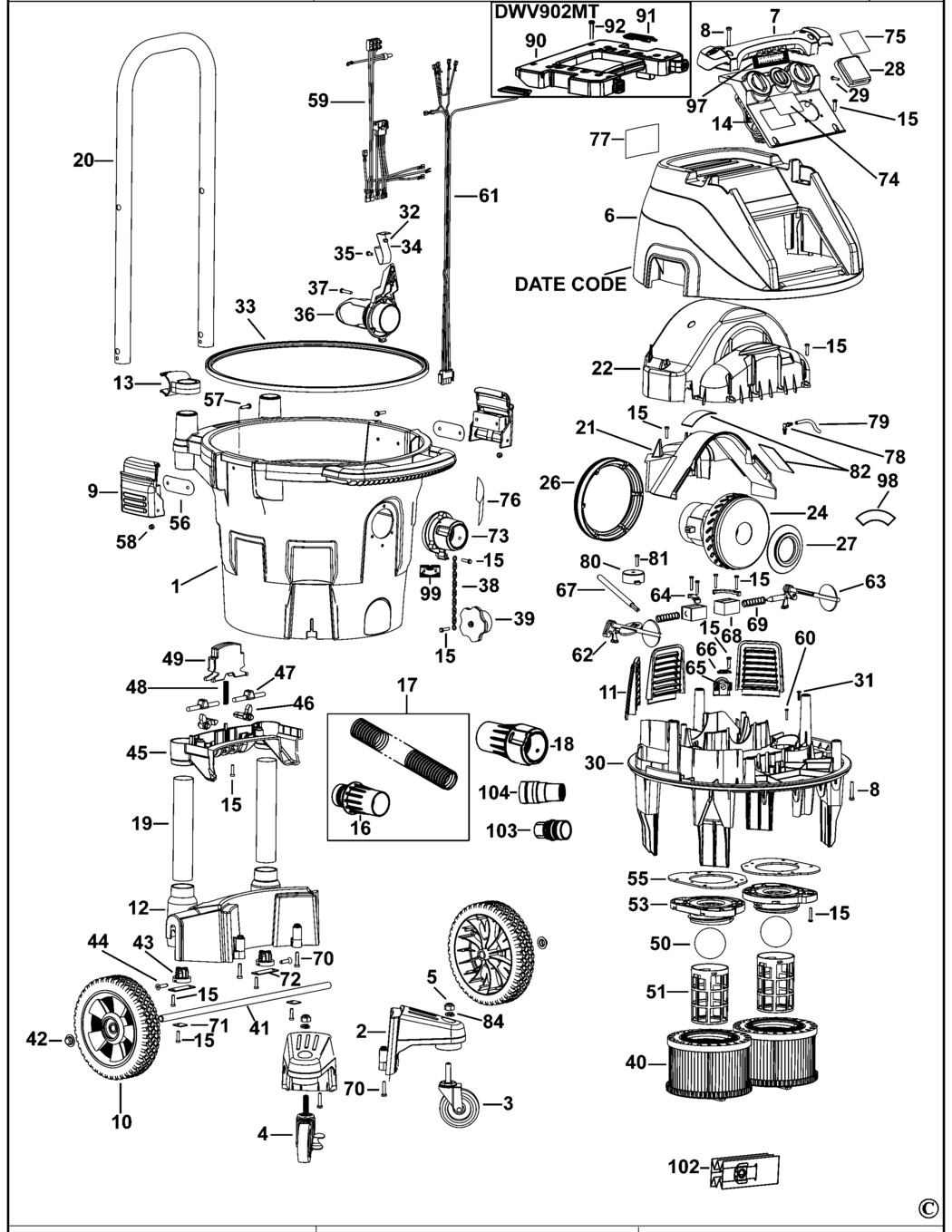

An exploded drawing and spare parts listing for the Dewalt DWV902MT Type 2 Dust Extractor

	Ex VAT	Inc VAT
1 - TANK BDE-N116019.A3 N116019	£108.20	£129.84
2 - MOUNTING BRACKET BDE-N395145.A2 N395145	£7.85	£9.42
3 - CASTOR BDE-N289839.A1 N289839	£16.03	£19.24
4 - CASTOR BDE-N380031.A1 N380031	£16.03	£19.24
5 - NUT BDE-N371459.A3 N371459	£1.66	£1.99
6 - HEAD BDE-N316266.A1 N316266	£51.90	£62.28
7 - HANDLE DWV902M BDE-N135179.A5 N135179	£7.18	£8.62
8 - SCREW.TEMP BDE-330019-21.A9 330019-21	£1.66	£1.99
9 - LATCH BDE-1004771-97.A2 1004771-97	£7.85	£9.42
10 - WHEEL REAR BDE-N417079.A5 N417079	£17.48	£20.97
11 - VENT BDE-N135170.A3 N135170	£2.78	£3.34
12 - MOUNTING BRACKET BDE-N118223.A2 N118223	£25.70	£30.84
13 - CLAMP BDE-N147540.A3 N147540	£1.66	£1.99
14 - CONTROL PANEL LX BDE-1004772-13.A1 1004772-13	£174.64	£209.57
14 - CONTROL PANEL GB BDE-N419053.A0 N419053	£174.63	£209.56
15 - SCREW BDE-330019-13.A291 330019-13	£1.66	£1.99
16 - HOSE PLATE BDE-N145597.A1 N145597	£9.41	£11.29
17 - HOSE SA INCL 16 BDE-N208032.A2 N208032	£65.52	£78.62
18 - CONNECTOR BDE-N071898.A3 N071898	£24.39	£29.27
19 - TUBE BDE-N139272.A3 N139272	£4.69	£5.63
20 - HANDLE UPPER BDE-N138912.A6 N138912	£24.39	£29.27
21 - MOTOR COVER BDE-N395655.A2 N395655	£5.88	£7.06
22 - COVER BDE-N162177.A0 N162177	£18.91	£22.69
24 - MOTOR SA 120V LX BDE-1004772-01.A3 1004772-01	£93.62	£112.35
24 - MOTOR SA 230V GB BDE-1004772-00.A1 1004772-00	£113.07	£135.68
26 - RING GASKET BDE-N250119.A3 N250119	£3.30	£3.96
27 - GASKET FRONT BDE-N137847.A2 N137847	£3.80	£4.56
28 - OUTLET LX BDE-N145358.A3 N145358	-
28 - OUTLET GB BDE-N135487.A2 N135487	£44.14	£52.97
29 - SCREW BDE-330019-03.A184 330019-03	£1.66	£1.99
30 - MOUNT SA BDE-N395183.A0 N395183	£51.90	£62.28
31 - SCREW BDE-N142836.A1 N142836	£1.66	£1.99
32 - LOCK NUT BDE-N142838.A7 N142838	£1.66	£1.99
33 - GASKET TANK BDE-N124753.A5 N124753	£18.91	£22.69
34 - PLATE STATIC DISCHARGE ELE BDE-N137853.A4 N137853	£2.78	£3.34
35 - SCREW BDE-N142827.A7 N142827	£1.66	£1.99
36 - INLET BDE-N133364.A2 N133364	£12.17	£14.60
37 - SCREW BDE-330019-14.A114 330019-14	£1.66	£1.99
38 - CABLE BDE-N185285.A0 N185285	£1.66	£1.99
39 - CAP BDE-N143848.A1 N143848	£1.66	£1.99
40 - FILTER SA BDE-1004772-04.A3 1004772-04	£45.14	£54.17
41 - AXLE BDE-N118225.A5 N118225	£7.18	£8.62
42 - RETAINER BDE-N118234.A4 N118234	£1.66	£1.99
43 - BUNG BDE-N137054.A3 N137054	£1.66	£1.99
44 - SCREW BDE-N147400.A6 N147400	£1.66	£1.99
45 - COVER BDE-N133363.A4 N133363	£7.18	£8.62
46 - LEVER BDE-N139136.A1 N139136	£1.66	£1.99
47 - LOCK PIN BDE-N137872.A2 N137872	£1.66	£1.99
48 - SPRING BDE-N142180.A5 N142180	£1.66	£1.99
49 - BUTTON BDE-N137721.A5 N137721	£2.26	£2.71
50 - VALVE FLOATING BDE-N206771.A0 N206771	£7.18	£8.62
51 - CAGE BDE-N265199.A3 N265199	£2.26	£2.71
53 - MOUNT BDE-N294525.A3 N294525	£7.18	£8.62
55 - GASKET BDE-N146653.A2 N146653	£1.66	£1.99
56 - PLATE BDE-N146843.A0 N146843	£1.66	£1.99
57 - SCREW BDE-330045-15.A26 330045-15	£1.66	£1.99
58 - LOCK-NUT BDE-148641-00.A13 148641-00	£1.66	£1.99
59 - LEAD SA GB BDE-N166680.A2 N166680	£38.80	£46.56
59 - LEAD SA LX BDE-N214392.A3 N214392	£34.00	£40.80
60 - SCREW BDE-330019-24.A23 330019-24	£1.66	£1.99
61 - LEAD SA BDE-N397036.A2 N397036	£18.91	£22.69
62 - VALVE BDE-N409096.A3 N409096	£7.18	£8.62
63 - VALVE BDE-N409097.A1 N409097	£7.18	£8.62
64 - STRAP BDE-N395762.A1 N395762	£1.66	£1.99
65 - CORD PROTECTOR BDE-N135151.A5 N135151	£1.66	£1.99
66 - CORD CLAMP BDE-450877-00.A13 450877-00	£1.66	£1.99
67 - CORDSET LX BDE-N136837.A2 N136837	£93.62	£112.35
67 - CORDSET (M/PLUG) GB GB BDE-N251739.A3 N251739	£60.94	£73.13
68 - SOLENOID ASSEMBLY LX BDE-N378123.A1 N378123	£18.91	£22.69
68 - SOLENOID ASSEMBLY GB BDE-N378200.A2 N378200	£18.91	£22.69
69 - SPRING BDE-N362634.A2 N362634	£1.66	£1.99
70 - SCREW BDE-330019-20.A28 330019-20	£1.66	£1.99
71 - PLATE BDE-N118226.A1 N118226	£1.66	£1.99
72 - PLATE BDE-N134941.A5 N134941	£1.66	£1.99
73 - INLET BDE-N150546.A5 N150546	£16.03	£19.24
74 - RATING PLATE LX BDE-N397654.A0 N397654	£1.66	£1.99
74 - RATING PLATE GB BDE-N397656.A1 N397656	£1.66	£1.99
75 - LABEL LX BDE-N162702.A4 N162702	-
75 - WARNING LABEL GB BDE-N408096.A1 N408096	£1.66	£1.99
76 - BRAND LABEL BDE-N405022.A2 N405022	£1.66	£1.99
77 - WARNING LABEL BDE-N154132.A2 N154132	£1.66	£1.99
78 - CONNECTOR BDE-N149299.A2 N149299	£1.66	£1.99
79 - TUBE PLASTIC BDE-N149246.A1 N149246	£1.82	£2.19
80 - SIREN BDE-N139903.A2 N139903	£7.85	£9.42
81 - SCREW BDE-330019-02.A84 330019-02	£1.66	£1.99
82 - FOAM BDE-N177921.A3 N177921	£2.78	£3.34
84 - WASHER LOCK BDE-N371460.A0 N371460	£1.66	£1.99
90 - RACK DWV902MT BDE-N310159.A1 N310159	£47.08	£56.49
91 - LATCH DWV902MT BDE-N376128.A0 N376128	£1.66	£1.99
92 - SCREW.TEMP DWV902MT BDE-330019-21.A10 330019-21	£1.66	£1.99
97 - LABEL BDE-N177322.A5 N177322	£1.66	£1.99
98 - LABEL BDE-N183923.A3 N183923	£1.66	£1.99
99 - LABEL BDE-N199361.A0 N199361	£1.66	£1.99
102 - DUST BAG SA BDE-N194931.A6 N194931	£9.41	£11.29
103 - ADAPTOR BDE-N070902.A1 N070902	£7.85	£9.42
104 - CONNECTOR BDE-N243560.A3 N243560	£12.17	£14.60
