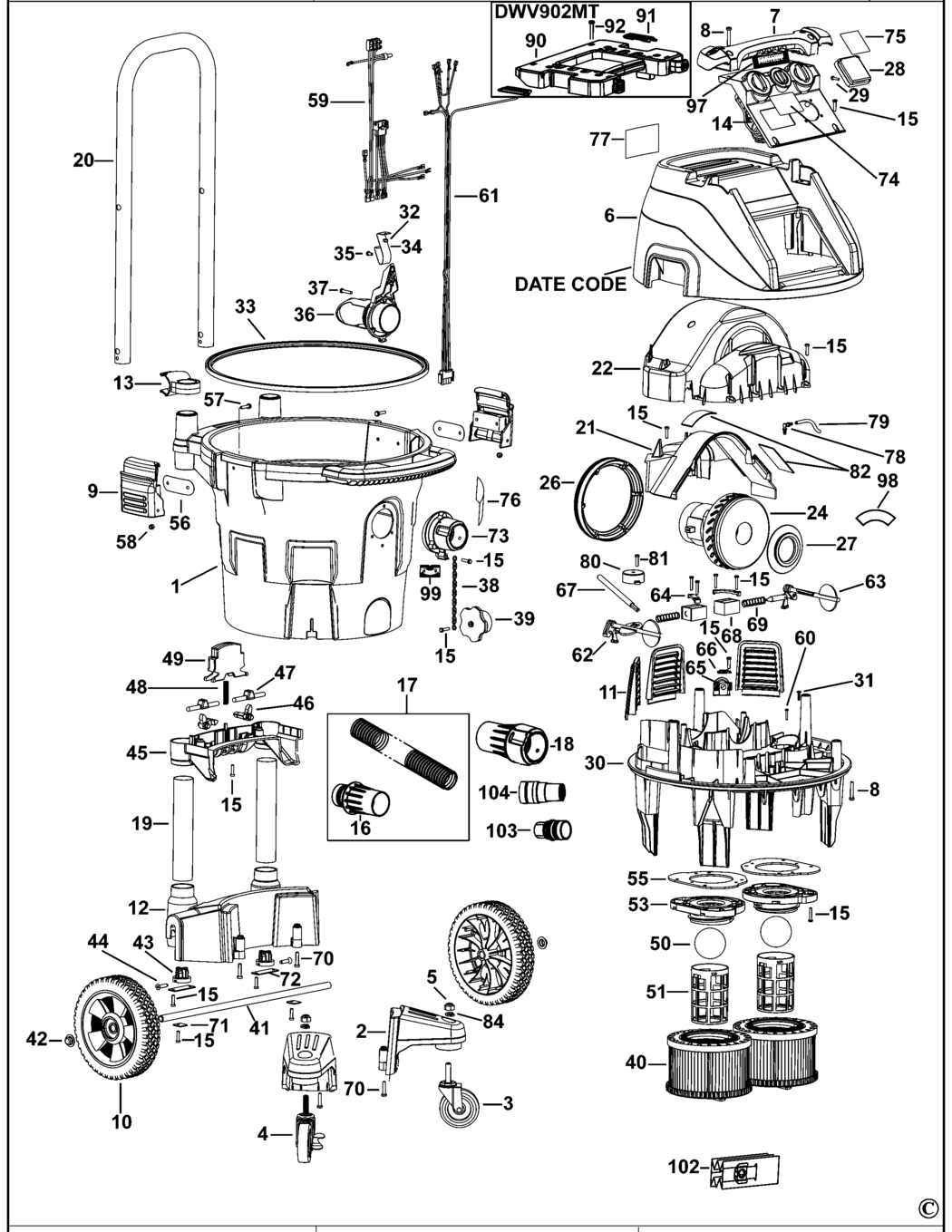

1 - TANK
BDE-N116019.A2
N116019
|
£108.20
|
£129.84
|
|
|
2 - MOUNTING BRACKET
BDE-N395145.A0
N395145
|
£7.85
|
£9.42
|
|
|
3 - CASTOR
BDE-N289839.A0
N289839
|
£16.03
|
£19.24
|
|
|
4 - CASTOR
BDE-N380031.A3
N380031
|
£16.03
|
£19.24
|
|
|
5 - NUT
BDE-N371459.A5
N371459
|
£1.50
|
£1.80
|
|
|
6 - HEAD
BDE-N316266.A2
N316266
|
£51.90
|
£62.28
|
|
|
7 - HANDLE DWV902M
BDE-N135179.A3
N135179
|
£7.18
|
£8.62
|
|
|
8 - SCREW.TEMP
BDE-330019-21.A12
330019-21
|
£1.50
|
£1.80
|
|
|
9 - LATCH
BDE-1004771-97.A3
1004771-97
|
£7.85
|
£9.42
|
|
|
10 - WHEEL REAR
BDE-N417079.A4
N417079
|
£17.48
|
£20.97
|
|
|
11 - VENT
BDE-N135170.A5
N135170
|
£2.78
|
£3.34
|
|
|
12 - MOUNTING BRACKET
BDE-N118223.A3
N118223
|
£25.70
|
£30.84
|
|
|
13 - CLAMP
BDE-N147540.A5
N147540
|
£1.50
|
£1.80
|
|
|
14 - CONTROL PANEL GB
BDE-N419053.A1
N419053
|
£174.63
|
£209.56
|
|
|
14 - CONTROL PANEL LX
BDE-N413654.A2
N413654
|
£174.63
|
£209.56
|
|
|
15 - SCREW
BDE-330019-13.A290
330019-13
|
£1.50
|
£1.80
|
|
|
16 - HOSE PLATE
BDE-N145597.A2
N145597
|
£9.41
|
£11.29
|
|
|
17 - HOSE SA INCL 16
BDE-N208032.A1
N208032
|
£65.52
|
£78.62
|
|
|
18 - CONNECTOR
BDE-N071898.A4
N071898
|
£24.39
|
£29.27
|
|
|
19 - TUBE
BDE-N139272.A2
N139272
|
£4.69
|
£5.63
|
|
|
20 - HANDLE UPPER
BDE-N138912.A5
N138912
|
£24.39
|
£29.27
|
|
|
21 - MOTOR COVER
BDE-N395655.A1
N395655
|
£5.88
|
£7.06
|
|
|
22 - COVER
BDE-N162177.A1
N162177
|
£18.91
|
£22.69
|
|
|
24 - MOTOR SA 120V LX
BDE-1004772-01.A2
1004772-01
|
£93.62
|
£112.35
|
|
|
24 - MOTOR SA 230V GB
BDE-1004772-00.A2
1004772-00
|
£113.07
|
£135.68
|
|
|
26 - RING GASKET
BDE-N250119.A2
N250119
|
£3.30
|
£3.96
|
|
|
27 - GASKET FRONT
BDE-N137847.A3
N137847
|
£3.80
|
£4.56
|
|
|
28 - OUTLET LX
BDE-N145358.A2
N145358
|
-
|
|
|
|
28 - OUTLET GB
BDE-N135487.A3
N135487
|
£44.14
|
£52.97
|
|
|
29 - SCREW
BDE-330019-03.A185
330019-03
|
£1.50
|
£1.80
|
|
|
30 - MOUNT SA
BDE-N395183.A1
N395183
|
£51.90
|
£62.28
|
|
|
31 - SCREW
BDE-N142836.A2
N142836
|
£1.50
|
£1.80
|
|
|
32 - LOCK NUT
BDE-N142838.A6
N142838
|
£1.50
|
£1.80
|
|
|
33 - GASKET TANK
BDE-N124753.A4
N124753
|
£18.91
|
£22.69
|
|
|
34 - PLATE STATIC DISCHARGE ELE
BDE-N137853.A3
N137853
|
£2.78
|
£3.34
|
|
|
35 - SCREW
BDE-N142827.A6
N142827
|
£1.50
|
£1.80
|
|
|
36 - INLET
BDE-N133364.A1
N133364
|
£12.17
|
£14.60
|
|
|
37 - SCREW
BDE-330019-14.A115
330019-14
|
£1.50
|
£1.80
|
|
|
38 - CABLE
BDE-N185285.A1
N185285
|
£1.50
|
£1.80
|
|
|
39 - CAP
BDE-N143848.A2
N143848
|
£1.50
|
£1.80
|
|
|
40 - FILTER SA
BDE-1004772-04.A4
1004772-04
|
£45.14
|
£54.17
|
|
|
41 - AXLE
BDE-N118225.A4
N118225
|
£7.18
|
£8.62
|
|
|
42 - RETAINER
BDE-N118234.A5
N118234
|
£1.50
|
£1.80
|
|
|
43 - BUNG
BDE-N137054.A4
N137054
|
£1.50
|
£1.80
|
|
|
44 - SCREW
BDE-N147400.A5
N147400
|
£1.50
|
£1.80
|
|
|
45 - COVER
BDE-N133363.A5
N133363
|
£7.18
|
£8.62
|
|
|
46 - LEVER
BDE-N139136.A2
N139136
|
£1.50
|
£1.80
|
|
|
47 - LOCK PIN
BDE-N137872.A3
N137872
|
£1.50
|
£1.80
|
|
|
48 - SPRING
BDE-N142180.A6
N142180
|
£1.50
|
£1.80
|
|
|
49 - BUTTON
BDE-N137721.A4
N137721
|
£2.26
|
£2.71
|
|
|
50 - VALVE FLOATING
BDE-N206771.A1
N206771
|
£7.18
|
£8.62
|
|
|
51 - CAGE
BDE-N265199.A4
N265199
|
£2.26
|
£2.71
|
|
|
53 - MOUNT
BDE-N294525.A4
N294525
|
£7.18
|
£8.62
|
|
|
55 - GASKET
BDE-N146653.A1
N146653
|
£1.50
|
£1.80
|
|
|
56 - PLATE
BDE-N146843.A1
N146843
|
£1.50
|
£1.80
|
|
|
57 - SCREW
BDE-330045-15.A25
330045-15
|
£1.50
|
£1.80
|
|
|
58 - LOCK-NUT
BDE-148641-00.A12
148641-00
|
£1.50
|
£1.80
|
|
|
59 - LEAD SA GB
BDE-N166680.A3
N166680
|
£38.80
|
£46.56
|
|
|
59 - LEAD SA LX
BDE-N214392.A4
N214392
|
£34.00
|
£40.80
|
|
|
60 - SCREW
BDE-330019-24.A24
330019-24
|
£1.50
|
£1.80
|
|
|
61 - LEAD SA
BDE-N397036.A1
N397036
|
£18.91
|
£22.69
|
|
|
62 - VALVE
BDE-N409096.A4
N409096
|
£7.18
|
£8.62
|
|
|
63 - VALVE
BDE-N409097.A0
N409097
|
£7.18
|
£8.62
|
|
|
64 - STRAP
BDE-N395762.A2
N395762
|
£1.50
|
£1.80
|
|
|
65 - CORD PROTECTOR
BDE-N135151.A4
N135151
|
£1.50
|
£1.80
|
|
|
66 - CORD CLAMP
BDE-450877-00.A14
450877-00
|
£1.50
|
£1.80
|
|
|
67 - CORDSET LX
BDE-N136837.A3
N136837
|
£93.62
|
£112.35
|
|
|
67 - CORDSET (M/PLUG) GB GB
BDE-N251739.A4
N251739
|
£60.94
|
£73.13
|
|
|
68 - SOLENOID ASSEMBLY LX
BDE-N378123.A2
N378123
|
£18.91
|
£22.69
|
|
|
68 - SOLENOID ASSEMBLY GB
BDE-N378200.A1
N378200
|
£18.91
|
£22.69
|
|
|
69 - SPRING
BDE-N362634.A3
N362634
|
£1.50
|
£1.80
|
|
|
70 - SCREW
BDE-330019-20.A29
330019-20
|
£1.50
|
£1.80
|
|
|
71 - PLATE
BDE-N118226.A2
N118226
|
£1.50
|
£1.80
|
|
|
72 - PLATE
BDE-N134941.A6
N134941
|
£1.50
|
£1.80
|
|
|
73 - INLET
BDE-N150546.A4
N150546
|
£16.03
|
£19.24
|
|
|
74 - RATING PLATE LX
BDE-N397654.A1
N397654
|
£1.50
|
£1.80
|
|
|
74 - RATING PLATE GB
BDE-N397656.A0
N397656
|
£1.50
|
£1.80
|
|
|
75 - LABEL LX
BDE-N162702.A5
N162702
|
-
|
|
|
|
75 - WARNING LABEL GB
BDE-N408096.A0
N408096
|
£1.50
|
£1.80
|
|
|
76 - BRAND LABEL
BDE-N405022.A1
N405022
|
£1.50
|
£1.80
|
|
|
77 - WARNING LABEL
BDE-N154132.A1
N154132
|
£1.50
|
£1.80
|
|
|
78 - CONNECTOR
BDE-N149299.A1
N149299
|
£1.50
|
£1.80
|
|
|
79 - TUBE PLASTIC
BDE-N149246.A2
N149246
|
£1.82
|
£2.19
|
|
|
80 - SIREN
BDE-N139903.A1
N139903
|
£7.85
|
£9.42
|
|
|
81 - SCREW
BDE-330019-02.A85
330019-02
|
£1.50
|
£1.80
|
|
|
82 - FOAM
BDE-N177921.A4
N177921
|
£2.78
|
£3.34
|
|
|
84 - WASHER LOCK
BDE-N371460.A1
N371460
|
£1.50
|
£1.80
|
|
|
97 - LABEL
BDE-N177322.A4
N177322
|
£1.50
|
£1.80
|
|
|
98 - LABEL
BDE-N183923.A2
N183923
|
£1.50
|
£1.80
|
|
|
99 - LABEL
BDE-N199361.A1
N199361
|
£1.50
|
£1.80
|
|
|
102 - DUST BAG SA
BDE-N194931.A5
N194931
|
£9.41
|
£11.29
|
|
|
103 - ADAPTOR
BDE-N070902.A2
N070902
|
£7.85
|
£9.42
|
|
|
104 - CONNECTOR
BDE-N243560.A2
N243560
|
£12.17
|
£14.60
|
|
