Dewalt DPC10QTC Type 1 Compressor Spare Parts

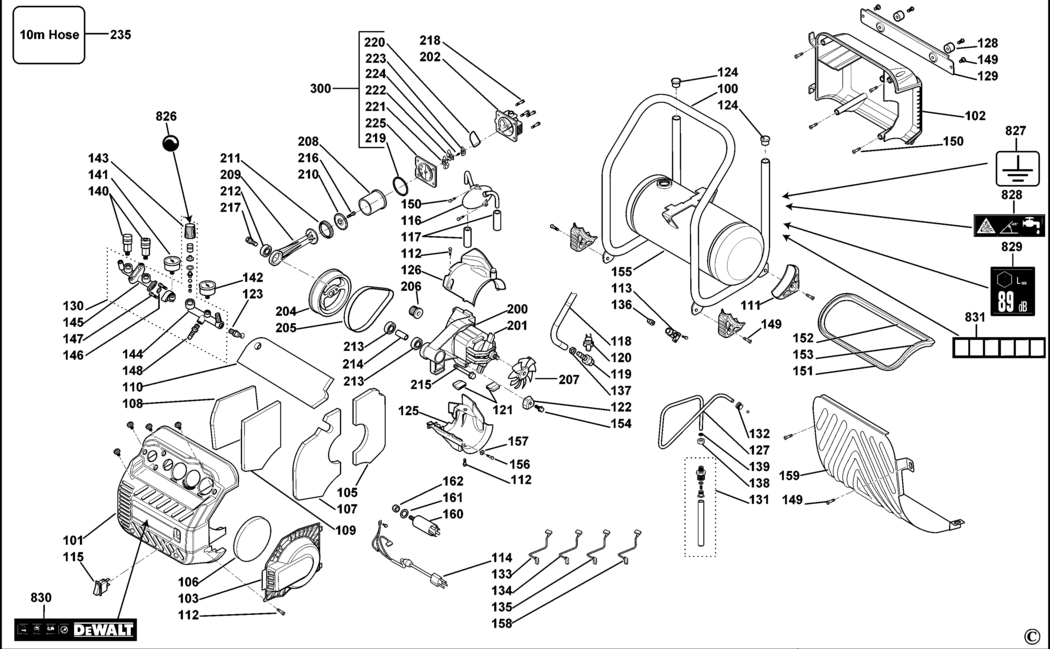

An exploded drawing and spare parts listing for the Dewalt DPC10QTC Type 1 Compressor

	Ex VAT	Inc VAT
100 - TANK BDE-N396003 N396003	£245.11	£294.13
101 - SHROUD Front BDE-N372379 N372379	£25.70	£30.84
102 - SHROUD Back BDE-N121990.A2 N121990	£17.48	£20.97
103 - COVER BDE-N216652.A2 N216652	£7.18	£8.62
105 - FOAM Fan Rear BDE-N125105.A0 N125105	£7.18	£8.62
106 - FOAM Fan BDE-N125109.A2 N125109	£4.69	£5.63
107 - FOAM Fan Front BDE-N125229.A0 N125229	£7.85	£9.42
108 - FOAM Pump Front BDE-N125230.A2 N125230	£5.88	£7.06
109 - FOAM Tube Front BDE-N125428.A0 N125428	£7.18	£8.62
110 - FOAM Manifold UTC BDE-N313999.A2 N313999	£7.18	£8.62
111 - FOOT BDE-N144436.A2 N144436	£3.30	£3.96
112 - SCREW BDE-SSF3156.A2 SSF3156	£1.50	£1.80
113 - VALVE BDE-9047091.A2 9047091	£7.18	£8.62
114 - CORDSET (M/PLUG) GB GB BDE-N401413 N401413	£17.48	£20.97
114 - CORDSET (M/PLUG) LX BDE-N401423 N401423	£38.80	£46.56
115 - SWITCH 220V GB BDE-9064185.A0 9064185	£7.18	£8.62
116 - MUFFLER BDE-N299059.A0 N299059	£5.88	£7.06
117 - HOSE BDE-N117449.A0 N117449	£1.50	£1.80
118 - HOSE BDE-N116199.A2 N116199	£9.41	£11.29
119 - CONNECTOR Half Barb NPT BDE-N115939.A0 N115939	£7.18	£8.62
120 - MICRO SWITCH LX BDE-N423911.A0 N423911	£12.17	£14.60
120 - MICRO SWITCH GB BDE-N402543.A0 N402543	£12.17	£14.60
121 - ISOLATOR BDE-N436181.A2 N436181	£1.50	£1.80
122 - MOUNT BDE-ACG18.A0 ACG18	£2.78	£3.34
123 - VALVE BDE-N022549.A2 N022549	£12.17	£14.60
124 - PLUG BDE-N048415.A2 N048415	£1.50	£1.80
125 - COVER BDE-N093234.A2 N093234	£3.80	£4.56
126 - COVER-TOP BDE-N093235.A0 N093235	£3.80	£4.56
127 - TUBE OUTLET BDE-N148800 N148800	£5.88	£7.06
127 - TUBE OUTLET BDE-N436063.A0 N436063	£24.39	£29.27
128 - BUMPER BDE-N178742.A0 N178742	£1.50	£1.80
129 - MOUNT BDE-N266360 N266360	£19.90	£23.88
130 - MANIFOLD ASSEMBLY BDE-N272979.A0 N272979	£37.35	£44.82
131 - VALVE KIT Check Valve BDE-N378375.A0 N378375	£19.90	£23.88
132 - NUT BDE-N148738.A2 N148738	£3.80	£4.56
133 - LEAD BROWN BDE-N406816.A0 N406816	£1.50	£1.80
134 - LEAD BLACK BDE-N406815.A2 N406815	£3.30	£3.96
135 - LEAD BLUE BDE-N406818.A2 N406818	£1.50	£1.80
136 - DRAIN COCK BDE-9038905.A2 9038905	£1.50	£1.80
137 - CLAMP BDE-A20009.A2 A20009	£1.50	£1.80
138 - NUT BDE-SSP7813.A2 SSP7813	£3.30	£3.96
139 - O RING BDE-SSG3105.A0 SSG3105	£1.50	£1.80
140 - COUPLING BDE-9047068.A0 9047068	£16.03	£19.24
141 - GAUGE BDE-N401440.A2 N401440	£10.85	£13.02
142 - GAUGE BDE-N401439.A0 N401439	£10.85	£13.02
143 - KNOB BDE-N261306.A2 N261306	£2.78	£3.34
144 - VALVE BODY BDE-N272981.A2 N272981	£14.57	£17.48
145 - BODY Manifold Body BDE-N272982.A0 N272982	-
146 - O RING BDE-N272983.A2 N272983	£1.50	£1.80
147 - SCREW BDE-9411073.A0 9411073	£1.50	£1.80
148 - CONNECTOR Barb BDE-A03008.A0 A03008	£3.80	£4.56
149 - SCREW BDE-D28104.A0 D28104	£1.50	£1.80
150 - SCREW BDE-D29132.A2 D29132	£1.50	£1.80
151 - SEAL BDE-N115122.A2 N115122	£5.88	£7.06
152 - SEAL BDE-N115127.A0 N115127	£5.88	£7.06
153 - SEAL BDE-N115128.A2 N115128	£1.50	£1.80
154 - SCREW BDE-91895680.A1 91895680	£1.50	£1.80
155 - SCREW BDE-SUDL91.A0 SUDL91	£1.50	£1.80
156 - SCREW BDE-SSF5531.A0 SSF5531	£1.50	£1.80
157 - WASHER BDE-N317839.A0 N317839	£1.50	£1.80
158 - LEAD EARTH BDE-N406819.A0 N406819	£3.30	£3.96
159 - PANEL BDE-N376470.A1 N376470	£34.00	£40.80
160 - NOISE FILTER PCB BDE-9064867.A1 9064867	£16.03	£19.24
161 - WASHER BDE-9411088.A1 9411088	£1.50	£1.80
162 - NUT M8 BDE-9122333.A2 9122333	£2.78	£3.34
200 - CASTING BDE-N399486.A2 N399486	£41.24	£49.49
201 - MOTOR SA 230V GB BDE-N494871.A1 N494871	£218.32	£261.98
201 - MOTOR SA 120V LX BDE-N145807.A0 N145807	£135.36	£162.43
202 - CYLINDER HEAD BDE-N260996.A0 N260996	£10.85	£13.02
204 - FLYWHEEL BDE-N398105.A0 N398105	£55.30	£66.36
205 - BELT DRIVE BDE-N406246.A0 N406246	£37.35	£44.82
206 - SPROCKET BDE-N049820.A0 N049820	£4.69	£5.63
207 - FAN BDE-N051334.A2 N051334	£2.26	£2.71
208 - CYLINDER BDE-N072495.A1 N072495	£16.03	£19.24
209 - CONNECTING ROD BDE-N072645.A1 N072645	£9.41	£11.29
210 - CAP BDE-N073046.A1 N073046	£2.78	£3.34
211 - PISTON RING BDE-N073052.A1 N073052	£12.17	£14.60
212 - BEARING BDE-N074819.A1 N074819	£7.18	£8.62
213 - BEARING 6202 BDE-N400652.A1 N400652	£7.18	£8.62
214 - SPACER BDE-N398089.A0 N398089	£5.88	£7.06
215 - SCREW BDE-N398090.A2 N398090	£3.80	£4.56
216 - SCREW BDE-N054934.A2 N054934	£1.50	£1.80
217 - SCREW BDE-N073286.A1 N073286	£1.50	£1.80
218 - SCREW BDE-SSF995.A2 SSF995	£1.50	£1.80
219 - O RING BDE-N261339.A0 N261339	£1.50	£1.80
220 - O RING BDE-N261340.A2 N261340	£1.50	£1.80
221 - INTAKE VALVE BDE-N261341.A0 N261341	£5.88	£7.06
222 - VALVE BDE-N261342.A2 N261342	£3.80	£4.56
223 - VALVE BDE-N261343.A0 N261343	£1.50	£1.80
224 - RIVET BDE-N261346.A2 N261346	£1.50	£1.80
225 - CASTING BDE-N261344M.A2 N261344M	£12.17	£14.60
226 - WASHER SPRING BDE-4100795.A1 4100795	£1.50	£1.80
227 - WASHER SPRING BDE-4105051.A1 4105051	£1.50	£1.80
228 - WASHER BDE-9134371.A1 9134371	£2.78	£3.34
229 - WASHER BDE-9134403.A1 9134403	£1.50	£1.80
235 - HOSE SA BDE-9045834 9045834	£47.08	£56.49
300 - VALVE BODY BDE-N261345.A0 N261345	£18.91	£22.69
826 - LABEL Regulator Knob BDE-N401073 N401073	£1.50	£1.80
828 - LABEL Tilt to Drain BDE-N421211.A1 N421211	£1.50	£1.80
829 - LABEL BDE-N413619.A2 N413619	£1.50	£1.80
830 - IDENTITY LABEL GB BDE-N413629 N413629	£1.50	£1.80
830 - IDENTITY LABEL LX BDE-N413633 N413633	£1.50	£1.80
