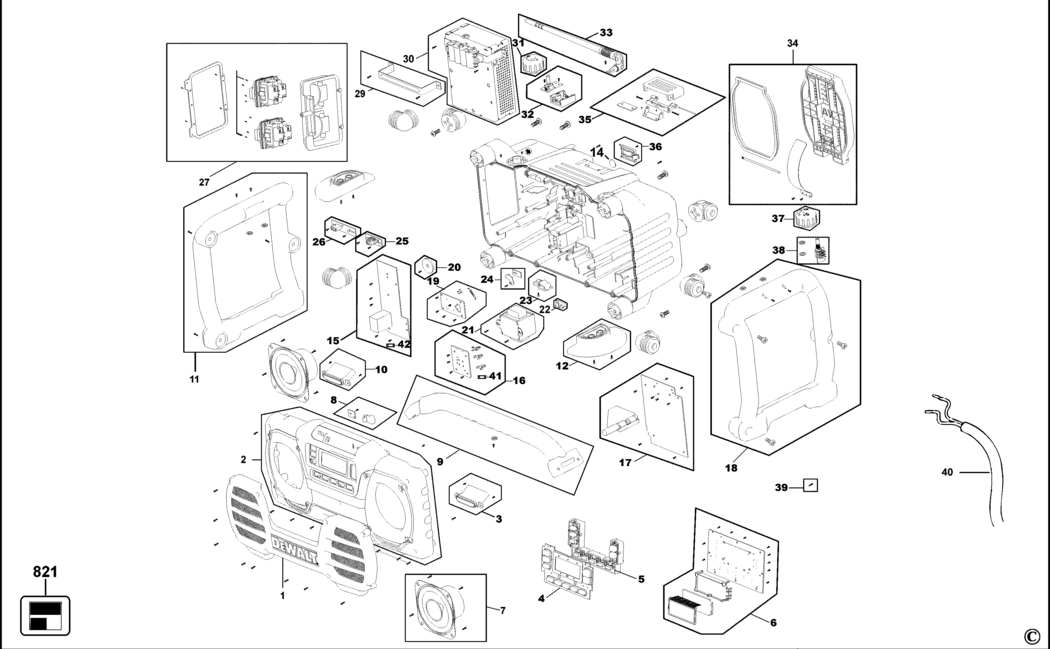

1 - GRILLE
BDE-5140072-39
5140072-39
|
£59.41
|
£71.29
|
|
|
2 - COVER
BDE-1004503-00
1004503-00
|
£33.13
|
£39.76
|
|
|
3 - DUCT
BDE-5140072-40
5140072-40
|
£3.22
|
£3.86
|
|
|
4 - RUBBER PAD
BDE-5140072-09
5140072-09
|
£4.58
|
£5.49
|
|
|
5 - CONTROL PANEL
BDE-5140072-10
5140072-10
|
£1.42
|
£1.70
|
|
|
6 - PCB CONTROLLER TO D-CODE 201112 GB
BDE-1004503-01.A0
1004503-01
|
£94.12
|
£112.94
|
|
|
6 - CONTROLLER SA FROM D-CODE 201134 LX
BDE-1004682-04.A1
1004682-04
|
£63.87
|
£76.64
|
|
|
6 - PCB CONTROLLER TO D-CODE 201134 LX
BDE-1004503-01.A1
1004503-01
|
£94.12
|
£112.94
|
|
|
6 - CONTROLLER SA FROM D-CODE 201112 GB
BDE-1004682-04.A0
1004682-04
|
£63.87
|
£76.64
|
|
|
7 - SPEAKER
BDE-5140072-11
5140072-11
|
£15.63
|
£18.76
|
|
|
8 - COVER SA
BDE-1004503-16
1004503-16
|
£15.63
|
£18.76
|
|
|
9 - HANDLE SA
BDE-5140072-42
5140072-42
|
£14.19
|
£17.03
|
|
|
10 - DUCT
BDE-5140072-43
5140072-43
|
£3.22
|
£3.86
|
|
|
11 - PROTECTOR
BDE-1004503-02
1004503-02
|
£23.75
|
£28.50
|
|
|
12 - CLIP CABLE
BDE-5140072-45
5140072-45
|
£7.01
|
£8.41
|
|
|
14 - BATTERY
BDE-5140112-26.A1
5140112-26
|
£1.50
|
£1.80
|
|
|
15 - PCB SA FROM D-CODE 201112 GB
BDE-1004682-00.A1
1004682-00
|
£53.92
|
£64.70
|
|
|
15 - PCB SA TO D-CODE 201112 GB
BDE-1004503-03.A0
1004503-03
|
£57.22
|
£68.66
|
|
|
15 - PCB SA TO D-CODE 201134 LX
BDE-1004503-03.A1
1004503-03
|
£57.22
|
£68.66
|
|
|
15 - PCB SA FROM D-CODE 201134 LX
BDE-1004682-00.A0
1004682-00
|
£53.92
|
£64.70
|
|
|
16 - PCB FROM D-CODE 201112 GB
BDE-5140113-36.A0
5140113-36
|
£18.42
|
£22.10
|
|
|
16 - PCB FROM D-CODE 201134 LX
BDE-5140113-36.A1
5140113-36
|
£18.42
|
£22.10
|
|
|
16 - PCB TO DCODE 201112
BDE-5140072-04
5140072-04
|
£7.64
|
£9.17
|
|
|
17 - PCB SA FROM D-CODE 201134 LX
BDE-5140113-34.A0
5140113-34
|
£57.22
|
£68.66
|
|
|
17 - NO LONGER AVAILABLE TO D-CODE 201112 GB
BDE-000000-00.A63567
000000-00
|
-
|
|
|
|
17 - PCB SA FROM D-CODE 201112 GB
BDE-5140113-34.A1
5140113-34
|
£57.22
|
£68.66
|
|
|
17 - NO LONGER AVAILABLE TO D-CODE 201134 LX
BDE-000000-00.A63568
000000-00
|
-
|
|
|
|
18 - PROTECTOR
BDE-1004503-04
1004503-04
|
£23.75
|
£28.50
|
|
|
19 - NO LONGER AVAILABLE TO D-CODE 201134 LX
BDE-000000-00.A63569
000000-00
|
-
|
|
|
|
19 - PCB SA FROM D-CODE 201112 GB
BDE-5140113-35.A1
5140113-35
|
£15.63
|
£18.76
|
|
|
19 - NO LONGER AVAILABLE TO D-CODE 201112 GB
BDE-000000-00.A63570
000000-00
|
-
|
|
|
|
19 - PCB SA FROM D-CODE 201134 LX
BDE-5140113-35.A0
5140113-35
|
£15.63
|
£18.76
|
|
|
20 - RETAINER
BDE-5140072-54
5140072-54
|
£14.19
|
£17.03
|
|
|
21 - TRANSFORMER GB
BDE-1004503-05
1004503-05
|
£19.40
|
£23.28
|
|
|
21 - TRANSFORMER LX
BDE-1004503-06
1004503-06
|
£23.75
|
£28.50
|
|
|
22 - PLATE
BDE-5140072-48
5140072-48
|
£1.42
|
£1.70
|
|
|
23 - BRACKET
BDE-5140072-49
5140072-49
|
£1.42
|
£1.70
|
|
|
24 - BRACKET
BDE-5140072-50
5140072-50
|
£1.42
|
£1.70
|
|
|
25 - PCB TO D-CODE 201134 LX
BDE-1004503-07.A0
1004503-07
|
-
|
|
|
|
25 - PCB SA FROM D-CODE 201134 LX
BDE-1004682-02.A0
1004682-02
|
£18.42
|
£22.10
|
|
|
25 - PCB TO D-CODE 201112 GB
BDE-1004503-07.A1
1004503-07
|
-
|
|
|
|
25 - PCB SA FROM D-CODE 201112 GB
BDE-1004682-02.A1
1004682-02
|
£18.42
|
£22.10
|
|
|
26 - PCB TO D-CODE 201112 GB
BDE-1004503-08.A0
1004503-08
|
£15.63
|
£18.76
|
|
|
26 - PCB TO D-CODE 201134 LX
BDE-1004503-08.A1
1004503-08
|
£15.63
|
£18.76
|
|
|
26 - PCB SA FROM D-CODE 201112 GB
BDE-1004682-03.A0
1004682-03
|
£15.63
|
£18.76
|
|
|
26 - PCB SA FROM D-CODE 201134 LX
BDE-1004682-03.A1
1004682-03
|
£15.63
|
£18.76
|
|
|
27 - NO LONGER AVAILABLE LX
BDE-000000-00.A63571
000000-00
|
-
|
|
|
|
27 - SOCKET SA GB
BDE-1004503-12
1004503-12
|
£85.60
|
£102.72
|
|
|
29 - BRACKET
BDE-5140072-28
5140072-28
|
£2.71
|
£3.25
|
|
|
30 - CHARGER SA GB
BDE-1004503-14
1004503-14
|
-
|
|
|
|
30 - NO LONGER AVAILABLE LX
BDE-000000-00.A63572
000000-00
|
-
|
|
|
|
31 - KNOB
BDE-5140072-30
5140072-30
|
£1.42
|
£1.70
|
|
|
32 - PCB TO D-CODE 201112 GB
BDE-5140072-36.A1
5140072-36
|
£17.03
|
£20.44
|
|
|
32 - PCB SA FROM D-CODE 201112 GB
BDE-5140113-40.A1
5140113-40
|
£17.03
|
£20.44
|
|
|
32 - PCB TO D-CODE 201134 LX
BDE-5140072-36.A0
5140072-36
|
£17.03
|
£20.44
|
|
|
32 - PCB SA FROM D-CODE 201134 LX
BDE-5140113-40.A0
5140113-40
|
£17.03
|
£20.44
|
|
|
33 - ANTENNA
BDE-5140019-28.A0
5140019-28
|
£36.42
|
£43.70
|
|
|
34 - DOOR
BDE-5140072-34
5140072-34
|
£15.63
|
£18.76
|
|
|
35 - LATCH
BDE-5140019-23.A1
5140019-23
|
£10.57
|
£12.68
|
|
|
36 - BUTTON
BDE-5140072-51
5140072-51
|
£18.42
|
£22.10
|
|
|
37 - KNOB
BDE-5140072-32
5140072-32
|
£1.42
|
£1.70
|
|
|
38 - CONTROL SA FROM D-CODE 201112 GB
BDE-5140113-41.A0
5140113-41
|
-
|
|
|
|
38 - CONTROL SA TO D-CODE 201134 LX
BDE-5140072-37.A0
5140072-37
|
-
|
|
|
|
38 - CONTROL SA FROM D-CODE 201134 LX
BDE-5140113-41.A1
5140113-41
|
-
|
|
|
|
38 - CONTROL SA TO D-CODE 201112 GB
BDE-5140072-37.A1
5140072-37
|
-
|
|
|
|
39 - SCREW
BDE-5140072-53
5140072-53
|
£1.42
|
£1.70
|
|
|
40 - NO LONGER AVAILABLE LX
BDE-000000-00.A63573
000000-00
|
-
|
|
|
|
40 - CORDSET GB
BDE-1004503-19
1004503-19
|
£44.00
|
£52.80
|
|
|
41 - FUSE
BDE-1004503-21
1004503-21
|
£1.42
|
£1.70
|
|
|
42 - FUSE
BDE-5140019-17.A1
5140019-17
|
£1.42
|
£1.70
|
|
|
821 - NO LONGER AVAILABLE GB
BDE-000000-00.A63574
000000-00
|
-
|
|
|
|
821 - NO LONGER AVAILABLE LX
BDE-000000-00.A63575
000000-00
|
-
|
|
|
