Bostitch SB130S1-2-E Type REV A Pneumatic Stapler Spare Parts

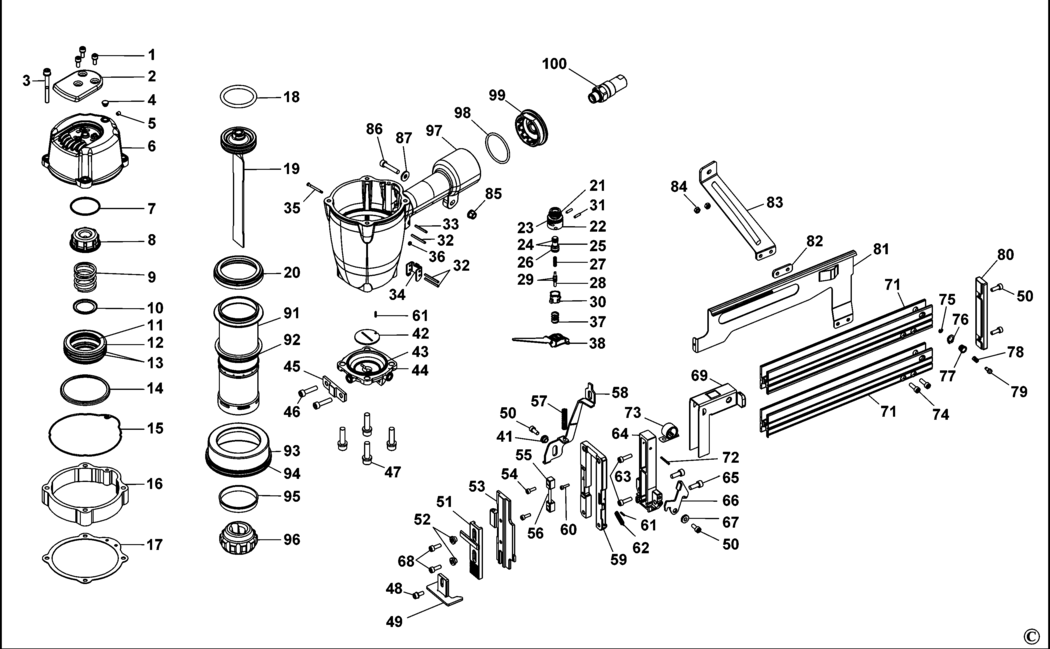

An exploded drawing and spare parts listing for the Bostitch SB130S1-2-E Type REV A Pneumatic Stapler

	Ex VAT	Inc VAT
1 - BOLT BDE-2040100-03090-2.A0 2040100-03090-2	£1.50	£1.80
2 - DEFLECTOR BDE-11371-0374706-1.A0 11371-0374706-1	£7.85	£9.42
3 - BOLT BDE-2040100-04171-0.A0 2040100-04171-0	£1.50	£1.80
4 - GROMMET BDE-1135S-0350001.A3 1135S-0350001	£1.50	£1.80
5 - GRUB SCREW BDE-2040104-03010.A8 2040104-03010	£1.50	£1.80
6 - CAP BDE-11369-0374309-1.A0 11369-0374309-1	£84.42	£101.30
7 - GASKET BDE-11380-0374702-1.A0 11380-0374702-1	£1.50	£1.80
8 - SEAL BDE-11370-0370003-2.A0 11370-0370003-2	£17.48	£20.97
9 - SPRING COMPRESSION BDE-11360-0370001-2.A0 11360-0370001-2	£3.30	£3.96
10 - WASHER BDE-11381-0370003-1.A1 11381-0370003-1	£3.30	£3.96
11 - O RING BDE-2041108-05050-0.A0 2041108-05050-0	£3.80	£4.56
12 - VALVE BODY BDE-11368-0370005-1 11368-0370005-1	£44.14	£52.97
13 - O RING BDE-2041108-07040-0.A1 2041108-07040-0	£2.78	£3.34
14 - PRESS TOOL BDE-1136D-0374701-1.A0 1136D-0374701-1	£3.80	£4.56
15 - SEAL BDE-11302-0374705-1.A0 11302-0374705-1	£3.30	£3.96
16 - CAP BDE-1130E-1524301-1.A0 1130E-1524301-1	£60.94	£73.13
17 - GASKET BDE-1130B-1524701-1.A0 1130B-1524701-1	£7.85	£9.42
18 - O RING BDE-2041104-05091.A0 2041104-05091	£1.50	£1.80
20 - COLLAR BDE-11399-0370002-1.A0 11399-0370002-1	£9.41	£11.29
21 - CYLINDER BDE-11320-1520001-1.A0 11320-1520001-1	£200.77	£240.92
22 - O RING BDE-2041106-07020-0.A0 2041106-07020-0	£1.50	£1.80
23 - SPACER BDE-11321-1520001-1.A0 11321-1520001-1	£71.44	£85.73
24 - O RING BDE-2041108-10010-0.A0 2041108-10010-0	£2.26	£2.71
25 - O RING BDE-11322-0370002-1.A1 11322-0370002-1	£1.50	£1.80
26 - BUMPER BDE-11327-1524701-1.A1 11327-1524701-1	£38.80	£46.56
27 - SPRING BDE-11376-0254701-1.A1 11376-0254701-1	£1.50	£1.80
28 - PLUNGER BDE-11375-0084701-1.A1 11375-0084701-1	£1.50	£1.80
29 - O RING BDE-2041102-01030.A1 2041102-01030	£1.50	£1.80
30 - VALVE BDE-11373-0084701-1.A0 11373-0084701-1	£1.50	£1.80
31 - PIN BDE-2040400-05060-0.A0 2040400-05060-0	£1.50	£1.80
32 - PIN BDE-2040400-05160-0.A0 2040400-05160-0	£1.50	£1.80
33 - PIN BDE-2040400-05130-0.A1 2040400-05130-0	£1.50	£1.80
34 - GUIDE BDE-11338-0374703-1.A1 11338-0374703-1	£3.80	£4.56
35 - PIVOT BLOCK BDE-11318-0374701-1.A0 11318-0374701-1	£1.50	£1.80
36 - RETAINER BDE-1131D-0460001.A2 1131D-0460001	£1.50	£1.80
37 - SPRING BDE-11376-0370001-1.A0 11376-0370001-1	£1.50	£1.80
38 - TRIGGER BDE-11224-0371102-1.A0 11224-0371102-1	£7.85	£9.42
41 - BUSHING BDE-11398-1524704-1.A1 11398-1524704-1	£2.78	£3.34
42 - GUIDE BDE-11388-1524701-1.A0 11388-1524701-1	£3.30	£3.96
43 - O RING BDE-2041101-07010-0.A0 2041101-07010-0	£1.50	£1.80
44 - BASE BDE-11326-1524701-1.A0 11326-1524701-1	£144.10	£172.92
45 - COVER BDE-11353-1524701-1.A0 11353-1524701-1	£30.08	£36.10
46 - BOLT BDE-2040101-04090-2.A1 2040101-04090-2	£1.50	£1.80
47 - BOLT BDE-2040100-05010-2.A1 2040100-05010-2	£1.50	£1.80
48 - BOLT BDE-2040100-03240-0.A1 2040100-03240-0	£1.50	£1.80
49 - SAFETY KEY BDE-11254-1524701.A1 11254-1524701	£119.32	£143.19
50 - BOLT BDE-2040101-03050-2.A1 2040101-03050-2	£1.50	£1.80
51 - BRACKET BDE-11257-1524701-2 11257-1524701-2	£96.55	£115.86
52 - BUSHING BDE-11398-1524702-1 11398-1524702-1	£1.50	£1.80
53 - COVER BDE-11352-1524701-2 11352-1524701-2	£157.18	£188.61
54 - BOLT BDE-2040101-02060-2.A0 2040101-02060-2	£1.50	£1.80
55 - BLOCK BDE-1131F-1524701-1.A1 1131F-1524701-1	£16.03	£19.24
56 - PIN BDE-11329-1524701-1.A0 11329-1524701-1	£4.69	£5.63
57 - SPRING BDE-11337-1524701.A0 11337-1524701	£1.50	£1.80
58 - BRACKET BDE-11256-1524701-1.A1 11256-1524701-1	£24.39	£29.27
59 - GUIDE BDE-11303-1524702-2.A0 11303-1524702-2	£465.78	£558.94
60 - BOLT BDE-2040101-01010-0.A1 2040101-01010-0	£1.50	£1.80
61 - PIN BDE-2040400-03050-0.A1 2040400-03050-0	£1.50	£1.80
62 - SPRING BDE-11328-1524701 11328-1524701	£1.50	£1.80
63 - BOLT BDE-2040101-03080-2.A0 2040101-03080-2	£1.50	£1.80
64 - GUIDE BDE-11303-1524701-2.A1 11303-1524701-2	£393.38	£472.06
65 - BOLT BDE-2040101-04040-2.A0 2040101-04040-2	£1.50	£1.80
66 - LATCH BDE-1135Y-1524701-1.A0 1135Y-1524701-1	£5.88	£7.06
67 - BUSHING BDE-11398-1524701-1.A0 11398-1524701-1	£2.78	£3.34
68 - BOLT BDE-2040101-03060-2 2040101-03060-2	£1.50	£1.80
69 - PUSHER BDE-11363-1524701 11363-1524701	£14.57	£17.48
69 - PUSHER BDE-11363-1524701-1 11363-1524701-1	-
70 - BUMPER BDE-1135F-0684701-1.A1 1135F-0684701-1	£2.78	£3.34
71 - MAGAZINE BDE-11389-1520001-1 11389-1520001-1	£84.42	£101.30
72 - PIN BDE-2040400-04110-0.A1 2040400-04110-0	£1.50	£1.80
73 - SPRING SA BDE-11278-1520001.A0 11278-1520001	£18.91	£22.69
74 - BOLT BDE-2040101-03070-0.A0 2040101-03070-0	£1.50	£1.80
75 - CLIP BDE-2040302-23010-0.A0 2040302-23010-0	£1.50	£1.80
76 - CLIP BDE-2040301-10010-0.A0 2040301-10010-0	£1.50	£1.80
77 - COVER BDE-1130W-1524701-1.A0 1130W-1524701-1	£5.88	£7.06
78 - SPRING BDE-11311-0074701-1.A1 11311-0074701-1	£1.50	£1.80
79 - LATCH BDE-11310-0074701-1.A1 11310-0074701-1	£1.50	£1.80
80 - PLATE BDE-11347-1524701-1.A1 11347-1524701-1	£44.14	£52.97
81 - BRACKET BDE-11348-1520001-1.A0 11348-1520001-1	£110.62	£132.74
82 - GASKET BDE-11380-1524701-1.A0 11380-1524701-1	£12.17	£14.60
83 - BRACKET BDE-11323-1524701-1.A0 11323-1524701-1	£24.39	£29.27
84 - NUT BDE-2040500-03020-0.A0 2040500-03020-0	£1.50	£1.80
85 - NUT BDE-2040501-04010.A6 2040501-04010	£1.50	£1.80
86 - BOLT BDE-2040101-04110-0.A0 2040101-04110-0	£1.50	£1.80
87 - WASHER BDE-2040202-04010.A3 2040202-04010	£1.50	£1.80
91 - O RING BDE-2041104-02020-0.A0 2041104-02020-0	£1.50	£1.80
92 - CAP BDE-11374-0084701-1.A1 11374-0084701-1	£3.30	£3.96
93 - O RING BDE-2041104-02030-0.A1 2041104-02030-0	£1.50	£1.80
94 - O RING BDE-2041100-01070-0.A0 2041100-01070-0	£1.50	£1.80
95 - RING BDE-1133S-0250002-1.A1 1133S-0250002-1	£7.18	£8.62
96 - O RING BDE-2041100-01030-0.A1 2041100-01030-0	£1.50	£1.80
98 - O RING BDE-2041108-05040-0.A1 2041108-05040-0	£1.82	£2.19
99 - END CAP BDE-11346-0371310-1.A1 11346-0371310-1	£16.03	£19.24
100 - PLUG BDE-9R196808.A2 9R196808	£4.69	£5.63

Attribute Name	Value
Brand	Bostitch
