Bostitch DSA-3522 Type Rev 1 Stapler Spare Parts

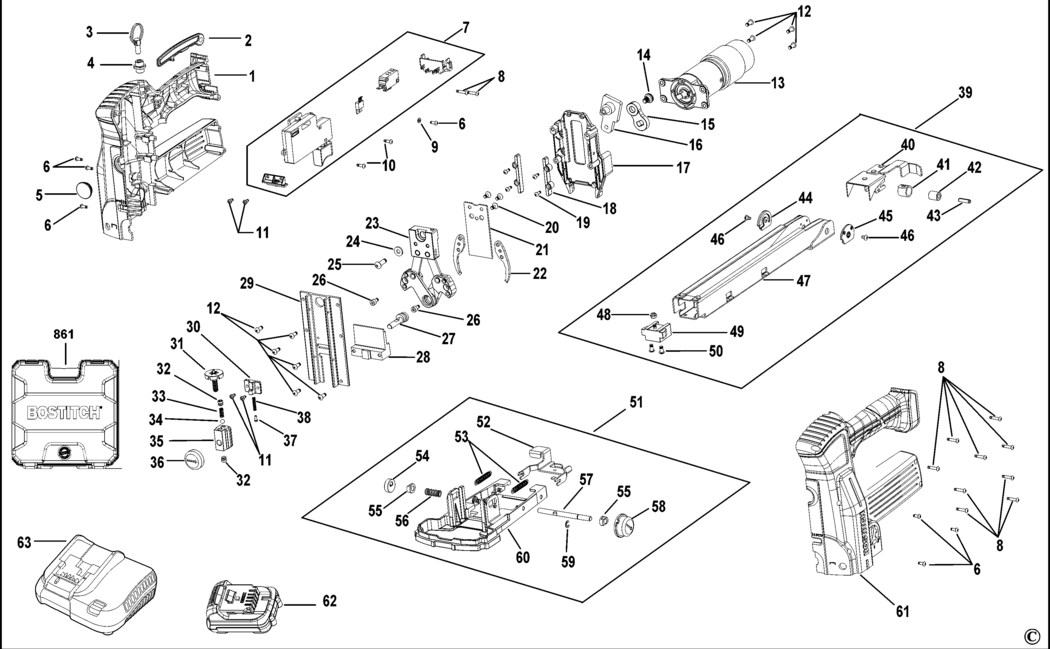

An exploded drawing and spare parts listing for the Bostitch DSA-3522 Type Rev 1 Stapler

	Ex VAT	Inc VAT
1 - HOUSING RH BDE-9R205486 9R205486	£20.50	£24.60
2 - LEVER BDE-9R201439.A0 9R201439	£1.66	£1.99
3 - HOOK BDE-9R204970.A0 9R204970	£3.39	£4.07
4 - NUT BDE-9R201493.A1 9R201493	£2.87	£3.44
5 - COVER BDE-9R201480.A0 9R201480	£1.66	£1.99
6 - SCREW BDE-9R201492.A0 9R201492	£1.66	£1.99
7 - SWITCH SA BDE-9R205189.A0 9R205189	£80.98	£97.18
8 - SCREW BDE-9R201483.A1 9R201483	£1.66	£1.99
9 - WASHER BDE-9R205485.A0 9R205485	£1.66	£1.99
10 - SCREW BDE-9R205243.A0 9R205243	£1.66	£1.99
11 - SCREW BDE-9R201739.A0 9R201739	£1.66	£1.99
12 - SCREW BDE-9R204949.A0 9R204949	£1.66	£1.99
13 - MOTOR SA BDE-9R204956.A1 9R204956	£86.95	£104.34
14 - BOLT BDE-9R200730.A1 9R200730	£1.66	£1.99
15 - ARM CRANKED BDE-9R200657.A0 9R200657	£3.92	£4.70
16 - CONNECTING ROD BDE-9R205419.A0 9R205419	£35.02	£42.02
17 - BODY BDE-9R200564.A1 9R200564	£30.98	£37.18
18 - GUIDE BDE-9R198670.A1 9R198670	£1.66	£1.99
19 - SCREW BDE-9R201744.A0 9R201744	£1.66	£1.99
20 - SCREW BDE-9R204947.A1 9R204947	£1.66	£1.99
21 - DRIVER BDE-9R198644.A0 9R198644	£7.40	£8.88
22 - JAW Deep BDE-9R205225 9R205225	£8.08	£9.70
23 - DRIVE COUPLING BDE-9R204964.A1 9R204964	£16.52	£19.82
24 - WASHER BDE-9R205425.A1 9R205425	£1.66	£1.99
25 - SCREW BDE-9R205426.A0 9R205426	£1.66	£1.99
26 - SCREW BDE-9R200745.A1 9R200745	£1.66	£1.99
27 - PIN BDE-9R201642.A0 9R201642	£11.18	£13.41
28 - GUIDE BDE-9R205356.A1 9R205356	£35.02	£42.02
29 - BODY BDE-9R201641.A1 9R201641	£26.47	£31.76
30 - MOUNT BDE-9R201757.A0 9R201757	£1.66	£1.99
31 - KNOB SA BDE-9R204966.A0 9R204966	£6.06	£7.27
32 - SCREW BDE-9R201749.A1 9R201749	£1.66	£1.99
33 - SPRING BDE-9R201748.A1 9R201748	£1.66	£1.99
34 - BALL BDE-9R200665.A1 9R200665	£1.66	£1.99
35 - BLOCK BDE-9R201639.A1 9R201639	£9.69	£11.63
36 - KNOB BDE-9R204968.A1 9R204968	£1.66	£1.99
37 - DETENT BDE-9R201487.A1 9R201487	£1.66	£1.99
38 - SPRING BDE-9R201488.A0 9R201488	£1.66	£1.99
39 - MAGAZINE SA BDE-9R204958.A1 9R204958	£56.97	£68.36
40 - PUSHER BDE-9R204959.A0 9R204959	£18.00	£21.60
41 - SPRING BDE-9R200503.A0 9R200503	£9.69	£11.63
42 - BUSHING BDE-9R200502.A1 9R200502	£1.66	£1.99
43 - PIN BDE-9R200504.A1 9R200504	£1.66	£1.99
44 - GUIDE BDE-9R200508.A1 9R200508	£1.66	£1.99
45 - GUIDE BDE-9R200509.A0 9R200509	£1.66	£1.99
46 - SCREW BDE-9R200510.A1 9R200510	£1.66	£1.99
47 - BODY BDE-9R204974.A1 9R204974	£80.98	£97.18
48 - LOCK NUT BDE-9R205245.A1 9R205245	£1.66	£1.99
49 - MOUNT BDE-9R200735.A1 9R200735	£4.83	£5.80
50 - SCREW BDE-9R198678.A1 9R198678	£1.66	£1.99
51 - BASE SA BDE-9R204960.A1 9R204960	£60.46	£72.55
52 - LATCH BDE-9R200727.A1 9R200727	£7.40	£8.88
53 - SPRING BDE-9R200506.A1 9R200506	£1.66	£1.99
54 - CAM BDE-9R204969.A1 9R204969	£1.66	£1.99
55 - BUSHING BDE-9R200801.A0 9R200801	£1.66	£1.99
56 - SPRING BDE-9R200782.A1 9R200782	£1.66	£1.99
57 - ROD BDE-9R200663.A1 9R200663	£3.39	£4.07
58 - KNOB SA BDE-9R204967.A1 9R204967	£1.66	£1.99
59 - RING BDE-9R201737.A1 9R201737	£1.66	£1.99
60 - BASE BDE-9R201621.A1 9R201621	£46.49	£55.79
61 - HOUSING LH BDE-9R205538 9R205538	£20.50	£24.60
62 - BATTERY 10.8V - 1.5AH - 16.2WH GB BDE-9R201498.A1 9R201498	£99.44	£119.33
63 - CHARGER 10.8V GB BDE-9R201515.A0 9R201515	£94.12	£112.94
861 - KITBOX GB BDE-9R208152.A0 9R208152	£56.97	£68.36

Attribute Name	Value
Brand	Bostitch
