Bostitch D31AD-E Type REV 1 Pneumatic Stapler Spare Parts

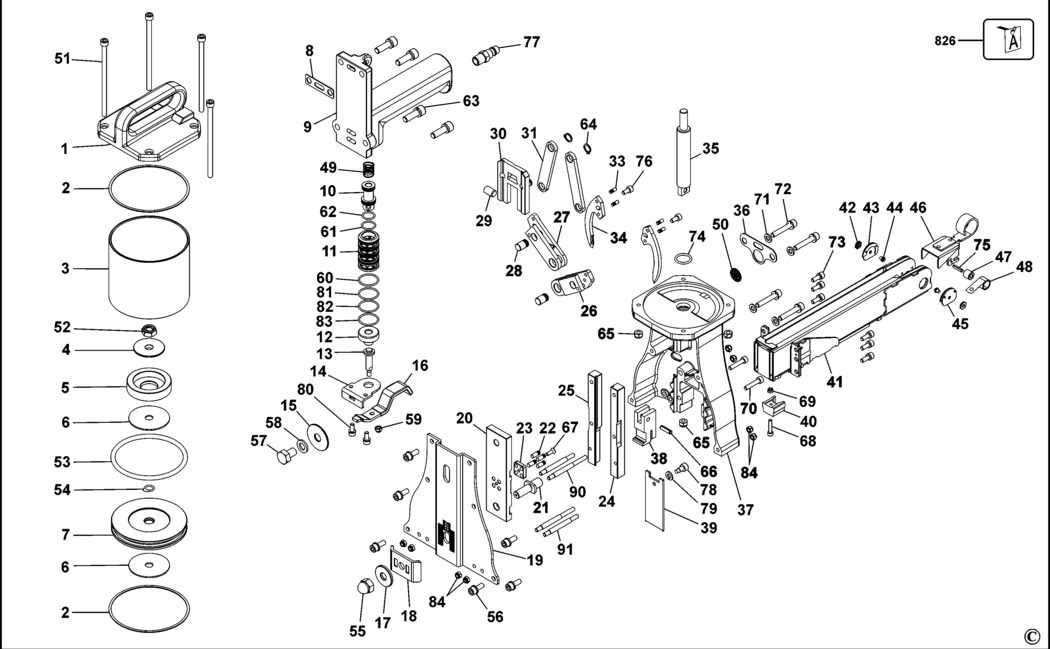

An exploded drawing and spare parts listing for the Bostitch D31AD-E Type REV 1 Pneumatic Stapler

	Ex VAT	Inc VAT
1 - CAP BDE-A06300102 A06300102	£144.10	£172.92
2 - O RING BDE-A06303901 A06303901	£9.41	£11.29
3 - CYLINDER BDE-A06300201 A06300201	£144.10	£172.92
4 - WASHER BDE-A06302401 A06302401	£9.41	£11.29
5 - BUMPER BDE-A06302301 A06302301	£30.08	£36.10
6 - WASHER BDE-A06300901 A06300901	£9.41	£11.29
7 - PISTON BDE-A06300501 A06300501	£144.10	£172.92
8 - SPACER BDE-A06304001 A06304001	£1.50	£1.80
9 - HANDLE BDE-A06300403 A06300403	£245.11	£294.13
10 - VALVE BDE-A06303302 A06303302	£16.03	£19.24
11 - TUBE BDE-A06300703 A06300703	£51.90	£62.28
12 - COVER BDE-A06300802 A06300802	£12.17	£14.60
13 - ROD BDE-A06303402 A06303402	£14.57	£17.48
14 - BRACKET BDE-A06303501 A06303501	£7.18	£8.62
15 - WASHER BDE-A06303601 A06303601	£16.03	£19.24
16 - TRIGGER BDE-A06302901-03 A06302901-03	£7.85	£9.42
17 - WASHER BDE-A06303701 A06303701	£12.17	£14.60
18 - PLATE LOCK BDE-A06303801 A06303801	£7.85	£9.42
19 - PLATE BDE-A06302502 A06302502	£55.30	£66.36
20 - BLOCK BDE-A06301601 A06301601	£119.32	£143.19
21 - ROD BDE-A06301801 A06301801	£30.08	£36.10
22 - PIN BDE-A06302701 A06302701	£2.78	£3.34
23 - BLOCK BDE-A06301701 A06301701	£16.03	£19.24
24 - BRACKET RH BDE-A06301001 A06301001	£144.10	£172.92
25 - BRACKET LH BDE-A06301101 A06301101	£144.10	£172.92
26 - HOLDER RH BDE-A06301902 A06301902	£131.46	£157.75
27 - HOLDER LH BDE-A06302002 A06302002	£131.46	£157.75
28 - ROD BDE-A06302601 A06302601	£14.57	£17.48
29 - ROD BDE-A06302801 A06302801	£14.57	£17.48
30 - BLOCK BDE-A06301301A A06301301A	£93.62	£112.35
31 - LINK BDE-A06301401 A06301401	£17.48	£20.97
33 - ROD BDE-A06303201 A06303201	£7.85	£9.42
34 - JAW JM32 / JM35 BDE-A06500507 A06500507	£93.62	£112.35
34 - JAW JM38 BDE-A06700507 A06700507	£93.62	£112.35
34 - JAW JM25 / JM28 BDE-A06302106 A06302106	£93.62	£112.35
35 - ROD BDE-A06300601 A06300601	£55.30	£66.36
36 - BRACKET BDE-A06304101 A06304101	£2.26	£2.71
37 - SEAT BDE-A06300304 A06300304	£371.62	£445.95
38 - BLOCK BDE-A06301201 A06301201	£60.94	£73.13
39 - DRIVER BDE-A06302202 A06302202	£34.00	£40.80
40 - BRACKET BDE-A06303001 A06303001	£14.57	£17.48
41 - MAGAZINE SA BDE-JM-38-P1A JM-38-P1A	£494.84	£593.81
42 - NUT BDE-A00607101.A9 A00607101	£2.78	£3.34
43 - GUIDE BDE-A00103904A.A3 A00103904A	£3.30	£3.96
44 - ROD BDE-A00103203.A11 A00103203	£2.78	£3.34
45 - GUIDE BDE-A00103903A.A11 A00103903A	£3.30	£3.96
46 - PUSHER BDE-A06305603A A06305603A	£30.08	£36.10
47 - ROLLER BDE-A06303101 A06303101	£5.88	£7.06
48 - SPRING BDE-A00103401.A0 A00103401	£9.41	£11.29
49 - SPRING BDE-A06304601 A06304601	£1.50	£1.80
50 - SILENCER BDE-A06304901 A06304901	£2.78	£3.34
51 - BOLT BDE-BAC04061152 BAC04061152	£2.78	£3.34
52 - NUT BDE-BAD02103 BAD02103	£1.50	£1.80
53 - O RING BDE-BAB053882 BAB053882	£2.78	£3.34
54 - O RING BDE-BAB019098 BAB019098	£1.50	£1.80
55 - NUT BDE-BAD05101 BAD05101	£1.50	£1.80
56 - BOLT BDE-BAC0606162 BAC0606162	£1.50	£1.80
57 - BOLT BDE-BAC0810161 BAC0810161	£1.50	£1.80
58 - WASHER BDE-BAE01101 BAE01101	£1.50	£1.80
59 - NUT BDE-BAD01051.A1 BAD01051	£1.50	£1.80
60 - O RING BDE-BAB020230 BAB020230	£1.50	£1.80
61 - O RING BDE-BAB017156 BAB017156	£1.50	£1.80
62 - O RING BDE-BAB017140 BAB017140	£1.50	£1.80
63 - BOLT BDE-BAC0608202 BAC0608202	£1.50	£1.80
64 - LOCKING RING BDE-BAF30102 BAF30102	£1.50	£1.80
65 - NUT BDE-BAD01061.A2 BAD01061	£1.50	£1.80
66 - PIN BDE-BAA050018-R BAA050018-R	£2.26	£2.71
67 - BOLT BDE-BAC0204122 BAC0204122	£1.50	£1.80
68 - BOLT BDE-BAC0404202.A7 BAC0404202	£1.50	£1.80
69 - NUT BDE-BAD01041.A14 BAD01041	£1.50	£1.80
70 - BOLT BDE-BAC0405252 BAC0405252	£1.50	£1.80
71 - WASHER BDE-BAE04061.A3 BAE04061	£1.50	£1.80
72 - BOLT BDE-BAC0606352.A0 BAC0606352	£1.50	£1.80
73 - BOLT BDE-BAC0605142.A0 BAC0605142	£1.50	£1.80
74 - O RING BDE-BAB024178 BAB024178	£1.50	£1.80
75 - PIN BDE-BAA040016.A13 BAA040016	£1.50	£1.80
76 - BOLT BDE-A06305001 A06305001	£1.50	£1.80
78 - BOLT BDE-A06304201 A06304201	£3.30	£3.96
79 - WASHER BDE-BAE01062.A1 BAE01062	£1.50	£1.80
80 - BOLT BDE-BAC0605122.A6 BAC0605122	£1.50	£1.80
81 - O RING BDE-BAB020235 BAB020235	£1.50	£1.80
82 - O RING BDE-BAB020240 BAB020240	£1.50	£1.80
83 - O RING BDE-BAB020245 BAB020245	£1.50	£1.80
84 - NUT BDE-BAD01051.A2 BAD01051	£1.50	£1.80
90 - ROD JM38 BDE-A06305701 A06305701	£16.03	£19.24
91 - ROD JM32 / JM25 BDE-A06305801 A06305801	£16.03	£19.24
826 - SPANNER SPECIAL BDE-C0010701.A4 C0010701	£5.88	£7.06

Attribute Name	Value
Brand	Bostitch
