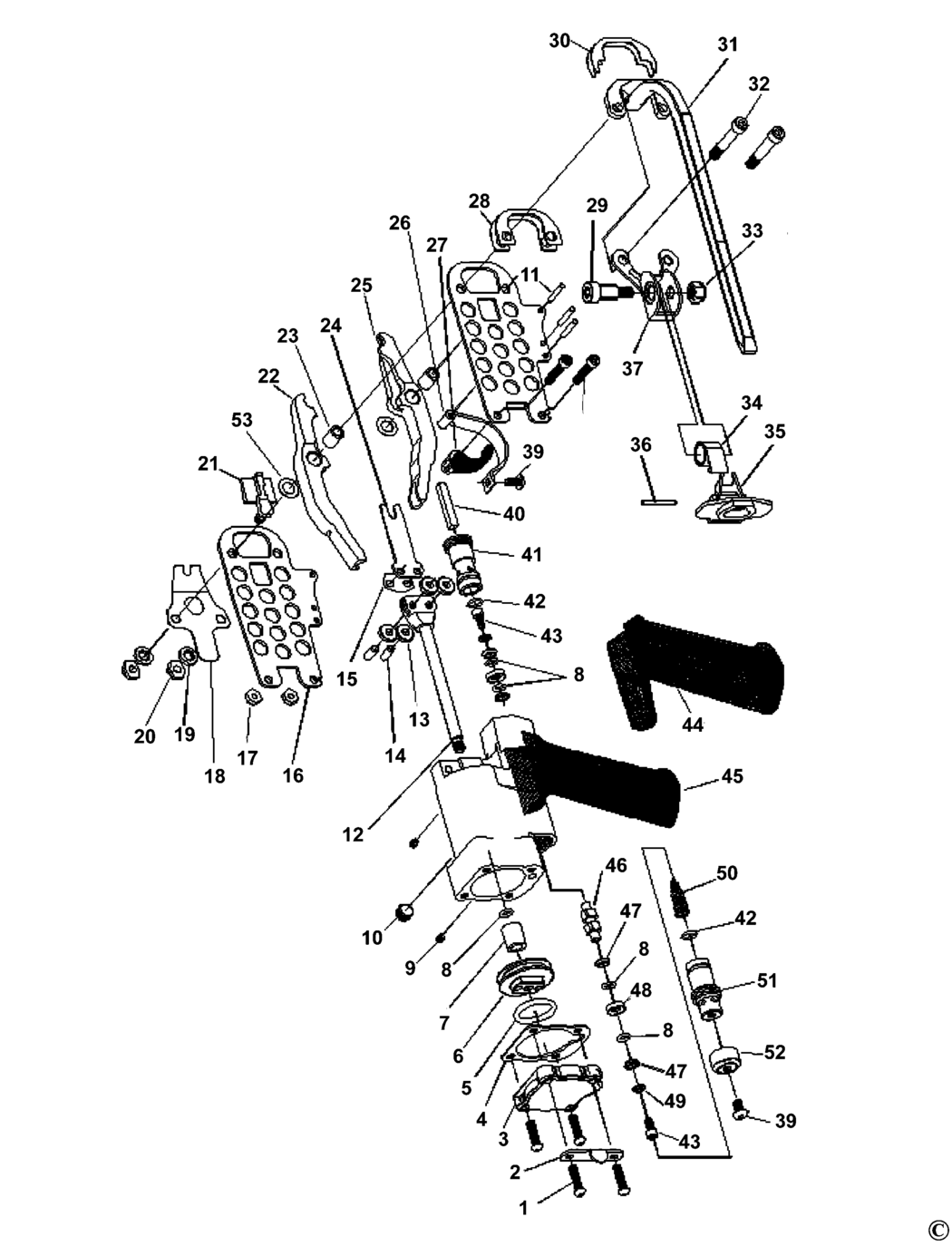

1 - SCREW
BDE-TL770216.A5
TL770216
|
£1.82
|
£2.19
|
|
|
2 - BRACKET
BDE-B04586.A2
B04586
|
£7.85
|
£9.42
|
|
|
3 - END CAP
BDE-B04582.A3
B04582
|
£14.57
|
£17.48
|
|
|
4 - NO LONGER AVAILABLE ORDER #3
BDE-000000-00.A64016
000000-00
|
-
|
|
|
|
5 - O RING
BDE-SC10.A3
SC10
|
£1.50
|
£1.80
|
|
|
6 - PISTON
BDE-B04572.A1
B04572
|
£37.82
|
£45.38
|
|
|
7 - BUSHING
BDE-SC102.A6
SC102
|
£5.88
|
£7.06
|
|
|
8 - O RING
BDE-SC08.A5
SC08
|
£1.50
|
£1.80
|
|
|
9 - SCREW
BDE-SC23.A22
SC23
|
£1.42
|
£1.70
|
|
|
10 - PLUG
BDE-1753.A1
1753
|
£1.42
|
£1.70
|
|
|
11 - ROLL PIN
BDE-SC05.A21
SC05
|
£14.57
|
£17.48
|
|
|
12 - PISTON
BDE-B04581.A2
B04581
|
£165.92
|
£199.11
|
|
|
13 - ROLLER
BDE-B01440.A3
B01440
|
£7.85
|
£9.42
|
|
|
14 - ROLLER
BDE-SC01.A14
SC01
|
£1.50
|
£1.80
|
|
|
15 - SHIM
BDE-A03116.A1
A03116
|
£4.58
|
£5.49
|
|
|
16 - PLATE SA
BDE-B04584F.A1
B04584F
|
£12.17
|
£14.60
|
|
|
17 - LOCK NUT
BDE-SC77.A2
SC77
|
£1.50
|
£1.80
|
|
|
18 - SPRING
BDE-B01438F.A1
B01438F
|
£9.41
|
£11.29
|
|
|
19 - WASHER
BDE-B01442.A9
B01442
|
£1.50
|
£1.80
|
|
|
20 - LOCK NUT
BDE-SC13.A22
SC13
|
£1.42
|
£1.70
|
|
|
21 - LATCH
BDE-C00716F.A0
C00716F
|
£58.69
|
£70.43
|
|
|
22 - JAW
BDE-C00715F.A3
C00715F
|
£113.07
|
£135.68
|
|
|
23 - BUSHING
BDE-B01441.A13
B01441
|
£17.48
|
£20.97
|
|
|
24 - BLADE
BDE-B00712F.A1
B00712F
|
£10.85
|
£13.02
|
|
|
25 - JAW
BDE-C01857F.A2
C01857F
|
£144.10
|
£172.92
|
|
|
26 - GUARD
BDE-B01435F.A20
B01435F
|
£7.18
|
£8.62
|
|
|
27 - TRIGGER
BDE-A02073F.A15
A02073F
|
£7.18
|
£8.62
|
|
|
28 - SHIM
BDE-A01911-S.A4
A01911-S
|
£4.58
|
£5.49
|
|
|
29 - PIN
BDE-A02592.A0
A02592
|
£10.57
|
£12.68
|
|
|
30 - SHOE
BDE-C00734F.A1
C00734F
|
£51.90
|
£62.28
|
|
|
31 - SPRING
BDE-A02004.A0
A02004
|
£1.82
|
£2.19
|
|
|
32 - SHIM
BDE-B1545010.A2
B1545010
|
£7.85
|
£9.42
|
|
|
33 - PIN
BDE-SC46.A0
SC46
|
£1.50
|
£1.80
|
|
|
35 - BOLT
BDE-B01507.A12
B01507
|
£12.17
|
£14.60
|
|
|
36 - NUT
BDE-TL727200.A8
TL727200
|
£2.71
|
£3.25
|
|
|
37 - SPRING
BDE-B01444.A6
B01444
|
£17.03
|
£20.44
|
|
|
38 - PUSHER
BDE-B01459F.A3
B01459F
|
£91.27
|
£109.53
|
|
|
39 - BRACKET
BDE-C04585.A0
C04585
|
£74.15
|
£88.98
|
|
|
40 - PIN
BDE-SC12.A1
SC12
|
£1.42
|
£1.70
|
|
|
41 - SCREW
BDE-TL710216.A5
TL710216
|
£2.26
|
£2.71
|
|
|
42 - SCREW
BDE-SC18.A10
SC18
|
£1.50
|
£1.80
|
|
|
43 - PIN
BDE-B01425F.A21
B01425F
|
£2.26
|
£2.71
|
|
|
44 - VALVE SEAT
BDE-B03042.A20
B03042
|
£14.57
|
£17.48
|
|
|
45 - O RING
BDE-SC09.A21
SC09
|
£7.18
|
£8.62
|
|
|
46 - SCREW
BDE-SC21.A18
SC21
|
£7.18
|
£8.62
|
|
|
47 - GRIP
BDE-C03916.A2
C03916
|
£23.75
|
£28.50
|
|
|
48 - CYLINDER SA
BDE-AD04579F.A2
AD04579F
|
£552.78
|
£663.34
|
|
|
49 - SPACER
BDE-B03044.A21
B03044
|
£9.41
|
£11.29
|
|
|
50 - SUPPORT
BDE-B01421.A24
B01421
|
£1.50
|
£1.80
|
|
|
51 - SUPPORT
BDE-B01422.A3
B01422
|
£2.71
|
£3.25
|
|
|
52 - WASHER
BDE-B01455.A15
B01455
|
£1.50
|
£1.80
|
|
|
53 - SPRING
BDE-B04587.A2
B04587
|
£10.85
|
£13.02
|
|
|
54 - VALVE SEAT
BDE-B03043.A3
B03043
|
£17.48
|
£20.97
|
|
|
55 - DEFLECTOR
BDE-B01426.A4
B01426
|
£3.80
|
£4.56
|
|
|
56 - SCREW
BDE-TL770204.A1
TL770204
|
£1.50
|
£1.80
|
|
|
57 - WASHER SPRING
BDE-B01891.A5
B01891
|
£2.21
|
£2.65
|
|
