Bostitch 442-F/3-15 Type REV 0 Ringer Spare Parts

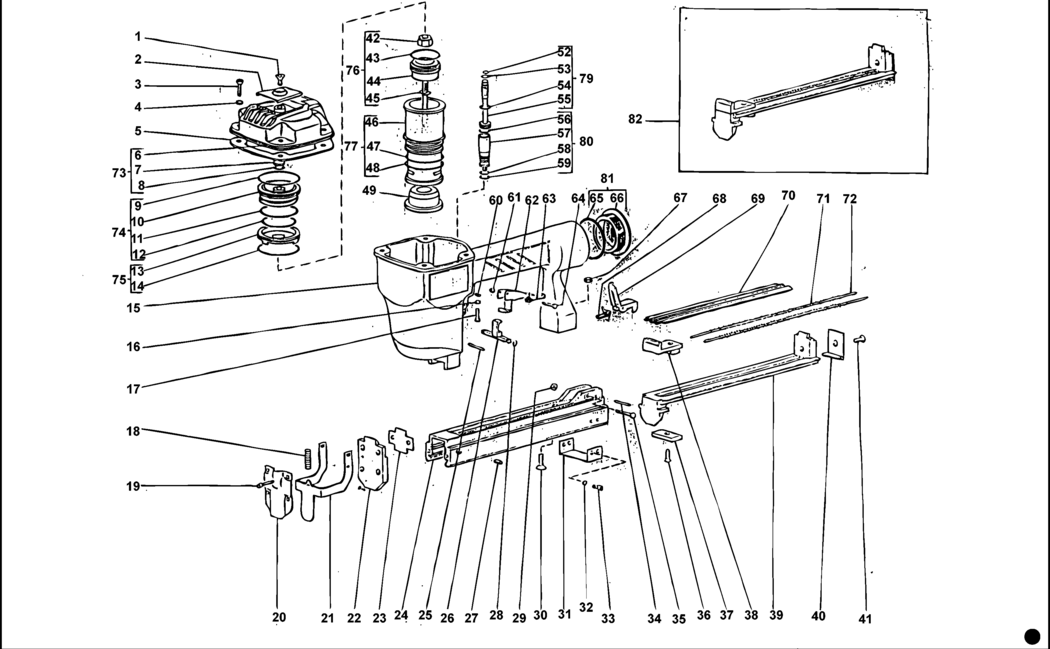

An exploded drawing and spare parts listing for the Bostitch 442-F/3-15 Type REV 0 Ringer

	Ex VAT	Inc VAT
1 - SCREW BDE-B000028A12.A1 B000028A12	£4.69	£5.63
2 - DEFLECTOR BDE-C440101A01 C440101A01	-
3 - SCREW BDE-B000028C04.A4 B000028C04	£24.39	£29.27
4 - WASHER BDE-C450180A01.A2 C450180A01	£16.03	£19.24
5 - GASKET BDE-C440181A01 C440181A01	-
6 - CAP BDE-D440123A01.A1 D440123A01	-
7 - PELLET BDE-C240160A01.A0 C240160A01	£18.91	£22.69
8 - O RING BDE-B000020A06.A2 B000020A06	£3.80	£4.56
9 - O RING BDE-B000020A43.A1 B000020A43	£3.30	£3.96
10 - PISTON BDE-D440202A01.A0 D440202A01	-
11 - O RING BDE-B000020A40.A0 B000020A40	£3.30	£3.96
12 - O RING BDE-B000020A39.A5 B000020A39	£2.78	£3.34
13 - HOLDER BDE-D440204A01.A1 D440204A01	-
14 - O RING BDE-B000020A44.A0 B000020A44	£3.30	£3.96
16 - NUT BDE-B000023A02.A1 B000023A02	-
17 - SCREW BDE-B000028D08 B000028D08	-
18 - SPRING BDE-C230661A01.A2 C230661A01	£9.41	£11.29
19 - SCREW BDE-B000028C04.A3 B000028C04	£24.39	£29.27
20 - SAFETY KEY BDE-C442681U01 C442681U01	-
21 - SAFETY KEY BDE-C442600U01 C442600U01	-
22 - PLATE BDE-C442540U01 C442540U01	-
23 - HOLDER BDE-C442500U01 C442500U01	-
24 - GUIDE BDE-D442726U01 D442726U01	-
25 - SPIROL PIN BDE-B000026A05.A0 B000026A05	£3.30	£3.96
26 - PLATE BDE-D442484A01 D442484A01	-
27 - SCREW BDE-B000027A12 B000027A12	-
28 - RING BDE-B000021C01.A26 B000021C01	£1.66	£1.99
29 - LOCK NUT BDE-B000023B01.A0 B000023B01	£7.18	£8.62
30 - SCREW BDE-B000028A17 B000028A17	-
31 - MAGAZINE SA BDE-C342987A01 C342987A01	-
32 - WASHER SPRING BDE-B000022A01.A5 B000022A01	£3.30	£3.96
33 - SCREW BDE-B000028B03.A1 B000028B03	-
34 - PIN BDE-B000026A02 B000026A02	-
35 - SCREW BDE-B000028D02 B000028D02	-
36 - SCREW BDE-B000028A01.A0 B000028A01	-
37 - PLATE BDE-C342866U01 C342866U01	£40.21	£48.25
38 - NO LONGER AVAILABLE BDE-000000-00.A31069 000000-00	-
39 - MAGAZINE SA BDE-D442984U01.A0 D442984U01	-
40 - MAGAZINE BDE-C342967U01 C342967U01	-
41 - NO LONGER AVAILABLE BDE-000000-00.A31070 000000-00	-
42 - NUT BDE-C331222A01 C331222A01	-
43 - O RING BDE-B000020A52 B000020A52	-
44 - PISTON BDE-C442220A01 C442220A01	-
45 - DRIVER BDE-C442225U01 C442225U01	-
46 - CYLINDER SA BDE-D442241A02.A1 D442241A02	-
47 - O RING BDE-B000020A60 B000020A60	-
48 - O RING BDE-B000020A40.A1 B000020A40	£3.30	£3.96
49 - BUMPER BDE-C642244A01 C642244A01	-
52 - O RING BDE-B000020B02.A1 B000020B02	£14.57	£17.48
53 - O RING BDE-B000020B01.A2 B000020B01	£3.30	£3.96
54 - O RING BDE-B000020A02.A1 B000020A02	£3.30	£3.96
55 - CONTROL SA BDE-D450304A01.A3 D450304A01	£80.98	£97.18
56 - O RING BDE-B000020A19.A2 B000020A19	£3.30	£3.96
57 - CONTROL SA BDE-D450361A01.A3 D450361A01	£200.77	£240.92
58 - O RING BDE-B000020A19.A3 B000020A19	£3.30	£3.96
59 - O RING BDE-B000020A02.A0 B000020A02	£3.30	£3.96
60 - SCREW BDE-B000027B01.A0 B000027B01	-
61 - LOCK NUT BDE-B000023B01.A1 B000023B01	£7.18	£8.62
62 - TRIGGER BDE-D430442A01 D430442A01	-
63 - SPRING BDE-C430401A01.A0 C430401A01	-
64 - SCREW BDE-C430425A01.A1 C430425A01	-
65 - O RING BDE-B000020A42.A2 B000020A42	£3.30	£3.96
66 - BUSH BDE-D450283A01.A3 D450283A01	£125.16	£150.19
67 - LOCK NUT BDE-B000023B03.A1 B000023B03	£4.69	£5.63
68 - SPRING BDE-C016761A01.A6 C016761A01	£10.57	£12.68
69 - LATCH BDE-C442760A01 C442760A01	-
70 - PLATE BDE-C442740U01 C442740U01	-
71 - SPRING BDE-C342842U01 C342842U01	-
72 - BAR BDE-C342840U01 C342840U01	-
73 - CAP BDE-D440123A01.A0 D440123A01	-
74 - PISTON BDE-D440202A01.A1 D440202A01	-
75 - HOLDER BDE-D440204A01.A0 D440204A01	-
76 - DRIVER BDE-D442226U01 D442226U01	-
77 - CYLINDER SA BDE-D442241A02.A0 D442241A02	-
78 - CONTROL SA BDE-D450304A01.A2 D450304A01	£80.98	£97.18
80 - CONTROL SA BDE-D450361A01.A2 D450361A01	£200.77	£240.92
81 - BUSH BDE-D450283A01.A2 D450283A01	£125.16	£150.19
82 - MAGAZINE SA BDE-D442984U01.A1 D442984U01	-

Attribute Name	Value
Brand	Bostitch
