Bostitch P110SJ-E Type REV C Pneumatic Stapler Spare Parts

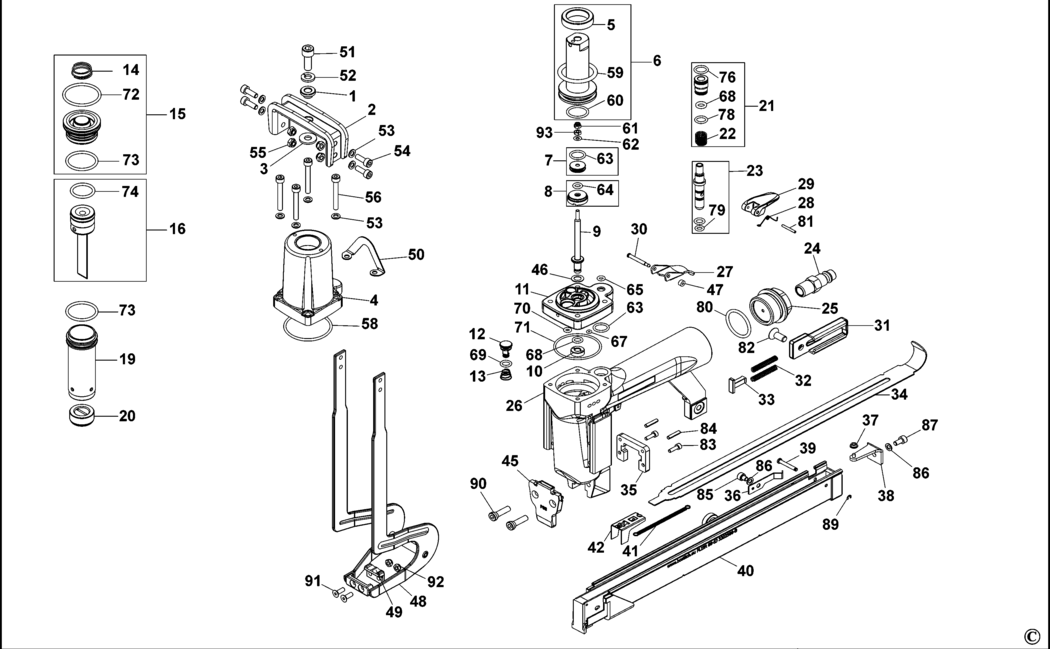

An exploded drawing and spare parts listing for the Bostitch P110SJ-E Type REV C Pneumatic Stapler

	Ex VAT	Inc VAT
1 - BUSHING BDE-A61608201.A0 A61608201	£4.69	£5.63
2 - BRIDGE BDE-A61601501.A0 A61601501	£10.85	£13.02
3 - WASHER BDE-A61604701.A0 A61604701	£1.50	£1.80
4 - HOUSING BDE-A61600401A.A0 A61600401A	£47.08	£56.49
5 - WASHER BDE-A61604501.A0 A61604501	£4.69	£5.63
6 - PISTON SA UPPER PISTON BDE-C6163001.A0 C6163001	£55.30	£66.36
7 - PISTON INNER PISTON BDE-C6163004.A1 C6163004	£3.80	£4.56
8 - STOP NUT BDE-C6163005.A0 C6163005	£10.85	£13.02
9 - SHAFT BDE-A61607601A.A0 A61607601A	£30.08	£36.10
10 - NUT BDE-A61607801.A1 A61607801	£9.41	£11.29
11 - DIAPHRAGM BDE-A61600501A.A1 A61600501A	£25.70	£30.84
12 - VALVE BDE-A61606001.A0 A61606001	£10.85	£13.02
13 - SPRING BDE-A61606201.A1 A61606201	£1.50	£1.80
14 - SPRING BDE-A61608601.A1 A61608601	£1.50	£1.80
15 - VALVES & SEALS KIT BDE-C6163002.A1 C6163002	£78.12	£93.74
16 - PISTON SA P110 BDE-P110-P5.A5 P110-P5	£41.24	£49.49
19 - CYLINDER BDE-A61607101.A1 A61607101	£104.31	£125.17
20 - BUMPER BDE-A61603701.A0 A61603701	£5.88	£7.06
21 - VALVE BODY BDE-C6163003.A1 C6163003	£19.90	£23.88
22 - SPRING BDE-A61608401.A1 A61608401	£1.50	£1.80
23 - SHAFT SA BDE-C6163006.A1 C6163006	£14.57	£17.48
24 - CONNECTOR MALE BDE-A00100805.A1 A00100805	£3.30	£3.96
25 - END CAP BDE-P88-P7-1.A1 P88-P7-1	£30.08	£36.10
27 - TRIGGER BDE-A61602701.A0 A61602701	£3.30	£3.96
28 - SPRING BDE-A61609001.A0 A61609001	£1.50	£1.80
29 - STOP PLATE BDE-A61602901.A1 A61602901	£7.18	£8.62
30 - PIN BDE-A61606801.A1 A61606801	£3.30	£3.96
31 - PLATE BDE-A61601402.A1 A61601402	£16.03	£19.24
32 - SPRING COMPRESSION BDE-A61608801.A0 A61608801	£1.50	£1.80
33 - BLOCK BDE-A61600701.A1 A61600701	£7.85	£9.42
34 - COVER BDE-A61600801.A0 A61600801	£12.17	£14.60
35 - PLATE BDE-A61604601.A1 A61604601	£10.85	£13.02
36 - STOP BDE-A61601801.A0 A61601801	£1.82	£2.19
37 - BUSHING BDE-A61608701.A1 A61608701	£2.26	£2.71
38 - REAR BRACKET BDE-A61604101A.A6 A61604101A	£12.17	£14.60
39 - PIN BDE-A61607001.A0 A61607001	£4.69	£5.63
40 - MAGAZINE P110 BDE-C6163008.A0 C6163008	£245.11	£294.13
41 - SPRING TORSION BDE-A61609101.A1 A61609101	£4.69	£5.63
42 - PAWL P110 BDE-A61700101.A0 A61700101	£3.80	£4.56
45 - GUIDE P110 BDE-A61700301A A61700301A	£44.14	£52.97
46 - WASHER BDE-A61608901.A1 A61608901	£1.50	£1.80
47 - RING BDE-A50500501.A1 A50500501	£1.50	£1.80
48 - JAW BDE-A61601901A.A1 A61601901A	£115.77	£138.92
49 - ANVIL BDE-A61601702.A1 A61601702	£24.39	£29.27
50 - BRACKET BDE-A61605301.A1 A61605301	£3.30	£3.96
51 - BOLT BDE-BAC0406162.A1 BAC0406162	£1.50	£1.80
52 - WASHER BDE-BAE01062.A3 BAE01062	£1.50	£1.80
53 - WASHER BDE-A61609301.A0 A61609301	£1.50	£1.80
54 - BOLT BDE-BAC0404122.A1 BAC0404122	£1.50	£1.80
55 - NUT BDE-BAD01041.A3 BAD01041	£1.50	£1.80
56 - BOLT BDE-BAC0404302.A0 BAC0404302	£1.50	£1.80
58 - O RING BDE-BAB020350.A0 BAB020350	£1.50	£1.80
59 - O RING BDE-BAB035281.A1 BAB035281	£1.50	£1.80
60 - O RING BDE-BAB019160.A1 BAB019160	£1.50	£1.80
61 - NUT BDE-BAD01031.A0 BAD01031	£1.50	£1.80
62 - WASHER BDE-A61609601.A0 A61609601	£1.50	£1.80
63 - O RING BDE-BAB017108.A1 BAB017108	£1.50	£1.80
64 - O RING BDE-BAB018048.A2 BAB018048	£1.50	£1.80
65 - O RING BDE-BAB017036.A1 BAB017036	£1.50	£1.80
67 - O RING BDE-BAB015018.A0 BAB015018	£1.50	£1.80
68 - O RING BDE-BAB017060.A1 BAB017060	£1.50	£1.80
69 - O RING BDE-BAB017067.A0 BAB017067	£1.50	£1.80
70 - O RING BDE-BAB019034.A0 BAB019034	£1.50	£1.80
71 - O RING BDE-BAB017378.A0 BAB017378	£1.50	£1.80
72 - O RING BDE-BAB026345.A0 BAB026345	£1.50	£1.80
73 - O RING BDE-BAB026282.A1 BAB026282	£1.50	£1.80
74 - O RING BDE-BAB026202.A1 BAB026202	£1.50	£1.80
76 - O RING BDE-BAB017092.A0 BAB017092	£1.50	£1.80
78 - O RING BDE-BAB017076.A1 BAB017076	£1.50	£1.80
79 - O RING BDE-BAB017044.A0 BAB017044	£1.50	£1.80
80 - O RING BDE-BAB026250.A0 BAB026250	£1.50	£1.80
81 - PIN BDE-BAA020016.A0 BAA020016	£1.50	£1.80
82 - BOLT BDE-BAC0206122.A1 BAC0206122	£1.50	£1.80
83 - BOLT BDE-BAC0403102.A0 BAC0403102	£1.50	£1.80
84 - SPRING BDE-BAA030010.A20 BAA030010	£1.50	£1.80
85 - BOLT BDE-BAC0404062.A1 BAC0404062	£1.50	£1.80
86 - WASHER BDE-A61609301.A1 A61609301	£1.50	£1.80
87 - BOLT BDE-BAC0404102.A6 BAC0404102	£1.50	£1.80
89 - CIRCLIP BDE-BAF10252.A9 BAF10252	£1.50	£1.80
90 - BOLT BDE-A61609401.A1 A61609401	£1.50	£1.80
91 - SCREW BDE-BAC0204142.A0 BAC0204142	£1.50	£1.80
92 - NUT BDE-BAD01041.A2 BAD01041	£1.50	£1.80
93 - NUT BDE-BAD04031.A0 BAD04031	£1.50	£1.80

Attribute Name	Value
Brand	Bostitch
