Bostitch SB156SX-1-E Type REV A Finish Nailer Spare Parts

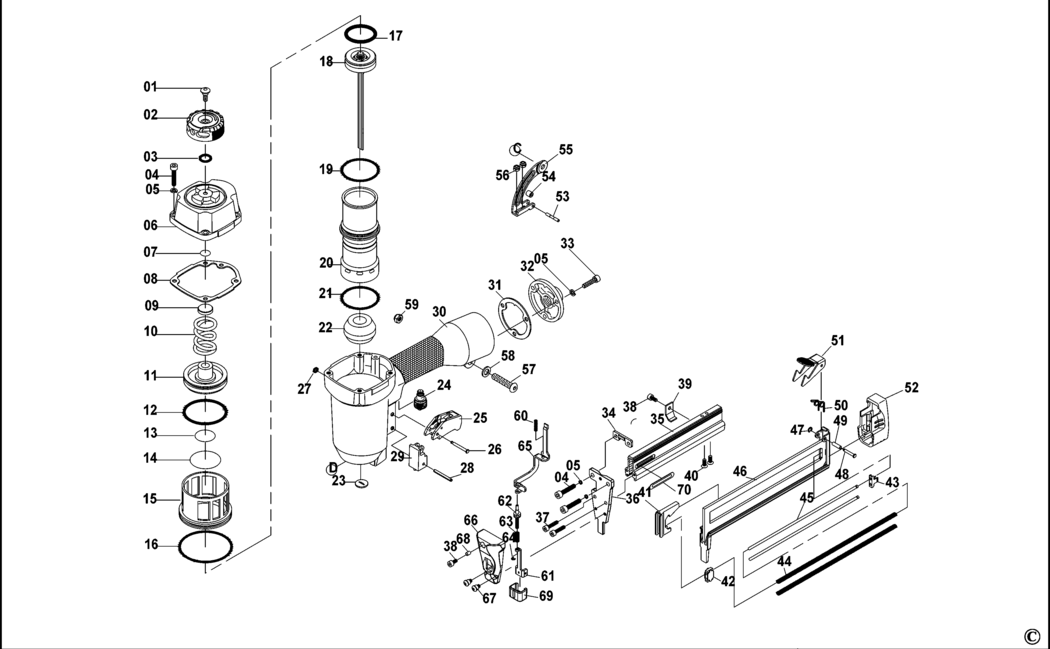

An exploded drawing and spare parts listing for the Bostitch SB156SX-1-E Type REV A Finish Nailer

	Ex VAT	Inc VAT
1 - SCREW BDE-OA5131I1.A2 OA5131I1	£1.50	£1.80
2 - EXHAUST BDE-OA1162E1.A5 OA1162E1	£1.50	£1.80
3 - O RING BDE-S06P000900.A4 S06P000900	£1.50	£1.80
4 - SCREW BDE-174047.A1 174047	£1.50	£1.80
5 - NO LONGER AVAILABLE BDE-000000-00.A30544 000000-00	-
6 - DEFLECTOR BDE-P1630000340.A2 P1630000340	£10.85	£13.02
7 - O RING BDE-1FP0018.A17 1FP0018	£1.50	£1.80
8 - SEAL BDE-PA1151I1.A4 PA1151I1	£1.50	£1.80
9 - SEAL BDE-PB1021W1.A2 PB1021W1	£1.42	£1.70
10 - SPRING BDE-180532.A4 180532	£1.50	£1.80
11 - PISTON BDE-PA1051W1.A1 PA1051W1	£9.41	£11.29
12 - O RING BDE-1FZ0006.A2 1FZ0006	£1.50	£1.80
13 - O RING BDE-1FP2025.A1 1FP2025	£1.50	£1.80
14 - O RING BDE-1FP2038.A4 1FP2038	£1.50	£1.80
15 - COLLAR BDE-PA1091E1.A4 PA1091E1	£2.26	£2.71
16 - O RING BDE-1FA0142.A3 1FA0142	-
17 - O RING BDE-1FP0032.A1 1FP0032	£1.50	£1.80
18 - DRIVER BDE-G0209500 G0209500	£25.70	£30.84
19 - O RING BDE-1FA0130.A2 1FA0130	£1.50	£1.80
20 - CYLINDER BDE-P1632000700.A2 P1632000700	£10.85	£13.02
21 - O RING BDE-1FP0042.A4 1FP0042	£1.50	£1.80
22 - BUMPER BDE-PA1111O1.A1 PA1111O1	£2.78	£3.34
23 - GUIDE BDE-P1745201262.A1 P1745201262	£1.50	£1.80
24 - TRIGGER BDE-PB205BA1.A1 PB205BA1	£10.85	£13.02
25 - TRIGGER BDE-G1300701 G1300701	£2.26	£2.71
26 - PIN BDE-JA2071W1.A10 JA2071W1	£1.50	£1.80
27 - O RING BDE-174073.A23 174073	£1.50	£1.80
28 - NO LONGER AVAILABLE BDE-000000-00.A30545 000000-00	-
29 - GUIDE BDE-PB5141E1.A1 PB5141E1	£1.50	£1.80
30 - BODY BDE-PA3301A1.A1 PA3301A1	£37.35	£44.82
31 - SEAL BDE-OA3651I1.A5 OA3651I1	£1.50	£1.80
32 - END CAP BDE-9R207530.A0 9R207530	£4.69	£5.63
33 - SCREW BDE-9R199720.A35 9R199720	£1.50	£1.80
34 - SPACER BDE-P1735200262.A0 P1735200262	£1.50	£1.80
35 - MAGAZINE BDE-P1730000763 P1730000763	£16.03	£19.24
36 - COVER BDE-P1806300165.A0 P1806300165	£7.85	£9.42
37 - BOLT BDE-S0110418100.A0 S0110418100	£1.50	£1.80
38 - BOLT BDE-S0110408100.A12 S0110408100	£1.50	£1.80
39 - STOP PLATE BDE-JV4132I1.A0 JV4132I1	£1.50	£1.80
40 - SCREW BDE-S0310410100.A1 S0310410100	£1.50	£1.80
41 - PUSHER BDE-JV4092I1.A2 JV4092I1	£1.50	£1.80
42 - SLIDE BDE-JV4812E1.A2 JV4812E1	£1.50	£1.80
43 - CONNECTOR BDE-JV4902I1.A1 JV4902I1	£1.50	£1.80
44 - SPRING BDE-JV4142S1.A2 JV4142S1	£1.50	£1.80
45 - GUIDE BDE-JV4152I1.A1 JV4152I1	£1.50	£1.80
46 - MAGAZINE BDE-P1736300965 P1736300965	£24.39	£29.27
47 - NO LONGER AVAILABLE BDE-000000-00.A30546 000000-00	-
48 - PIN BDE-JV4182W1.A2 JV4182W1	£1.50	£1.80
49 - BUSHING BDE-JV4612W1.A2 JV4612W1	£1.50	£1.80
50 - SPRING BDE-JV4192S1.A1 JV4192S1	£1.50	£1.80
51 - LEVER BDE-P1736300865.A0 P1736300865	£1.50	£1.80
52 - COVER BDE-JV4262O1.A2 JV4262O1	£3.80	£4.56
53 - PIN BDE-JV4272W1.A1 JV4272W1	£1.50	£1.80
54 - PLUG BDE-JV4712W1.A1 JV4712W1	£1.50	£1.80
55 - BRACKET BDE-P1746301365.A1 P1746301365	£1.50	£1.80
56 - NUT M4 BDE-MHE4070-100.A66 MHE4070-100	£1.50	£1.80
57 - SCREW BDE-1L106201.A2 1L106201	£1.50	£1.80
58 - NO LONGER AVAILABLE BDE-000000-00.A30547 000000-00	-
59 - LOCK NUT BDE-1G106.A4 1G106	£1.50	£1.80
60 - SPRING BDE-PB5092S1.A4 PB5092S1	£1.50	£1.80
61 - BRACKET BDE-P1805200562.A1 P1805200562	£3.30	£3.96
62 - KNOB BDE-JA5161W1.A2 JA5161W1	£1.50	£1.80
63 - SPRING BDE-JA5092S1.A2 JA5092S1	£1.50	£1.80
64 - CLIP BDE-1I1020.A2 1I1020	£1.50	£1.80
65 - BRACKET BDE-G3801762.A1 G3801762	£1.82	£2.19
66 - COVER BDE-P1780002466.A0 P1780002466	£1.50	£1.80
67 - SCREW BDE-P0635200762.A1 P0635200762	£1.50	£1.80
68 - BUSH BDE-P1785202162.A1 P1785202162	£1.50	£1.80
69 - SLEEVE BDE-P1800000866.A0 P1800000866	£1.50	£1.80
70 - NO LONGER AVAILABLE BDE-000000-00.A30548 000000-00	-

Attribute Name	Value
Brand	Bostitch
