Bostitch RN46DW-1 Type REV A Nailer Spare Parts

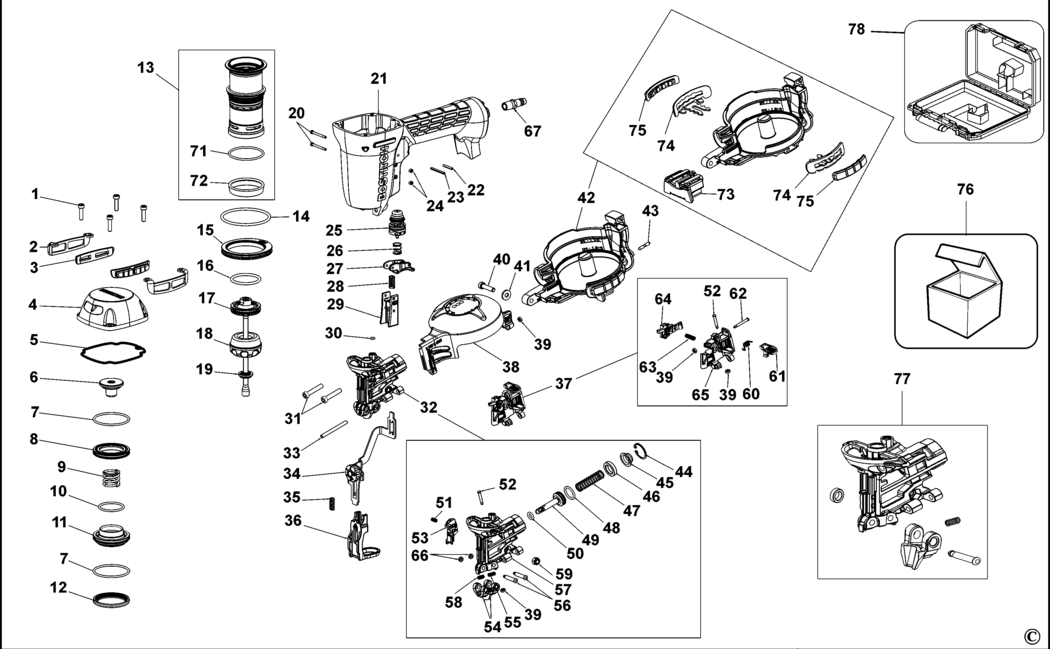

An exploded drawing and spare parts listing for the Bostitch RN46DW-1 Type REV A Nailer

	Ex VAT	Inc VAT
1 - SCREW BDE-MSC5080-20.A42 MSC5080-20	£1.50	£1.80
2 - PLATE BDE-149833.A1 149833	£1.50	£1.80
3 - GUIDE BDE-149819.A4 149819	£1.50	£1.80
4 - CAP BDE-149808.A0 149808	£18.91	£22.69
5 - SEAL BDE-149832.A3 149832	£1.50	£1.80
6 - VALVE BDE-149838.A3 149838	£2.26	£2.71
7 - O RING BDE-149828.A3 149828	£1.50	£1.80
8 - VALVE BODY BDE-149836.A3 149836	£1.50	£1.80
9 - SPRING BDE-149806.A6 149806	£1.50	£1.80
10 - O RING BDE-149842.A3 149842	£1.50	£1.80
11 - VALVE BODY BDE-149839.A3 149839	£2.26	£2.71
12 - SEAL BDE-149840.A3 149840	£1.50	£1.80
13 - SLEEVE SA BDE-9R217792.A3 9R217792	£10.85	£13.02
14 - O RING BDE-850766.A3 850766	£5.88	£7.06
15 - RING BDE-149814.A0 149814	£1.50	£1.80
16 - O RING BDE-850607.A11 850607	£1.50	£1.80
17 - PISTON SA BDE-9R195148.A0 9R195148	£41.24	£49.49
18 - BUMPER BDE-191777.A0 191777	£7.85	£9.42
19 - GUIDE BDE-149820.A3 149820	£1.50	£1.80
20 - SCREW BDE-105811.A19 105811	£1.50	£1.80
22 - PIN BDE-MPP030020.A55 MPP030020	£1.50	£1.80
23 - PIN BDE-100298.A41 100298	£1.50	£1.80
24 - NUT BDE-MHE3050-100.A29 MHE3050-100	£1.50	£1.80
25 - VALVE BDE-TVA11.A9 TVA11	£65.52	£78.62
26 - SPRING BDE-100387.A2 100387	£1.50	£1.80
27 - TRIGGER RN46DW-1-E BDE-107581.A2 107581	£2.78	£3.34
27 - TRIGGER RN46DW-2-E / -2-M BDE-107582.A3 107582	£1.82	£2.19
28 - SPRING BDE-149871.A3 149871	£1.50	£1.80
29 - GUIDE BDE-107522.A9 107522	£4.69	£5.63
30 - O RING BDE-149885.A3 149885	£1.50	£1.80
31 - SCREW BDE-MSC6100-30.A50 MSC6100-30	£1.50	£1.80
32 - NOSE SA BDE-9R195145.A0 9R195145	£135.36	£162.43
33 - PIN BDE-149905.A3 149905	£1.50	£1.80
34 - NO LONGER AVAILABLE BDE-000000-00.A63905 000000-00	-
35 - SPRING BDE-149874.A3 149874	£1.50	£1.80
36 - ARM LINK BDE-9R193689.A0 9R193689	£16.03	£19.24
37 - DOOR BDE-9R195146.A1 9R195146	£37.35	£44.82
38 - COVER-TOP BDE-149943.A4 149943	£5.88	£7.06
39 - RETAINER BDE-N12112.A4 N12112	£1.50	£1.80
40 - BOLT BDE-MSC6100-25.A11 MSC6100-25	£1.50	£1.80
41 - WASHER BDE-MPW6.2.A33 MPW6.2	£1.50	£1.80
42 - CANISTER BDE-149939.A4 149939	£34.00	£40.80
43 - PIN BDE-149907.A3 149907	£1.50	£1.80
44 - RETAINER BDE-149854.A3 149854	£1.50	£1.80
45 - COLLAR BDE-149853.A2 149853	£1.50	£1.80
46 - STOP BDE-149855.A2 149855	£1.50	£1.80
47 - SPRING BDE-149887.A2 149887	£1.50	£1.80
48 - O RING BDE-88998.A2 88998	£16.03	£19.24
49 - PISTON BDE-149852.A3 149852	£10.85	£13.02
50 - O RING BDE-149883.A3 149883	£1.50	£1.80
51 - SPRING BDE-149859.A3 149859	£1.50	£1.80
52 - PIN BDE-149882.A6 149882	£1.50	£1.80
53 - PAWL BDE-9R205576.A0 9R205576	£16.03	£19.24
54 - JAW BDE-9R195151.A0 9R195151	£7.18	£8.62
55 - SPRING BDE-9R195372.A2 9R195372	£1.50	£1.80
56 - PIN BDE-9R193692.A3 9R193692	£1.50	£1.80
57 - NOSE BDE-9R195141.A0 9R195141	£99.47	£119.36
58 - SPRING BDE-9R195371.A1 9R195371	£1.50	£1.80
59 - NUT BDE-MHE6100-100.A51 MHE6100-100	£1.50	£1.80
60 - SPRING TORSION BDE-149831.A2 149831	£1.50	£1.80
61 - LATCH BDE-149861.A2 149861	£4.69	£5.63
62 - PIN BDE-149886.A3 149886	£1.50	£1.80
63 - SPRING BDE-149898.A3 149898	£1.50	£1.80
64 - PAWL BDE-9R195142.A2 9R195142	£7.18	£8.62
65 - DOOR BDE-9R195150.A1 9R195150	£18.91	£22.69
66 - PIN BDE-9R195750.A1 9R195750	£1.50	£1.80
67 - 1/4" FITTING RN46DW-2-M BDE-9R195624.A0 9R195624	£1.50	£1.80
67 - EURO NIPPLE 1/4 MALE RN46DW-1-E + 2-E BDE-10.320.5152.A4 10.320.5152	£14.57	£17.48
71 - O RING BDE-149829.A2 149829	£1.50	£1.80
72 - SEAL BDE-149812.A5 149812	£1.50	£1.80
73 - CABLE GUIDE BDE-149940.A0 149940	£3.80	£4.56
74 - GUARD BDE-161236.A3 161236	£1.50	£1.80
75 - PAD BDE-149866.A3 149866	£1.50	£1.80
76 - SERVICE KIT REBUILD KIT BDE-RN46-RK.A2 RN46-RK	£44.14	£52.97
77 - KIT JAW SPRING BDE-9R195794.A2 9R195794	£2.78	£3.34
78 - KITBOX BDE-9R195707 9R195707	£30.08	£36.10
