Bostitch RN46-2 Type REV 0 Coil Nailer Spare Parts

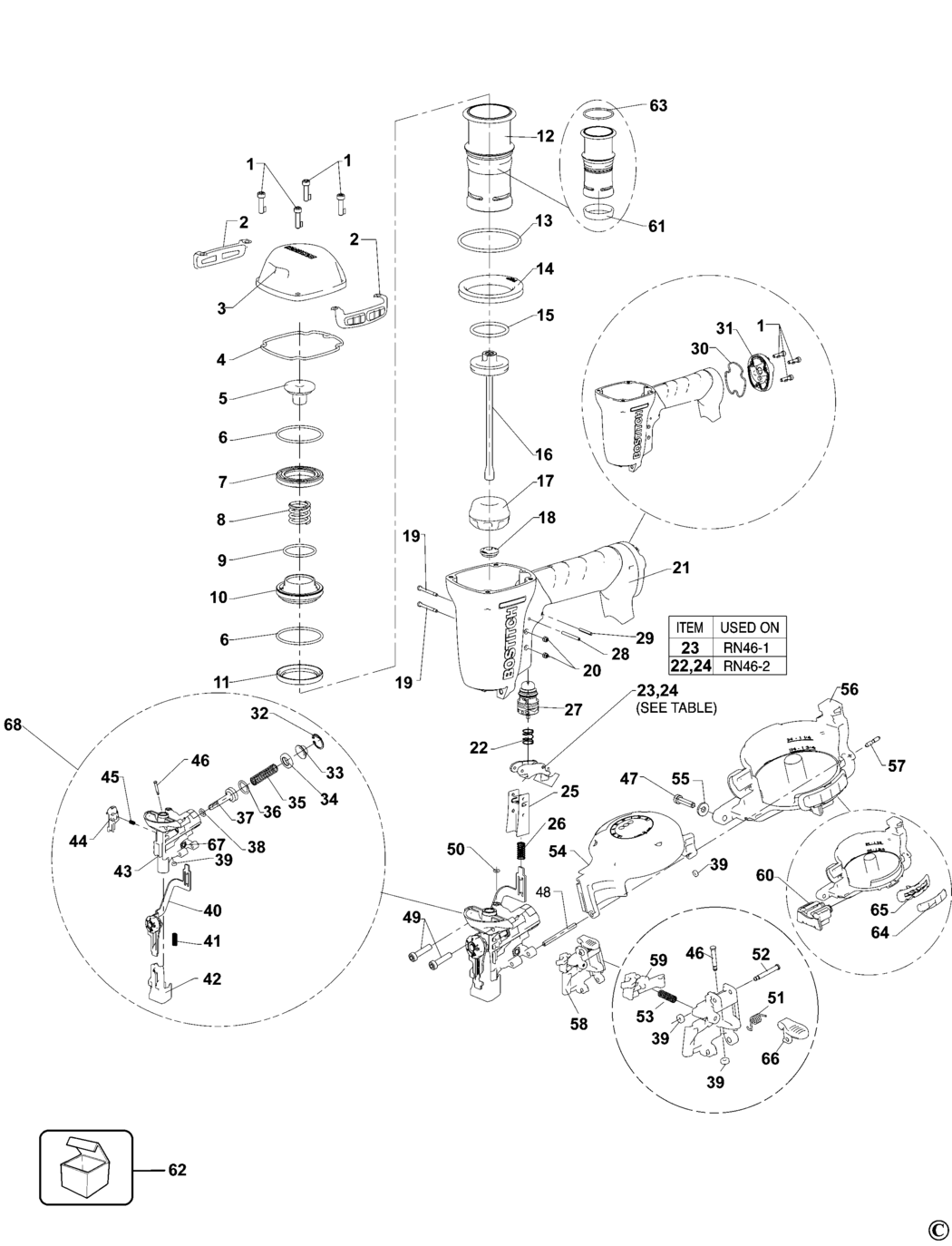

An exploded drawing and spare parts listing for the Bostitch RN46-2 Type REV 0 Coil Nailer

	Ex VAT	Inc VAT
1 - SCREW BDE-MSC5080-20.A23 MSC5080-20	£1.50	£1.80
2 - PLATE BDE-149845.A0 149845	£1.50	£1.80
3 - CAP BDE-149808.A1 149808	£18.91	£22.69
4 - SEAL BDE-149832.A4 149832	£1.50	£1.80
5 - VALVE BDE-149838.A0 149838	£2.26	£2.71
6 - O RING BDE-149828.A1 149828	£1.50	£1.80
7 - VALVE BODY BDE-149836.A6 149836	£1.50	£1.80
8 - SPRING BDE-149806.A5 149806	£1.50	£1.80
9 - O RING BDE-149842.A6 149842	£1.50	£1.80
10 - VALVE BODY BDE-149839.A6 149839	£2.26	£2.71
11 - SEAL BDE-149840.A0 149840	£1.50	£1.80
12 - SLEEVE SA BDE-9R217792.A1 9R217792	£10.85	£13.02
13 - O RING BDE-850766.A1 850766	£5.88	£7.06
14 - RING BDE-149814.A2 149814	£1.50	£1.80
15 - O RING BDE-850607.A6 850607	£1.50	£1.80
16 - DRIVER SA BDE-149826.A0 149826	£45.14	£54.17
17 - BUMPER BDE-191777.A2 191777	£7.85	£9.42
18 - GUIDE BDE-149820.A6 149820	£1.50	£1.80
19 - SCREW BDE-105811.A18 105811	£1.50	£1.80
20 - NUT BDE-MHE3050-100.A24 MHE3050-100	£1.50	£1.80
21 - HOUSING SA BDE-9R202298.A1 9R202298	£58.69	£70.43
22 - SPRING BDE-100387.A10 100387	£1.50	£1.80
23 - TRIGGER BDE-107581.A3 107581	£2.78	£3.34
24 - TRIGGER BDE-107582.A1 107582	£1.82	£2.19
25 - GUIDE BDE-107522.A7 107522	£4.69	£5.63
26 - SPRING BDE-149871.A5 149871	£1.50	£1.80
27 - VALVE BDE-TVA6.A38 TVA6	£16.03	£19.24
28 - PIN BDE-100298.A25 100298	£1.50	£1.80
29 - PIN BDE-MPP030020.A47 MPP030020	£1.50	£1.80
30 - SEAL BDE-149816.A2 149816	£1.50	£1.80
31 - CAP BDE-149817.A0 149817	£7.85	£9.42
32 - RETAINER BDE-149854.A1 149854	£1.50	£1.80
33 - COLLAR BDE-149853.A4 149853	£1.50	£1.80
34 - STOP BDE-149855.A4 149855	£1.50	£1.80
35 - SPRING BDE-149887.A4 149887	£1.50	£1.80
36 - O RING BDE-88998.A6 88998	£16.03	£19.24
37 - PISTON BDE-149852.A1 149852	£10.85	£13.02
38 - O RING BDE-149883.A1 149883	£1.50	£1.80
39 - RETAINER BDE-N12112.A7 N12112	£1.50	£1.80
40 - TRIP SA BDE-149899.A0 149899	£16.03	£19.24
41 - SPRING BDE-149874.A1 149874	£1.50	£1.80
42 - CONTACT BDE-149900.A1 149900	£19.90	£23.88
43 - NOSE BDE-160143.A2 160143	£126.63	£151.96
44 - PAWL BDE-9R205576.A3 9R205576	£16.03	£19.24
45 - SPRING BDE-149859.A1 149859	£1.50	£1.80
46 - PIN BDE-149882.A12 149882	£1.50	£1.80
47 - BOLT BDE-MSC6100-25.A8 MSC6100-25	£1.50	£1.80
48 - PIN BDE-149905.A0 149905	£1.50	£1.80
49 - SCREW BDE-MSC6100-30.A52 MSC6100-30	£1.50	£1.80
50 - O RING BDE-149885.A5 149885	£1.50	£1.80
51 - SPRING TORSION BDE-149831.A0 149831	£1.50	£1.80
52 - PIN BDE-149886.A1 149886	£1.50	£1.80
53 - SPRING BDE-149898.A1 149898	£1.50	£1.80
54 - COVER-TOP BDE-149943.A2 149943	£5.88	£7.06
55 - WASHER BDE-MPW6.2.A21 MPW6.2	£1.50	£1.80
56 - CANISTER BDE-149939.A2 149939	£34.00	£40.80
57 - PIN BDE-149907.A6 149907	£1.50	£1.80
58 - DOOR BDE-160144.A0 160144	£38.80	£46.56
59 - PAWL BDE-160142.A0 160142	£7.85	£9.42
60 - CABLE GUIDE BDE-149940.A2 149940	£3.80	£4.56
61 - SEAL BDE-149812.A3 149812	£1.50	£1.80
62 - SERVICE KIT BDE-RN46-RK.A0 RN46-RK	£44.14	£52.97
63 - O RING BDE-149829.A5 149829	£1.50	£1.80
64 - PAD BDE-149866.A1 149866	£1.50	£1.80
65 - GUARD BDE-161236.A2 161236	£1.50	£1.80
66 - LATCH BDE-149861.A4 149861	£4.69	£5.63
67 - NUT BDE-MHE6100-100.A32 MHE6100-100	£1.50	£1.80
68 - NOSE BDE-160143.A3 160143	£126.63	£151.96

Attribute Name	Value
Brand	Bostitch
