Bostitch N75CWW-1-E Type Rev A Nailer Spare Parts

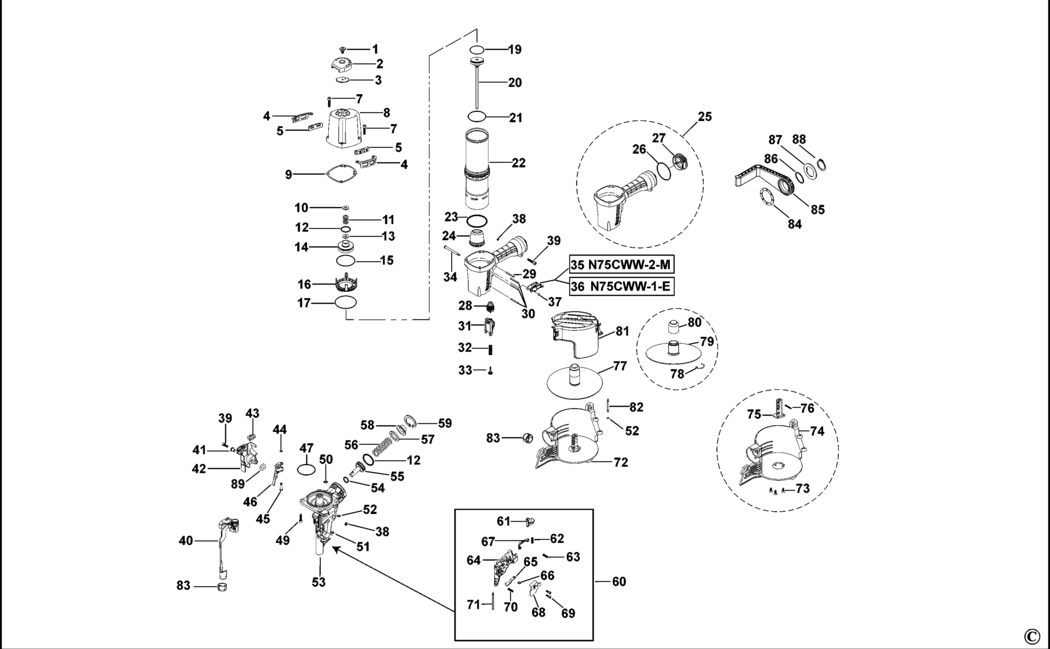

An exploded drawing and spare parts listing for the Bostitch N75CWW-1-E Type Rev A Nailer

	Ex VAT	Inc VAT
1 - SCREW BDE-175551.A3 175551	£1.50	£1.80
2 - COVER BDE-175552.A0 175552	£1.50	£1.80
3 - PLATE BDE-175553.A3 175553	£1.50	£1.80
4 - BRACKET BDE-174046.A5 174046	£1.50	£1.80
5 - RUBBER PAD BDE-174045.A3 174045	£1.50	£1.80
7 - SCREW BDE-175554.A0 175554	£1.50	£1.80
9 - GASKET BDE-174050.A10 174050	£3.80	£4.56
10 - SEAL BDE-174049.A2 174049	£1.50	£1.80
11 - SPRING COMPRESSION BDE-174051.A2 174051	£1.50	£1.80
12 - O RING BDE-174053.A2 174053	£1.50	£1.80
13 - WASHER SPECIAL BDE-174052.A11 174052	£1.50	£1.80
14 - VALVE BDE-174054.A11 174054	£3.30	£3.96
15 - O RING BDE-174055.A2 174055	£1.50	£1.80
16 - COLLAR BDE-175556.A5 175556	£2.26	£2.71
17 - O RING BDE-174056.A10 174056	£1.50	£1.80
19 - O RING BDE-174060.A1 174060	£1.50	£1.80
20 - PISTON SA BDE-9R199744 9R199744	£47.08	£56.49
21 - O RING BDE-174058.A10 174058	£1.50	£1.80
23 - O RING BDE-86460.A9 86460	£7.85	£9.42
24 - BUMPER BDE-175562.A2 175562	£5.88	£7.06
25 - FRAME BDE-P3490000600.A2 P3490000600	£47.08	£56.49
26 - O RING BDE-174067.A2 174067	£1.50	£1.80
27 - END CAP BDE-P3490000540.A1 P3490000540	£5.88	£7.06
28 - VALVE BDE-TVA6.A53 TVA6	£16.03	£19.24
29 - PIN BDE-174070.A2 174070	£1.50	£1.80
30 - PIN BDE-174071.A3 174071	£1.50	£1.80
31 - GUIDE BDE-9R199740.A4 9R199740	£1.50	£1.80
32 - SPRING BDE-9R199741.A3 9R199741	£1.50	£1.80
33 - HOLDER BDE-P2845203062.A1 P2845203062	£3.30	£3.96
34 - PIN BDE-174062.A2 174062	£1.50	£1.80
35 - KIT SA N75CWW-2-M BDE-SEQ4.A8 SEQ4	£7.18	£8.62
36 - KIT N75CWW-1-E BDE-CNTK1.A7 CNTK1	£5.88	£7.06
37 - O RING BDE-174073.A19 174073	£1.50	£1.80
38 - LOCK-NUT BDE-174065.A12 174065	£1.50	£1.80
39 - SCREW BDE-9R199720.A21 9R199720	£1.50	£1.80
40 - ARM BDE-G4006600.A0 G4006600	£12.17	£14.60
41 - SPACER BDE-P2325205662.A4 P2325205662	£1.50	£1.80
42 - GUARD BDE-P2320005500.A8 P2320005500	£2.26	£2.71
43 - RUBBER PAD BDE-P2320005400.A0 P2320005400	£1.50	£1.80
44 - O RING BDE-S06A000500.A0 S06A000500	£1.50	£1.80
45 - ROLLPIN BDE-P2325207562.A0 P2325207562	£1.50	£1.80
46 - JAW BDE-G7600300.A1 G7600300	£17.48	£20.97
47 - O RING BDE-851483-S.A28 851483-S	£1.50	£1.80
49 - SCREW BDE-9R195545.A8 9R195545	£1.50	£1.80
50 - O RING BDE-S06P000400.A4 S06P000400	£1.50	£1.80
51 - O RING BDE-184434.A5 184434	£1.50	£1.80
52 - O RING BDE-S06P000300.A4 S06P000300	£2.26	£2.71
53 - NOSE BDE-9R199579 9R199579	£131.46	£157.75
54 - O RING BDE-S06P000900.A7 S06P000900	£1.50	£1.80
55 - PISTON BDE-P3035502962.A1 P3035502962	£7.18	£8.62
56 - SPRING BDE-P2325205062.A4 P2325205062	£1.50	£1.80
57 - BUMPER BDE-P2322005100.A4 P2322005100	£1.50	£1.80
58 - COVER BDE-P2325205262.A5 P2325205262	£1.50	£1.80
59 - RING BDE-S15202800.A1 S15202800	£1.50	£1.80
60 - DOOR BDE-G4600300.A0 G4600300	£45.14	£54.17
61 - LATCH BDE-P2320004400.A3 P2320004400	£1.50	£1.80
62 - SPRING BDE-P2820004162.A0 P2820004162	£1.50	£1.80
63 - SPRING BDE-188566.A5 188566	£1.50	£1.80
64 - DOOR BDE-9R195557.A1 9R195557	£25.70	£30.84
65 - STOP BDE-P3030002862.A0 P3030002862	£1.50	£1.80
66 - GROMMET BDE-P2840004100.A3 P2840004100	£1.50	£1.80
67 - STOP BDE-P3030002762.A1 P3030002762	£5.88	£7.06
68 - COVER BDE-P2325203862.A3 P2325203862	£2.78	£3.34
69 - SCREW BDE-9R199448.A4 9R199448	£1.50	£1.80
70 - SPRING BDE-188713.A1 188713	£1.50	£1.80
71 - PIVOT BDE-P2325203662.A4 P2325203662	£1.50	£1.80
72 - MAGAZINE SA BDE-P3030001000.A0 P3030001000	£19.90	£23.88
73 - SCREW BDE-184455.A7 184455	£1.50	£1.80
75 - POST BDE-P3030000866.A1 P3030000866	£1.50	£1.80
76 - ROLL PIN BDE-S0802512000.A0 S0802512000	£1.50	£1.80
77 - HOLDER BDE-G7700200.A1 G7700200	£3.80	£4.56
78 - SPRING CLIP BDE-P2325207062.A1 P2325207062	£1.50	£1.80
79 - HOLDER BDE-P3030001466.A1 P3030001466	£3.30	£3.96
80 - COVER BDE-P2320005800.A0 P2320005800	£1.50	£1.80
81 - COVER BDE-P3030001866.A0 P3030001866	£7.85	£9.42
82 - PIN BDE-P2845202662.A7 P2845202662	£1.50	£1.80
83 - SLEEVE BDE-P2840003732.A1 P2840003732	£1.50	£1.80
84 - SEAL BDE-175582.A2 175582	£1.50	£1.80
85 - HOOK BDE-175583.A11 175583	£1.50	£1.80
86 - O RING BDE-175557.A0 175557	£1.50	£1.80
87 - CAP BDE-175585.A2 175585	£1.50	£1.80
88 - RING BDE-175586.A11 175586	£1.50	£1.80
89 - WASHER BDE-P3490000200.A3 P3490000200	£1.50	£1.80

Attribute Name	Value
Brand	Bostitch
