Bostitch N70SB Type REV 0 Nailer Spare Parts

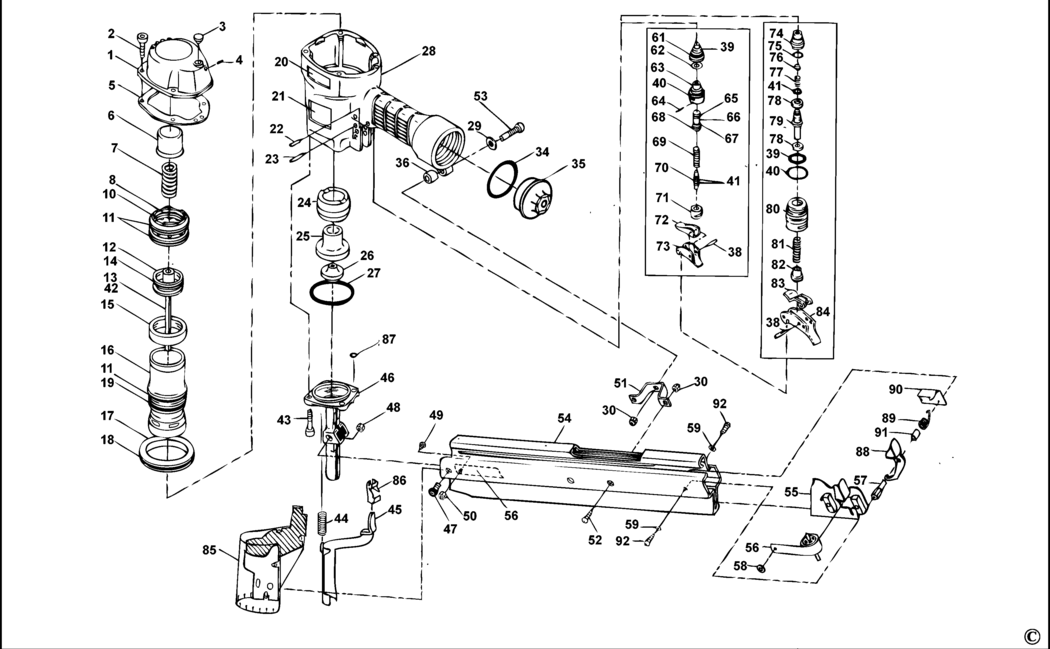

An exploded drawing and spare parts listing for the Bostitch N70SB Type REV 0 Nailer

	Ex VAT	Inc VAT
1 - NO LONGER AVAILABLE BDE-000000-00.A64436 000000-00	-
2 - BOLT BDE-MSC6100-25.A1 MSC6100-25	£1.50	£1.80
3 - NO LONGER AVAILABLE BDE-000000-00.A64437 000000-00	-
4 - NO LONGER AVAILABLE BDE-000000-00.A64438 000000-00	-
5 - SEAL BDE-9R199852.A1 9R199852	£3.80	£4.56
6 - STOP BDE-N70153.A0 N70153	£2.26	£2.71
7 - NO LONGER AVAILABLE BDE-000000-00.A64439 000000-00	-
8 - O RING BDE-MRG041630.A26 MRG041630	£5.88	£7.06
10 - VALVE BDE-N80337.A4 N80337	£7.85	£9.42
11 - O RING BDE-851438.A6 851438	£7.18	£8.62
12 - PISTON BDE-N70133 N70133	£16.03	£19.24
13 - NO LONGER AVAILABLE BDE-000000-00.A64440 000000-00	-
14 - O RING BDE-851439.A8 851439	£2.26	£2.71
15 - SEAL BDE-N70155.A11 N70155	£1.50	£1.80
16 - NO LONGER AVAILABLE BDE-000000-00.A64441 000000-00	-
17 - NO LONGER AVAILABLE BDE-000000-00.A64442 000000-00	-
18 - O RING BDE-MRG084431.A0 MRG084431	£1.50	£1.80
19 - O RING BDE-MRG055657 MRG055657	£3.30	£3.96
20 - LABEL BDE-113220.A8 113220	-
22 - NO LONGER AVAILABLE BDE-000000-00.A64443 000000-00	-
23 - PIN BDE-102549.A15 102549	£1.50	£1.80
24 - BUMPER BDE-N70156.A0 N70156	£10.85	£13.02
25 - BUMPER BDE-N70157.A11 N70157	£7.85	£9.42
26 - NO LONGER AVAILABLE BDE-000000-00.A64444 000000-00	-
27 - O RING BDE-MRG053515 MRG053515	£5.88	£7.06
28 - FRAME BDE-110005.A1 110005	£84.42	£101.30
29 - WASHER BDE-MPW6.2.A29 MPW6.2	£1.50	£1.80
30 - NUT BDE-MHE6100-100.A48 MHE6100-100	£1.50	£1.80
34 - O RING BDE-MRG049431.A15 MRG049431	£1.50	£1.80
35 - END CAP BDE-N70167.A15 N70167	£10.85	£13.02
36 - BUSHING BDE-N70143.A22 N70143	£1.50	£1.80
38 - SPIROL PIN BDE-MPP030016.A6 MPP030016	£1.50	£1.80
39 - O RING BDE-86459.A6 86459	£1.50	£1.80
40 - O RING BDE-MRG019824.A13 MRG019824	£11.87	£14.24
41 - O RING BDE-MRG002514.A17 MRG002514	£4.69	£5.63
42 - WASHER NOT SHOWN BDE-N80302 N80302	£1.82	£2.19
43 - SCREW BDE-MSC8125-28.A0 MSC8125-28	£1.50	£1.80
44 - SPRING COMPRESSION BDE-102080.A1 102080	£1.50	£1.80
45 - NO LONGER AVAILABLE BDE-000000-00.A64445 000000-00	-
46 - NO LONGER AVAILABLE BDE-000000-00.A64446 000000-00	-
47 - SCREW BDE-MSC8125-16.A6 MSC8125-16	£1.42	£1.70
48 - NUT BDE-N70120.A6 N70120	-
49 - SCREW BDE-MSB4070-10.A7 MSB4070-10	£1.50	£1.80
50 - NUT M4 BDE-MHE4070-100.A58 MHE4070-100	£1.50	£1.80
51 - BRACKET BDE-N80321.A0 N80321	-
52 - BOLT BDE-MSB6100-12.A20 MSB6100-12	£1.50	£1.80
53 - SCREW BDE-MSC6100-30.A63 MSC6100-30	£1.50	£1.80
54 - NO LONGER AVAILABLE BDE-000000-00.A64449 000000-00	-
55 - PUSHER BDE-N80322A.A3 N80322A	-
56 - NO LONGER AVAILABLE BDE-000000-00.A64447 000000-00	-
57 - NO LONGER AVAILABLE BDE-000000-00.A64448 000000-00	-
58 - SPACER BDE-103943.A1 103943	£1.42	£1.70
59 - WASHER SPECIAL BDE-LW8.A7 LW8	-
61 - NO LONGER AVAILABLE BDE-000000-00.A64450 000000-00	-
62 - O RING BDE-851284 851284	£1.50	£1.80
63 - NO LONGER AVAILABLE BDE-000000-00.A64451 000000-00	-
64 - PIN BDE-UB2108.A0 UB2108	£1.42	£1.70
65 - O RING BDE-MRG005819.A0 MRG005819	£2.71	£3.25
66 - NO LONGER AVAILABLE BDE-000000-00.A64464 000000-00	-
67 - O RING BDE-MRG006819.A1 MRG006819	£1.42	£1.70
68 - O RING BDE-MRG008819.A0 MRG008819	£2.78	£3.34
69 - SPRING COMPRESSION BDE-103872.A1 103872	£1.42	£1.70
70 - NO LONGER AVAILABLE BDE-000000-00.A64452 000000-00	-
71 - CAP BDE-CN31346.A1 CN31346	£23.75	£28.50
72 - TRIGGER BDE-N50082A.A2 N50082A	£3.30	£3.96
73 - TRIGGER BDE-N50082A.A3 N50082A	£3.30	£3.96
75 - NO LONGER AVAILABLE BDE-000000-00.A64453 000000-00	-
76 - NO LONGER AVAILABLE BDE-000000-00.A64454 000000-00	-
77 - NO LONGER AVAILABLE BDE-000000-00.A64455 000000-00	-
78 - NO LONGER AVAILABLE BDE-000000-00.A64456 000000-00	-
79 - NO LONGER AVAILABLE BDE-000000-00.A64457 000000-00	-
80 - NO LONGER AVAILABLE BDE-000000-00.A64458 000000-00	-
81 - NO LONGER AVAILABLE BDE-000000-00.A64459 000000-00	-
82 - NO LONGER AVAILABLE BDE-000000-00.A64460 000000-00	-
83 - NO LONGER AVAILABLE BDE-000000-00.A64461 000000-00	-
84 - NO LONGER AVAILABLE BDE-000000-00.A64462 000000-00	-
85 - NO LONGER AVAILABLE BDE-000000-00.A64463 000000-00	-
86 - GUIDE BDE-N70145.A2 N70145	£1.82	£2.19
87 - NO LONGER AVAILABLE BDE-000000-00.A64465 000000-00	-
88 - NO LONGER AVAILABLE BDE-000000-00.A64466 000000-00	-
89 - SPRING BDE-N80335.A5 N80335	-
90 - LATCH BDE-N80332.A1 N80332	£1.78	£2.13
91 - BUSHING BDE-N80336.A1 N80336	£1.42	£1.70
92 - SCREW BDE-MSC4070-10.A39 MSC4070-10	£1.50	£1.80
93 - NO LONGER AVAILABLE BDE-000000-00.A64467 000000-00	-
