Bostitch N66C-1 Type REV 2 Nailer Spare Parts

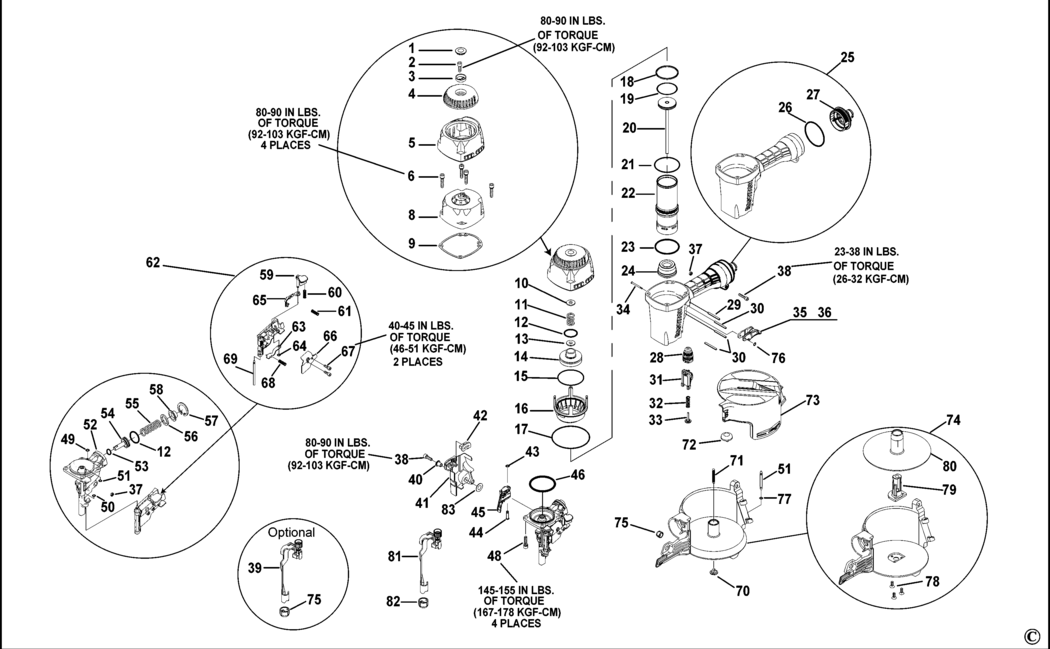

An exploded drawing and spare parts listing for the Bostitch N66C-1 Type REV 2 Nailer

	Ex VAT	Inc VAT
2 - SCREW BDE-MSC5080-12.A1 MSC5080-12	£1.50	£1.80
3 - SPACER BDE-P2845203162.A1 P2845203162	£1.50	£1.80
4 - COVER BDE-9R202077.A1 9R202077	£1.50	£1.80
5 - COVER BDE-P2840000266.A0 P2840000266	£1.50	£1.80
6 - SCREW BDE-175554.A3 175554	£1.50	£1.80
8 - DEFLECTOR BDE-P2320008400.A0 P2320008400	£16.03	£19.24
9 - GASKET BDE-174050.A8 174050	£3.80	£4.56
10 - SEAL BDE-174049.A4 174049	£1.50	£1.80
11 - SPRING COMPRESSION BDE-174051.A4 174051	£1.50	£1.80
12 - O RING BDE-174053.A4 174053	£1.50	£1.80
13 - WASHER SPECIAL BDE-174052.A9 174052	£1.50	£1.80
14 - VALVE BDE-174054.A9 174054	£3.30	£3.96
15 - O RING BDE-174055.A4 174055	£1.50	£1.80
16 - COLLAR BDE-174057.A3 174057	£1.50	£1.80
17 - O RING BDE-174056.A8 174056	£1.50	£1.80
18 - SEAL BDE-P2320006600.A1 P2320006600	£1.50	£1.80
19 - O RING BDE-S06S003600.A0 S06S003600	£1.50	£1.80
20 - DRIVER BDE-G0209200.A2 G0209200	£24.39	£29.27
21 - O RING BDE-174058.A6 174058	£1.50	£1.80
22 - CYLINDER BDE-9R213301.A5 9R213301	£9.41	£11.29
23 - O RING BDE-86460.A6 86460	£7.85	£9.42
24 - BUMPER BDE-174075.A2 174075	£9.41	£11.29
25 - FRAME SA BDE-P2840004300.A1 P2840004300	£71.44	£85.73
26 - O RING BDE-174067.A5 174067	£1.50	£1.80
27 - END CAP BDE-P2840002840.A2 P2840002840	£3.80	£4.56
28 - VALVE BDE-TVA6.A56 TVA6	£16.03	£19.24
29 - PIN BDE-174070.A4 174070	£1.50	£1.80
30 - PIN BDE-174071.A2 174071	£1.50	£1.80
31 - GUIDE BDE-9R199740.A0 9R199740	£1.50	£1.80
32 - SPRING BDE-P2325202662.A4 P2325202662	£1.50	£1.80
33 - HOLDER BDE-P2845203062.A4 P2845203062	£3.30	£3.96
34 - PIN BDE-174062.A5 174062	£1.50	£1.80
35 - KIT BDE-CNTK1.A0 CNTK1	£5.88	£7.06
36 - KIT SA BDE-SEQ4.A5 SEQ4	£7.18	£8.62
37 - LOCK-NUT BDE-174065.A4 174065	£1.50	£1.80
38 - SCREW BDE-9R199720.A38 9R199720	£1.50	£1.80
39 - CONTACT PLATE BDE-G4007600.A4 G4007600	£14.57	£17.48
40 - SPACER BDE-P2325205662.A1 P2325205662	£1.50	£1.80
41 - GUARD BDE-P2320005500.A6 P2320005500	£2.26	£2.71
42 - RUBBER PAD BDE-P2320005400.A2 P2320005400	£1.50	£1.80
43 - O RING BDE-S06A000500.A3 S06A000500	£1.50	£1.80
44 - ROLLPIN BDE-P2325207562.A3 P2325207562	£1.50	£1.80
45 - JAW BDE-G7600200.A1 G7600200	£17.48	£20.97
46 - O RING BDE-851483-S.A20 851483-S	£1.50	£1.80
48 - SCREW BDE-9R195545.A4 9R195545	£1.50	£1.80
49 - O RING BDE-S06P000400.A6 S06P000400	£1.50	£1.80
50 - O RING BDE-184434.A8 184434	£1.50	£1.80
51 - O RING BDE-S06P000300.A0 S06P000300	£2.26	£2.71
52 - NOSE BDE-P2840001065.A1 P2840001065	£104.31	£125.17
53 - O RING BDE-S06P000900.A1 S06P000900	£1.50	£1.80
54 - PISTON BDE-P2325504962.A4 P2325504962	£5.88	£7.06
55 - SPRING BDE-P2325205062.A1 P2325205062	£1.50	£1.80
56 - BUMPER BDE-P2322005100.A1 P2322005100	£1.50	£1.80
57 - COVER BDE-P2325205262.A8 P2325205262	£1.50	£1.80
58 - RING BDE-S15202800.A3 S15202800	£1.50	£1.80
59 - LATCH BDE-P2320004400.A1 P2320004400	£1.50	£1.80
60 - SPRING BDE-P2820004162.A2 P2820004162	£1.50	£1.80
61 - SPRING BDE-188566.A7 188566	£1.50	£1.80
62 - DOOR BDE-188721.A3 188721	£37.35	£44.82
63 - STOP BDE-P2325204062.A1 P2325204062	£1.50	£1.80
64 - GROMMET BDE-P2840004100.A2 P2840004100	£1.50	£1.80
65 - STOP BDE-P2325204262.A3 P2325204262	£10.85	£13.02
66 - COVER BDE-P2325203862.A5 P2325203862	£2.78	£3.34
67 - SCREW BDE-9R199448.A6 9R199448	£1.50	£1.80
68 - SPRING BDE-188713.A2 188713	£1.50	£1.80
69 - PIVOT BDE-P2325203662.A1 P2325203662	£1.50	£1.80
70 - CAP BDE-195013.A2 195013	£1.50	£1.80
71 - SPRING BDE-191794.A5 191794	£1.50	£1.80
72 - CAP BDE-P1960004866.A2 P1960004866	£1.50	£1.80
73 - COVER BDE-P2840002566.A1 P2840002566	£7.85	£9.42
74 - MAGAZINE SA BDE-P2840003200.A0 P2840003200	£24.39	£29.27
75 - SLEEVE Optional BDE-P3030001732.A2 P3030001732	£1.50	£1.80
76 - O RING BDE-174073.A21 174073	£1.50	£1.80
77 - PIN BDE-P2845202662.A4 P2845202662	£1.50	£1.80
78 - SCREW BDE-184455.A4 184455	£1.50	£1.80
79 - ADJUSTER BDE-P2840002466.A5 P2840002466	£1.50	£1.80
80 - HOLDER BDE-P2840002366.A1 P2840002366	£3.30	£3.96
81 - CONTACT PLATE BDE-G4007600.A5 G4007600	£14.57	£17.48
82 - SLEEVE BDE-P3030001732.A3 P3030001732	£1.50	£1.80
83 - WASHER BDE-P3490000200.A6 P3490000200	£1.50	£1.80

Attribute Name	Value
Brand	Bostitch
