Bostitch N64084-1-2-E Type REV E Nailer Spare Parts

Home Details Reviews Delivery

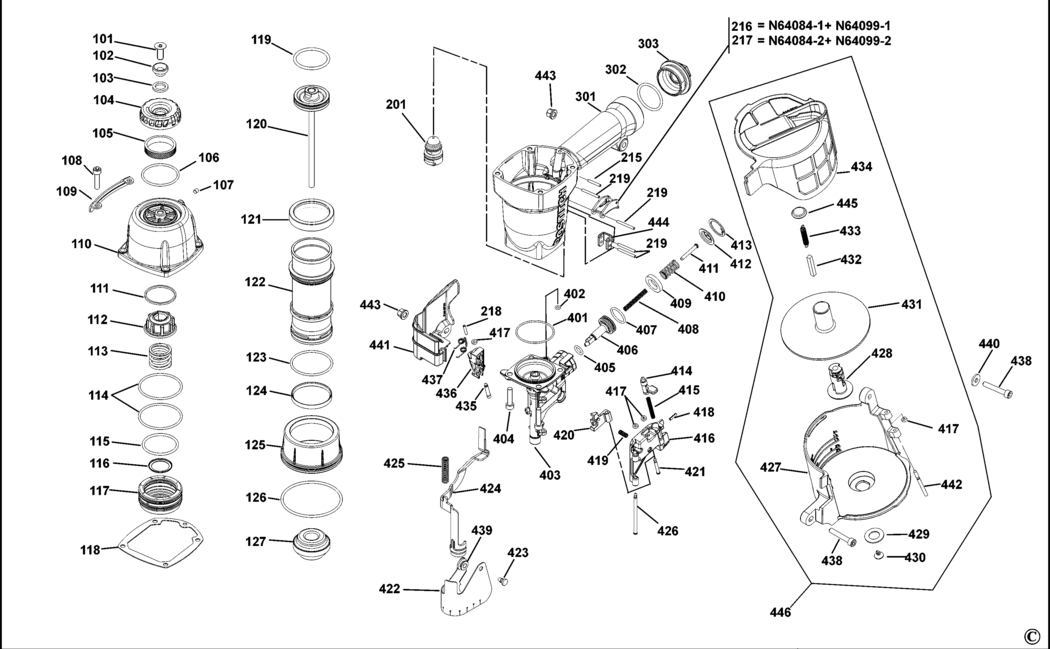

An exploded drawing and spare parts listing for the Bostitch N64084-1-2-E Type REV E Nailer

	Ex VAT	Inc VAT
101 - SCREW BDE-2040103-05010.A1 2040103-05010	£1.66	£1.99
102 - WASHER BDE-11381-0954702.A0 11381-0954702	£4.83	£5.80
103 - RUBBER PAD BDE-1135G-0460001.A1 1135G-0460001	£1.66	£1.99
104 - DEFLECTOR BDE-11371-0954701.A1 11371-0954701	£6.06	£7.27
105 - MUFFLER BDE-1132T-0780001.A1 1132T-0780001	£8.08	£9.70
106 - O RING BDE-2041102-05050.A0 2041102-05050	£1.66	£1.99
107 - GRUB SCREW BDE-2040104-03010.A1 2040104-03010	£1.66	£1.99
108 - BOLT BDE-MSC6100-25.A40 MSC6100-25	£1.66	£1.99
109 - PROTECTOR BDE-11397-0954701.A1 11397-0954701	£4.83	£5.80
110 - CAP BDE-11369-1014301.A0 11369-1014301	£48.48	£58.17
111 - SEAL BDE-11381-0950001.A0 11381-0950001	£3.39	£4.07
112 - BUMPER BDE-11370-0950001.A1 11370-0950001	£11.18	£13.41
113 - SPRING COMPRESSION BDE-11360-1010001.A3 11360-1010001	£2.32	£2.78
114 - O RING BDE-MRG052526.A2 MRG052526	£7.40	£8.88
115 - O RING BDE-MRG041630.A4 MRG041630	£6.06	£7.27
116 - WASHER BDE-11381-0950002.A2 11381-0950002	£1.66	£1.99
117 - VALVE BDE-11368-1010001.A1 11368-1010001	£30.98	£37.18
118 - SEAL BDE-11302-0954702.A2 11302-0954702	£7.40	£8.88
119 - O RING BDE-RG162514-1.A4 RG162514-1	£7.40	£8.88
120 - DRIVER SA BDE-11204-0780009 11204-0780009	£139.42	£167.30
121 - COLLAR BDE-11399-1014701.A0 11399-1014701	£3.92	£4.70
122 - CYLINDER BDE-11320-1010001.A1 11320-1010001	£73.58	£88.30
123 - O RING BDE-850006.A16 850006	£1.66	£1.99
124 - SEAL BDE-T60021.A5 T60021	£1.66	£1.99
125 - SPACER BDE-11321-1010001.A0 11321-1010001	£6.06	£7.27
126 - O RING BDE-2041101-08020.A2 2041101-08020	£1.66	£1.99
127 - BUMPER BDE-11327-1014701.A1 11327-1014701	£16.52	£19.82
201 - VALVE BDE-TVA6.A7 TVA6	£16.52	£19.82
215 - PIN BDE-MPP030020.A19 MPP030020	£1.66	£1.99
216 - KIT -1 BDE-CNTK2.A3 CNTK2	£6.06	£7.27
217 - KIT -2 BDE-SEQ6.A5 SEQ6	£11.18	£13.41
218 - SPIROL PIN BDE-MPP030016.A10 MPP030016	£1.66	£1.99
219 - PIN BDE-100298.A74 100298	£1.66	£1.99
302 - O RING BDE-2041101-04020.A1 2041101-04020	£1.66	£1.99
303 - END CAP BDE-11346-0954302.A1 11346-0954302	£15.01	£18.01
401 - O RING BDE-2041109-05110.A1 2041109-05110	£1.66	£1.99
402 - O RING BDE-2041108-01010.A2 2041108-01010	£1.66	£1.99
403 - NOSE BDE-11382-0784703 11382-0784703	£346.79	£416.15
404 - BOLT BDE-MSC6100-25.A42 MSC6100-25	£1.66	£1.99
405 - O RING BDE-MRG009824.A15 MRG009824	£6.06	£7.27
406 - PISTON BDE-11364-1014701.A1 11364-1014701	£35.02	£42.02
407 - O RING BDE-851437.A9 851437	£15.01	£18.01
408 - SPRING COMPRESSION BDE-11367-0954702.A2 11367-0954702	£1.66	£1.99
409 - BUMPER BDE-1134W-0860001.A1 1134W-0860001	£1.66	£1.99
410 - SPRING COMPRESSION BDE-1133J-0524701.A0 1133J-0524701	£1.66	£1.99
411 - GUIDE BDE-11395-0954701.A0 11395-0954701	£1.66	£1.99
412 - COLLAR BDE-11366-0954701.A0 11366-0954701	£1.66	£1.99
413 - RETAINER BDE-MRB026.A8 MRB026	£1.66	£1.99
414 - LATCH BDE-N70150.A19 N70150	£6.06	£7.27
415 - SPRING COMPRESSION BDE-854013.A12 854013	£1.66	£1.99
416 - DOOR BDE-11361-0784703.A0 11361-0784703	£60.46	£72.55
417 - WASHER BDE-854004.A38 854004	£1.66	£1.99
418 - ROLL PIN BDE-MPP030012.A2 MPP030012	£1.66	£1.99
419 - SPRING COMPRESSION BDE-854011.A2 854011	£1.66	£1.99
420 - PAWL BDE-11358-0954701.A0 11358-0954701	£15.01	£18.01
421 - PIN BDE-N55023.A2 N55023	£4.83	£5.80
422 - PROTECTOR BDE-11383-1010001.A1 11383-1010001	£4.83	£5.80
423 - PLUG BDE-1134B-0864701.A4 1134B-0864701	£1.66	£1.99
424 - ARM BDE-11330-1014701.A0 11330-1014701	£26.47	£31.76
425 - SPRING COMPRESSION BDE-11337-1014701.A1 11337-1014701	£1.66	£1.99
426 - PIN BDE-N65036.A3 N65036	£7.40	£8.88
427 - CANISTER BDE-11354-1014701.A0 11354-1014701	£38.48	£46.17
428 - POST BDE-11357-0954701.A1 11357-0954701	£6.06	£7.27
429 - O RING BDE-1138Y-0954701.A1 1138Y-0954701	£1.66	£1.99
430 - BASE BDE-1134M-0864701.A0 1134M-0864701	£1.66	£1.99
431 - TRAY BDE-11356-1010001.A0 11356-1010001	£30.98	£37.18
432 - SPACER BDE-1138W-0860001.A2 1138W-0860001	£1.66	£1.99
433 - SPRING BDE-11328-0860001.A0 11328-0860001	£1.66	£1.99
434 - COVER BDE-11355-1014701.A1 11355-1014701	£9.69	£11.63
435 - PIN BDE-N50087.A6 N50087	£1.66	£1.99
436 - PAWL BDE-11306-0784703.A0 11306-0784703	£42.48	£50.98
437 - SPRING TORSION BDE-854023.A6 854023	£1.66	£1.99
438 - SCREW BDE-MSC6100-40.A2 MSC6100-40	£1.66	£1.99
439 - WASHER BDE-1135U-1010001.A4 1135U-1010001	£2.32	£2.78
440 - WASHER BDE-MPW6.2.A47 MPW6.2	£1.66	£1.99
441 - GUARD BDE-1134R-0954701.A1 1134R-0954701	£3.92	£4.70
442 - PIN BDE-1136R-0954701.A1 1136R-0954701	£1.66	£1.99
443 - NUT BDE-2040501-04010.A9 2040501-04010	£1.66	£1.99
444 - GUIDE BDE-N70145.A16 N70145	£1.88	£2.26
445 - BASE BDE-1134N-1014701.A1 1134N-1014701	£1.66	£1.99
446 - CANISTER BDE-7USSB-2101003.A0 7USSB-2101003	£45.47	£54.56

Attribute Name	Value
Brand	Bostitch
