Bostitch N400C-1-E Type Rev 1 Nailer Spare Parts

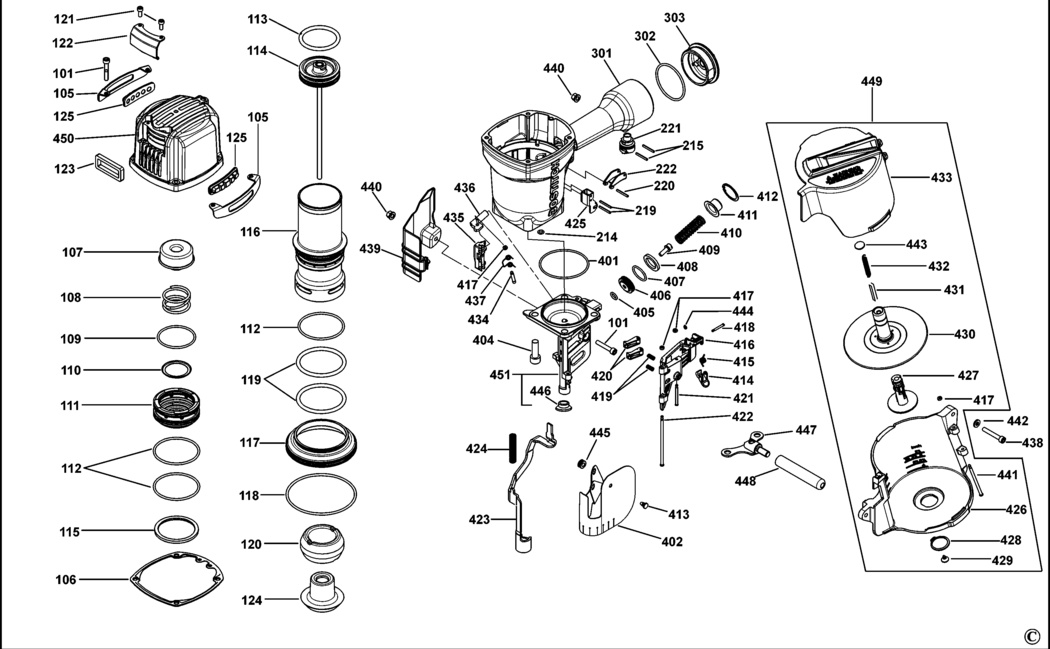

An exploded drawing and spare parts listing for the Bostitch N400C-1-E Type Rev 1 Nailer

	Ex VAT	Inc VAT
101 - SCREW BDE-MSC6100-35.A30 MSC6100-35	£1.50	£1.80
105 - GUIDE BDE-11397-1034702.A0 11397-1034702	£5.88	£7.06
106 - SEAL BDE-11302-1034701.A0 11302-1034701	£14.57	£17.48
107 - SEAL BDE-11370-1030001.A0 11370-1030001	£19.90	£23.88
108 - SPRING COMPRESSION BDE-11360-1030001.A2 11360-1030001	£3.80	£4.56
109 - O RING BDE-2041108-06050.A2 2041108-06050	£1.50	£1.80
110 - WASHER BDE-11381-1030001.A0 11381-1030001	£1.50	£1.80
111 - VALVE BDE-11368-1030001.A0 11368-1030001	£51.90	£62.28
112 - O RING BDE-2041108-07050.A0 2041108-07050	£1.50	£1.80
113 - O RING BDE-2041100-06011.A4 2041100-06011	£1.82	£2.19
114 - PISTON SA BDE-11204-1030001 11204-1030001	£165.92	£199.11
115 - COLLAR BDE-11399-1030001.A0 11399-1030001	£3.80	£4.56
116 - CYLINDER BDE-11320-1030003.A0 11320-1030003	£209.59	£251.51
117 - SPACER BDE-11321-1030001.A0 11321-1030001	£44.14	£52.97
118 - O RING BDE-2041104-11010.A5 2041104-11010	£1.50	£1.80
119 - O RING BDE-2041108-07060.A5 2041108-07060	£2.26	£2.71
120 - BUMPER BDE-11327-1034702.A0 11327-1034702	£25.70	£30.84
121 - SCREW BDE-9R199720.A10 9R199720	£1.50	£1.80
122 - DEFLECTOR BDE-11371-1034701.A2 11371-1034701	£4.69	£5.63
123 - MUFFLER BDE-1132T-1030001.A2 1132T-1030001	£17.48	£20.97
124 - BUMPER BDE-11327-1034703.A4 11327-1034703	£25.70	£30.84
125 - PAD BDE-1135R-1034701.A2 1135R-1034701	£3.80	£4.56
214 - O RING BDE-2041100-01050.A1 2041100-01050	£1.50	£1.80
215 - PIN BDE-2040400-05150.A0 2040400-05150	£5.88	£7.06
219 - PIN BDE-102549.A29 102549	£1.50	£1.80
220 - PIN BDE-2040404-05130.A0 2040404-05130	£3.80	£4.56
221 - VALVE BDE-TVA6.A13 TVA6	£16.03	£19.24
222 - TRIGGER BDE-N50082A.A9 N50082A	£3.30	£3.96
302 - O RING BDE-MRG049431.A2 MRG049431	£1.50	£1.80
303 - END CAP BDE-N70167.A4 N70167	£10.85	£13.02
401 - O RING BDE-2041104-08020.A0 2041104-08020	£1.50	£1.80
402 - PROTECTOR BDE-11383-1030001.A0 11383-1030001	£9.41	£11.29
404 - BOLT BDE-MSC10150-30.A4 MSC10150-30	£2.26	£2.71
405 - O RING BDE-2041100-01091.A1 2041100-01091	£1.50	£1.80
406 - PISTON Feed Piston BDE-11364-1034701 11364-1034701	£7.85	£9.42
407 - O RING BDE-851384.A6 851384	£9.41	£11.29
408 - BUMPER BDE-N80123.A1 N80123	£1.50	£1.80
409 - BOLT BDE-2040100-04080.A0 2040100-04080	£1.50	£1.80
410 - SPRING COMPRESSION BDE-N80122.A7 N80122	£1.50	£1.80
411 - COVER BDE-N80124.A7 N80124	£1.50	£1.80
412 - RETAINER BDE-2040300-08010.A0 2040300-08010	£1.50	£1.80
413 - PLUG BDE-1134B-0864701.A1 1134B-0864701	£1.50	£1.80
414 - LATCH BDE-11310-0254702.A1 11310-0254702	£9.41	£11.29
415 - SPRING BDE-11311-1030001.A0 11311-1030001	£1.50	£1.80
416 - DOOR BDE-11361-1034701.A0 11361-1034701	£74.15	£88.98
417 - WASHER BDE-854004.A34 854004	£1.50	£1.80
418 - PIN BDE-1131K-1034701.A1 1131K-1034701	£3.80	£4.56
419 - SPRING COMPRESSION BDE-854011.A6 854011	£1.50	£1.80
420 - PAWL BDE-N70149.A0 N70149	£3.80	£4.56
421 - LOCK PIN BDE-11359-1034701.A0 11359-1034701	£3.80	£4.56
422 - PIN BDE-11362-1034701.A1 11362-1034701	£7.85	£9.42
423 - BRACKET BDE-11330-1034701.A0 11330-1034701	£30.08	£36.10
424 - SPRING BDE-11337-1030001.A0 11337-1030001	£1.50	£1.80
425 - GUIDE BDE-N70145.A25 N70145	£1.82	£2.19
426 - PLATFORM BDE-11238-1034701 11238-1034701	£58.69	£70.43
427 - POST BDE-11357-1034701.A1 11357-1034701	£3.80	£4.56
428 - O RING BDE-1138Y-0954701.A2 1138Y-0954701	£1.50	£1.80
429 - BASE BDE-1134M-0864701.A3 1134M-0864701	£1.50	£1.80
430 - TRAY BDE-11356-1030001.A0 11356-1030001	£38.80	£46.56
431 - SPACER BDE-1138W-0860001.A5 1138W-0860001	£1.50	£1.80
432 - SPRING BDE-11328-0970001.A1 11328-0970001	£1.50	£1.80
433 - COVER BDE-11355-1034701.A0 11355-1034701	£16.03	£19.24
434 - PIN BDE-11365-0864701.A0 11365-0864701	£3.80	£4.56
435 - FINGER BDE-11306-1034701 11306-1034701	£34.00	£40.80
436 - ROD BDE-N80121.A2 N80121	£10.85	£13.02
437 - SPRING TORSION BDE-N80120.A7 N80120	£1.50	£1.80
438 - SCREW BDE-MSC6100-40.A6 MSC6100-40	£1.50	£1.80
439 - COVER BDE-1134R-1034701.A0 1134R-1034701	£5.88	£7.06
439 - NUT BDE-2040501-04010.A4 2040501-04010	£1.50	£1.80
440 - RETAINER BDE-1131D-0460001.A4 1131D-0460001	£1.50	£1.80
441 - PIN BDE-1136R-1034701.A0 1136R-1034701	£5.88	£7.06
442 - WASHER BDE-2040202-04010.A6 2040202-04010	£1.50	£1.80
443 - BASE BDE-1134N-1014701.A2 1134N-1014701	£1.50	£1.80
445 - WASHER BDE-1135U-1010001.A2 1135U-1010001	£2.26	£2.71
446 - BUSHING BDE-N100120.A2 N100120	£10.85	£13.02
447 - HANDLE BDE-1120K-1114701.A3 1120K-1114701	£24.39	£29.27
448 - HANDLE BDE-1137K-1030001.A1 1137K-1030001	£17.48	£20.97
450 - END CAP BDE-7BUSB-3103001.A1 7BUSB-3103001	£104.31	£125.17
451 - NOSE SA BDE-7BUSB-3103005 7BUSB-3103005	£494.84	£593.81

Attribute Name	Value
Brand	Bostitch
