Bostitch IC50-1-E Type Rev A Coil Nailer Spare Parts

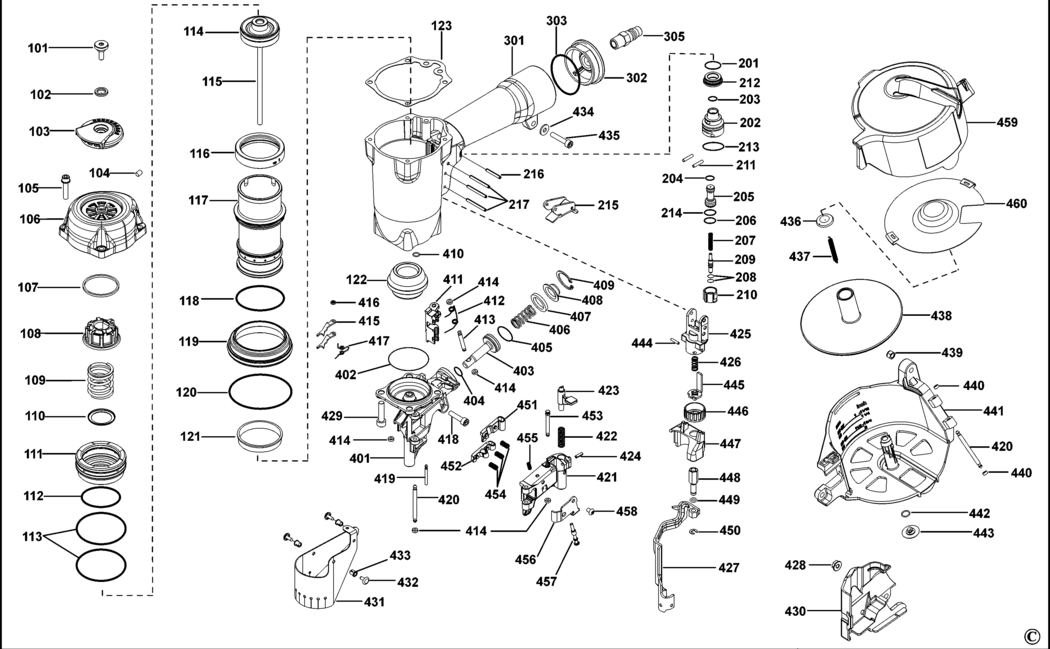

An exploded drawing and spare parts listing for the Bostitch IC50-1-E Type Rev A Coil Nailer

	Ex VAT	Inc VAT
101 - BOLT BDE-1137V-0464701.A1 1137V-0464701	£2.78	£3.34
102 - RUBBER PAD BDE-1135G-0464701.A1 1135G-0464701	£1.66	£1.99
103 - DEFLECTOR BDE-11371-0254702.A0 11371-0254702	£1.82	£2.19
104 - GRUB SCREW BDE-2040104-03010.A4 2040104-03010	£1.66	£1.99
105 - BOLT BDE-2040100-03130.A1 2040100-03130	£1.66	£1.99
106 - END CAP BDE-11369-1004303.A0 11369-1004303	£45.14	£54.17
107 - SEAL BDE-11381-0950001.A2 11381-0950001	£3.30	£3.96
108 - BUMPER BDE-11370-0950001.A4 11370-0950001	£10.85	£13.02
109 - SPRING COMPRESSION BDE-11360-1010001.A0 11360-1010001	£2.26	£2.71
110 - WASHER BDE-11381-0950002.A0 11381-0950002	£1.66	£1.99
111 - VALVE BDE-11368-1070002.A1 11368-1070002	£41.24	£49.49
112 - O RING BDE-2041109-05100.A1 2041109-05100	£1.66	£1.99
113 - O RING BDE-2041104-06050.A2 2041104-06050	£1.66	£1.99
114 - O RING BDE-2041104-04102.A0 2041104-04102	£4.69	£5.63
115 - DRIVER SA BDE-11204-1000006.A0 11204-1000006	£113.07	£135.68
116 - SEAL BDE-11399-0954701.A1 11399-0954701	£3.80	£4.56
117 - CYLINDER BDE-11320-1070002.A0 11320-1070002	£51.90	£62.28
118 - O RING BDE-2041108-05040.A0 2041108-05040	£2.78	£3.34
119 - SPACER BDE-11321-1070002.A0 11321-1070002	£17.48	£20.97
120 - O RING BDE-2041108-07020.A0 2041108-07020	£1.66	£1.99
121 - RING BDE-11322-0250001.A0 11322-0250001	£1.66	£1.99
122 - BUMPER BDE-11327-0764702.A0 11327-0764702	£14.57	£17.48
123 - GASKET BDE-1132M-0764701.A1 1132M-0764701	£10.85	£13.02
201 - O RING BDE-2041104-02060.A1 2041104-02060	£1.66	£1.99
202 - CAP BDE-11374-0860001.A1 11374-0860001	£12.17	£14.60
203 - O RING BDE-2041100-02050.A1 2041100-02050	£1.66	£1.99
204 - O RING BDE-2041100-01070.A2 2041100-01070	£1.66	£1.99
205 - PLUNGER BDE-1133S-0860001.A1 1133S-0860001	£3.30	£3.96
206 - O RING BDE-2041100-01030.A1 2041100-01030	£1.66	£1.99
207 - SPRING BDE-11376-0860001.A2 11376-0860001	£1.66	£1.99
208 - O RING BDE-2041108-01020.A0 2041108-01020	£1.66	£1.99
209 - PLUNGER BDE-11375-0860002.A1 11375-0860002	£4.69	£5.63
210 - HEAD BDE-11373-0860001.A1 11373-0860001	£3.30	£3.96
211 - PIN BDE-11329-0860001.A2 11329-0860001	£1.66	£1.99
212 - COVER BDE-1137A-0080002.A0 1137A-0080002	£5.88	£7.06
213 - O RING BDE-2041104-02070.A1 2041104-02070	£1.66	£1.99
214 - O RING BDE-2041100-01050.A2 2041100-01050	£1.66	£1.99
215 - TRIGGER BDE-11224-1074701 11224-1074701	£5.88	£7.06
216 - SPIROL PIN BDE-2040401-05110.A1 2040401-05110	£1.66	£1.99
217 - SPIROL PIN BDE-2040401-05160.A1 2040401-05160	£1.66	£1.99
302 - END CAP BDE-11346-0084303.A0 11346-0084303	£7.85	£9.42
303 - O RING BDE-2041109-05050.A0 2041109-05050	£1.66	£1.99
305 - ADAPTOR BDE-1135V-0000003.A0 1135V-0000003	£5.88	£7.06
401 - NOSE BDE-11382-1004702.A0 11382-1004702	£283.82	£340.58
402 - O RING BDE-2041104-05020.A1 2041104-05020	£1.66	£1.99
403 - PISTON BDE-11364-1074701.A0 11364-1074701	£10.85	£13.02
404 - O RING BDE-2041109-01050.A0 2041109-01050	£1.66	£1.99
405 - O RING BDE-2041100-02040.A0 2041100-02040	£1.66	£1.99
406 - SPRING COMPRESSION BDE-1133J-0524701.A2 1133J-0524701	£1.66	£1.99
407 - BUMPER BDE-1134W-0810001.A0 1134W-0810001	£1.66	£1.99
408 - CAP BDE-11366-0814701.A0 11366-0814701	£1.66	£1.99
409 - CIRCLIP BDE-2040300-01010.A0 2040300-01010	£1.66	£1.99
410 - O RING BDE-2041109-01060.A1 2041109-01060	£1.66	£1.99
411 - FINGER BDE-11306-1004701.A0 11306-1004701	£14.57	£17.48
412 - SPRING BDE-11307-0780001.A0 11307-0780001	£1.66	£1.99
413 - PIN BDE-11365-0664701.A1 11365-0664701	£1.66	£1.99
414 - RETAINER BDE-1135H-0790001.A1 1135H-0790001	£1.66	£1.99
415 - FINGER BDE-1130G-0764701.A1 1130G-0764701	£1.66	£1.99
416 - RETAINER BDE-1131D-0460001.A1 1131D-0460001	£1.66	£1.99
417 - SPRING BDE-1130H-1000001.A0 1130H-1000001	£1.66	£1.99
418 - BOLT BDE-2040101-03100.A1 2040101-03100	£1.66	£1.99
419 - PIN BDE-11359-1004701.A1 11359-1004701	£1.66	£1.99
420 - PIN BDE-11362-0784702.A0 11362-0784702	£2.26	£2.71
421 - DOOR BDE-11361-1004701.A0 11361-1004701	£41.24	£49.49
422 - SPRING COMPRESSION BDE-11311-0794701.A0 11311-0794701	£1.66	£1.99
423 - LATCH BDE-11310-0794701.A0 11310-0794701	£10.85	£13.02
425 - GUIDE BDE-11338-0764701.A0 11338-0764701	£1.66	£1.99
426 - SPRING COMPRESSION BDE-11337-0084701.A0 11337-0084701	£1.66	£1.99
427 - SAFETY KEY BDE-11254-1004701.A0 11254-1004701	£17.48	£20.97
428 - NUT BDE-2040501-03040.A0 2040501-03040	£1.66	£1.99
429 - BOLT BDE-2040101-04200.A0 2040101-04200	£1.66	£1.99
430 - COVER BDE-1134C-1004701.A0 1134C-1004701	£2.26	£2.71
431 - PROTECTOR BDE-11383-1000001.A0 11383-1000001	£4.69	£5.63
432 - PIN BDE-11324-0254701.A1 11324-0254701	£1.66	£1.99
433 - RING BDE-1131G-0254701.A0 1131G-0254701	£1.66	£1.99
434 - WASHER BDE-2040202-03010.A1 2040202-03010	£1.66	£1.99
435 - BOLT BDE-2040101-03161.A0 2040101-03161	£1.66	£1.99
436 - CAP BDE-1134N-0250002.A0 1134N-0250002	£1.66	£1.99
437 - SPRING BDE-11328-0764701.A0 11328-0764701	£1.66	£1.99
438 - SPACER BDE-11356-0784702.A0 11356-0784702	£10.85	£13.02
439 - LOCK NUT BDE-2040500-03020.A1 2040500-03020	£1.66	£1.99
440 - RING BDE-1135H-0250001.A1 1135H-0250001	£1.66	£1.99
441 - MAGAZINE BDE-11354-1004701.A0 11354-1004701	£18.91	£22.69
442 - O RING BDE-2041109-01030.A1 2041109-01030	£1.66	£1.99
443 - CAP BDE-1134M-0250002.A0 1134M-0250002	£1.66	£1.99
444 - PIN BDE-2040400-04050.A0 2040400-04050	£1.66	£1.99
445 - ACTUATOR BDE-11332-0794705.A1 11332-0794705	£5.88	£7.06
446 - WHEEL ADJUSTER BDE-11393-0761101.A0 11393-0761101	£1.66	£1.99
447 - COVER BDE-1137A-0764701.A1 1137A-0764701	£1.66	£1.99
448 - ROD BDE-11393-1004701.A1 11393-1004701	£5.88	£7.06
449 - O RING BDE-2041102-01050.A1 2041102-01050	£1.66	£1.99
450 - RING BDE-2040302-24010.A1 2040302-24010	£1.66	£1.99
451 - STOP BDE-11358-0784701.A0 11358-0784701	£10.85	£13.02
452 - SPACER BDE-1133X-0784701.A1 1133X-0784701	£12.17	£14.60
453 - PIN BDE-11359-0764702.A0 11359-0764702	£1.82	£2.19
454 - SPRING BDE-1133C-0784701.A0 1133C-0784701	£1.66	£1.99
455 - SPRING BDE-1135C-0784701.A0 1135C-0784701	£1.66	£1.99
456 - COVER BDE-1133H-1004701.A0 1133H-1004701	£2.78	£3.34
457 - ROD BDE-11395-0780001.A0 11395-0780001	£2.26	£2.71
458 - SCREW BDE-2040102-02060.A0 2040102-02060	£1.66	£1.99
459 - COVER BDE-11355-1004701.A0 11355-1004701	£10.85	£13.02
460 - PLATE BDE-1137E-1070001.A1 1137E-1070001	£16.03	£19.24

Attribute Name	Value
Brand	Bostitch
