Bostitch FNC40-E Type REV 1 Nailer Spare Parts

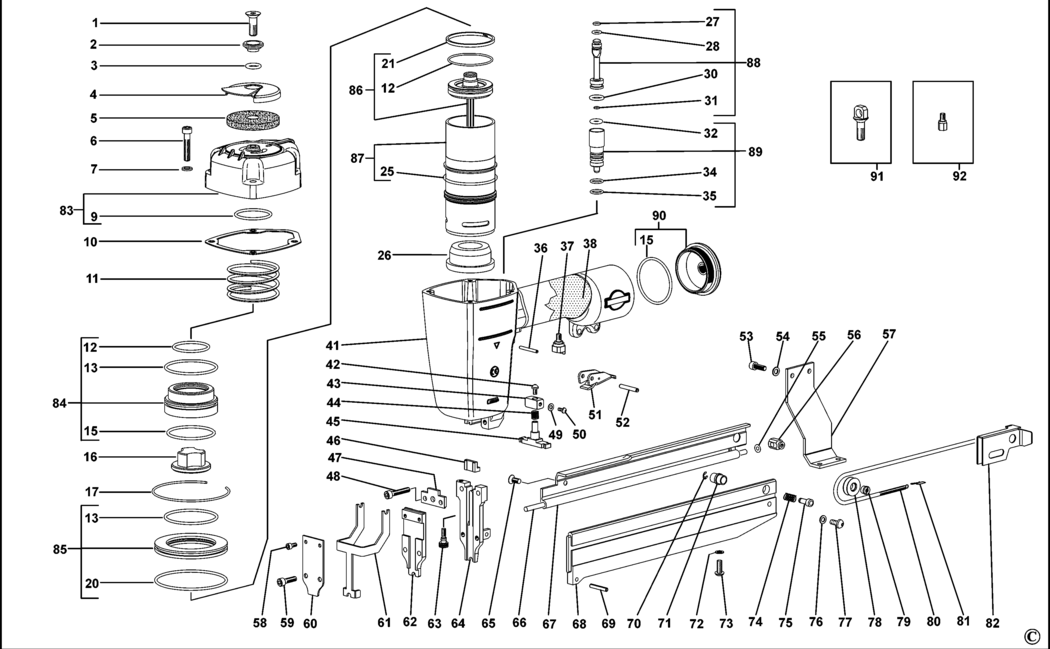

An exploded drawing and spare parts listing for the Bostitch FNC40-E Type REV 1 Nailer

	Ex VAT	Inc VAT
1 - SCREW BDE-B000028A24 B000028A24	£5.88	£7.06
2 - BUSH BDE-C750104A01 C750104A01	£19.90	£23.88
3 - O RING BDE-B000020A04.A1 B000020A04	£3.30	£3.96
4 - DEFLECTOR BDE-C750100A01 C750100A01	£38.80	£46.56
5 - SILENCER BDE-C565103A01.A2 C565103A01	£25.70	£30.84
6 - SCREW BDE-B000028C07 B000028C07	£19.90	£23.88
7 - WASHER BDE-C750180A01 C750180A01	£16.03	£19.24
9 - O RING BDE-B000020A37 B000020A37	£3.30	£3.96
10 - GASKET BDE-C750181A01 C750181A01	£30.08	£36.10
11 - SPRING COMPRESSION BDE-C750200A01 C750200A01	£30.08	£36.10
12 - O RING BDE-B000020A38 B000020A38	£3.30	£3.96
13 - O RING BDE-B000020A44.A2 B000020A44	£3.30	£3.96
15 - O RING BDE-B000020A42.A7 B000020A42	£3.30	£3.96
16 - VALVE BDE-C750162A01 C750162A01	£126.63	£151.96
17 - RING BDE-C750246A03 C750246A03	£37.35	£44.82
20 - O RING BDE-B000020A76 B000020A76	£3.30	£3.96
21 - SEAL BDE-B000021F01 B000021F01	£37.35	£44.82
25 - O RING BDE-B000020A43.A0 B000020A43	£3.30	£3.96
26 - BUMPER BDE-C450244A01.A2 C450244A01	£135.36	£162.43
27 - O RING BDE-B000020B02.A3 B000020B02	£14.57	£17.48
28 - O RING BDE-B000020B01.A0 B000020B01	£3.30	£3.96
30 - O RING BDE-B000020A02.A6 B000020A02	£3.30	£3.96
31 - O RING BDE-B000020B11.A1 B000020B11	£9.41	£11.29
32 - O RING BDE-B000020A02.A7 B000020A02	£3.30	£3.96
34 - O RING BDE-B000020A19.A11 B000020A19	£3.30	£3.96
35 - O RING BDE-B000020A19.A12 B000020A19	£3.30	£3.96
36 - SPIROL PIN BDE-B000026A12.A1 B000026A12	£3.80	£4.56
37 - SWITCH GB BDE-D750411A02.A1 D750411A02	£85.60	£102.72
38 - GRIP BDE-C450262A01.A1 C450262A01	£30.08	£36.10
41 - BODY BDE-C750261A01 C750261A01	£710.28	£852.34
42 - PIN BDE-C620463A01 C620463A01	£14.57	£17.48
43 - HOLDER BDE-C640464A01 C640464A01	£51.90	£62.28
44 - SPRING BDE-C620465A01 C620465A01	£14.57	£17.48
45 - PLATE SA BDE-D650484A01 D650484A01	£82.30	£98.76
46 - HOLDER BDE-C650503A03 C650503A03	£55.30	£66.36
47 - HOLDER BDE-C750500U01 C750500U01	£60.94	£73.13
48 - SCREW BDE-B000028B20.A1 B000028B20	£3.80	£4.56
49 - WASHER SPRING BDE-B000022A01.A0 B000022A01	£3.30	£3.96
50 - SCREW BDE-B000028E03.A1 B000028E03	£3.80	£4.56
51 - TRIGGER BDE-D750441A01.A0 D750441A01	£84.42	£101.30
52 - SPIROL PIN BDE-B000026A11.A0 B000026A11	£3.80	£4.56
53 - SCREW BDE-B000028B12.A2 B000028B12	£14.57	£17.48
54 - WASHER BDE-C450180A01.A3 C450180A01	£16.03	£19.24
55 - O RING BDE-B000020A17.A7 B000020A17	£3.30	£3.96
56 - COVER BDE-C650737A01 C650737A01	£12.17	£14.60
57 - BRACKET BDE-C650701A01 C650701A01	£45.14	£54.17
58 - SCREW BDE-B000028B02 B000028B02	£10.85	£13.02
59 - SCREW BDE-B000028B24 B000028B24	£3.80	£4.56
60 - PLATE BDE-C750680A01 C750680A01	£126.63	£151.96
61 - BRACKET BDE-C750600U01 C750600U01	£87.82	£105.39
62 - PLATE BDE-C750681U01 C750681U01	£232.38	£278.85
63 - ADJUSTER BDE-D620670A01 D620670A01	£17.48	£20.97
64 - PLATE BDE-C750540U03 C750540U03	£393.38	£472.06
65 - SCREW BDE-B000028A03.A3 B000028A03	£3.80	£4.56
66 - BAR BDE-C650736A01 C650736A01	£30.08	£36.10
67 - COVER BDE-C750720U01 C750720U01	£135.36	£162.43
68 - GUIDE ROD BDE-C750937U03 C750937U03	£393.38	£472.06
69 - SPIROL PIN BDE-B000026A07 B000026A07	£3.80	£4.56
70 - RING BDE-B000021C01.A0 B000021C01	£1.50	£1.80
71 - BUSHING BDE-C620948A05 C620948A05	£17.48	£20.97
72 - WASHER SPRING BDE-B000022A02.A4 B000022A02	£3.30	£3.96
73 - SCREW BDE-B000028E14.A0 B000028E14	£3.80	£4.56
74 - SPRING BDE-C430401A02 C430401A02	£17.48	£20.97
75 - PUSHER BDE-C620949A01 C620949A01	£16.03	£19.24
76 - WASHER SPRING BDE-B000022A02.A5 B000022A02	£3.30	£3.96
77 - SCREW BDE-B000028E05.A2 B000028E05	£3.80	£4.56
78 - PULLEY BDE-C620820A01.A0 C620820A01	£7.85	£9.42
79 - PIN BDE-C620824A01.A1 C620824A01	£17.48	£20.97
80 - SPRING BDE-C650842A01.A0 C650842A01	£16.03	£19.24
81 - HOOK BDE-C620884A01 C620884A01	£14.57	£17.48
82 - PUSHER BDE-C620860A05 C620860A05	£45.14	£54.17
83 - CAP SA BDE-D750123A01 D750123A01	£383.48	£460.17
84 - PISTONS & SEALS KIT BDE-D750202A01 D750202A01	£218.32	£261.98
85 - RING SA BDE-D750243A01 D750243A01	£178.78	£214.54
86 - BLADE SA BDE-D750226U01 D750226U01	£336.69	£404.03
87 - CYLINDER KIT BDE-D750241A01 D750241A01	£238.94	£286.73
88 - CONTROLLER SA BDE-D750304A01 D750304A01	£72.28	£86.73
89 - CONTROL BDE-D750361A01.A0 D750361A01	£178.78	£214.54
90 - BUSH BDE-D450283A01.A6 D450283A01	£125.16	£150.19
91 - SCREW BDE-C750105A01 C750105A01	£51.90	£62.28
92 - HOLDER BDE-C620408A01 C620408A01	£14.57	£17.48

Attribute Name	Value
Brand	Bostitch
