Bostitch FN1664-E Type Rev D Finish Nailer Spare Parts

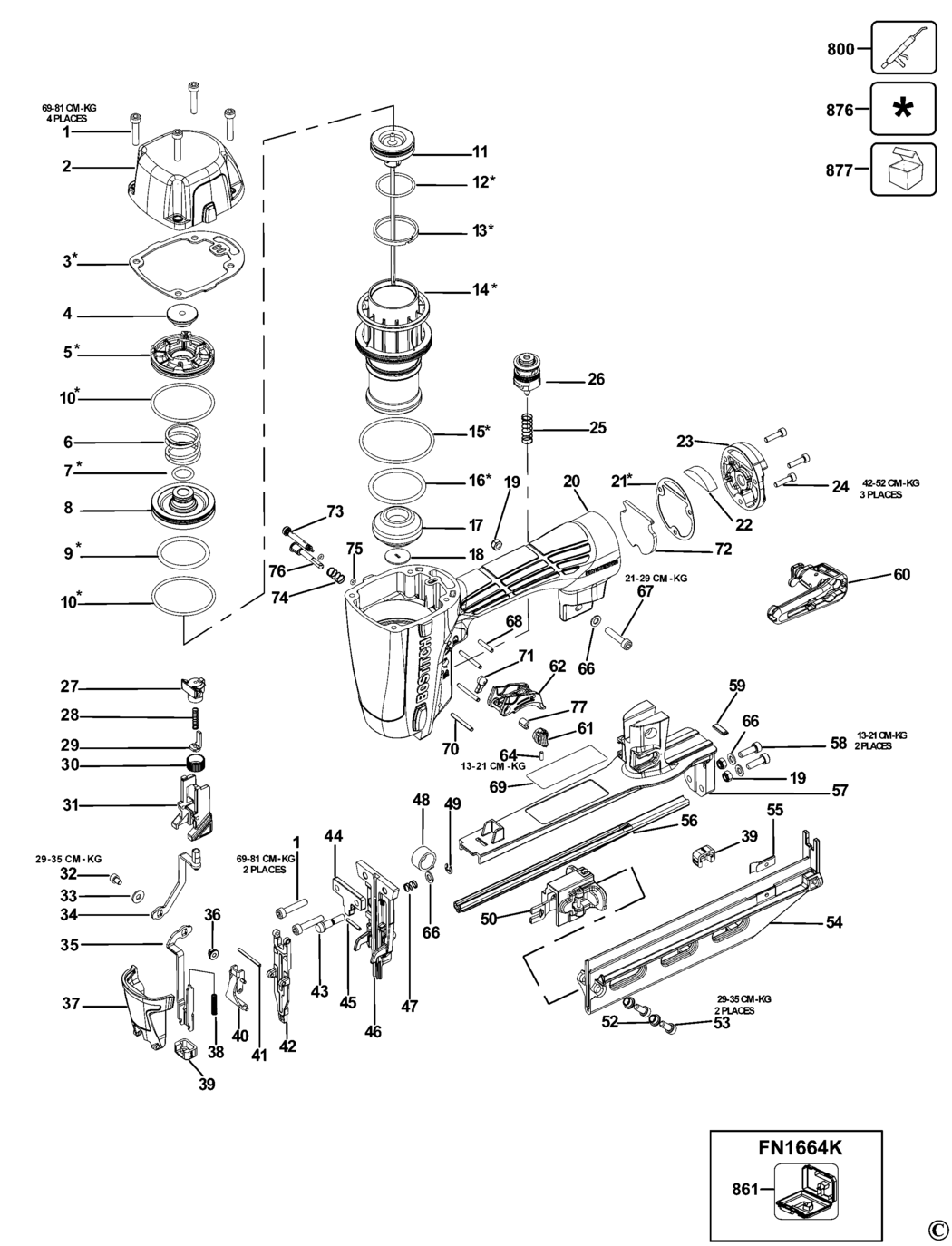

An exploded drawing and spare parts listing for the Bostitch FN1664-E Type Rev D Finish Nailer

	Ex VAT	Inc VAT
1 - SCREW BDE-MSC5080-25.A3 MSC5080-25	£1.50	£1.80
2 - END CAP BDE-181918.A1 181918	£17.48	£20.97
3 - GASKET BDE-180226.A1 180226	£1.50	£1.80
4 - SEAL BDE-180533.A1 180533	£1.50	£1.80
5 - SEAL BDE-180230.A1 180230	£1.50	£1.80
6 - SPRING BDE-180532.A8 180532	£1.50	£1.80
7 - O RING BDE-100843.A0 100843	£1.50	£1.80
8 - VALVE BDE-180537.A2 180537	£1.82	£2.19
9 - O RING BDE-182253.A1 182253	£1.50	£1.80
10 - O RING BDE-850605.A0 850605	£1.50	£1.80
11 - PISTON SA BDE-9R204250.A0 9R204250	£17.48	£20.97
12 - O RING BDE-180544.A2 180544	£1.50	£1.80
13 - PISTON RING BDE-180543.A1 180543	£1.50	£1.80
14 - SLEEVE BDE-180538.A1 180538	£4.69	£5.63
15 - O RING BDE-166047.A0 166047	£1.50	£1.80
16 - O RING BDE-180540.A2 180540	£1.50	£1.80
17 - BUMPER BDE-180549.A2 180549	£2.78	£3.34
18 - GUIDE BDE-180293.A3 180293	£1.50	£1.80
19 - LOCK-NUT BDE-MHE5080-100.A1 MHE5080-100	£1.50	£1.80
21 - GASKET BDE-180463.A9 180463	£1.50	£1.80
22 - MUFFLER BDE-180577.A3 180577	£1.50	£1.80
23 - CAP BDE-180465.A3 180465	£5.88	£7.06
24 - SCREW BDE-MSC4070-16.A19 MSC4070-16	£1.50	£1.80
25 - SPRING BDE-180476.A5 180476	£1.50	£1.80
26 - VALVE BDE-9R202265-TW.A0 9R202265-TW	£7.18	£8.62
27 - GUIDE BDE-180514.A0 180514	£1.50	£1.80
28 - SPRING BDE-180513.A9 180513	£1.50	£1.80
29 - ARM BDE-180510.A0 180510	£1.50	£1.80
30 - ADJUSTER BDE-180509.A7 180509	£1.50	£1.80
31 - GUIDE BDE-180290.A1 180290	£1.50	£1.80
32 - SCREW BDE-MSC4070-6.A4 MSC4070-6	£1.50	£1.80
33 - WASHER BDE-121294.A1 121294	£1.50	£1.80
34 - TRIP SA BDE-180310.A1 180310	£3.30	£3.96
35 - ARM BDE-180234.A1 180234	£3.80	£4.56
36 - NUT BDE-180311.A0 180311	£1.50	£1.80
37 - COVER BDE-180229.A0 180229	£1.50	£1.80
38 - SPRING BDE-180312.A1 180312	£1.50	£1.80
39 - FOOT BDE-180213.A1 180213	£1.50	£1.80
40 - PLATE SA BDE-180294.A0 180294	£3.80	£4.56
41 - PIN BDE-180552.A1 180552	£1.50	£1.80
42 - DOOR BDE-180212.A0 180212	£9.41	£11.29
43 - LOCK BDE-180220.A0 180220	£1.50	£1.80
44 - GUIDE GUIDE B BDE-180237.A0 180237	£2.78	£3.34
45 - PIN BDE-MPG025018.A1 MPG025018	£1.50	£1.80
46 - NOSE BDE-180210.A1 180210	£17.48	£20.97
47 - SPRING BDE-180550.A1 180550	£1.50	£1.80
48 - SPRING BDE-180563.A0 180563	£1.82	£2.19
49 - RETAINER BDE-180551.A0 180551	£1.50	£1.80
50 - PUSHER BDE-180232.A0 180232	£5.88	£7.06
52 - BUSHING BDE-180235.A0 180235	£1.50	£1.80
53 - SCREW BDE-9R199720.A26 9R199720	£1.50	£1.80
54 - BOTTOM PLATE BDE-181916.A1 181916	£10.85	£13.02
55 - STOP BDE-180564.A1 180564	£1.50	£1.80
56 - LINER BDE-180560.A0 180560	£5.88	£7.06
57 - CASING UPPER BDE-180236.A3 180236	£10.85	£13.02
58 - SCREW BDE-MSC5080-16.A1 MSC5080-16	£1.50	£1.80
59 - COVERPLATE BDE-180581.A0 180581	£1.50	£1.80
60 - HOOK BDE-182272.A9 182272	£3.80	£4.56
61 - BUTTON BDE-184506.A5 184506	£1.50	£1.80
62 - TRIGGER BDE-184513.A4 184513	£7.18	£8.62
64 - SCREW BDE-180484.A5 180484	£1.50	£1.80
66 - WASHER BDE-180569.A5 180569	£1.50	£1.80
67 - SCREW BDE-MSC5080-22.2.A1 MSC5080-22.2	£1.50	£1.80
68 - SPIROL PIN BDE-107583.A6 107583	£1.50	£1.80
69 - IDENTITY LABEL BDE-182243.A1 182243	£1.42	£1.70
70 - PIN BDE-174345.A15 174345	£1.50	£1.80
71 - BUTTON LOCK-ON BDE-184518.A5 184518	£1.50	£1.80
72 - FILTER BDE-182235.A0 182235	£1.50	£1.80
73 - PIN BDE-184519.A4 184519	£2.26	£2.71
74 - SPRING BDE-180481.A2 180481	£1.50	£1.80
75 - O RING BDE-MRG002514.A22 MRG002514	£4.69	£5.63
76 - PIN BDE-184507.A4 184507	£3.80	£4.56
77 - BUSHING BDE-184508.A5 184508	£1.50	£1.80
800 - GREASE BDE-100679.A16 100679	£78.12	£93.74
800 - GREASE BDE-100653.A5 100653	£2.26	£2.71
861 - KIT BOX BDE-180584.A1 180584	£17.48	£20.97
876 - SERVICE KIT BDE-FN1664-RK.A0 FN1664-RK	£17.48	£20.97
877 - VALVE BDE-TVA15RF.A1 TVA15RF	£115.77	£138.92

Attribute Name	Value
Brand	Bostitch
