Bostitch F33PTSM-E Type Rev F Nailer Spare Parts

Home Details Reviews Delivery

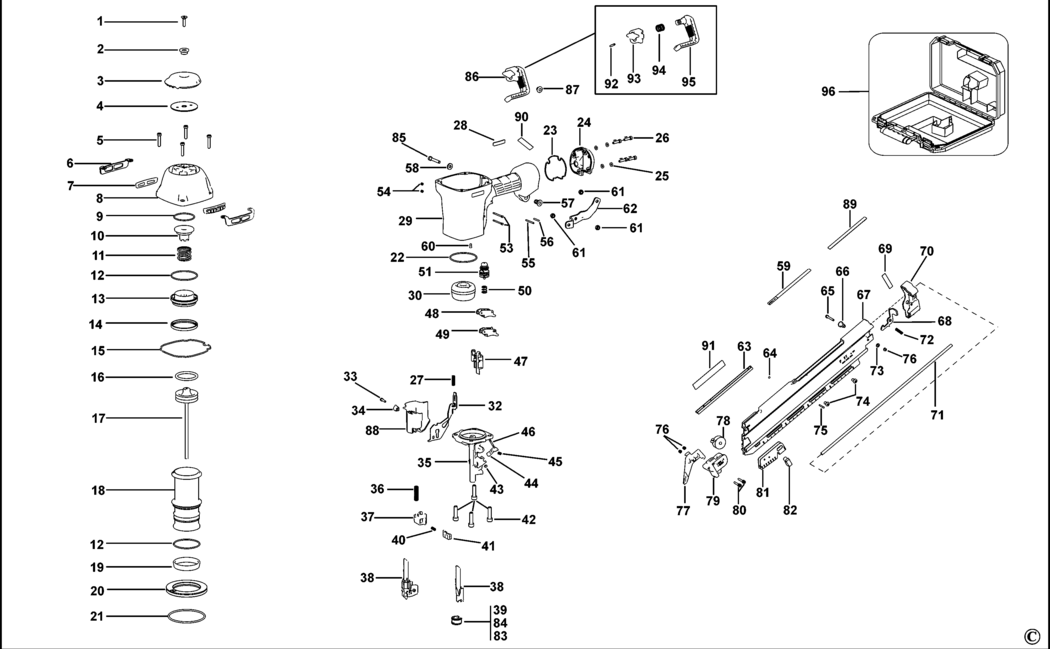

An exploded drawing and spare parts listing for the Bostitch F33PTSM-E Type Rev F Nailer

	Ex VAT	Inc VAT
1 - SCREW BDE-MSF6100-25.A10 MSF6100-25	£1.66	£1.99
2 - BUSHING BDE-163859.A7 163859	£2.87	£3.44
3 - EXHAUST BDE-163818.A1 163818	£3.39	£4.07
4 - PLATE BDE-163830.A5 163830	£1.66	£1.99
5 - SCREW BDE-MSC6100-30.A49 MSC6100-30	£1.66	£1.99
6 - PLATE BDE-163827.A2 163827	£1.88	£2.26
7 - GUIDE BDE-149819.A5 149819	£1.66	£1.99
8 - END CAP BDE-163848.A3 163848	£35.02	£42.02
9 - O RING BDE-105814.A7 105814	£11.18	£13.41
10 - BUMPER BDE-163820.A12 163820	£2.32	£2.78
11 - SPRING BDE-163844.A7 163844	£1.66	£1.99
12 - O RING BDE-163822.A12 163822	£3.92	£4.70
13 - VALVE BODY BDE-163821.A2 163821	£1.66	£1.99
14 - SEAL BDE-163823.A2 163823	£1.66	£1.99
15 - SEAL BDE-163845.A7 163845	£1.66	£1.99
16 - O RING BDE-851606-S.A15 851606-S	£1.66	£1.99
17 - PISTON KIT BDE-163922.A3 163922	£53.46	£64.15
18 - SLEEVE BDE-163824.A12 163824	£30.98	£37.18
19 - SEAL BDE-175520.A11 175520	£1.66	£1.99
20 - RING BDE-163855.A7 163855	£2.87	£3.44
21 - O RING BDE-108718.A12 108718	£1.66	£1.99
22 - O RING BDE-89673.A16 89673	£2.32	£2.78
23 - SEAL BDE-163856.A7 163856	£1.66	£1.99
24 - END CAP BDE-163843.A4 163843	£11.18	£13.41
25 - WASHER BDE-T50118.A19 T50118	£1.66	£1.99
26 - SCREW BDE-MSC5080-20.A59 MSC5080-20	£1.66	£1.99
27 - SPRING BDE-166781.A4 166781	£1.66	£1.99
28 - LABEL BDE-171432.A2 171432	£1.66	£1.99
29 - HOUSING BDE-171127.A3 171127	£80.46	£96.55
30 - BUMPER BDE-107231.A16 107231	£15.01	£18.01
32 - ARM BDE-163900.A4 163900	£1.88	£2.26
33 - SCREW BDE-MSC4070-16.A17 MSC4070-16	£1.66	£1.99
34 - BUSHING BDE-163903.A4 163903	£2.32	£2.78
35 - NOSE BDE-163924-.A0 163924-	£104.31	£125.17
36 - SPRING BDE-166772.A2 166772	£1.66	£1.99
38 - CONTACT BDE-142941.A1 142941	£11.18	£13.41
38 - KIT BDE-MCN-KIT3.A2 MCN-KIT3	£53.46	£64.15
39 - FOOT SA inc 84 83 BDE-121072.A12 121072	£1.66	£1.99
40 - SPRING BDE-115230.A11 115230	£1.66	£1.99
41 - CASTING BDE-166777.A2 166777	£4.83	£5.80
42 - SCREW BDE-MSC8125-30.A7 MSC8125-30	£1.66	£1.99
43 - WASHER BDE-854004.A3 854004	£1.66	£1.99
44 - PAWL BDE-163877.A2 163877	£3.92	£4.70
45 - SPRING BDE-163878.A5 163878	£1.66	£1.99
46 - PIN BDE-149882.A3 149882	£1.66	£1.99
47 - GUIDE BDE-163883.A7 163883	£1.66	£1.99
48 - SWITCH KIT BDE-SEQ7.A3 SEQ7	£6.06	£7.27
49 - KIT SA BDE-CNTK5.A1 CNTK5	£2.32	£2.78
50 - SPRING BDE-100387.A18 100387	£1.66	£1.99
51 - VALVE BDE-TVA6.A48 TVA6	£16.52	£19.82
53 - SCREW BDE-108562.A11 108562	£1.66	£1.99
54 - NUT BDE-MHE3050-100.A7 MHE3050-100	£1.66	£1.99
55 - PIN BDE-100298.A10 100298	£1.66	£1.99
56 - PIN BDE-MPP030020.A79 MPP030020	£1.66	£1.99
57 - BUSHING BDE-123859.A7 123859	£1.66	£1.99
58 - WASHER BDE-MPW6.2.A17 MPW6.2	£1.66	£1.99
59 - WARNING LABEL BDE-158612.A6 158612	£1.66	£1.99
60 - PLUG BDE-163858.A6 163858	£1.66	£1.99
61 - NUT BDE-MHE6100-100.A70 MHE6100-100	£1.66	£1.99
62 - BRACKET BDE-166776.A2 166776	£15.01	£18.01
63 - LINER BDE-171352.A1 171352	£20.50	£24.60
64 - O RING BDE-166797.A3 166797	£1.66	£1.99
65 - SCREW BDE-100261.A12 100261	£1.66	£1.99
66 - SPACER BDE-121472.A3 121472	£1.66	£1.99
67 - MAGAZINE Short BDE-166785 166785	-
68 - LATCH BDE-166778.A8 166778	£1.66	£1.99
69 - LABEL BDE-120927.A0 120927	£1.66	£1.99
70 - END CAP BDE-163912.A2 163912	£4.83	£5.80
71 - GUIDE ROD Short BDE-171353.A0 171353	£4.83	£5.80
72 - SPRING BDE-120878.A14 120878	£1.66	£1.99
72 - PUSHER BDE-188674.A3 188674	£11.18	£13.41
73 - WASHER BDE-MPW4.A0 MPW4	£1.66	£1.99
74 - BOLT BDE-MSB6100-12.A18 MSB6100-12	£1.66	£1.99
75 - PIN BDE-121407.A10 121407	£1.66	£1.99
76 - NUT M4 BDE-MHE4070-100.A80 MHE4070-100	£1.66	£1.99
77 - PUSHER BDE-163898 163898	£11.18	£13.41
78 - SPRING BDE-115143.A12 115143	£7.40	£8.88
79 - HANDLE BDE-163902.A4 163902	£1.88	£2.26
80 - SCREW BDE-121052.A10 121052	£1.66	£1.99
81 - SHIELD BDE-112630.A9 112630	£2.26	£2.71
82 - SPRING BDE-112631.A6 112631	£1.66	£1.99
83 - FOOT BDE-121070.A9 121070	£1.66	£1.99
84 - CLIP BDE-121071.A3 121071	£1.66	£1.99
85 - SCREW BDE-MSC6100-35.A15 MSC6100-35	£1.66	£1.99
86 - HOOK BDE-171354.A2 171354	£12.53	£15.04
87 - WASHER BDE-171342.A3 171342	£1.66	£1.99
88 - COVER BDE-171338.A2 171338	£2.32	£2.78
89 - LABEL BDE-163926.A1 163926	£1.66	£1.99
90 - WARNING LABEL BDE-104981.A1 104981	£1.66	£1.99
91 - WARNING LABEL BDE-171335.A2 171335	£1.66	£1.99
92 - SPIROL PIN BDE-UB3811.2.A5 UB3811.2	£1.66	£1.99
93 - MOUNT BDE-171340.A3 171340	£3.92	£4.70
94 - SPRING BDE-171341.A3 171341	£1.66	£1.99
95 - HOOK BDE-171339.A3 171339	£4.83	£5.80

Attribute Name	Value
Brand	Bostitch
