Bostitch F33PT-E Type Rev F Nailer Spare Parts

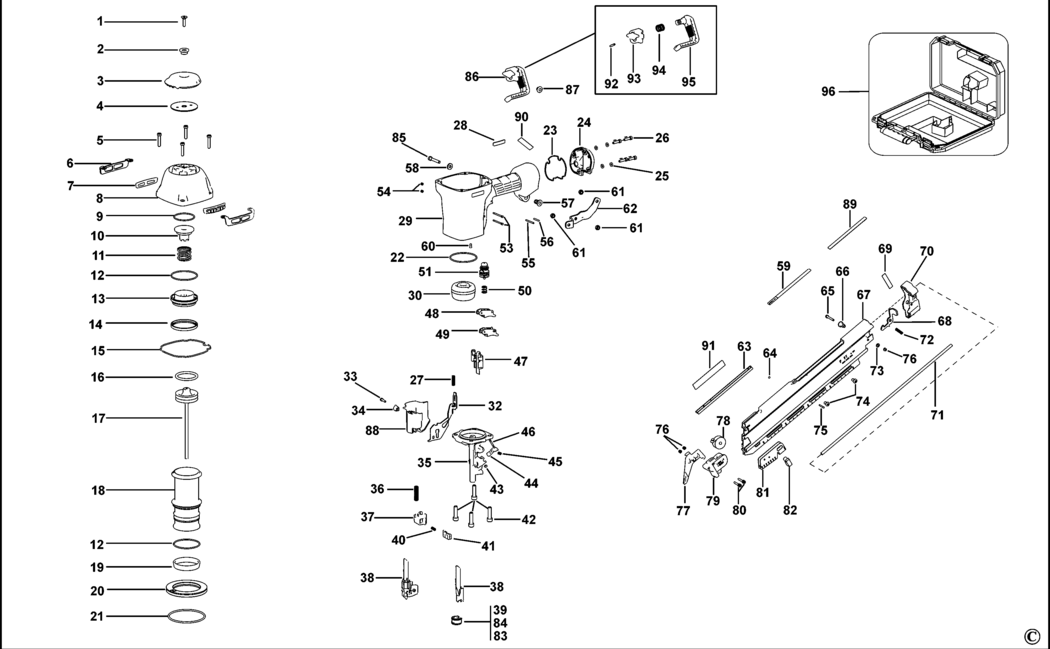

An exploded drawing and spare parts listing for the Bostitch F33PT-E Type Rev F Nailer

	Ex VAT	Inc VAT
1 - SCREW BDE-MSF6100-25.A0 MSF6100-25	£1.50	£1.80
2 - BUSHING BDE-163859.A14 163859	£2.78	£3.34
3 - EXHAUST BDE-163818.A13 163818	£3.30	£3.96
4 - PLATE BDE-163830.A12 163830	£1.50	£1.80
5 - SCREW BDE-MSC6100-30.A21 MSC6100-30	£1.50	£1.80
6 - PLATE BDE-163827.A11 163827	£1.82	£2.19
7 - GUIDE BDE-149819.A15 149819	£1.50	£1.80
8 - END CAP BDE-163848.A5 163848	£34.00	£40.80
9 - O RING BDE-105814.A3 105814	£10.85	£13.02
10 - BUMPER BDE-163820.A0 163820	£2.26	£2.71
11 - SPRING BDE-163844.A12 163844	£1.50	£1.80
12 - O RING BDE-163822.A0 163822	£3.80	£4.56
13 - VALVE BODY BDE-163821.A14 163821	£1.50	£1.80
14 - SEAL BDE-163823.A14 163823	£1.50	£1.80
15 - SEAL BDE-163845.A2 163845	£1.50	£1.80
16 - O RING BDE-851606-S.A1 851606-S	£1.50	£1.80
17 - PISTON KIT BDE-163922.A5 163922	£51.90	£62.28
18 - SLEEVE BDE-163824.A0 163824	£30.08	£36.10
19 - SEAL BDE-175520.A16 175520	£1.50	£1.80
20 - RING BDE-163855.A0 163855	£2.78	£3.34
21 - O RING BDE-108718.A4 108718	£1.50	£1.80
22 - O RING BDE-89673.A2 89673	£2.26	£2.71
23 - SEAL BDE-163856.A14 163856	£1.50	£1.80
24 - END CAP BDE-163843.A2 163843	£10.85	£13.02
25 - WASHER BDE-T50118.A35 T50118	£1.50	£1.80
26 - SCREW BDE-MSC5080-20.A12 MSC5080-20	£1.50	£1.80
27 - SPRING BDE-166781.A1 166781	£1.50	£1.80
28 - LABEL BDE-171432.A0 171432	£1.50	£1.80
29 - HOUSING BDE-171127.A0 171127	£78.12	£93.74
30 - BUMPER BDE-107231.A4 107231	£14.57	£17.48
32 - ARM BDE-163900.A8 163900	£1.82	£2.19
33 - SCREW BDE-MSC4070-16.A2 MSC4070-16	£1.50	£1.80
34 - BUSHING BDE-163903.A0 163903	£2.26	£2.71
35 - NOSE BDE-163924-.A3 163924-	£104.31	£125.17
36 - SPRING BDE-166772.A1 166772	£1.50	£1.80
38 - CONTACT BDE-142941.A8 142941	£10.85	£13.02
38 - KIT BDE-MCN-KIT3.A1 MCN-KIT3	£51.90	£62.28
39 - FOOT SA inc 84 83 BDE-121072.A1 121072	£1.50	£1.80
40 - SPRING BDE-115230.A2 115230	£1.50	£1.80
41 - CASTING BDE-166777.A1 166777	£4.69	£5.63
42 - SCREW BDE-MSC8125-30.A1 MSC8125-30	£1.50	£1.80
43 - WASHER BDE-854004.A25 854004	£1.50	£1.80
44 - PAWL BDE-163877.A0 163877	£3.80	£4.56
45 - SPRING BDE-163878.A8 163878	£1.50	£1.80
46 - PIN BDE-149882.A14 149882	£1.50	£1.80
47 - GUIDE BDE-163883.A13 163883	£1.50	£1.80
48 - SWITCH KIT BDE-SEQ7.A7 SEQ7	£5.88	£7.06
49 - KIT SA BDE-CNTK5.A4 CNTK5	£2.26	£2.71
50 - SPRING BDE-100387.A69 100387	£1.50	£1.80
51 - VALVE BDE-TVA6.A20 TVA6	£16.03	£19.24
53 - SCREW BDE-108562.A7 108562	£1.50	£1.80
54 - NUT BDE-MHE3050-100.A30 MHE3050-100	£1.50	£1.80
55 - PIN BDE-100298.A58 100298	£1.50	£1.80
56 - PIN BDE-MPP030020.A12 MPP030020	£1.50	£1.80
57 - BUSHING BDE-123859.A5 123859	£1.50	£1.80
58 - WASHER BDE-MPW6.2.A35 MPW6.2	£1.50	£1.80
59 - WARNING LABEL BDE-158612.A19 158612	£1.50	£1.80
60 - PLUG BDE-163858.A0 163858	£1.50	£1.80
61 - NUT BDE-MHE6100-100.A29 MHE6100-100	£1.50	£1.80
62 - BRACKET BDE-166776.A3 166776	£14.57	£17.48
63 - LINER BDE-163904.A1 163904	£16.03	£19.24
64 - O RING BDE-166797.A13 166797	£1.50	£1.80
65 - SCREW BDE-100261.A1 100261	£1.50	£1.80
66 - SPACER BDE-121472.A10 121472	£1.50	£1.80
67 - MAGAZINE BDE-166783 166783	£60.94	£73.13
68 - LATCH BDE-166778.A9 166778	£1.50	£1.80
69 - LABEL BDE-120927.A6 120927	£1.50	£1.80
70 - END CAP BDE-163912.A0 163912	£4.69	£5.63
71 - GUIDE ROD BDE-163866.A5 163866	£1.50	£1.80
72 - SPRING BDE-120878.A5 120878	£1.50	£1.80
73 - WASHER BDE-MPW4.A18 MPW4	£1.50	£1.80
74 - BOLT BDE-MSB6100-12.A1 MSB6100-12	£1.50	£1.80
75 - PIN BDE-121407.A3 121407	£1.50	£1.80
76 - NUT M4 BDE-MHE4070-100.A41 MHE4070-100	£1.50	£1.80
77 - PUSHER BDE-188674.A0 188674	£10.85	£13.02
78 - SPRING BDE-115143.A4 115143	£7.18	£8.62
79 - HANDLE BDE-163902.A9 163902	£1.82	£2.19
80 - SCREW BDE-121052.A23 121052	£1.50	£1.80
81 - SHIELD BDE-112630.A6 112630	£2.26	£2.71
82 - SPRING BDE-112631.A15 112631	£1.50	£1.80
83 - FOOT BDE-121070.A4 121070	£1.50	£1.80
84 - CLIP BDE-121071.A8 121071	£1.50	£1.80
85 - SCREW BDE-MSC6100-35.A28 MSC6100-35	£1.50	£1.80
86 - PLUG BDE-163858.A2 163858	£1.50	£1.80
86 - HOOK BDE-171354.A1 171354	£12.17	£14.60
87 - WASHER BDE-171342.A11 171342	£1.50	£1.80
88 - COVER BDE-171338.A10 171338	£2.26	£2.71
89 - LABEL BDE-163926.A0 163926	£1.50	£1.80
90 - WARNING LABEL BDE-104981.A4 104981	£1.50	£1.80
91 - WARNING LABEL BDE-171335.A0 171335	£1.50	£1.80
92 - SPIROL PIN BDE-UB3811.2.A6 UB3811.2	£1.50	£1.80
93 - MOUNT BDE-171340.A6 171340	£3.80	£4.56
94 - SPRING BDE-171341.A0 171341	£1.50	£1.80
95 - HOOK BDE-171339.A0 171339	£4.69	£5.63
96 - KITBOX BDE-B201102003 B201102003	£44.14	£52.97

Attribute Name	Value
Brand	Bostitch
