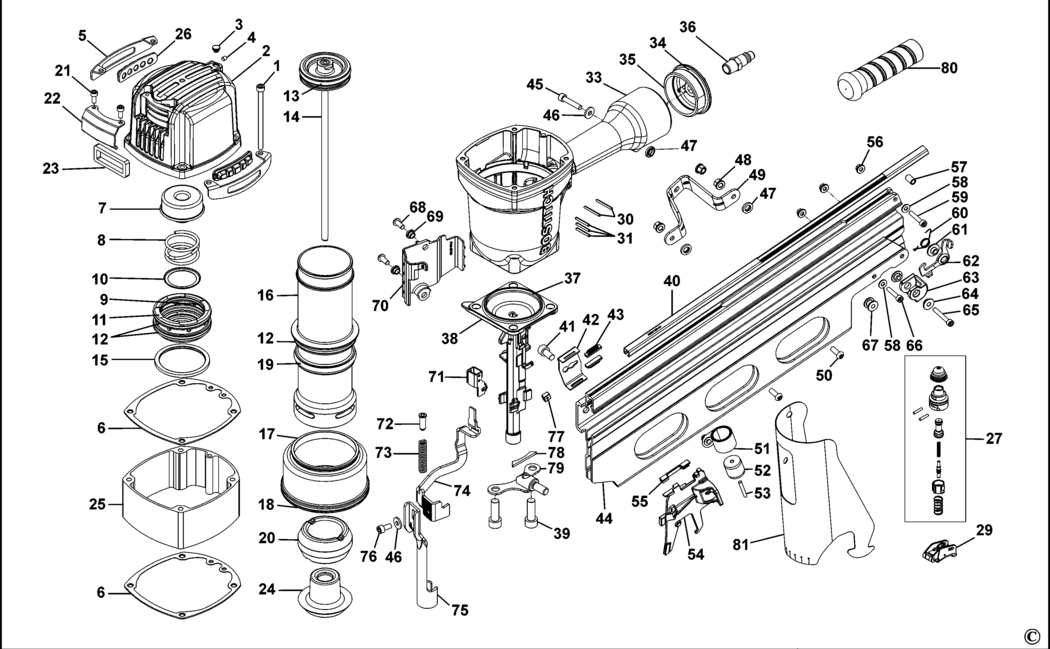

1 - BOLT
BDE-9R196781.A2
9R196781
|
£3.30
|
£3.96
|
|
|
2 - END CAP
BDE-7BUSB-3103001.A2
7BUSB-3103001
|
£104.31
|
£125.17
|
|
|
3 - GROMMET
BDE-1135S-0350001.A4
1135S-0350001
|
£1.50
|
£1.80
|
|
|
4 - GRUB SCREW
BDE-2040104-03010.A10
2040104-03010
|
£1.50
|
£1.80
|
|
|
5 - GUIDE
BDE-11397-1034702.A3
11397-1034702
|
£5.88
|
£7.06
|
|
|
6 - SEAL
BDE-11302-1034701.A3
11302-1034701
|
£14.57
|
£17.48
|
|
|
7 - SEAL
BDE-11370-1030001.A3
11370-1030001
|
£19.90
|
£23.88
|
|
|
8 - SPRING COMPRESSION
BDE-11360-1030001.A3
11360-1030001
|
£3.80
|
£4.56
|
|
|
9 - O RING
BDE-2041108-06050.A3
2041108-06050
|
£1.50
|
£1.80
|
|
|
10 - WASHER
BDE-11381-1030001.A3
11381-1030001
|
£1.50
|
£1.80
|
|
|
11 - VALVE
BDE-11368-1030001.A3
11368-1030001
|
£51.90
|
£62.28
|
|
|
12 - O RING
BDE-2041108-07050.A3
2041108-07050
|
£1.50
|
£1.80
|
|
|
13 - O RING
BDE-2041100-06011.A5
2041100-06011
|
£1.82
|
£2.19
|
|
|
14 - DRIVER SA
BDE-11204-1450006
11204-1450006
|
£192.14
|
£230.57
|
|
|
15 - COLLAR
BDE-11399-1030001.A3
11399-1030001
|
£3.80
|
£4.56
|
|
|
16 - CYLINDER
BDE-9R196783.A2
9R196783
|
£245.11
|
£294.13
|
|
|
17 - SPACER
BDE-9R196784.A0
9R196784
|
£174.63
|
£209.56
|
|
|
18 - O RING
BDE-2041104-11010.A2
2041104-11010
|
£1.50
|
£1.80
|
|
|
19 - O RING
BDE-2041108-07060.A2
2041108-07060
|
£2.26
|
£2.71
|
|
|
20 - BUMPER
BDE-11327-1454703
11327-1454703
|
£25.70
|
£30.84
|
|
|
21 - BOLT
BDE-2040101-03050.A2
2040101-03050
|
£1.50
|
£1.80
|
|
|
22 - DEFLECTOR
BDE-11371-1034701.A3
11371-1034701
|
£4.69
|
£5.63
|
|
|
23 - MUFFLER
BDE-1132T-1030001.A3
1132T-1030001
|
£17.48
|
£20.97
|
|
|
24 - BUMPER
BDE-11327-1454704
11327-1454704
|
£30.08
|
£36.10
|
|
|
25 - BODY
BDE-9R196787.A2
9R196787
|
£80.98
|
£97.18
|
|
|
26 - PAD
BDE-1135R-1034701.A3
1135R-1034701
|
£3.80
|
£4.56
|
|
|
27 - VALVES & SEALS KIT
BDE-11226-1450001.A0
11226-1450001
|
£25.70
|
£30.84
|
|
|
29 - TRIGGER
BDE-11224-1455201.A1
11224-1455201
|
£14.57
|
£17.48
|
|
|
30 - PIN
BDE-9R196803.A1
9R196803
|
£1.50
|
£1.80
|
|
|
31 - PIN
BDE-2040401-05120-0.A1
2040401-05120-0
|
£1.50
|
£1.80
|
|
|
33 - HOUSING
BDE-11230-1458001.A1
11230-1458001
|
£144.10
|
£172.92
|
|
|
34 - O RING
BDE-9R196806.A3
9R196806
|
£1.50
|
£1.80
|
|
|
35 - END CAP
BDE-9R196807.A0
9R196807
|
£14.57
|
£17.48
|
|
|
36 - PLUG
BDE-9R196808.A3
9R196808
|
£4.69
|
£5.63
|
|
|
37 - O RING
BDE-2041104-08020.A3
2041104-08020
|
£1.50
|
£1.80
|
|
|
38 - NOSE
BDE-11382-1454703
11382-1454703
|
£393.38
|
£472.06
|
|
|
39 - BOLT
BDE-MSC10150-30.A5
MSC10150-30
|
£2.26
|
£2.71
|
|
|
40 - GUIDE ROD
BDE-9R196810.A2
9R196810
|
£17.48
|
£20.97
|
|
|
41 - BOLT
BDE-9R196811.A0
9R196811
|
£1.50
|
£1.80
|
|
|
42 - GUIDE
BDE-9R196812.A2
9R196812
|
£3.80
|
£4.56
|
|
|
43 - PAD
BDE-9R196813.A0
9R196813
|
£1.50
|
£1.80
|
|
|
45 - BOLT
BDE-9R196815.A2
9R196815
|
£1.50
|
£1.80
|
|
|
46 - WASHER
BDE-2040202-04010.A0
2040202-04010
|
£1.50
|
£1.80
|
|
|
47 - SEAL
BDE-9R196816.A0
9R196816
|
£3.30
|
£3.96
|
|
|
48 - NUT
BDE-2040501-04010.A0
2040501-04010
|
£1.50
|
£1.80
|
|
|
49 - BRACKET
BDE-9R196817.A1
9R196817
|
£10.85
|
£13.02
|
|
|
50 - BOLT
BDE-9R196818.A1
9R196818
|
£1.50
|
£1.80
|
|
|
51 - SPRING GUIDE
BDE-9R196819.A1
9R196819
|
£17.48
|
£20.97
|
|
|
52 - ROLLER
BDE-9R196820.A1
9R196820
|
£5.88
|
£7.06
|
|
|
53 - ROLLPIN
BDE-9R196821.A1
9R196821
|
£1.50
|
£1.80
|
|
|
54 - PUSHER
BDE-11363-1454702
11363-1454702
|
£93.62
|
£112.35
|
|
|
55 - BEARING
BDE-9R196823.A2
9R196823
|
£1.50
|
£1.80
|
|
|
56 - NUT
BDE-2040501-03040.A2
2040501-03040
|
£1.50
|
£1.80
|
|
|
57 - BUSHING
BDE-9R196825.A0
9R196825
|
£1.50
|
£1.80
|
|
|
58 - WASHER
BDE-9R196826.A2
9R196826
|
£1.50
|
£1.80
|
|
|
59 - BOLT
BDE-9R196827.A0
9R196827
|
£1.50
|
£1.80
|
|
|
60 - SPRING
BDE-9R196828.A2
9R196828
|
£1.50
|
£1.80
|
|
|
61 - WASHER
BDE-9R196829.A0
9R196829
|
£3.30
|
£3.96
|
|
|
62 - LATCH
BDE-9R196830.A2
9R196830
|
£4.69
|
£5.63
|
|
|
63 - BUMPER
BDE-9R196831.A0
9R196831
|
£1.50
|
£1.80
|
|
|
64 - SPACER
BDE-9R196832.A2
9R196832
|
£3.30
|
£3.96
|
|
|
65 - BOLT
BDE-BB40432.A2
BB40432
|
£1.50
|
£1.80
|
|
|
66 - BOLT
BDE-9R196833.A0
9R196833
|
£1.50
|
£1.80
|
|
|
67 - SPACER
BDE-9R196834.A2
9R196834
|
£3.30
|
£3.96
|
|
|
68 - BOLT
BDE-9R196835.A0
9R196835
|
£1.50
|
£1.80
|
|
|
69 - INSERT
BDE-9R196836.A2
9R196836
|
£2.26
|
£2.71
|
|
|
70 - COVER
BDE-9R196837.A0
9R196837
|
£7.85
|
£9.42
|
|
|
71 - GUIDE
BDE-N70145.A14
N70145
|
£1.82
|
£2.19
|
|
|
72 - ROD
BDE-9R196838.A2
9R196838
|
£1.50
|
£1.80
|
|
|
73 - SPRING
BDE-9R196839.A0
9R196839
|
£1.50
|
£1.80
|
|
|
74 - BRACKET
BDE-11256-1374701
11256-1374701
|
£30.08
|
£36.10
|
|
|
75 - BRACKET
BDE-11331-1454702
11331-1454702
|
£25.70
|
£30.84
|
|
|
76 - BOLT
BDE-MSB6100-12.A8
MSB6100-12
|
£1.50
|
£1.80
|
|
|
77 - BUMPER
BDE-9R196842.A2
9R196842
|
£1.50
|
£1.80
|
|
|
78 - PAD
BDE-1135G-1114701.A2
1135G-1114701
|
£2.26
|
£2.71
|
|
|
79 - HANDLE
BDE-1120K-1114701.A4
1120K-1114701
|
£24.39
|
£29.27
|
|
|
80 - HANDLE
BDE-9R196844.A0
9R196844
|
£34.00
|
£40.80
|
|
|
81 - GUARD
BDE-9R196845.A2
9R196845
|
£16.03
|
£19.24
|
|
