Bostitch BF33-2 Type 1 Cordless Nailer Spare Parts

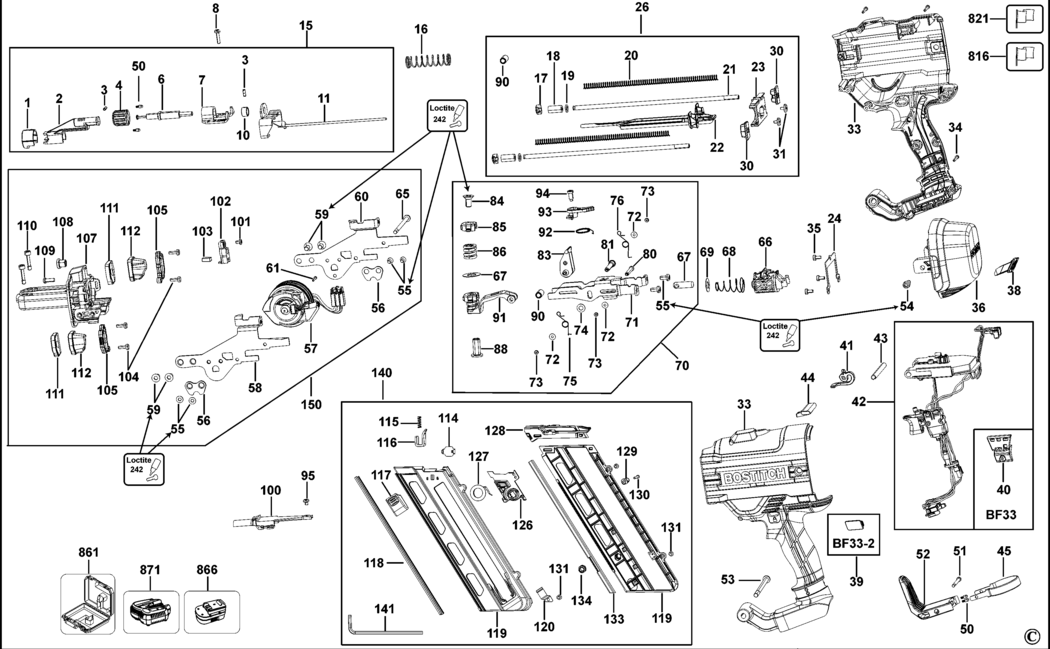

An exploded drawing and spare parts listing for the Bostitch BF33-2 Type 1 Cordless Nailer

	Ex VAT	Inc VAT
1 - COVER BDE-N116163.A8 N116163	£2.26	£2.71
2 - ADJUSTER BDE-N093795.A10 N093795	£37.35	£44.82
3 - ROLL PIN BDE-N153045.A10 N153045	£1.50	£1.80
4 - ADJUSTER DEPTH BDE-N037233.A9 N037233	£1.50	£1.80
6 - SHAFT BDE-N034174.A8 N034174	£9.41	£11.29
7 - SUPPORT BDE-N034374.A4 N034374	£3.80	£4.56
8 - SCREW BDE-N093602.A0 N093602	£1.50	£1.80
10 - SLEEVE BDE-N044294.A0 N044294	£1.82	£2.19
11 - TRIP SA BDE-N380152.A4 N380152	£16.03	£19.24
15 - DEPTH STOP SA BDE-N233942.A4 N233942	£96.55	£115.86
16 - SPRING BDE-N061508.A9 N061508	£1.50	£1.80
17 - CAP BDE-N192671.A12 N192671	£1.50	£1.80
18 - BUMPER BDE-N088831.A12 N088831	£2.78	£3.34
19 - WASHER BDE-N088833.A12 N088833	£1.50	£1.80
20 - SPRING COMPRESSION BDE-N233943.A3 N233943	£17.48	£20.97
21 - RAIL BDE-N036350.A9 N036350	£17.48	£20.97
22 - PROFILE BDE-N522743.A4 N522743	£55.30	£66.36
23 - CAP BDE-N036349.A3 N036349	£1.82	£2.19
24 - PLATE BDE-N121870.A3 N121870	£1.50	£1.80
26 - NO LONGER AVAILABLE BDE-000000-00.A30423 000000-00	-
30 - BUMPER BDE-N243999.A10 N243999	£3.80	£4.56
31 - SCREW BDE-N088832.A1 N088832	£3.80	£4.56
33 - HOUSING PAIR BDE-N320920.A1 N320920	£51.90	£62.28
34 - SCREW BDE-330019-24.A3 330019-24	£1.50	£1.80
35 - SCREW BDE-N123731.A1 N123731	£1.50	£1.80
36 - END CAP BDE-N254341.A5 N254341	£34.00	£40.80
38 - WINDOW BDE-N130853.A9 N130853	£1.50	£1.80
39 - CAP BDE-N150581.A2 N150581	£1.50	£1.80
40 - SELECTOR SA BDE-N093415.A7 N093415	£5.88	£7.06
41 - ACTUATOR BDE-N055786.A10 N055786	£2.49	£2.99
42 - NO LONGER AVAILABLE BDE-000000-00.A30424 000000-00	-
42 - ELECTRONIC & SWITCH Seq only GB BDE-N512738.A0 N512738	£218.32	£261.98
42 - ELECTRONIC & SWITCH GB BDE-N512738.A1 N512738	£218.32	£261.98
43 - SPACER BDE-N037216.A1 N037216	£1.42	£1.70
44 - SWITCH LOCK OFF BDE-N039287.A15 N039287	£1.50	£1.80
45 - CLAMP BDE-N080411.A0 N080411	£3.80	£4.56
50 - DETENT BDE-326467-00.A71 326467-00	£1.50	£1.80
51 - SCREW BDE-N093728.A2 N093728	£1.50	£1.80
52 - HOOK BDE-N080410.A13 N080410	£5.88	£7.06
53 - SCREW BDE-N123751.A11 N123751	£1.50	£1.80
54 - SCREW BDE-N093611.A11 N093611	£1.88	£2.25
55 - SCREW BDE-N093608.A3 N093608	£1.50	£1.80
56 - RETAINING PLATE BDE-N035847.A8 N035847	£1.50	£1.80
57 - MOTOR SA 18V BDE-N233948.A5 N233948	-
58 - FRAME LH BDE-N034749.A11 N034749	£9.41	£11.29
59 - SCREW BDE-N477247.A22 N477247	£1.50	£1.80
60 - FRAME RH BDE-N034750.A0 N034750	£9.41	£11.29
61 - SCREW TORX BDE-N056875.A4 N056875	£1.50	£1.80
65 - SCREW BDE-N093607.A7 N093607	£1.50	£1.80
66 - SOLENOID ASSEMBLY BDE-N233949.A0 N233949	£19.90	£23.88
67 - WASHER BDE-N114861.A19 N114861	£1.50	£1.80
68 - SPRING BDE-N219872.A0 N219872	£1.50	£1.80
69 - WASHER BDE-N114861.A18 N114861	£1.50	£1.80
70 - AXIS & CARRIAGE SA BDE-N473189.A4 N473189	£74.15	£88.98
71 - CARRIAGE BDE-N321159.A0 N321159	£18.91	£22.69
72 - WASHER BDE-330016-25.A18 330016-25	£1.50	£1.80
73 - GROMMET BDE-391814-00.A15 391814-00	£1.50	£1.80
74 - WASHER BDE-N114961.A3 N114961	£1.50	£1.80
75 - SPRING LH BDE-N613043.A0 N613043	£2.78	£3.34
76 - SPRING RH BDE-N613044.A13 N613044	£2.78	£3.34
80 - PIN BDE-N083553R.A0 N083553R	£3.30	£3.96
81 - PIN BDE-N034920.A0 N034920	£5.88	£7.06
83 - ROLLER SA BDE-N233950.A13 N233950	£44.14	£52.97
84 - SCREW BDE-N477247.A21 N477247	£1.50	£1.80
85 - CAP BDE-N029585.A11 N029585	£7.85	£9.42
86 - SPRING BDE-N309239.A1 N309239	£9.41	£11.29
88 - INSERT BDE-N035104.A1 N035104	£7.18	£8.62
90 - SLEEVE BDE-N259819.A11 N259819	£2.78	£3.34
91 - BEAM BDE-N234259.A4 N234259	£37.35	£44.82
92 - SPRING TORSION BDE-N086806.A0 N086806	£1.50	£1.80
93 - LEVER BDE-N086157.A11 N086157	£1.50	£1.80
94 - SCREW BDE-N113536.A0 N113536	£1.50	£1.80
95 - SCREW BDE-N123971.A3 N123971	£1.50	£1.80
100 - INSERT BDE-N233939.A10 N233939	£44.14	£52.97
101 - SCREW BDE-949894-06.A91 949894-06	£1.50	£1.80
102 - HOLDER BDE-N194170.A0 N194170	£1.50	£1.80
103 - MAGNET BDE-N089554.A11 N089554	£9.41	£11.29
104 - SCREW BDE-324006-16.A24 324006-16	£3.80	£4.56
105 - RETAINER BDE-N082940.A10 N082940	£1.50	£1.80
107 - CASTING BDE-N273779.A1 N273779	£55.30	£66.36
108 - BUSHING BDE-N061668.A2 N061668	£3.80	£4.56
109 - SCREW.TEMP BDE-330019-11.A3 330019-11	£1.50	£1.80
110 - SCREW BDE-N061605.A2 N061605	£1.50	£1.80
111 - DAMPER BDE-N133209.A1 N133209	£1.50	£1.80
112 - BUMPER BDE-N233940.A1 N233940	£12.17	£14.60
114 - RETAINER BDE-N034726.A13 N034726	£1.50	£1.80
115 - SPRING COMPRESSION BDE-N061545.A11 N061545	£1.50	£1.80
116 - LOCKING DEVICE BDE-N307220.A4 N307220	£1.50	£1.80
117 - LATCH BUTTON BDE-N061505.A10 N061505	£1.50	£1.80
118 - CLIP BDE-N034716.A0 N034716	£3.80	£4.56
119 - MAGAZINE BDE-N380178.A1 N380178	£19.90	£23.88
120 - LEVER LOCK BDE-N114100.A17 N114100	£1.50	£1.80
126 - PUSHER BDE-N054935.A8 N054935	£4.69	£5.63
127 - SPRING SA BDE-N128653.A2 N128653	£7.18	£8.62
128 - MAGAZINE INTERFACE BDE-N397144.A7 N397144	£34.00	£40.80
129 - INSERT BDE-N061506.A4 N061506	£1.50	£1.80
130 - SCREW BDE-330065-06.A71 330065-06	£1.50	£1.80
131 - SCREW BDE-330019-62.A24 330019-62	-
131 - SCREW BDE-330019-02.A150 330019-02	£1.50	£1.80
133 - LINER BDE-N034743.A0 N034743	£4.69	£5.63
134 - NUT BDE-397893-00.A0 397893-00	£1.82	£2.19
140 - MAGAZINE SA BDE-N260859.A8 N260859	£131.46	£157.75
141 - HEX KEY BDE-N061664.A11 N061664	£1.50	£1.80
150 - MOTOR SA & MOUNT BDE-N413910.A0 N413910	£283.82	£340.58
816 - WARNING LABEL GB BDE-N292220.A1 N292220	£1.50	£1.80
821 - RATING LABEL GB BDE-N289719 N289719	£7.85	£9.42
861 - KITBOX BDE-N287639.A0 N287639	£44.14	£52.97
866 - CHARGER GB GB BDE-N325220.A0 N325220	£126.63	£151.96
866 - BATTERY 18V - 4.0AH - 72WH BDE-N323079.A3 N323079	£209.59	£251.51

Attribute Name	Value
Brand	Bostitch
