Bostitch BCF30PTB Type 1 Nailer Spare Parts

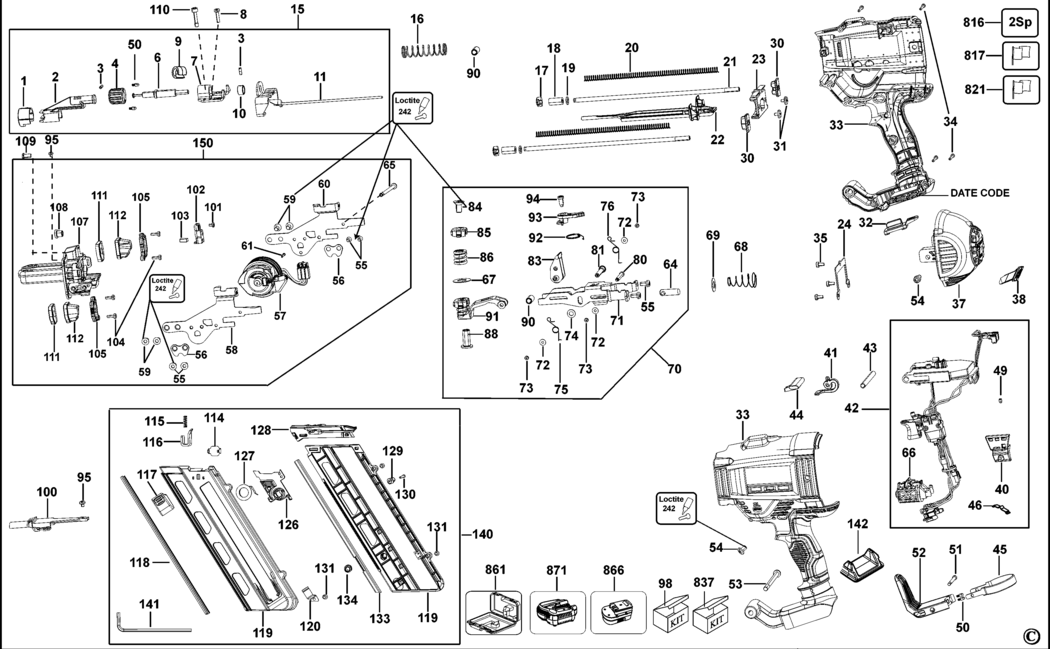

An exploded drawing and spare parts listing for the Bostitch BCF30PTB Type 1 Nailer

	Ex VAT	Inc VAT
1 - COVER BDE-N116163.A5 N116163	£2.26	£2.71
2 - ADJUSTER BDE-N093795.A7 N093795	£37.35	£44.82
3 - ROLL PIN BDE-N153045.A8 N153045	£1.50	£1.80
4 - ADJUSTER DEPTH BDE-N037233.A4 N037233	£1.50	£1.80
6 - SHAFT BDE-N034174.A4 N034174	£9.41	£11.29
7 - SUPPORT BDE-N034374.A9 N034374	£3.80	£4.56
8 - SCREW BDE-N432422.A2 N432422	£1.50	£1.80
9 - ADJUSTER DEPTH BDE-N432659.A2 N432659	£1.50	£1.80
10 - SLEEVE BDE-N044294.A11 N044294	£1.82	£2.19
11 - TRIP SA BDE-N380152.A9 N380152	£16.03	£19.24
15 - DEPTH STOP SA BDE-N486033.A0 N486033	£87.82	£105.39
16 - SPRING BDE-N061508.A6 N061508	£1.50	£1.80
17 - CAP BDE-N192671.A8 N192671	£1.50	£1.80
18 - BUMPER BDE-N088831.A6 N088831	£2.78	£3.34
19 - WASHER BDE-N088833.A6 N088833	£1.50	£1.80
20 - SPRING COMPRESSION BDE-N233943.A9 N233943	£17.48	£20.97
21 - RAIL BDE-N036350.A6 N036350	£17.48	£20.97
22 - PROFILE BDE-N486032.A4 N486032	£71.44	£85.73
23 - CAP BDE-N036349.A6 N036349	£1.82	£2.19
24 - PLATE BDE-N121870.A9 N121870	£1.50	£1.80
30 - BUMPER BDE-N243999.A3 N243999	£3.80	£4.56
31 - SCREW BDE-N088832.A7 N088832	£3.80	£4.56
33 - CLAMSHELL PAIR BDE-N443607.A1 N443607	£37.82	£45.38
33 - HOUSING PAIR BDE-N525530.A1 N525530	-
34 - SCREW BDE-330019-24.A36 330019-24	£1.50	£1.80
35 - SCREW BDE-N123731.A7 N123731	£1.50	£1.80
37 - END CAP BDE-N254341.A4 N254341	£34.00	£40.80
38 - WINDOW BDE-N130853.A0 N130853	£1.50	£1.80
40 - SELECTOR SA BDE-N093415.A3 N093415	£5.88	£7.06
41 - ACTUATOR BDE-N055786.A6 N055786	£2.49	£2.99
43 - SPACER BDE-N439401.A2 N439401	£1.50	£1.80
44 - SWITCH LOCK OFF BDE-N039287.A6 N039287	£1.50	£1.80
45 - CLAMP BDE-N080411.A7 N080411	£3.80	£4.56
46 - DETENT BDE-N087259.A11 N087259	£1.66	£1.99
49 - DETENT BDE-N380148.A8 N380148	£3.80	£4.56
50 - DETENT BDE-326467-00.A291 326467-00	£1.50	£1.80
51 - SCREW BDE-N093728.A5 N093728	£1.50	£1.80
52 - HOOK BDE-N080410.A6 N080410	£5.88	£7.06
53 - SCREW BDE-N123751.A8 N123751	£1.50	£1.80
54 - SCREW BDE-N093611.A7 N093611	£1.88	£2.25
55 - SCREW BDE-N093608.A7 N093608	£1.50	£1.80
56 - RETAINING PLATE BDE-N035847.A5 N035847	£1.50	£1.80
58 - FRAME LH BDE-N034749.A0 N034749	£9.41	£11.29
59 - SCREW BDE-N477247.A6 N477247	£1.50	£1.80
60 - FRAME RH BDE-N034750.A11 N034750	£9.41	£11.29
61 - SCREW TORX BDE-N056875.A49 N056875	£1.50	£1.80
64 - PIN BDE-N126788.A10 N126788	£30.08	£36.10
65 - SCREW BDE-N439516.A4 N439516	£1.50	£1.80
66 - SOLENOID ASSEMBLY BDE-N233949.A10 N233949	£19.90	£23.88
67 - WASHER BDE-N114861.A9 N114861	£1.50	£1.80
68 - SPRING BDE-N219872.A8 N219872	£1.50	£1.80
69 - WASHER BDE-N114861.A10 N114861	£1.50	£1.80
70 - AXIS & CARRIAGE SA BDE-N473189.A9 N473189	£74.15	£88.98
71 - CARRIAGE BDE-N321159.A10 N321159	£18.91	£22.69
72 - WASHER BDE-330016-25.A7 330016-25	£1.50	£1.80
73 - GROMMET BDE-391814-00.A50 391814-00	£1.50	£1.80
74 - WASHER BDE-N114961.A7 N114961	£1.50	£1.80
75 - SPRING LH BDE-N613043.A13 N613043	£2.78	£3.34
76 - SPRING RH BDE-N613044.A0 N613044	£2.78	£3.34
80 - PIN BDE-N083553R.A10 N083553R	£3.30	£3.96
81 - PIN BDE-N034920.A9 N034920	£5.88	£7.06
83 - ROLLER SA BDE-N233950.A1 N233950	£44.14	£52.97
84 - SCREW BDE-N477247.A5 N477247	£1.50	£1.80
85 - CAP BDE-N029585.A6 N029585	£7.85	£9.42
86 - SPRING BDE-N309239.A7 N309239	£9.41	£11.29
88 - INSERT ` BDE-N035104.A8 N035104	£7.18	£8.62
90 - SLEEVE BDE-N259819.A4 N259819	£2.78	£3.34
91 - BEAM BDE-N234259.A12 N234259	£37.35	£44.82
92 - SPRING TORSION BDE-N086806.A9 N086806	£1.50	£1.80
93 - LEVER BDE-N086157.A7 N086157	£1.50	£1.80
94 - SCREW BDE-N113536.A13 N113536	£1.50	£1.80
95 - SCREW BDE-N123971.A6 N123971	£1.50	£1.80
98 - SERVICE KIT BDE-N473973.A5 N473973	£157.18	£188.61
100 - INSERT BDE-N233939.A4 N233939	£44.14	£52.97
101 - SCREW BDE-949894-06.A21 949894-06	£1.50	£1.80
102 - HOLDER BDE-N194170.A5 N194170	£1.50	£1.80
103 - MAGNET BDE-N089554.A5 N089554	£9.41	£11.29
104 - SCREW BDE-324006-15.A43 324006-15	£1.50	£1.80
105 - RETAINER BDE-N082940.A7 N082940	£1.50	£1.80
107 - CASTING BDE-N438177.A1 N438177	£25.70	£30.84
108 - BUSHING BDE-N061668.A9 N061668	£3.80	£4.56
109 - SCREW BDE-330019-13.A486 330019-13	£1.50	£1.80
110 - SCREW BDE-N061605.A9 N061605	£1.50	£1.80
111 - DAMPER BDE-N133209.A7 N133209	£1.50	£1.80
112 - BUMPER BDE-N233940.A7 N233940	£12.17	£14.60
114 - RETAINER BDE-N034726.A0 N034726	£1.50	£1.80
115 - SPRING COMPRESSION BDE-N061545.A4 N061545	£1.50	£1.80
116 - LOCKING DEVICE BDE-N307220.A8 N307220	£1.50	£1.80
117 - LATCH BUTTON BDE-N061505.A7 N061505	£1.50	£1.80
118 - CLIP BDE-N034716.A11 N034716	£3.80	£4.56
119 - MAGAZINE BDE-N380178.A7 N380178	£19.90	£23.88
120 - LEVER LOCK BDE-N114100.A7 N114100	£1.50	£1.80
126 - PUSHER BDE-N054935.A0 N054935	£4.69	£5.63
127 - SPRING SA BDE-N128653.A12 N128653	£7.18	£8.62
128 - MAGAZINE INTERFACE BDE-N397144.A1 N397144	£34.00	£40.80
129 - INSERT BDE-N061506.A8 N061506	£1.50	£1.80
130 - SCREW BDE-330019-62.A14 330019-62	-
131 - SCREW BDE-330065-06.A306 330065-06	£1.50	£1.80
133 - LINER BDE-N034743.A12 N034743	£4.69	£5.63
134 - NUT BDE-397893-00.A21 397893-00	£1.82	£2.19
140 - MAGAZINE SA BDE-N260859.A6 N260859	£131.46	£157.75
141 - HEX KEY BDE-N061664.A3 N061664	£1.50	£1.80
142 - LOCK BDE-N290699.A1 N290699	£1.50	£1.80
816 - LABEL BDE-N453989 N453989	£1.82	£2.19
817 - BRAND LABEL BDE-N453991 N453991	£1.78	£2.13
837 - SPRING SA BDE-N454545.A0 N454545	-
861 - KITBOX BDE-N137841.A5 N137841	£51.90	£62.28

Attribute Name	Value
Brand	Bostitch

There are currently no reviews of this product.

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)
