Bostitch GF33PT Type 2 Nailer Spare Parts

Home Details Reviews Delivery

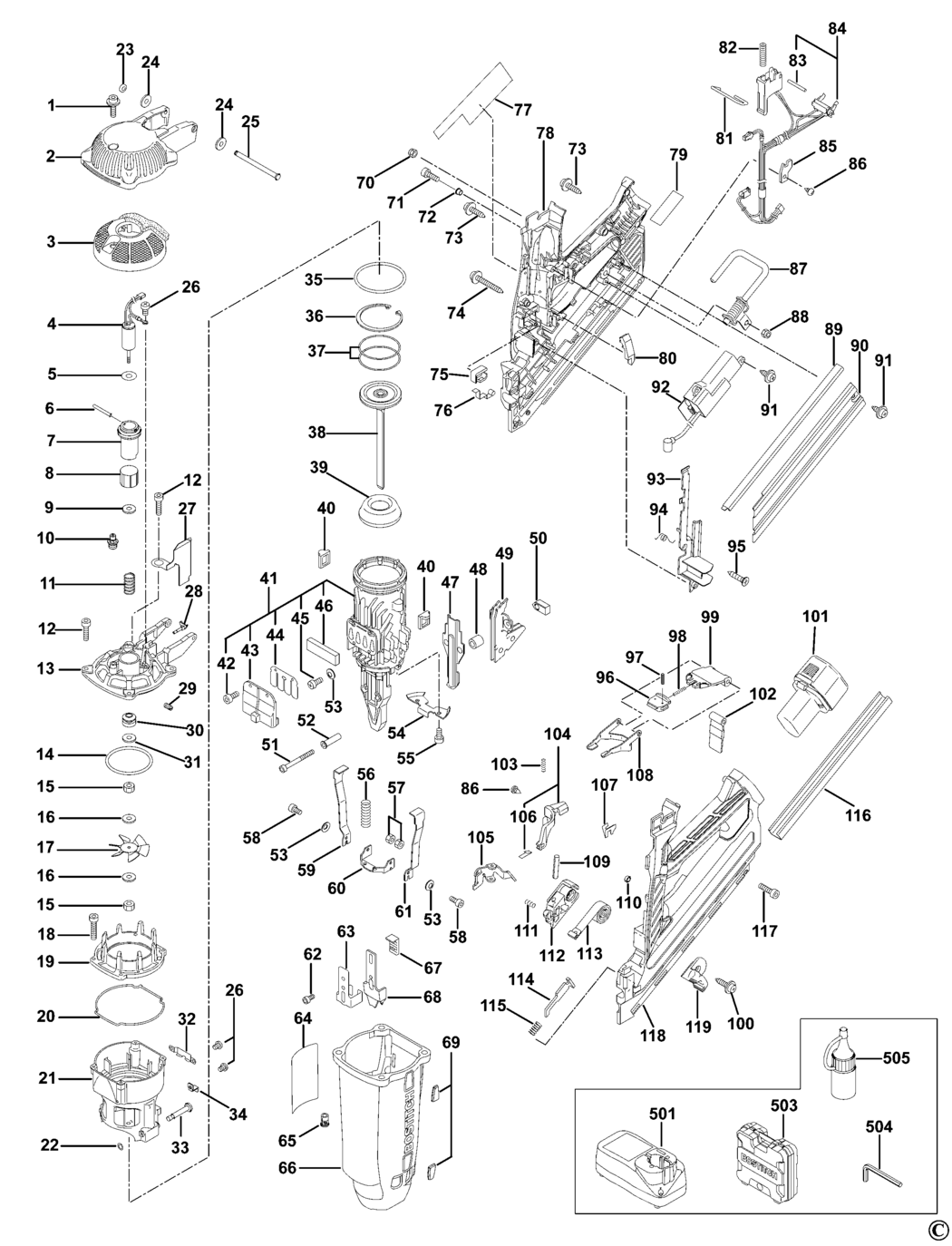

An exploded drawing and spare parts listing for the Bostitch GF33PT Type 2 Nailer

	Ex VAT	Inc VAT
1 - SCREW BDE-9R192101 9R192101	£1.42	£1.70
2 - COVER-TOP BDE-9R192102 9R192102	£15.63	£18.76
3 - FILTER BDE-9R192103 9R192103	£44.00	£52.80
4 - MOTOR BDE-9R192104 9R192104	£204.32	£245.18
5 - WASHER BDE-9R192105 9R192105	£2.71	£3.25
6 - ROLLPIN BDE-9R192106 9R192106	£2.71	£3.25
7 - MOUNT BDE-9R192107 9R192107	-
8 - SLEEVE BDE-9R192108 9R192108	£2.71	£3.25
9 - WASHER BDE-9R192109 9R192109	£2.71	£3.25
10 - SPARK PLUG BDE-9R192110.A0 9R192110	£5.88	£7.06
11 - SPRING BDE-9R192111 9R192111	-
12 - SCREW BDE-9R192112 9R192112	£3.70	£4.44
13 - CYLINDER HEAD BDE-9R192113 9R192113	-
14 - O RING BDE-9R192114 9R192114	-
15 - NUT BDE-9R192115 9R192115	£2.71	£3.25
16 - WASHER BDE-9R192116.A0 9R192116	£1.82	£2.19
17 - FAN BDE-9R192117 9R192117	£7.64	£9.17
18 - SCREW BDE-9R192118.A0 9R192118	£3.80	£4.56
19 - HEAD BDE-9R192119 9R192119	£23.75	£28.50
20 - GASKET BDE-9R192120 9R192120	£2.78	£3.34
21 - HOUSING BDE-9R192121 9R192121	-
22 - O RING BDE-9R192122 9R192122	£1.78	£2.13
23 - RING BDE-9R192123 9R192123	£2.71	£3.25
24 - WASHER BDE-9R192310.A0 9R192310	£2.26	£2.71
25 - SHAFT BDE-9R192125 9R192125	£5.72	£6.87
26 - SCREW BDE-9R192126 9R192126	£2.71	£3.25
27 - PLATE BDE-9R192217 9R192217	£2.71	£3.25
28 - ADAPTOR BDE-9R192127.A0 9R192127	-
29 - GRUB SCREW BDE-9R192128.A2 9R192128	£1.82	£2.19
30 - COVER BDE-9R192222 9R192222	£2.71	£3.25
31 - WASHER BDE-9R192223 9R192223	£2.71	£3.25
32 - LINK BDE-9R192129 9R192129	£5.72	£6.87
33 - PIN BDE-9R192130 9R192130	£2.71	£3.25
34 - PLATE BDE-9R192131 9R192131	-
35 - O RING BDE-9R192132 9R192132	-
36 - RING BDE-9R192133 9R192133	-
37 - PISTON RING BDE-9R192134 9R192134	-
38 - PISTON BDE-9R192349 9R192349	£131.46	£157.75
39 - BUMPER BDE-9R192136 9R192136	-
40 - STOP RUBBER BDE-9R192137 9R192137	£2.71	£3.25
41 - CYLINDER SA BDE-9R192138 9R192138	£161.75	£194.10
42 - SEAL BDE-9R192139.A0 9R192139	-
43 - COVER BDE-9R192140 9R192140	£2.71	£3.25
44 - VALVE REED BDE-9R192141 9R192141	£2.71	£3.25
45 - SEAL BDE-9R192221 9R192221	-
46 - MUFFLER BDE-9R192142 9R192142	£19.40	£23.28
47 - GUIDE BDE-9R192229 9R192229	£7.64	£9.17
48 - PLATE BDE-9R192144 9R192144	£2.71	£3.25
49 - PLATE BDE-9R192335 9R192335	£23.75	£28.50
50 - NUT M5 BDE-9R192146 9R192146	-
51 - SCREW BDE-9R192147 9R192147	£2.78	£3.34
52 - SLEEVE BDE-9R192148 9R192148	£2.78	£3.34
53 - SPRING BDE-9R192150.A1 9R192150	£2.78	£3.34
54 - PLATE BDE-9R192154 9R192154	-
55 - SEAL BDE-9R192155 9R192155	£2.71	£3.25
56 - SPRING BDE-9R192152 9R192152	-
57 - NUT M4 BDE-9R192156 9R192156	£1.78	£2.13
58 - SEAL BDE-9R192139.A1 9R192139	-
59 - ACTUATION ARM BDE-9R192151 9R192151	£7.64	£9.17
60 - CONNECTOR BDE-9R192153 9R192153	£7.64	£9.17
61 - LEVER BDE-9R192157 9R192157	£7.64	£9.17
62 - SCREW BDE-9R192158.A0 9R192158	£3.70	£4.44
63 - SCREW BDE-9R192158.A1 9R192158	£3.70	£4.44
63 - STOP BDE-9R192159 9R192159	£10.57	£12.68
64 - IDENTITY LABEL BDE-FT71695-23 FT71695-23	£3.22	£3.86
65 - SCREW BDE-9R192163 9R192163	£3.70	£4.44
66 - HOUSING SA BDE-9R192164 9R192164	£78.12	£93.74
67 - ADJUSTER BLOCK BDE-9R192161 9R192161	-
68 - LEVER BDE-9R192160 9R192160	-
69 - PROTECTOR BDE-9R192166 9R192166	£5.72	£6.87
70 - NUT M4 BDE-9R192168 9R192168	£1.78	£2.13
71 - SCREW BDE-9R192169 9R192169	£3.70	£4.44
72 - SLEEVE BDE-9R192170 9R192170	£19.40	£23.28
73 - SCREW BDE-9R192171.A0 9R192171	£1.50	£1.80
74 - SCREW BDE-9R192175 9R192175	£1.78	£2.13
75 - MOUNT BDE-9R192176 9R192176	£2.71	£3.25
76 - ARM BDE-9R192177 9R192177	£2.71	£3.25
77 - WARNING LABEL BDE-FT71695-22 FT71695-22	£1.78	£2.13
78 - HANDLE SA BDE-9R192351 9R192351	£40.21	£48.25
79 - LABEL BDE-FT71695-11.A0 FT71695-11	£1.50	£1.80
80 - PRISM BDE-9R192178 9R192178	£5.72	£6.87
81 - BAR TIE BDE-9R192186 9R192186	£5.72	£6.87
82 - SPRING BDE-9R192185 9R192185	£2.71	£3.25
83 - PIN BDE-9R192187 9R192187	£2.71	£3.25
84 - SET OF LEAD WIRES BDE-9R192188 9R192188	-
85 - PLATE BDE-9R192220 9R192220	£2.71	£3.25
86 - SCREW BDE-9R192219 9R192219	-
87 - HOOK BDE-9R192218 9R192218	-
88 - LOCK-NUT BDE-9R192189.A0 9R192189	£1.82	£2.19
89 - RAIL BDE-9R192336 9R192336	£10.57	£12.68
90 - PLATE BDE-9R192338 9R192338	£7.64	£9.17
91 - SCREW BDE-9R192184 9R192184	£1.42	£1.70
92 - CONTROLLER BDE-9R192182-EU 9R192182-EU	-
93 - COVER BDE-9R192180 9R192180	£5.72	£6.87
94 - SPRING TORSION BDE-9R192179 9R192179	£2.71	£3.25
95 - SCREW BDE-9R192181 9R192181	£2.71	£3.25
96 - LATCH BDE-9R192193 9R192193	£2.71	£3.25
97 - ROLLPIN BDE-9R192194 9R192194	£1.78	£2.13
98 - SPRING BDE-9R192195 9R192195	£2.71	£3.25
99 - COVER BDE-9R192196 9R192196	£5.72	£6.87
100 - SCREW BDE-9R192214 9R192214	£1.78	£2.13
101 - BATTERY 7.2V - 1.4AH - 10WH GB BDE-9B12072R-EU 9B12072R-EU	-
102 - RUBBER STRIP BDE-9R192197 9R192197	£2.71	£3.25
103 - SPRING BDE-9R192202 9R192202	£2.71	£3.25
104 - LEVER SA BDE-9R192203 9R192203	-
105 - LEVER BDE-9R192200 9R192200	-
106 - PLATE BDE-9R192201 9R192201	£5.72	£6.87
107 - STOP BDE-9R192205 9R192205	-
108 - LEVER BDE-9R192192 9R192192	£10.57	£12.68
109 - ROLLPIN BDE-9R192206 9R192206	£4.58	£5.49
110 - SLEEVE BDE-9R192224 9R192224	£5.72	£6.87
111 - SPRING BDE-9R192207 9R192207	£2.71	£3.25
112 - SUPPORT BRACKET BDE-9R192339 9R192339	£5.72	£6.87
113 - LEAF SPRING BDE-9R192209 9R192209	£11.87	£14.24
114 - STOP BDE-9R192340 9R192340	£2.71	£3.25
115 - SPRING COMPRESSION BDE-9R192210 9R192210	-
116 - GUARD BDE-9R192216 9R192216	£11.87	£14.24
117 - SCREW BDE-9R192215 9R192215	£1.78	£2.13
118 - HANDLE BDE-9R192350 9R192350	-
119 - KNOB BDE-9R192398 9R192398	-
501 - CHARGER GB GB BDE-9B12073R-U 9B12073R-U	-
503 - CASE BDE-9R192225 9R192225	£72.28	£86.73
504 - HEX KEY 4 MM BDE-099056-06.A2 099056-06	£1.50	£1.80
505 - OIL BDE-SB-20CL.A1 SB-20CL	£18.91	£22.69

Attribute Name	Value
Brand	Bostitch
