Bostitch GBT1850K Type B Nailer Spare Parts

Home Details Reviews Delivery

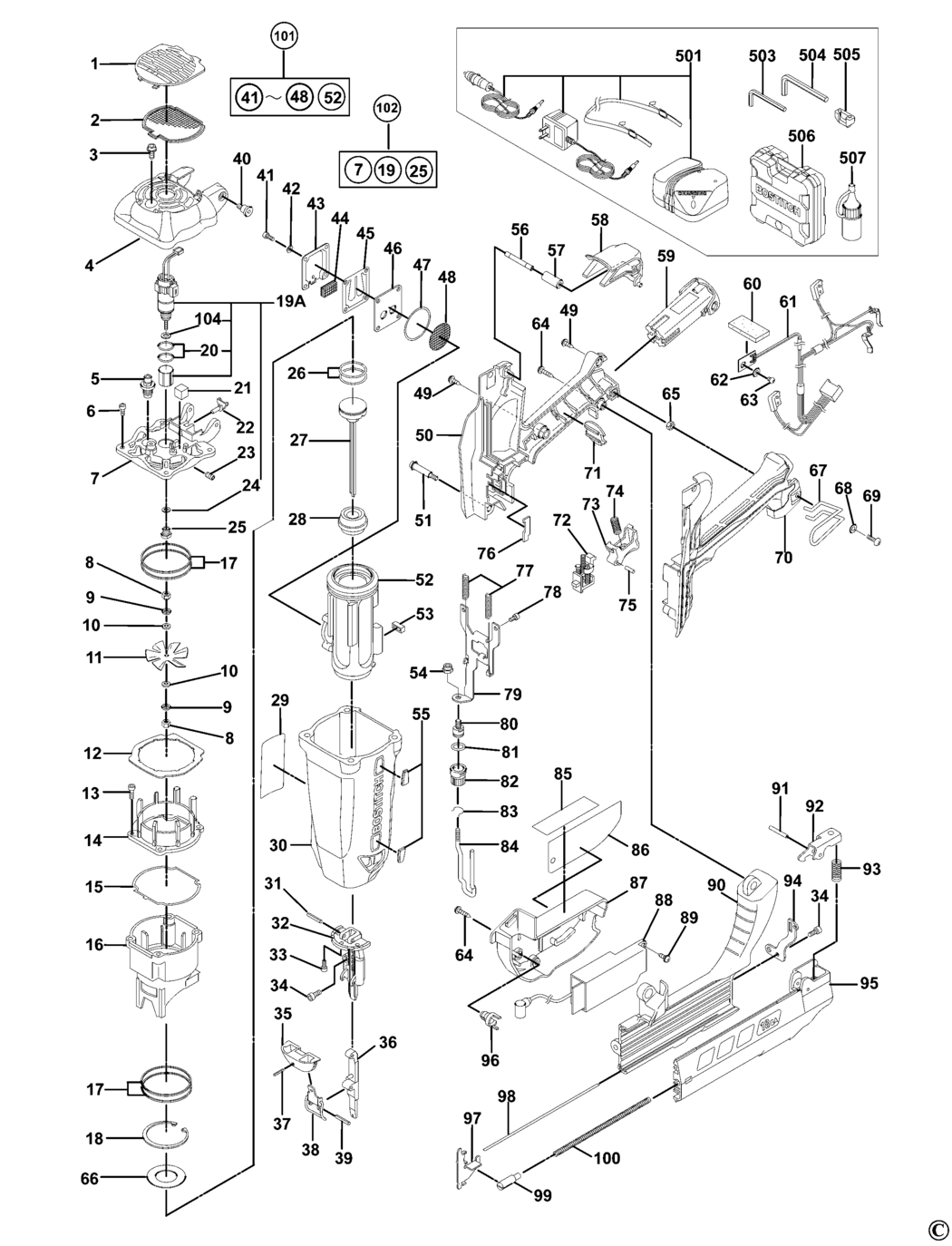

An exploded drawing and spare parts listing for the Bostitch GBT1850K Type B Nailer

	Ex VAT	Inc VAT
1 - COVER BDE-9R192230.A0 9R192230	£2.78	£3.34
2 - FILTER BDE-9R192231.A1 9R192231	£19.90	£23.88
3 - SCREW BDE-9R192232.A0 9R192232	£2.78	£3.34
4 - COVER-TOP BDE-9R192353.A1 9R192353	£7.18	£8.62
5 - SPARK PLUG BDE-9R192110.A1 9R192110	£5.88	£7.06
6 - NUT BDE-9R192235.A1 9R192235	-
7 - CYLINDER HEAD BDE-9R192236.A0 9R192236	£44.14	£52.97
8 - NUT BDE-9R192237.A1 9R192237	£3.30	£3.96
9 - WASHER SPRING BDE-9R192238.A0 9R192238	£3.30	£3.96
10 - WASHER BDE-9R192239.A1 9R192239	£3.30	£3.96
11 - FAN BDE-9R192240.A0 9R192240	£5.88	£7.06
12 - PLATE BDE-9R192241.A1 9R192241	-
13 - SCREW BDE-9R192118.A1 9R192118	£3.80	£4.56
14 - GUIDE SUPPORT BDE-9R192243.A0 9R192243	£17.48	£20.97
15 - GASKET BDE-9R192244.A1 9R192244	-
16 - HOUSING BDE-9R192245.A0 9R192245	£19.90	£23.88
17 - PISTON RING BDE-9R192246.A1 9R192246	-
18 - RING BDE-9R192247.A0 9R192247	£2.78	£3.34
19 - MOTOR SA & MOUNT BDE-9R192254.A1 9R192254	£126.63	£151.96
20 - O RING BDE-9R192331.A0 9R192331	£2.78	£3.34
21 - SPACER BDE-9R192248.A1 9R192248	£2.78	£3.34
22 - ADAPTOR BDE-9R192127.A1 9R192127	-
23 - GRUB SCREW BDE-9R192128.A1 9R192128	£1.82	£2.19
24 - WASHER BDE-9R192251.A0 9R192251	£2.78	£3.34
25 - COVER BDE-9R192252.A1 9R192252	£5.88	£7.06
26 - PISTON RING BDE-9R192265 9R192265	£9.41	£11.29
27 - PISTON BDE-9R192266 9R192266	£47.08	£56.49
28 - BUMPER BDE-9R192268 9R192268	£5.88	£7.06
29 - BRAND LABEL BDE-FT71695-15 FT71695-15	£1.42	£1.70
30 - HOUSING BDE-9R192259 9R192259	£25.70	£30.84
31 - PIN BDE-9R192167.A0 9R192167	£2.78	£3.34
32 - GUIDE BDE-9R192272 9R192272	£45.14	£54.17
33 - SCREW BDE-9R192262.A0 9R192262	£2.78	£3.34
34 - SCREW BDE-9R192291 9R192291	£1.82	£2.19
35 - COVER BDE-9R192204.A0 9R192204	£5.88	£7.06
36 - GUIDE BDE-9R192303 9R192303	£25.70	£30.84
37 - ROLLPIN BDE-9R192264.A1 9R192264	£2.78	£3.34
38 - LEVER LOCK BDE-9R192305 9R192305	£7.85	£9.42
39 - ROLLPIN BDE-9R192261.A2 9R192261	£2.78	£3.34
40 - BOLT BDE-9R192253.A0 9R192253	£2.78	£3.34
41 - SCREW BDE-9R192274.A0 9R192274	£2.78	£3.34
42 - SPRING BDE-9R192150.A2 9R192150	£2.78	£3.34
43 - COVER BDE-9R192276.A1 9R192276	£10.85	£13.02
44 - MUFFLER BDE-9R192277.A0 9R192277	£5.88	£7.06
45 - VALVE REED BDE-9R192278.A1 9R192278	£7.18	£8.62
46 - PLATE BDE-9R192279.A0 9R192279	£5.88	£7.06
47 - O RING BDE-9R192280.A1 9R192280	£2.78	£3.34
48 - GRILLE BDE-9R192281.A0 9R192281	£7.18	£8.62
49 - SCREW BDE-9R192267.A0 9R192267	£1.82	£2.19
50 - HANDLE BDE-9R192357.A0 9R192357	£17.48	£20.97
51 - SCREW BDE-9R192269.A0 9R192269	£2.78	£3.34
52 - CYLINDER BDE-9R192306 9R192306	-
53 - STOP RUBBER BDE-9R192270.A1 9R192270	-
54 - LOCK-NUT BDE-9R192189.A1 9R192189	£1.82	£2.19
55 - PROTECTOR BDE-9R192359.A0 9R192359	-
56 - PIN BDE-9R192282.A1 9R192282	-
57 - PIPE BDE-9R192283.A0 9R192283	-
58 - ACTUATOR BDE-9R192284.A1 9R192284	£5.88	£7.06
59 - BATTERY 3.6V - 1.5AH - 5.4WH GB BDE-9B12070R-EU.A1 9B12070R-EU	£125.16	£150.19
60 - SUPPORT BDE-9R192286.A0 9R192286	£2.78	£3.34
61 - SET OF LEAD WIRES BDE-9R192287.A1 9R192287	£71.44	£85.73
62 - WASHER BDE-9R192116.A1 9R192116	£1.82	£2.19
63 - SCREW BDE-9R192289.A0 9R192289	£1.82	£2.19
64 - SCREW BDE-9R192171.A1 9R192171	£1.50	£1.80
65 - LOCK NUT BDE-9R192290.A1 9R192290	£2.78	£3.34
66 - PLATE BDE-9R192348 9R192348	-
67 - HOOK BDE-9R192312.A1 9R192312	£9.41	£11.29
68 - WASHER BDE-9R192313.A0 9R192313	£2.78	£3.34
69 - SCREW BDE-9R192314.A1 9R192314	£2.78	£3.34
70 - HANDLE BDE-9R192358.A1 9R192358	£18.91	£22.69
71 - SUPPORT BDE-9R192292.A0 9R192292	£2.78	£3.34
72 - STOP BDE-9R192298.A0 9R192298	£7.85	£9.42
73 - TRIGGER BDE-9R192294.A0 9R192294	£2.78	£3.34
74 - SPRING BDE-9R192293.A1 9R192293	£2.78	£3.34
75 - PIN BDE-9R192295.A2 9R192295	£3.80	£4.56
76 - COVER BDE-9R192296.A0 9R192296	£2.78	£3.34
77 - SPRING BDE-9R192297.A1 9R192297	£2.78	£3.34
78 - SCREW BDE-9R192299 9R192299	£2.78	£3.34
79 - BRACKET BDE-9R192308 9R192308	£14.57	£17.48
80 - LEVER BDE-9R192301.A1 9R192301	£7.85	£9.42
81 - O RING BDE-9R192302.A0 9R192302	£1.82	£2.19
82 - ADJUSTER BDE-9R192309 9R192309	£5.88	£7.06
83 - SPRING BDE-9R192304.A0 9R192304	£2.78	£3.34
84 - LEVER BDE-9R192315 9R192315	£10.85	£13.02
85 - LABEL GB BDE-FT71695-50 FT71695-50	£1.42	£1.70
86 - WARNING LABEL GB BDE-FT71695-10.A1 FT71695-10	£1.42	£1.70
87 - COVER BDE-9R192332 9R192332	£10.85	£13.02
88 - CONTROLLER BDE-9R192322.A0 9R192322	£144.10	£172.92
89 - SCREW BDE-9R192323.A1 9R192323	£2.78	£3.34
90 - MAGAZINE BDE-9R192317 9R192317	£45.14	£54.17
91 - ROLLPIN BDE-9R192318 9R192318	£3.80	£4.56
92 - LEVER BDE-9R192334 9R192334	£2.78	£3.34
93 - SPRING BDE-9R192341 9R192341	£2.78	£3.34
94 - PLATE BDE-9R192342 9R192342	£5.88	£7.06
95 - COVER BDE-9R192343 9R192343	£30.08	£36.10
96 - PRISM BDE-9R192321.A1 9R192321	£2.78	£3.34
97 - PUSHER BDE-9R192344 9R192344	£2.78	£3.34
98 - PLATE BDE-9R192345 9R192345	£2.78	£3.34
99 - PIN BDE-9R192346 9R192346	£2.78	£3.34
100 - SPRING COMPRESSION BDE-9R192347 9R192347	£2.78	£3.34
101 - CYLINDER SA BDE-9R192387 9R192387	£126.63	£151.96
102 - CYLINDER HEAD BDE-9R192330.A1 9R192330	£174.63	£209.56
104 - WASHER BDE-9R192352.A0 9R192352	£1.50	£1.80
501 - CHARGER GB GB BDE-9B12071R-U.A0 9B12071R-U	£157.18	£188.61
504 - HEX KEY 4 MM BDE-099056-06.A3 099056-06	£1.50	£1.80
505 - FOOT BDE-9R192394 9R192394	£2.78	£3.34
506 - KIT BOX BDE-9R192366 9R192366	£51.90	£62.28
507 - OIL BDE-SB-20CL.A0 SB-20CL	£18.91	£22.69

Attribute Name	Value
Brand	Bostitch
